1. Вступ
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your POXURIO 1200W Airless Paint Sprayer, Model PT-03. Please read all instructions carefully before using the product to ensure proper function and safety.

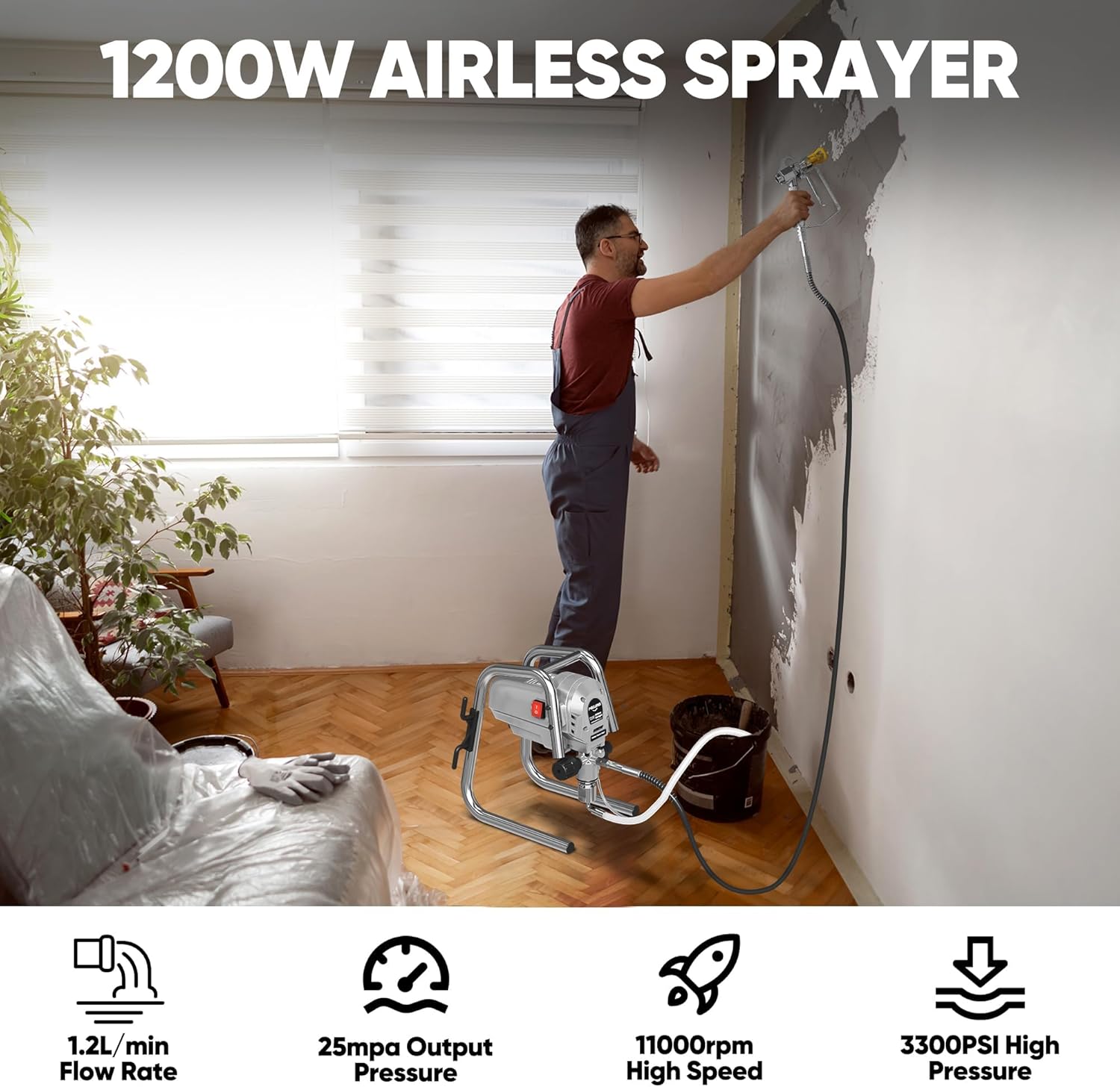

Image: The POXURIO 1200W Airless Sprayer in operation, demonstrating its use for painting interior walls. This image highlights the sprayer's efficiency and application in a home setting.
2. Інформація про безпеку
Ваша безпека понад усе. Завжди дотримуйтесь наступних правил безпеки:
- Always read and follow the safety instructions provided with the product.
- Тримайте обприскувач подалі від джерел тепла та відкритого вогню.
- Use in a well-ventilated area to prevent inhalation of fumes.
- Wear appropriate safety gear, including eye protection (safety glasses or goggles), respiratory protection (mask or respirator), and protective gloves.
- Keep the sprayer clean and dry when not in use to prevent corrosion and ensure longevity.
- Do not dispose of the sprayer in regular trash; follow local regulations for hazardous waste disposal.
- Ensure all connections are secure before operating the sprayer.
- Ніколи не направляйте пістолет-розпилювач на людей або тварин.
- Always depressurize the system before cleaning, checking, or servicing any part of the sprayer.
3. Компоненти продукту
Familiarize yourself with the various parts of your POXURIO Airless Paint Sprayer:
Image: Detailed diagram illustrating the various components of the POXURIO Airless Paint Sprayer. Key parts are numbered for easy identification, including the spray nozzle, extension pole, spray gun, portable handle, on/off switch, hose storage rack, pressure relief valve, pressure regulating valve, outlet, material cup, exhaust pipe, power cord, hose, and suction hose.
- 515 Spray Nozzle: For fine and even paint application.
- Подовжувач: Provides extended reach for high or distant areas.
- Пістолет-розпилювач: The primary tool for paint application.
- Портативна ручка: Для зручного транспортування агрегату.
- Вмикання/вимкнення: Controls the power to the sprayer.
- Hose Storage Rack: Keeps the high-pressure hose organized.
- Клапан скидання тиску: Releases pressure from the system.
- Регулювальний клапан тиску: Adjusts the spray pressure.
- Розетка: Місце підключення шланга високого тиску.
- Material Cup: Collects excess paint during operation or cleaning.
- Вихлопна труба: Part of the pump mechanism.
- Шнур живлення: Підключає пристрій до електричної розетки.
- Шланг: High-pressure hose connecting the sprayer to the gun.
- Всмоктувальний шланг: Черпає фарбу з ємності.
4. Налаштування
Виконайте такі кроки для початкового налаштування перед початком роботи:
- Розпакування: Carefully remove all components from the packaging. Verify that all parts listed in the 'Product Components' section are present.
- Позиціонування: Place the sprayer on a stable, level surface. Ensure adequate ventilation in your work area.
- Підключення всмоктувального шланга: Insert the suction hose (14) into your paint container. Ensure it is fully submerged in the paint.
- Підключення шланга високого тиску: Connect one end of the high-pressure hose (13) to the outlet (9) on the sprayer and the other end to the spray gun (3). Tighten all connections securely.
- Attach Spray Nozzle: Secure the 515 spray nozzle (1) to the spray gun. If using, attach the extension pole (2) between the spray gun and the nozzle.
- Підключення живлення: Plug the power cord (12) into a grounded electrical outlet.
Image: The POXURIO Airless Sprayer demonstrating the use of its 11.8-inch extension rod for reaching higher areas, such as painting a stable wall. This illustrates the versatility of the sprayer for various applications.
5. Інструкція з експлуатації
Operating your airless paint sprayer involves priming, spraying, and adjusting for optimal results.
5.1 Заправка обприскувача
- Ensure the suction hose is in the paint.
- Turn the pressure regulating valve (8) to the lowest setting.
- Place the spray gun into a waste bucket (without the nozzle attached).
- Turn the On/Off switch (5) to 'On'.
- Wait for paint to flow smoothly from the spray gun. This indicates the system is primed.
- Turn the On/Off switch to 'Off' once primed.
5.2 Техніка обприскування
- Attach the desired spray nozzle (1) to the spray gun.
- Adjust the pressure regulating valve (8) to the recommended setting for your paint type. Start with a lower pressure and gradually increase until you achieve a consistent spray pattern.
- Тримайте розпилювач перпендикулярно до поверхні, приблизно на відстані 10-12 см.
- Begin spraying by moving your arm, then pulling the trigger. Release the trigger before stopping your arm movement. This prevents paint buildup at the start and end of each pass.
- Перекривайте кожен прохід приблизно на 50%, щоб забезпечити рівномірне покриття.
Зображення: Крупний план view of the POXURIO Airless Sprayer gun producing a fine, even spray pattern on a wooden surface. This image emphasizes the precision and quality of the spray effect achievable with the device.
5.3 Using the Extension Rod
The 12-inch extension pole (2) allows you to reach high ceilings, walls, or other inaccessible areas without needing a ladder. Simply attach it between the spray gun and the nozzle. Ensure it is securely fastened before operation.
Image: A person using the POXURIO Airless Sprayer with its 31ft high-pressure pipe to paint a roof. This demonstrates the extended reach and flexibility provided by the long hose for large or elevated projects.
5.4 Video Guide: Operation Overview
Video: An instructional video providing an overview of the POXURIO Airless Paint Sprayer's operation. This video covers basic usage and functionality, offering a visual guide to complement the written instructions.
6. Технічне обслуговування
Proper maintenance ensures the longevity and performance of your sprayer.
6.1 Очищення після використання
- Зниження тиску: Always turn off the sprayer and release pressure by pointing the gun into a waste bucket and pulling the trigger until no more paint sprays out.
- Система змиву: Remove the suction hose from the paint and place it into a bucket of appropriate cleaning solution (water for latex paint, mineral spirits for oil-based paint).
- Circulate Cleaner: Turn the sprayer on and spray the cleaning solution through the gun into a waste bucket until the liquid runs clear.
- Clean Nozzle and Filter: Remove the spray nozzle and any filters. Clean them thoroughly with a brush and cleaning solution.
- Витерти: Wipe the exterior of the sprayer and gun with a damp тканина.
6.2 Зберігання
- After cleaning, ensure the sprayer is completely dry.
- Store the sprayer in a cool, dry place, away from direct sunlight and extreme temperatures.
- Coil the high-pressure hose neatly on the hose storage rack (6).
- For long-term storage, consider adding a pump protector fluid to the system to prevent corrosion.
Video: A detailed video guide on cleaning and maintaining the POXURIO Airless Paint Sprayer. This visual instruction helps users understand the proper steps for post-use care to ensure the sprayer's longevity and optimal performance.
7. Вирішення проблем
Зверніться до цього розділу, щоб дізнатися про поширені проблеми та їх вирішення:
| проблема | Можлива причина | Рішення |
|---|---|---|
| Немає розпилення або слабке розпилення | Clogged nozzle; insufficient paint; air in system; low pressure setting. | Clean or replace nozzle; ensure sufficient paint in container; prime the system; increase pressure setting. |
| Нерівномірний візерунок розпилення | Worn or incorrect nozzle; improper pressure; paint too thick. | Replace nozzle; adjust pressure; thin paint if necessary (refer to paint manufacturer guidelines). |
| Обприскувач не вмикається | No power; faulty switch; tripped circuit breaker. | Check power connection; inspect switch; reset circuit breaker. |
| Витік через з'єднання | Loose connections; worn seals/O-rings. | Tighten all connections; inspect and replace worn seals/O-rings. |
8. Технічні характеристики
Key technical specifications for the POXURIO 1200W Airless Paint Sprayer, Model PT-03:
- Бренд: ПОКСУРІО
- Назва моделі: PT-03 (Airless Paint Sprayer)
- Джерело живлення: AC (1200W Motor)
- Максимальний тиск: 3300 PSI
- Швидкість потоку: 1.2 л/хв
- Довжина шланга: 31 футів
- Подовжувач: 12 inches (included)
- Включені компоненти: Hose, Nozzle (515 type)
- матеріал: Пластик, Метал
- Розміри продукту: 11.42 см (Ш) x 11.81 см (В)
- Вага товару: 16.5 lbs (unit only), 21.4 lbs (shipping weight)
- Рекомендоване використання: Painting (Home interior/exterior, furniture, fences, decks, garage)

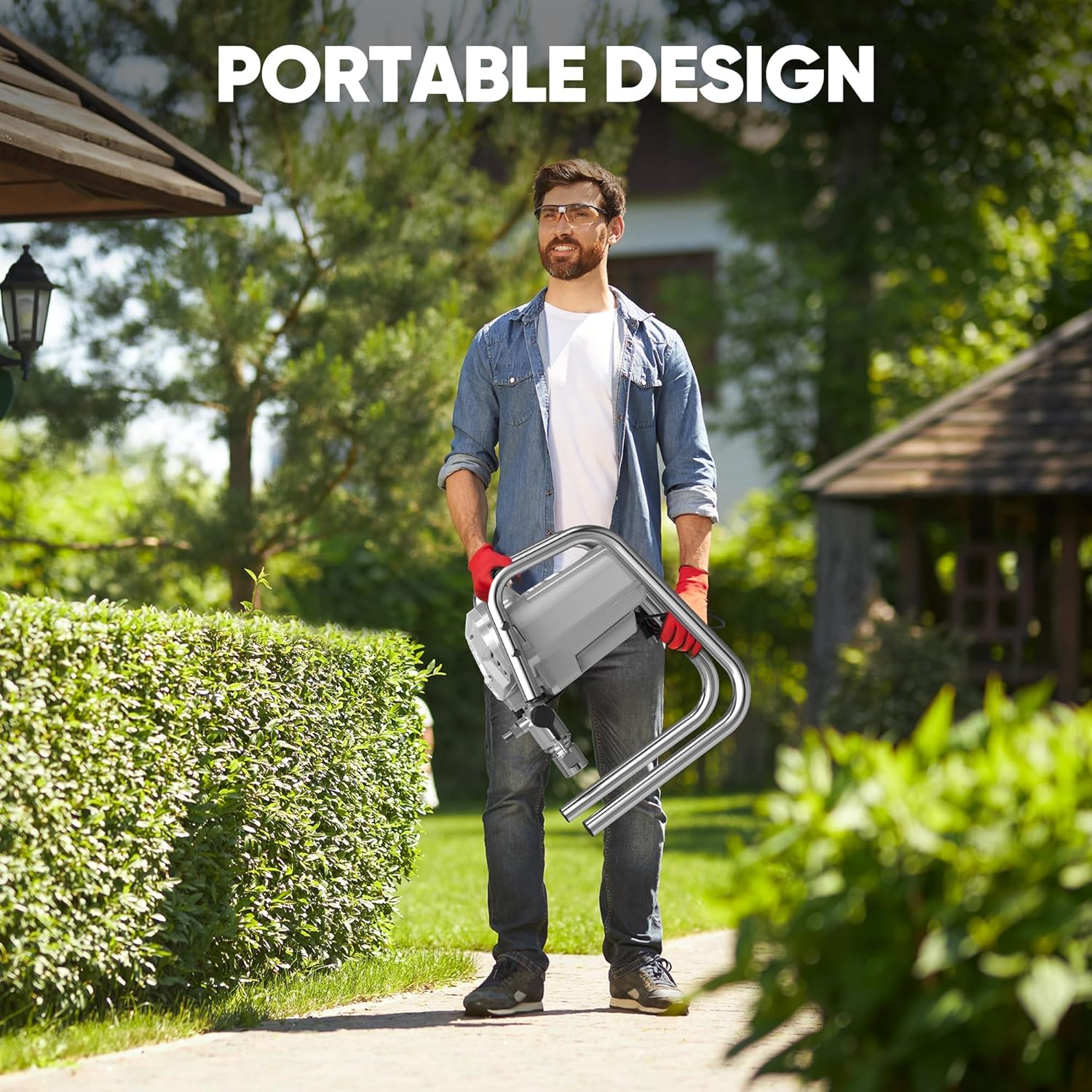

Image: A person carrying the POXURIO Airless Sprayer, highlighting its portable design. The compact size and integrated handle make it easy to transport for various painting projects.

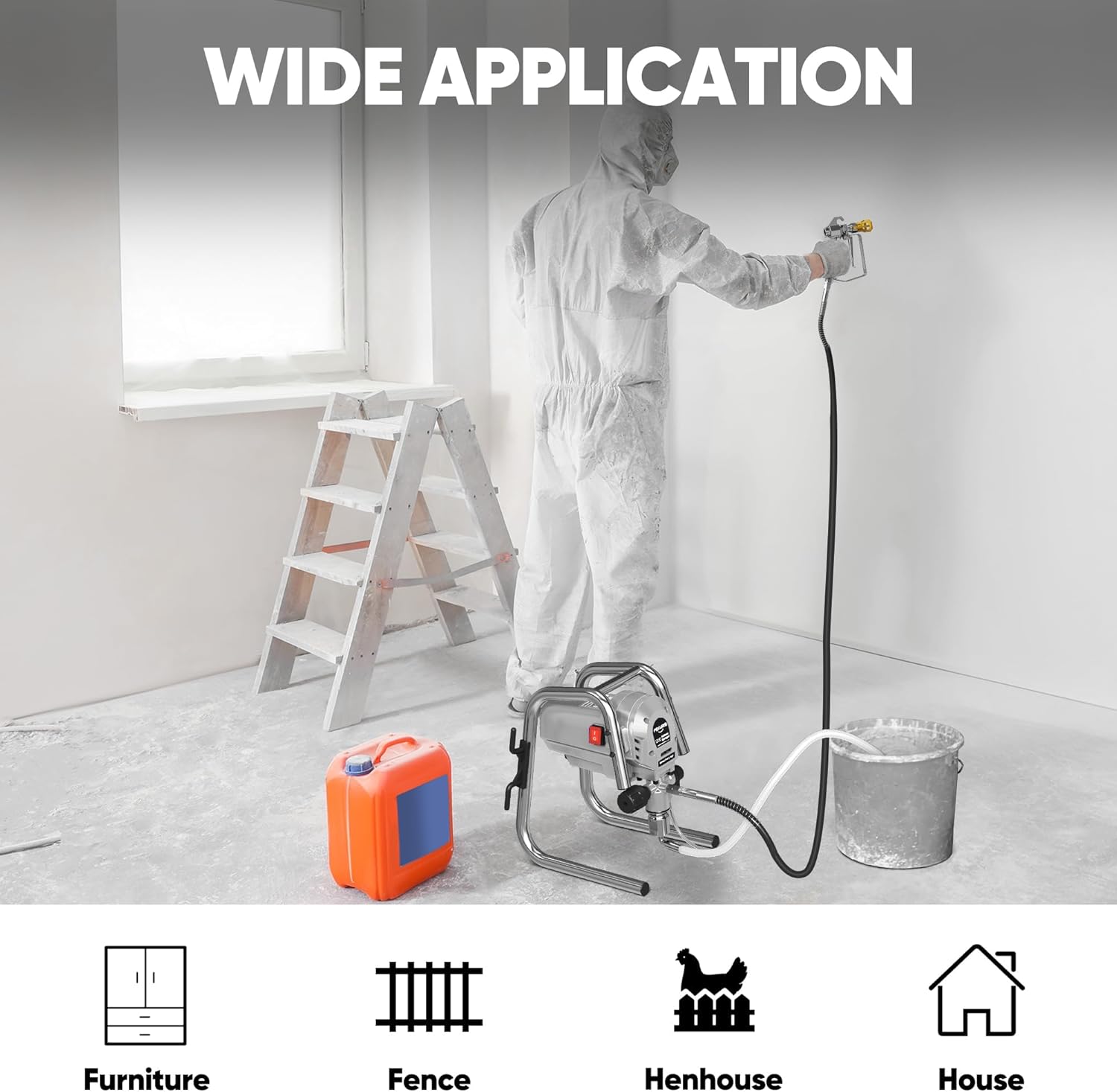

Image: The POXURIO Airless Sprayer being used in a room, illustrating its wide range of applications including furniture, fences, hen houses, and general house painting. This image emphasizes the versatility of the product for various painting tasks.
9. Гарантія та підтримка
POXURIO offers a Гарантія 1 рік for this airless paint sprayer. This warranty covers manufacturing defects and ensures your product performs as expected under normal use.
For any issues, questions, or warranty claims, please contact POXURIO customer support. Refer to the product packaging or the official POXURIO webсайт для отримання найактуальнішої контактної інформації.
