BLACK+DECKER BXICHCP2BFZ 2-Burner Full Zone Induction Cooktop User Manual

1. Вступ і даліview

This manual provides essential information for the safe and efficient operation of your BLACK+DECKER BXICHCP2BFZ 2-Burner Full Zone Induction Cooktop. This built-in induction cooktop features two cooking zones, a Full Zone expanded induction area, Power Booster function, digital display, ceramic glass surface, and a safety lock. Please read these instructions thoroughly before installation and use, and retain them for future reference.

2. Важливі інструкції з техніки безпеки

Щоб зменшити ризик пожежі, ураження електричним струмом, травмування людей або пошкодження майна під час використання варильної поверхні, дотримуйтесь основних запобіжних заходів, зокрема таких:

• Електрична безпека: Ensure the cooktop is connected to a properly grounded 220V electrical outlet. Do not use extension cords or adapters. Disconnect power before servicing.
• Відповідний посуд: Only use induction-compatible cookware with a flat bottom. Non-magnetic cookware will not heat.
• Температура поверхні: The cooktop surface may remain hot after use. УВАГА: ГАРЯЧА ПОВЕРХНЯ. Avoid touching the hot surface until it has cooled down.
• Вентиляція: Ensure adequate ventilation around the cooktop as specified in the installation instructions. Do not block air vents.
• Легкозаймисті матеріали: Keep flammable materials (e.g., aerosols, cleaning products, cloths) away from the cooktop during operation and when it is hot.
• Безпека дітей: Activate the child safety lock to prevent accidental operation by children. Do not allow children to operate or play near the cooktop.
• Прибирання: Always turn off the cooktop and allow it to cool before cleaning.
• Ремонт: Do not attempt to repair or replace any part of the cooktop unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.

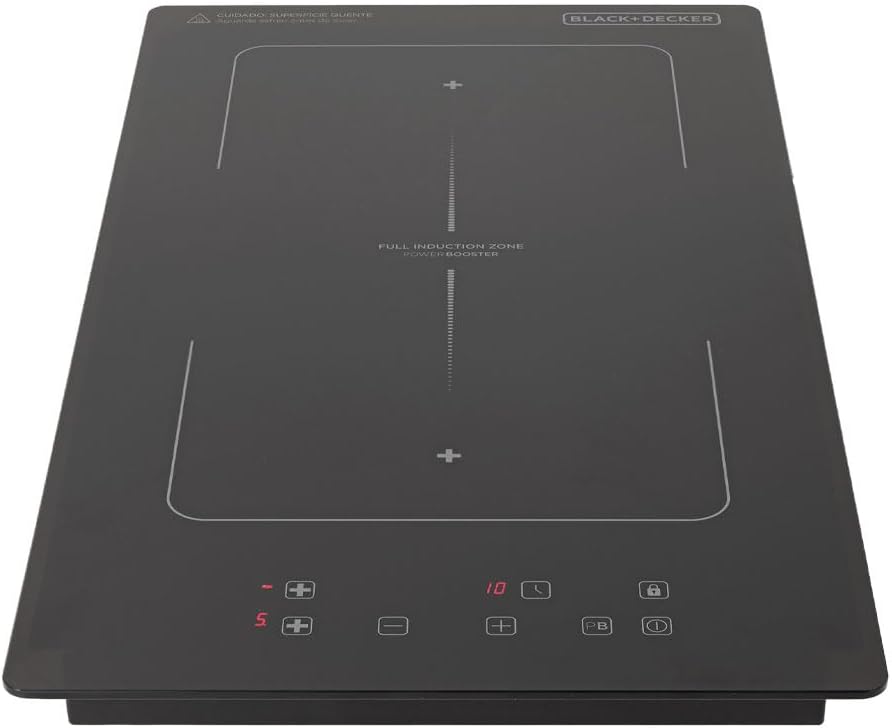

3. Компоненти продукту та іншеview

Your BLACK+DECKER induction cooktop consists of the main unit, an installation kit, and this user manual. Familiarize yourself with the cooktop's layout and controls.

Функції панелі керування:

• Цифровий дисплей: Shows power levels, timer settings, and error codes.
• Power Level Controls (+/-): Adjusts heating intensity for each zone.
• Power Booster (PB): Temporarily increases power to a cooking zone for rapid heating.
• Функція таймера: Встановлює тривалість приготування.
• Замок безпеки для дітей: Locks the control panel to prevent unintended operation.
• Кнопка ввімкнення/вимкнення: Вмикає або вимикає варильну поверхню.
• Full Zone Indicator: Indicates the expanded induction area for larger cookware.

4. Налаштування та встановлення

The BLACK+DECKER BXICHCP2BFZ is a built-in cooktop designed for integration into a countertop. Professional installation is recommended to ensure proper electrical connection and ventilation.

4.1. Перевірки перед установкою:

• Verify that the electrical supply matches the cooktop's requirements (220V).
• Ensure the countertop cut-out dimensions are accurate.
• Confirm sufficient clearance for ventilation beneath and around the cooktop.

4.2. Етапи встановлення:

1. Prepare the countertop opening according to the specified cut-out dimensions: 27 cm (width) x 49 cm (depth) x 5.5 cm (height).
2. Carefully place the cooktop into the prepared opening. Ensure it sits flush with the countertop.
3. Secure the cooktop using the provided installation clips or brackets from the installation kit.
4. Connect the cooktop to the dedicated 220V electrical circuit. This connection should be performed by a qualified electrician.
5. After installation, clean the ceramic glass surface with a damp тканиною, щоб видалити будь-який пил або сміття.

5. Інструкція з експлуатації

This section details how to use your induction cooktop for various cooking tasks.

5.1. Cookware Compatibility:

Induction cooktops require cookware made of ferromagnetic material (e.g., cast iron, magnetic stainless steel). To check compatibility, hold a magnet to the bottom of your pot or pan; if it sticks, the cookware is suitable for induction.

5.2. Основна операція:

1. Увімкнення: Touch the On/Off button (ⓘ) to activate the cooktop. The digital display will light up.
2. Виберіть зону приготування: Place an induction-compatible pot or pan on the desired cooking zone. Touch the corresponding zone selection button (if applicable, or simply place the pan and the cooktop will detect it).
3. Регулювання рівня потужності: Use the '+' and '-' buttons to set the desired heating power level (typically from 1 to 9). The selected power level will be shown on the digital display.
4. Power Booster (PB): For rapid heating, select a cooking zone and then touch the 'PB' button. This will temporarily increase the power to the maximum level. The booster function will automatically deactivate after a set period or when manually turned off.
5. Full Zone Function: The cooktop features an expanded induction area (Full Zone) between the two main burners. This allows for the use of larger or elongated cookware, such as grill plates. Place the cookware over the designated Full Zone area, and the cooktop will automatically adjust.
6. Функція таймера: To set a cooking timer, select the desired cooking zone, then touch the timer button (⏱). Use the '+' and '-' buttons to adjust the cooking duration. The cooktop will automatically turn off the selected zone when the timer expires.
7. Замок безпеки для дітей: To activate the child safety lock, touch and hold the lock button (🔒) for a few seconds. The cooktop controls will be disabled. To deactivate, touch and hold the lock button again.
8. Вимкнення живлення: Touch the On/Off button (ⓘ) to turn off the entire cooktop. Individual zones can also be turned off by reducing their power level to '0'.

6. Очищення та технічне обслуговування

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your cooktop.

• Перед очищенням: Always ensure the cooktop is turned off and has completely cooled down.
• Керамічна склокерамічна поверхня: Wipe the ceramic glass surface with a soft cloth and a mild detergent or a specialized ceramic cooktop cleaner. For stubborn stains, use a ceramic scraper designed for cooktops. Rinse with a damp тканиною та ретельно висушіть, щоб уникнути плям від води.
• Уникайте абразивів: Do not use abrasive sponges, scouring pads, or harsh chemical cleaners, as these can scratch or damage the ceramic glass surface.
• Панель керування: Протріть сенсорну панель керування м’якою ганчіркоюamp тканиною. Переконайтеся, що волога не потрапляє в зону керування.
• Розливи: Clean up spills immediately, especially sugary liquids, to prevent them from hardening and potentially damaging the surface.

7. Вирішення проблем

If you encounter issues with your cooktop, refer to the following common problems and solutions before contacting customer support.

Якщо у вас проблеми, не перелічені тут, або якщо рішення не допомогли вирішити проблему, зверніться до служби підтримки клієнтів BLACK+DECKER.

8. Технічні характеристики

9. Гарантія та підтримка

This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for detailed terms and conditions, including warranty period and coverage.

For technical assistance, spare parts, or service inquiries, please contact BLACK+DECKER customer support. Contact information can typically be found on the manufacturer's webсайті або в документації, що додається до вашого приладу.
