Garvee PHK_35L9ZGV8

Інструкція з експлуатації стійки для програвача платівок Garvee PHK_35L9ZGV8

Model: PHK_35L9ZGV8 | Brand: Garvee

вступ

Thank you for choosing the Garvee PHK_35L9ZGV8 Record Player Stand. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new record player stand. Please read it thoroughly before beginning assembly or use.

Інформація про безпеку

  • Перед складанням переконайтеся, що всі деталі в наявності та непошкоджені.
  • Збирайте на м’якій, чистій поверхні, щоб запобігти подряпинам.
  • Не перетягуйте гвинти під час складання.
  • Place the stand on a level surface to prevent tipping.
  • Не перевищуйте вантажопідйомність полиць.
  • Keep electrical components (charging station, LED lights) away from liquids.
  • Use the included anti-tipping parts to secure the stand to a wall, especially in households with children or pets.

Вміст упаковки

Будь ласка, перевірте, чи всі компоненти входять до вашої упаковки:

  • Wooden panels (various sizes)
  • Solid wood legs
  • Sliding door mechanism
  • Charging station (2 AC outlets, 2 USB ports, 4.9 ft power cord)
  • Світлодіодна стрічка RGB
  • Комплект кріпильних елементів (гвинти, дюбелі, замки з ексцентриком тощо)
  • Фурнітура проти перекидання
  • Інструкція по збірці

Налаштування та збірка

Follow these steps for proper assembly. It is recommended to have two people for assembly.

  1. Розпакуйте та визначте деталі: Carefully remove all components from the packaging. Lay them out on a soft, clean surface to prevent damage. Refer to the parts list in your separate assembly guide to identify each piece.
  2. Зберіть основну раму: Connect the side panels to the base and top panels using the provided hardware (dowels, cam locks, screws). Ensure all connections are secure.
  3. Install Internal Shelves: Insert the fixed and adjustable shelves into their designated slots. The record storage dividers should be placed in the lower compartments.
  4. Прикріпіть ніжки: Securely attach the solid wood legs to the bottom of the stand using the provided screws.
  5. Встановлення розсувних дверей: Mount the sliding door onto its track. Ensure it glides smoothly.
  6. Інтегрована зарядна станція: Place the charging station into its designated cutout on the top surface. Route the power cord through the cable management hole at the back.
  7. Apply LED Lights: Adhere the RGB LED light strip to the interior of the shelves as desired. Connect the power supply and controller.
  8. Secure with Anti-Tipping Kit: For safety, attach the anti-tipping hardware to the back of the stand and secure it to a wall stud.
Garvee Record Player Stand assembled with a record player, speakers, and vinyl records

Figure 1: Fully assembled Garvee Record Player Stand.

Diagram showing product dimensions of the Garvee Record Player Stand

Figure 2: Detailed product dimensions for placement planning.

Інструкція з експлуатації

Використання зарядної станції

The integrated charging station provides convenient power access for your devices.

  • Plug the stand's main power cord into a standard 120V AC wall outlet.
  • Use the 2 AC outlets (125V/12A) for your record player, speakers, or other small appliances.
  • Utilize the 2 USB ports (5V/2.1A) to charge smartphones, tablets, or other USB-powered devices.
  • Ensure devices are compatible with the provided power specifications.
Close-up of the integrated charging station with AC outlets and USB ports

Figure 3: Charging station with 2 AC outlets and 2 USB ports.

Controlling LED Ambient Lighting

The RGB LED lights offer customizable ambiance for your listening experience.

  • The LED lights can be controlled via a dedicated button or a smartphone application.
  • Refer to the separate LED light instruction sheet for detailed app pairing and control functions (color selection, brightness adjustment, dynamic modes).
Garvee Record Player Stand with LED lights illuminating vinyl records in purple

Figure 4: LED ambient lighting in operation.

Vinyl Record Storage

The stand is designed to store up to 350 vinyl albums. Utilize the dedicated compartments and the sliding door for organized access.

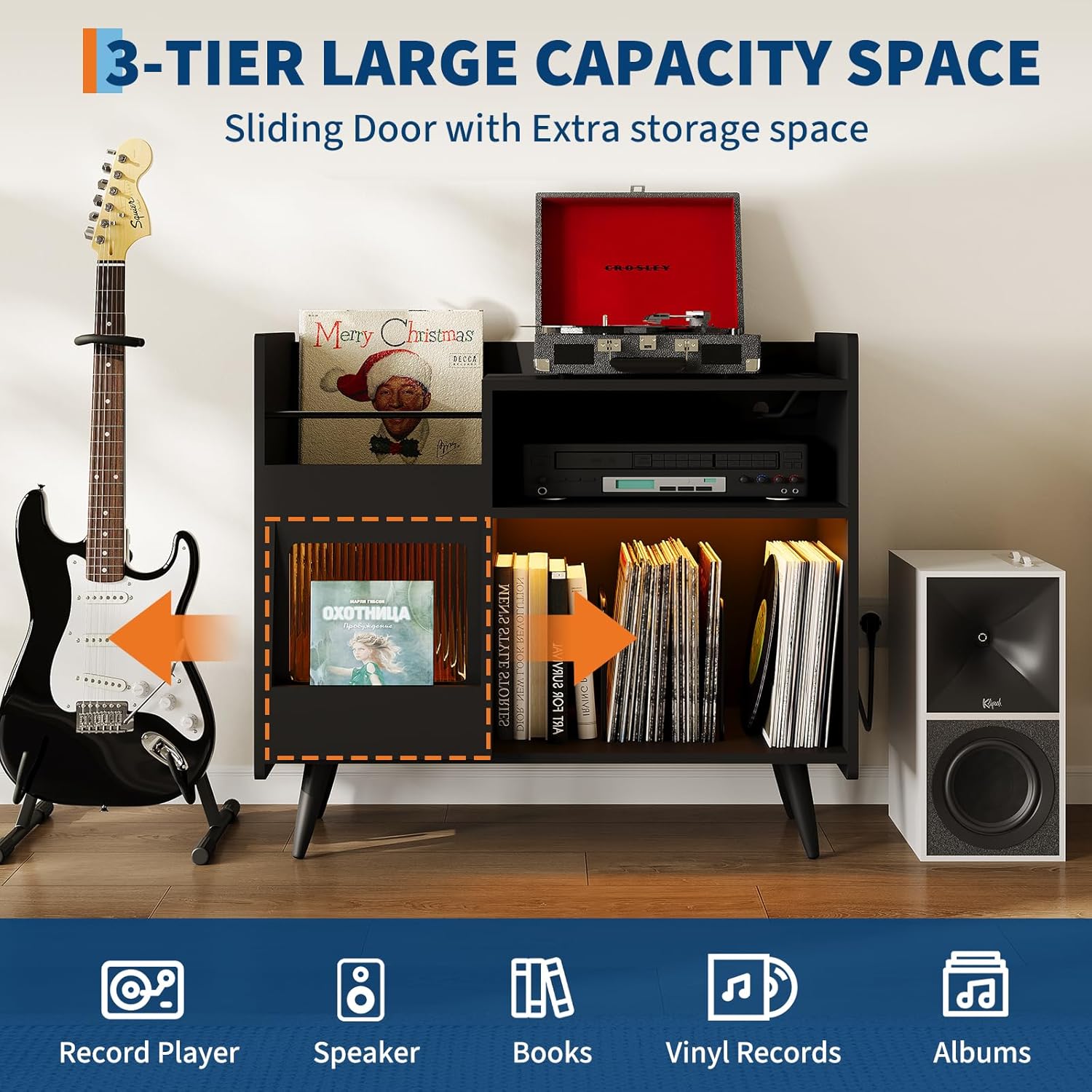

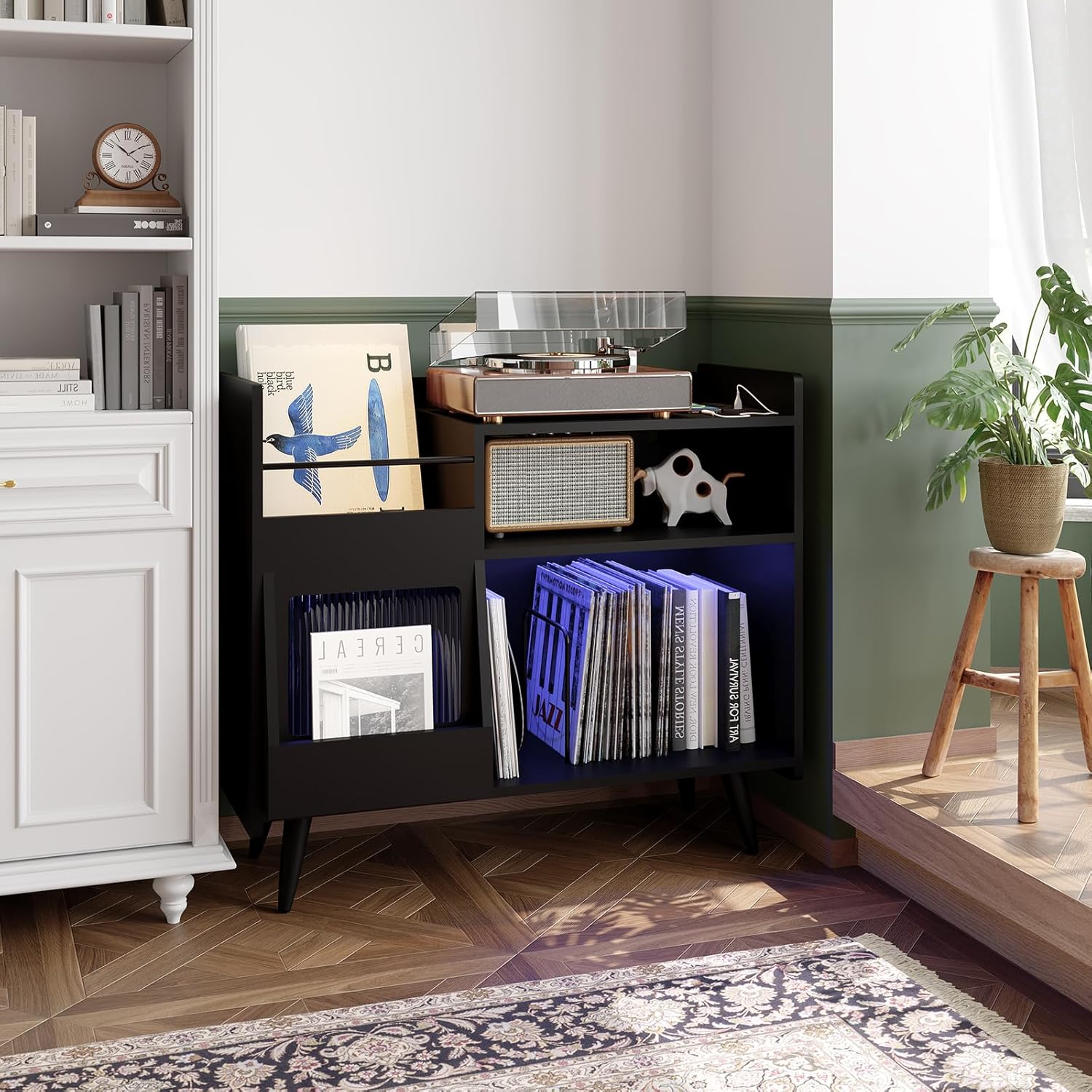

Garvee Record Player Stand showing various storage compartments for records, books, and a record player

Figure 5: Storage capacity for vinyl records and other media.

Технічне обслуговування

  • Прибирання: Протріть поверхні м’якою, damp тканиною. Уникайте використання агресивних хімічних речовин або абразивних засобів для чищення, які можуть пошкодити покриття.
  • Витирання пилу: Regularly dust the stand to prevent accumulation, especially around electronic components.
  • Електрична безпека: Periodically inspect the power cord and charging station for any signs of wear or damage. Discontinue use if damage is found and contact customer support.
  • Перевірка стабільності: Періодично перевіряйте всі гвинти та з'єднання, щоб переконатися, що вони міцно затягнуті. За потреби підтягніть.

Усунення несправностей

проблемаМожлива причинаРішення
Підставка хитається.Нещільні з'єднання; нерівна підлога.Check and tighten all screws. Ensure the stand is on a level surface. Adjust leg levelers if applicable.
Зарядна станція не працює.Not plugged in; tripped circuit breaker; faulty device.Ensure the stand's power cord is securely plugged into a working outlet. Check your home's circuit breaker. Test with a different device.
LED lights not illuminating.Loose connection; power issue; remote/app issue.Check LED strip connections and power supply. Ensure the charging station is powered. Refer to the LED light manual for remote/app troubleshooting.
Sliding door sticks.Debris in track; misaligned.Clean the sliding track. Gently adjust the door to ensure proper alignment.

Технічні характеристики

  • Назва моделі: PHK_35L9ZGV8
  • Бренд: Гарві
  • Розміри продукту: 33.46" Г x 14.17" Ш x 29.53" В
  • Вага товару: 47.4 фунта
  • матеріал: Інженерна деревина
  • колір: чорний
  • Кількість полиць: 3
  • Особливості: Integrated Charging Station (2 AC outlets, 2 USB ports, 4.9 ft power cord), RGB LED Lights, Sliding Door, Vinyl Record Storage
  • Необхідна збірка: так
  • Включені компоненти: Caster (Note: While 'Caster' is listed in specifications, product images show fixed legs. Please verify upon receipt.)
  • UPC: 199809835651

Гарантія та підтримка

Гарантія: The product specifications indicate "Warranty Description: No." Please refer to your retailer's return policy for details on returns or exchanges.

Підтримка клієнтів: For any questions regarding assembly, missing parts, or product functionality, please contact Garvee customer service through the retailer's platform or the contact information provided with your purchase.
