1. Продукт закінчивсяview
This manual provides essential information for the safe assembly, operation, and maintenance of your Intex 26769EH Prism Frame Clearview Rectangular Above Ground Swimming Pool Set. Please read all instructions carefully before setup and retain this manual for future reference.
The Intex Prism Frame Clearview pool offers a unique swimming experience with its integrated vertical windows, allowing for underwater visibility. It features a robust frame structure and a durable liner designed for extended use.
Ключові характеристики:
- ясноview Windows: Elegant vertical windows provide captivating underwater views.
- Міцна конструкція: Features powder-coated metal frames and a 3-ply material liner for stability and strength.
- Простота складання: Designed for quick setup, ready for water in approximately 45 minutes after ground preparation.
- Puncture-Resistant Liner: Made with 3-Ply PVC material to resist wear and tear. A patch is included for minor repairs.
- Рама, стійка до іржі: Composite T-Joints create a water-tight seal, preventing internal rust and ensuring long service life.
- Krystal Clear Filtration: Includes a 1500 GPH cartridge filter pump with HydroAeration Technology for improved circulation, filtration, and water clarity.

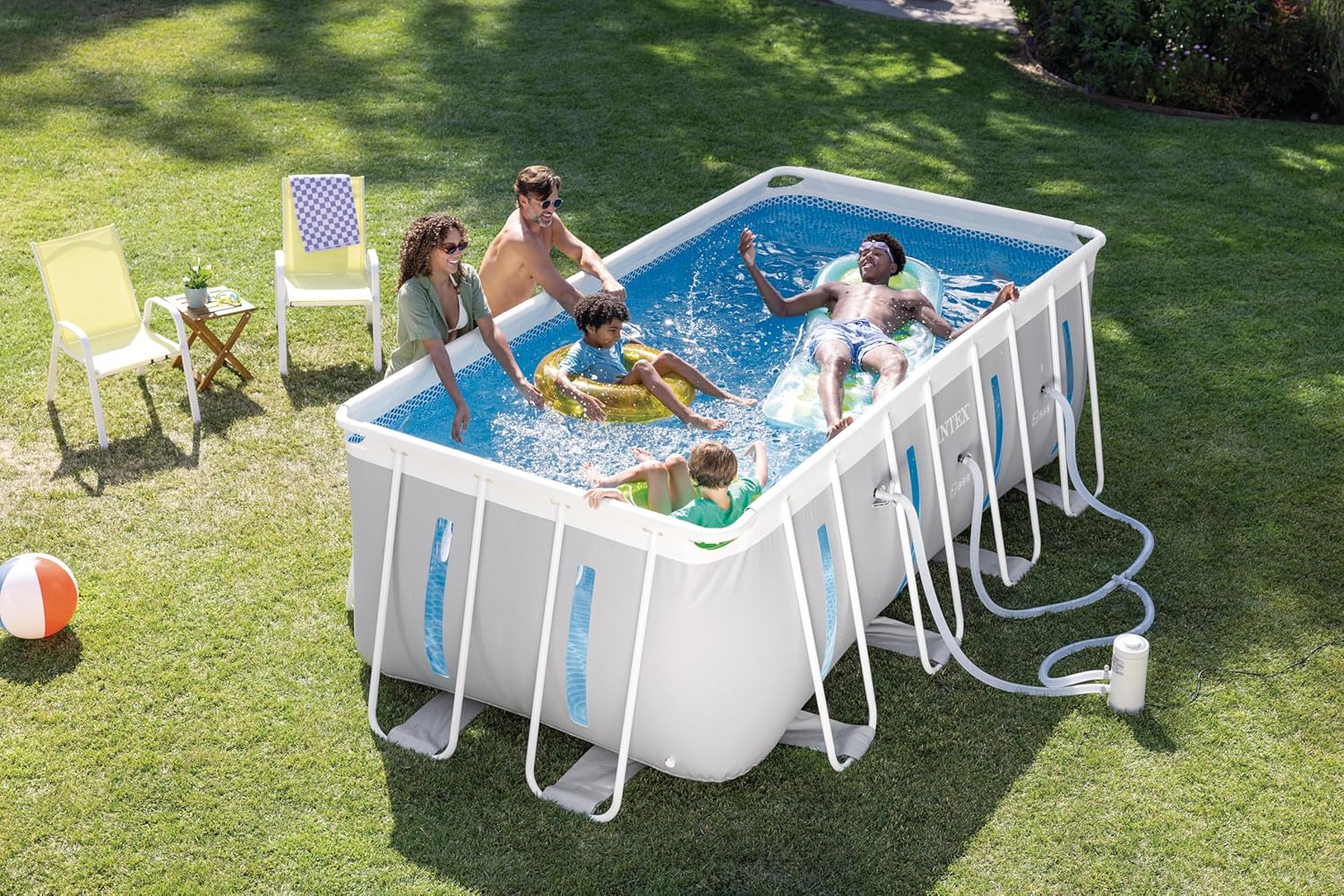

Image 1.1: The Intex Prism Frame Clearview Rectangular Pool set up in a backyard, showcasing its design and clear windows.
2. Важливі інструкції з техніки безпеки
Failure to follow these instructions can result in serious injury or death. Always ensure proper supervision and adherence to all safety guidelines.
- Нагляд дорослих: Constant and competent adult supervision is required at all times. Never leave children unattended in or near the pool.
- No Diving or Jumping: This is an above-ground pool. Do not dive or jump into the pool, as this can lead to serious injury, paralysis, or death.
- Pool Barrier: Install fencing or approved barriers around the pool to prevent unsupervised access by children. Check local regulations for barrier requirements.
- Електрична безпека: Keep all electrical cords, including the pump's, away from the pool area. Ensure the pump is connected to a Ground Fault Circuit Interrupter (GFCI) outlet.
- Хімічна обробка: Store pool chemicals safely, out of reach of children and pets. Follow manufacturer instructions for chemical dosage and application.
- Готовність до надзвичайних ситуацій: Keep emergency equipment, such as a life ring or rescue pole, readily accessible. Have a phone nearby to call for help in an emergency.
- Clear Pool Area: Ensure the area around the pool is clear of obstacles and tripping hazards.
- Вага: Do not exceed the recommended number of occupants or weight capacity for the pool.
3. Вміст упаковки
Verify that all components listed below are present and undamaged before beginning assembly. If any parts are missing or damaged, contact Intex customer service.
- Pool Liner with Clearview вікна
- Powder-Coated Steel Frame Components (Horizontal Beams, Vertical Legs, T-Joints)
- Krystal Clear Cartridge Filter Pump (1500 GPH)
- Грунтова тканина
- Кришка басейну
- Сходи безпеки
- Інструкція з експлуатації
- Набір латок для ремонту

Зображення 3.1: закінченоview of the main components included in your pool set.
4. Налаштування та складання
Proper site preparation and careful assembly are crucial for the stability and longevity of your pool.
4.1 Підготовка місця
- Виберіть рівне розташування: Select a firm, level area in your yard. The ground must be completely flat to prevent uneven water distribution and stress on the pool structure.
- Очистити територію: Remove all sharp objects, debris, rocks, and roots from the chosen site.
- Install Ground Cloth: Spread the included ground cloth over the prepared area. This protects the bottom of the pool liner from punctures.
4.2 Збірка рами
- Розгорніть вкладиш: Carefully unfold the pool liner onto the ground cloth, ensuring the clear windows are positioned as desired.
- Збірка горизонтальних балок: Connect the horizontal beams using the composite T-Joints. Ensure all connections are secure.
- Прикріпіть вертикальні ніжки: Insert the vertical support legs into the T-Joints and the corresponding slots on the pool liner.
- Безпечна рамка: Ensure all frame components are fully engaged and locked into place. The powder-coated steel tubing provides enhanced support.
- Smooth Liner: Once the frame is assembled, gently pull the liner outwards to remove any wrinkles from the bottom.

Image 4.1: A family engaged in the assembly process of the pool frame.
Video 4.2: An official Intex video demonstrating the features and setup of the Prism Frame Clearview Rectangular Pool.
5. Експлуатація вашого басейну
5.1 Наповнення басейну
- Початкове заповнення: Begin filling the pool with water. As the water level rises, continue to smooth out any remaining wrinkles in the liner bottom.
- Перевірте наявність витоків: Monitor for any leaks during the initial filling process. If leaks are detected, stop filling and address the issue.
- Fill to Recommended Level: Fill the pool to the water line indicated on the liner or to approximately 6 inches (15 cm) below the top edge of the pool.
5.2 Робота фільтрувального насоса
The included Krystal Clear Cartridge Filter Pump is essential for maintaining water clarity and hygiene.
- Підключити насос: Follow the separate pump instruction manual for connecting the hoses and electrical supply. Ensure all connections are tight.
- Прокачний насос: Before starting, ensure the pump is primed according to its specific instructions to remove air from the system.
- Щоденна робота: Run the filter pump for a minimum of 4-6 hours daily to ensure adequate water circulation and filtration. The exact duration may vary based on usage and environmental conditions.
- Технологія гідроаерації: The pump incorporates HydroAeration Technology, which enhances water quality by improving circulation and increasing негативних іонів.

Image 5.1: The filter pump connected and operating, ensuring clean pool water.
6. Pool Maintenance
Regular maintenance is vital for safe and enjoyable pool use.
6.1 Якість води
- Test Water Regularly: Use a pool test kit to check pH, chlorine, and alkalinity levels at least 2-3 times per week.
- Adjust Chemicals: Add appropriate pool chemicals as needed to maintain balanced water chemistry. Follow chemical manufacturer guidelines.
- Лікування шоком: Periodically shock the pool water to eliminate bacteria and algae, especially after heavy use or rain.
6.2 Cleaning the Pool
- Skim Surface: Щодня використовуйте скімер, щоб видаляти листя, комах та інше сміття з поверхні води.
- Вакуумний басейн: Vacuum the pool bottom regularly to remove settled debris.
- Очищення фільтруючого картриджа: Rinse the filter cartridge with a garden hose every few days. Replace the cartridge every 2-4 weeks, depending on usage.
- Wipe Liner: Periodically wipe down the pool liner, including the clear windows, to prevent algae buildup.
6.3 Підготовка до зими (зберігання в міжсезоння)
- Drain Pool: Completely drain the pool water using the drain plug.
- Чистий та сухий: Thoroughly clean the pool liner and frame components. Ensure all parts are completely dry to prevent mold and mildew.
- Розбирати: Carefully disassemble the frame and liner.
- Зберігайте належним чином: Store the liner and frame components in a dry, protected area, away from extreme temperatures and pests.
7. Усунення поширених проблем
| проблема | Можлива причина | Рішення |
|---|---|---|
| Вода каламутна | Недостатня фільтрація; неправильний хімічний баланс; високе навантаження від купальників. | Run pump longer; backwash/clean filter; test and adjust chemicals; shock pool. |
| Ріст водоростей | Низький рівень хлору; високий pH; поганий кровообіг. | Shock pool; adjust pH; ensure pump runs adequately; brush pool walls. |
| Насос не працює | No power; clogged impeller; air in system. | Check power connection/GFCI; clear impeller; prime pump. |
| Падіння рівня води | Випаровування; витік у вкладиші або з'єднаннях. | Normal evaporation; check for visible leaks; use included repair patch for liner. |
| Рама нестабільна | Нерівна поверхня; неправильне складання. | Drain pool and re-level ground; re-check all frame connections. |
8. Технічні характеристики продукту
| Особливість | Деталь |
|---|---|
| Номер моделі | 26769EH |
| Розміри (Д x Ш x В) | 158"L x 79"W x 48"H (13ft 1.5in x 6ft 6.75in x 48in) |
| Ємність для води | 2224 галони |
| Форма | Прямокутний |
| Колір | Сірий |
| матеріал | Vinyl (3-Ply PVC Liner), Powder-Coated Steel Frame |
| Швидкість потоку фільтрувального насоса | 1500 GPH (галонів на годину) |
| Потрібна збірка | так |
| Використання в приміщенні/зовні | Відкритий |
| Вага товару | 183.6 фунта |
| UPC | 078257267699 |
9. Гарантія та підтримка клієнтів
Intex products are manufactured with high-quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. Intex warrants this product against defects in materials and workmanship for a period of one (1) year from the date of retail purchase.
This warranty does not cover defects resulting from negligence, misuse, accident, improper operation, improper maintenance, or storage. It also does not cover damage due to acts of nature, such as storms, floods, or freezing temperatures.
For warranty claims, technical assistance, or to order replacement parts, please contact Intex Customer Service directly. Have your product model number (26769EH) and proof of purchase readily available.
Відвідайте офіційний магазин Intex website or refer to the contact information provided in your product packaging for the most current customer support details.
