Sanyipace S810-165FT/512HZ Self-Leveling Sewer Camera Instruction Manual

1. Вступ

This manual provides detailed instructions for the safe and effective operation of your Sanyipace S810-165FT/512HZ Self-Leveling Sewer Camera. This device is designed for professional and home inspection of various pipelines, including sewage, underground water pipes, oil and gas lines, kitchen plumbing, and HVAC ducts. Please read this manual thoroughly before use and retain it for future reference.

2. Продукт закінчивсяview

The Sanyipace S810-165FT/512HZ is a robust sewer inspection system featuring a self-leveling camera, real-time distance counter, and a 512Hz transmitter for precise location. It includes a 10-inch IPS screen for clear visualization and a rigid cable for extended reach.

2.1 Ключові компоненти

• Пульт управління: Features a 10-inch color IPS screen, microphone for audio notes, built-in speakers for playback, and a detachable design for flexible positioning.
• Зонд камери: IP68 waterproof, 0.9-inch (23mm) bendable and flexible camera head with a 145° viewing angle and 12 adjustable LED lights. Equipped with self-leveling gravity to maintain upright images.
• Кабель: 165 feet (50 meters) of 0.28-inch (7mm) rigid fiberglass cable, designed for durability and ease of navigation through pipes.
• Лічильник відстані: Real-time display of cable insertion distance on the screen, switchable between feet and meters.
• Передавач 512 Гц: Integrated into the camera head for use with a 512Hz locator (sold separately) to pinpoint camera location.
• Аксесуари: Includes a camera protector cover (for pipes > 1.57in/40mm) and a pipe pulley guide wheel (for pipes > 5.12in/130mm).
• Зберігання: 32GB TF card included, supporting up to 128GB.
• Батарея: 4500mAh rechargeable battery providing up to 10 hours of operation.

Figure 2.1: Contents of the Sanyipace S810-165FT/512HZ sewer camera package, including the monitor, keyboard, TF card, user manual, metal bracket, fiberglass cable coil, camera head, pipe pulley, protective cover, US DC adapter, and screwdrivers.

3. Налаштування

3.1 Збірка системи

1. Розпакуйте всі компоненти з упаковки.
2. Attach the control console to the top of the metal frame using the provided screws. Ensure it is securely fastened.
3. Insert the provided 32GB TF card into the TF card slot on the control console.
4. Connect the camera cable to the designated port on the control console.
5. If inspecting pipes larger than 1.57 inches (40mm), attach the camera protector cover to the camera head. For pipes larger than 5.12 inches (130mm), attach the pipe pulley guide wheel.
6. Ensure the battery is fully charged before initial use. Connect the US DC adapter to charge the unit.

4. Інструкція з експлуатації

4.1 Увімкнення/вимкнення

• To power on, press and hold the power button on the control console.
• To power off, press and hold the power button again until the unit shuts down.

4.2 Організація кабелів

To release the cable, loosen the cable coil lock on the side of the reel. Push the cable into the pipe. To retract the cable, turn the reel handle clockwise while guiding the cable back onto the coil. Ensure the cable is properly coiled to prevent tangles.

Figure 4.1: Image demonstrating the cable coil mechanism, showing how to loosen the lock for cable release and roll-up, and illustrating pipe compatibility for different diameters and bends.

4.3 Робота камери

• Самовирівнювання: The camera probe automatically levels itself, providing upright images even when the probe is tilted.
• Регулювання яскравості світлодіодів: Use the dedicated buttons on the console to adjust the brightness of the 12 LED lights on the camera head (0-5 gear adjustment) for optimal visibility in varying pipe conditions.
• Цифрове збільшення: The 10-inch IPS screen supports 5X digital zoom. Use the zoom buttons on the console to magnify the image for detailed inspection.
• Лічильник відстані: The screen displays the real-time distance the camera has traveled into the pipe. Press the F4 key to switch between feet and meters.
• Запис: Press the record button to start/stop video recording. The built-in microphone allows for audio notes to describe findings.
• Відтворення: Access recorded videos and captured images from the TF card via the console. The built-in speaker allows for audio playback.

Figure 4.2: Image showing the 5X digital zoom capability of the Sanyipace sewer camera's display, allowing for closer inspection of pipe conditions.

Figure 4.3: Image highlighting the 10-inch HD IPS screen of the Sanyipace sewer camera, displaying features like video recording, audio recording, picture capture, meter counter, and time display.

Figure 4.4: Image illustrating the self-leveling camera probe and its IP68 waterproof rating, along with the 12 adjustable LED lamp намистини для підсвічування.

4.4 Сумісність труб

The camera is designed to navigate various pipe sizes and bends:

• For 1-inch and 1.5-inch PVC pipes, the camera is suitable for straight pipe lengths only.
• For 2-inch PVC pipes, the camera can continuously pass through two 90-degree bends.
• For 3-inch+ PVC pipes, the camera can pass through three 90-degree bends in a row.

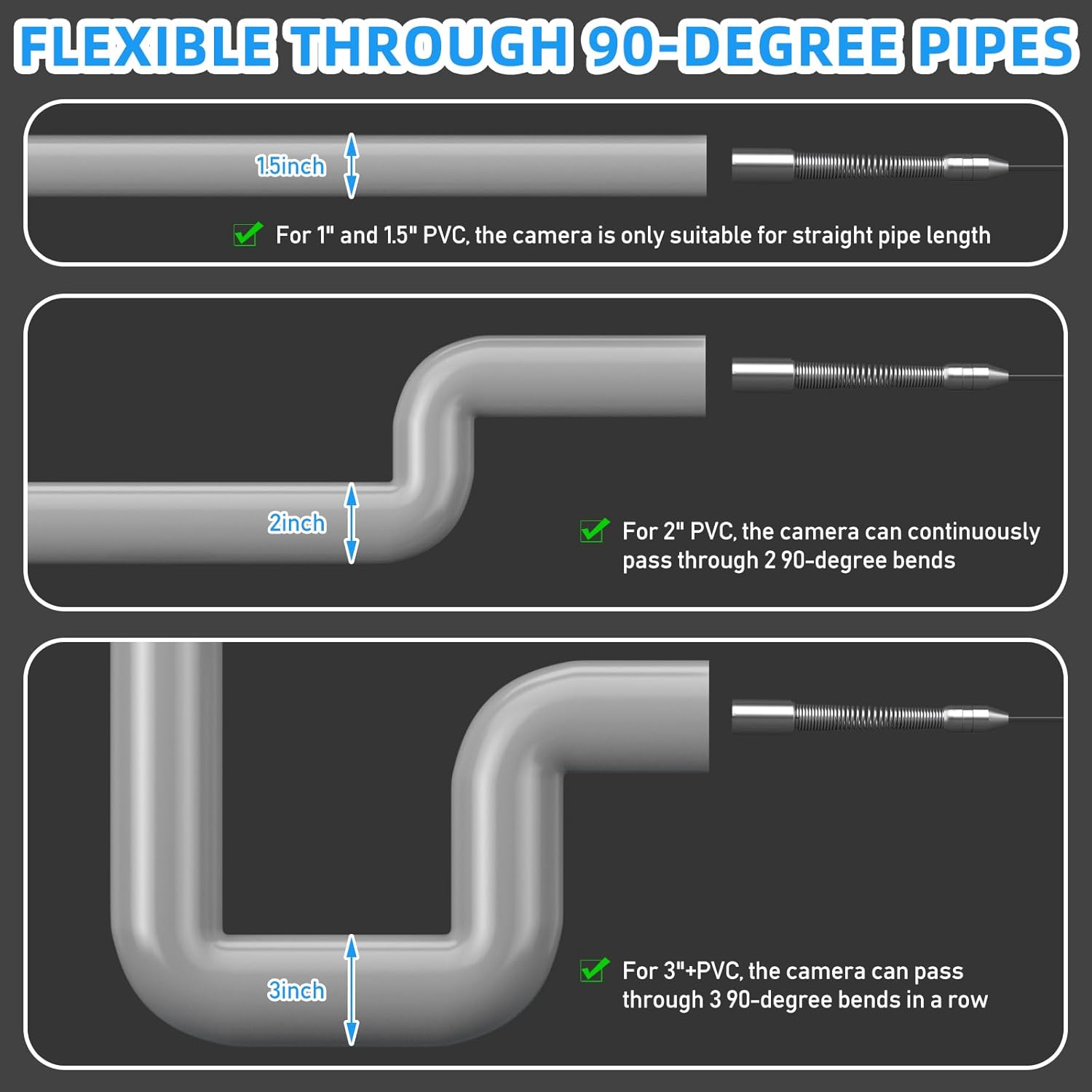

Figure 4.5: Diagram illustrating the camera's flexibility and compatibility with various pipe diameters and 90-degree bends, specifying limitations for 1.5-inch, 2-inch, and 3-inch+ PVC pipes.

5. Технічне обслуговування

5.1 Очищення зонда та кабелю камери

After each use, especially in dirty environments, clean the camera probe and cable thoroughly. The IP68 waterproof design allows for easy rinsing with water. Ensure all debris is removed from the camera head and cable to maintain optimal performance and prevent damage.

5.2 Догляд за акумулятором

Recharge the 4500mAh battery after each use to ensure it is ready for the next inspection. Store the unit in a cool, dry place when not in use.

6. Вирішення проблем

If you encounter any issues with your Sanyipace S810-165FT/512HZ sewer camera, please refer to the following common troubleshooting steps:

• Немає живлення: Ensure the battery is fully charged and the power button is pressed correctly. Check all cable connections.
• Немає зображення на екрані: Verify the camera cable is securely connected to the console. Check for any physical damage to the camera head or cable.
• Погана якість зображення: Adjust the LED brightness. Clean the camera lens if it appears dirty. Ensure the pipe is not completely filled with opaque liquid.
• Проблеми із записом: Check if the TF card is properly inserted and has sufficient free space. Ensure the TF card is not locked.
• Cable Stuck: Do not force the cable. Gently retract and re-insert, or use the pipe pulley guide wheel if appropriate for the pipe size.

For further assistance, please contact Sanyipace customer support.

7. Технічні характеристики

8. Гарантія та підтримка

Sanyipace provides 24/7 after-sales service and lifetime technical support for the S810-165FT/512HZ sewer camera. For any inquiries, technical assistance, or warranty claims, please contact Sanyipace customer support through the official channels.
