1. Важлива інформація з безпеки
Always secure the canopy with the provided sandbags, stakes, and ropes in windy conditions. Do not use near open flames or heat sources to prevent fire hazards.
For safe setup and takedown, it is recommended that two or more adults assist with the assembly and disassembly of the canopy tent.
2. Продукт закінчивсяview
The Yaheetech 10x10 Pop up Commercial Canopy Tent is designed for various outdoor activities, providing ample shade and protection. It features a durable, weather-resistant construction with a powder-coated metal frame and PU-coated polyester fabric. The canopy includes three removable sidewalls and an adjustable awning for versatile use.
Image: The Yaheetech 10x10 Pop Up Commercial Canopy Tent, shown with three removable sidewalls, an adjustable awning, a roller bag, sandbags, stakes, and ropes.
Image: The Yaheetech canopy tent providing shade over a seating area in a garden, demonstrating its use for outdoor relaxation.
3. Components and Accessory List
Before assembly, ensure all components listed below are present and undamaged.
Image: A visual representation of all included accessories: Steel Frame, Roller Bag, Ground Stakes, Guy Lines, Accessory Storage Bag, Sandbags, Canopy Top, and Sidewalls.
- 1 х сталева рама
- 1 х сумка на колесах
- 4 х наземних колів
- 4 х відтяжки
- 1 сумка для зберігання аксесуарів
- 4 х мішки з піском
- 1 х навіс
- 3 х боковини
4. Інструкції з налаштування
Follow these steps for proper assembly of your canopy tent:
- Step 1: Pull out the pre-assembled frame. Carefully extend the steel frame to its full width.
- Step 2: Attach canopy fabric to the frame. Drape the canopy top over the extended frame, securing it at all corners and attachment points.
- Step 3: Secure the frame and adjust to your desired height. Use the adjustable height mechanisms on each leg to raise the canopy to one of the three available height settings. Ensure all locking buttons are engaged for stability.
- Step 4: Install and adjust the awning. Attach the awning to the designated points on the frame and adjust its angle as needed for optimal shade.
- Step 5: Attach sidewalls (optional). If desired, attach the three removable sidewalls using the provided fasteners for additional protection and privacy.
- Step 6: Secure the canopy. Fill the four sandbags with sand and attach them to the canopy legs. Use the ground stakes and guy lines to firmly anchor the canopy to the ground, especially in windy conditions.
Video: This video demonstrates the setup process of the Yaheetech canopy tent, including extending the frame, attaching the canopy, adjusting height, and setting up the awning and sidewalls.
Зображення: Крупний план view of the safety locking button mechanism on the canopy leg, which allows for easy and secure height adjustment.
5. Інструкція з експлуатації
5.1 Регулювання висоти
The canopy features telescopic legs with three adjustable height settings (10', 10.5', 11'). To adjust the height, press the release button on each leg and slide the inner leg to the desired position until the button clicks into place. Ensure all legs are set to the same height for stability.

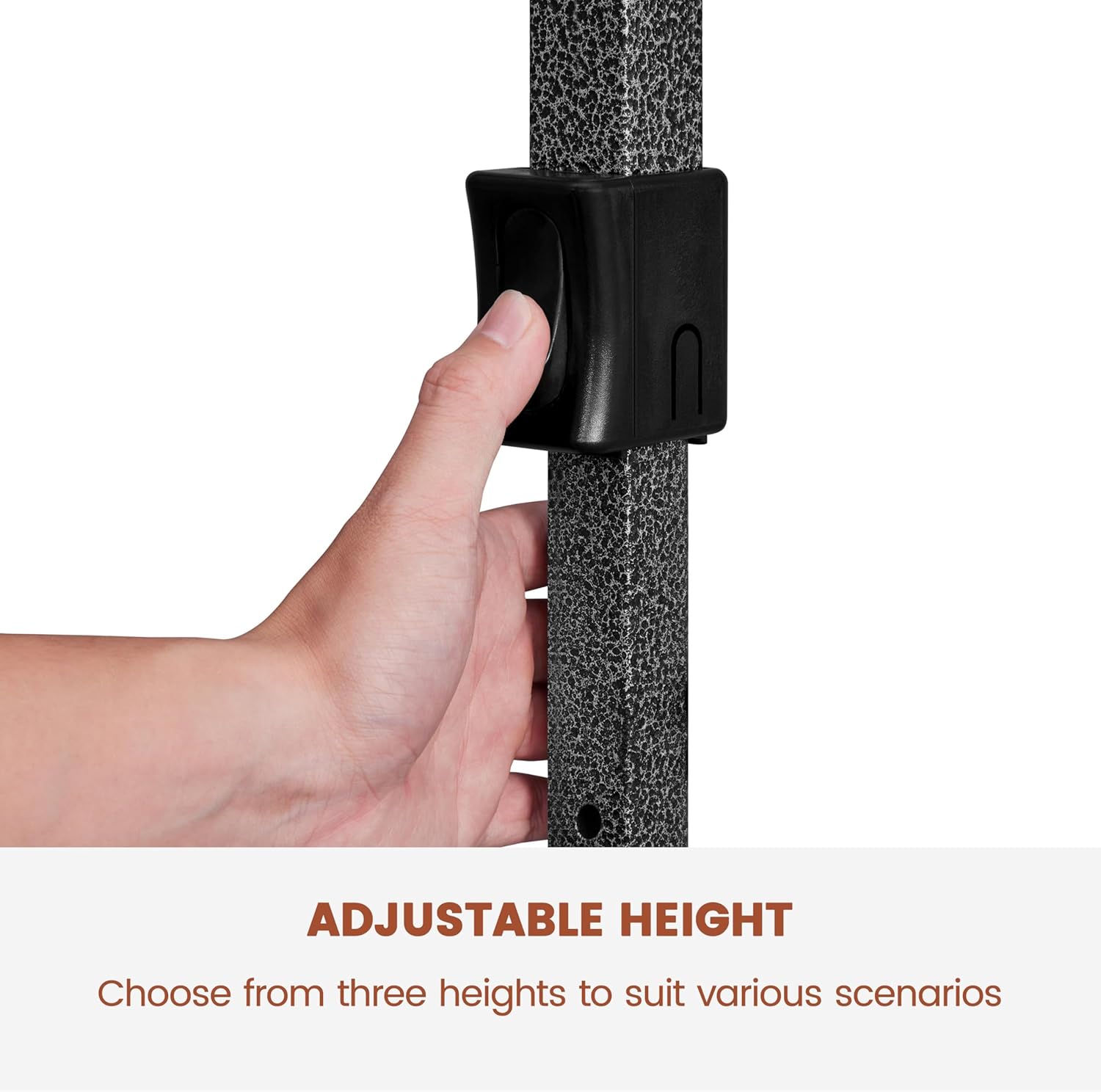

Image: A person demonstrating how to adjust the height of the canopy leg by pressing the release button and sliding the pole.
5.2 Awning Adjustment
The awning can be tilted at three different angles to provide optimal shade throughout the day. Adjust the support bars to achieve the desired angle. Ensure the awning is securely fastened in place after adjustment.
5.3 Sidewall Usage
The three included sidewalls are detachable, allowing you to customize the level of enclosure and privacy. Attach or remove them as needed using the integrated fasteners.
6. Технічне обслуговування
- Прибирання: Чистіть тканину тенту м’яким милом і водою. Не використовуйте агресивні мийні засоби або абразивні засоби для чищення. Ретельно промийте та дайте повністю висохнути на повітрі перед зберіганням.
- Сушка: Always ensure the canopy fabric and frame are completely dry before folding and storing to prevent mold, mildew, and rust.
- Зберігання: Store the canopy tent in its provided roller bag in a cool, dry place, away from direct sunlight and extreme temperatures.
- Догляд за каркасом: Periodically check the steel frame for any signs of rust or damage. Clean and lubricate moving parts as necessary to ensure smooth operation.
7. Вирішення проблем
| проблема | Можлива причина | Рішення |
|---|---|---|
| Складнощі з відкриттям/закриттям рамки | Суглоби скуті або брудні. | Clean joints and apply a silicone-based lubricant. Ensure no fabric is caught in the frame. |
| Canopy unstable in light wind | Неналежним чином закріплено. | Ensure sandbags are filled and attached, and ground stakes and guy lines are used correctly. |
| Скупчення води на верхівці крони | Canopy not taut or incorrect setup. | Ensure the frame is fully extended and the canopy fabric is pulled taut. Adjust height if necessary to create proper tension. |
8. Технічні характеристики
- Бренд: Yaheetech
- модель: YT43ks0002001
- матеріал: Легована сталь, поліестер
- колір: New White
- Вага товару: 63.05 фунта
- Розміри продукту: 120.28 дюймів Д x 120.28 дюймів Ш x 131.69 дюйми В (10 футів Д x 10 футів Ш x 10.97 футів В)
- Покриття: 100 кв. футів
- Захист від ультрафіолетового випромінювання: UPF50+
- Рівень водонепроникності: Водостійкий
- Необхідна збірка: так

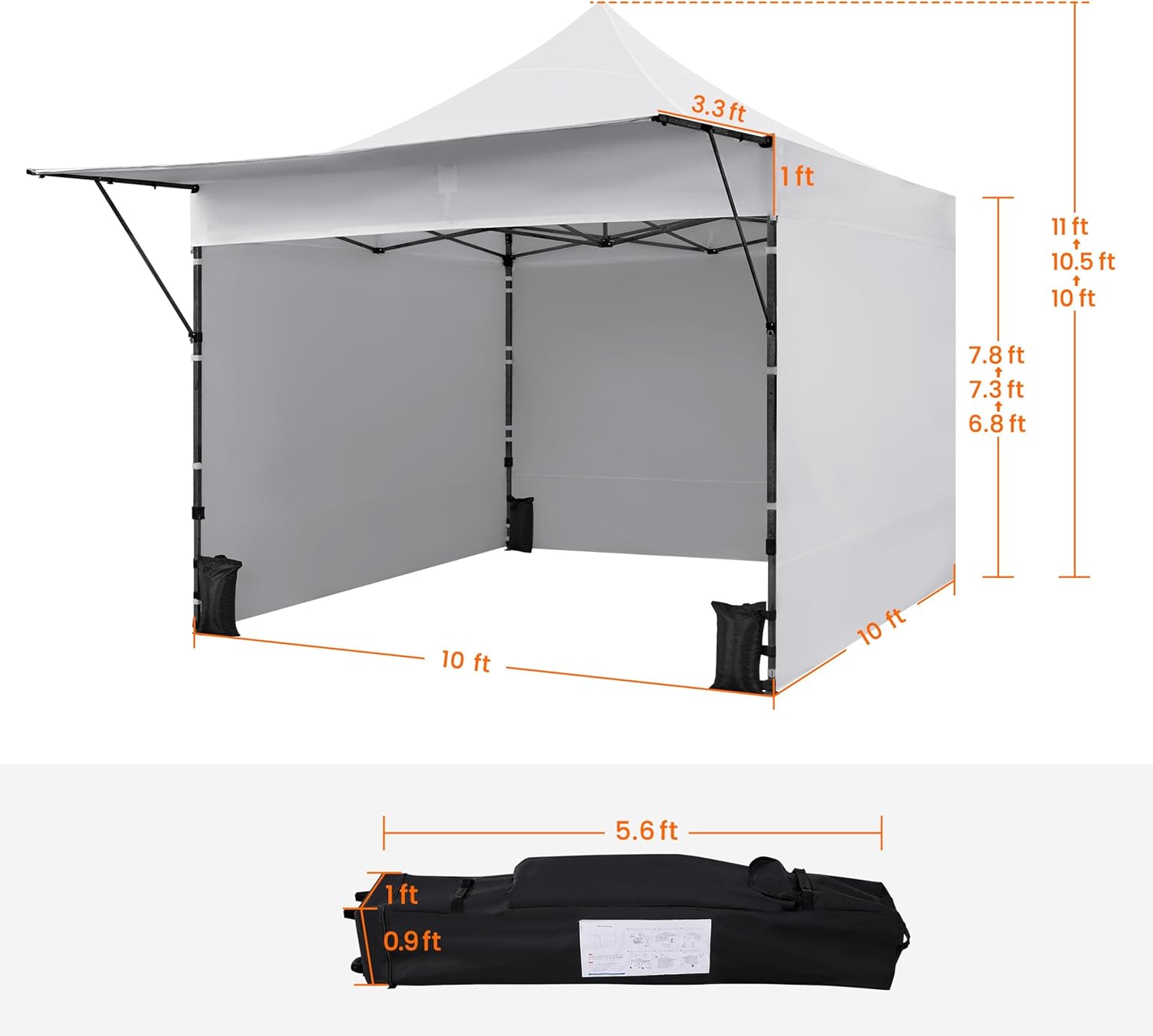

Image: A detailed diagram illustrating the various dimensions of the canopy tent, including height, width, and awning extension.
9. Гарантія та підтримка
For warranty information or customer support, please refer to the contact details provided with your purchase or visit the official Yaheetech website. The product is eligible for 30-day easy returns.
Ви також можете відвідати Магазин Yaheetech на Amazon для отримання додаткової інформації та підтримки.
