SilverStone CS383 Full Tower NAS Chassis Instruction Manual

1. Вступ

The SilverStone CS383 is a high-performance full tower chassis designed for Network Attached Storage (NAS) and workstation applications. It supports a wide range of components, including SSI-EEB motherboards, multiple storage drives, and advanced cooling solutions. This manual provides detailed instructions for the assembly, operation, and maintenance of your CS383 chassis.

Малюнок 1.1: Спереду view of the SilverStone CS383 chassis with the door open, showing the hot-swappable drive bays.

Ключові характеристики:

• Supports motherboards up to E-ATX / SSI-EEB form factors.
• Includes 8 hot-swappable 3.5" or 2.5" drive trays with support for SAS-12G / SATA-6G drives.
• Features 8 expansion slots, accommodating GPUs or adapter cards up to 340mm in length.
• Supports liquid cooling radiators up to 420mm or air coolers up to 186mm tall.
• Capable of housing dual power supplies or up to 4 additional 5.25" drive bay devices.

2. Налаштування системи

2.1 Preparing the Chassis

Before installing components, ensure the chassis is placed on a stable, flat surface. Remove the side panels by unscrewing the thumbscrews at the rear and sliding the panels backward.

Малюнок 2.1: Сторона view of the CS383 chassis.

2.2 Встановлення материнської плати

1. Install the necessary motherboard standoffs into the chassis tray according to your motherboard's form factor (SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX, Mini-ITX).
2. Обережно встановіть материнську плату на опори, суміщаючи отвори для гвинтів.
3. Закріпіть материнську плату гвинтами.

Figure 2.2: Internal layout showing motherboard mounting area.

Figure 2.3: Workstation-grade component support, including SSI-EEB motherboard and dual PSU options.

2.3 Drive Installation (Hot-Swappable Bays)

The CS383 features eight hot-swappable drive bays for 3.5" or 2.5" SAS-12G / SATA-6G drives.

1. Open the front door of the chassis.
2. Press the release latch on a drive tray and pull it out.
3. Mount your 3.5" or 2.5" drive into the tray using the provided screws.
4. Slide the loaded drive tray back into the bay until it clicks into place.
5. Ensure all drives are properly connected to the backplane for power and data.

Figure 2.4: Detail of the hot-swappable drive bays.

Figure 2.5: Eight-bay hot-swap storage with drive status indicators.

2.4 Встановлення блоку живлення

The chassis supports standard ATX (PS2) power supplies and offers an optional secondary PSU slot.

1. Mount your primary power supply in the designated bottom-rear compartment.
2. Secure it with screws from the rear of the chassis.
3. For dual PSU configurations, install the second power supply in the lower front 5.25" bay area.

2.5 Встановлення плати розширення

The CS383 provides eight expansion slots for graphics cards, network adapters, or RAID controllers.

1. Remove the necessary slot covers from the rear of the chassis.
2. Insert your expansion card into the corresponding PCIe slot on the motherboard.
3. Secure the card with screws or the tool-less retention mechanism.

Figure 2.6: Expansion slots for adapter cards.

2.6 Встановлення системи охолодження

The chassis supports various cooling configurations, including liquid cooling radiators up to 420mm and air coolers up to 186mm tall.

• радіатори: Mount liquid cooling radiators to the top panel.
• Фанати: Two 92mm fans are pre-installed behind the drive bays for efficient cooling. Additional fans can be installed as needed.

Figure 2.7: Top panel supporting up to a 420mm liquid cooling radiator.

Figure 2.8: Internal component clearance diagram.

2.7 Additional Storage Options

Beyond the hot-swappable bays, the CS383 offers additional mounting points for 2.5" SSDs and 3.5" HDDs, as well as three 5.25" drive bays at the bottom front.

Figure 2.9: Additional 2.5" SSD and 3.5" HDD mounting locations.

Figure 2.10: Three 5.25" drive bays.

3. Операція

3.1 Front Panel Controls and I/O

The front panel provides essential controls and connectivity options:

• Кнопка живлення: Запускає або вимикає систему.
• Кнопка скидання: Перезавантажує систему.
• Порти USB: Для підключення зовнішніх пристроїв.
• Аудіороз'єми: Для навушників та мікрофонів.
• Drive Activity LEDs: Indicate read/write activity for each hot-swappable drive.

Figure 3.1: Front panel I/O and controls.

3.2 Гаряча заміна дисків

The hot-swappable drive bays allow for adding or removing drives while the system is running, provided your operating system and RAID controller support this feature.

1. Ensure the drive is properly unmounted or ejected from the operating system before removal.
2. Open the front door and press the release latch on the desired drive tray.
3. Carefully pull the drive tray out.
4. To insert a new drive, mount it into an empty tray and slide it into the bay until it locks.
5. The operating system should detect the new drive automatically.

Примітка: Always refer to your operating system and RAID controller documentation for specific hot-swap procedures to prevent data loss.

4. Технічне обслуговування

4.1 Очищення пилового фільтра

The CS383 includes removable dust filters in key areas to prevent dust buildup and maintain optimal cooling performance. Regular cleaning is recommended.

1. Locate the dust filters (e.g., at the bottom of the chassis).
2. Gently slide out or unclip the filters.
3. Clean the filters using compressed air or by rinsing them with water. Ensure they are completely dry before reinstallation.
4. Надійно встановіть фільтри назад.

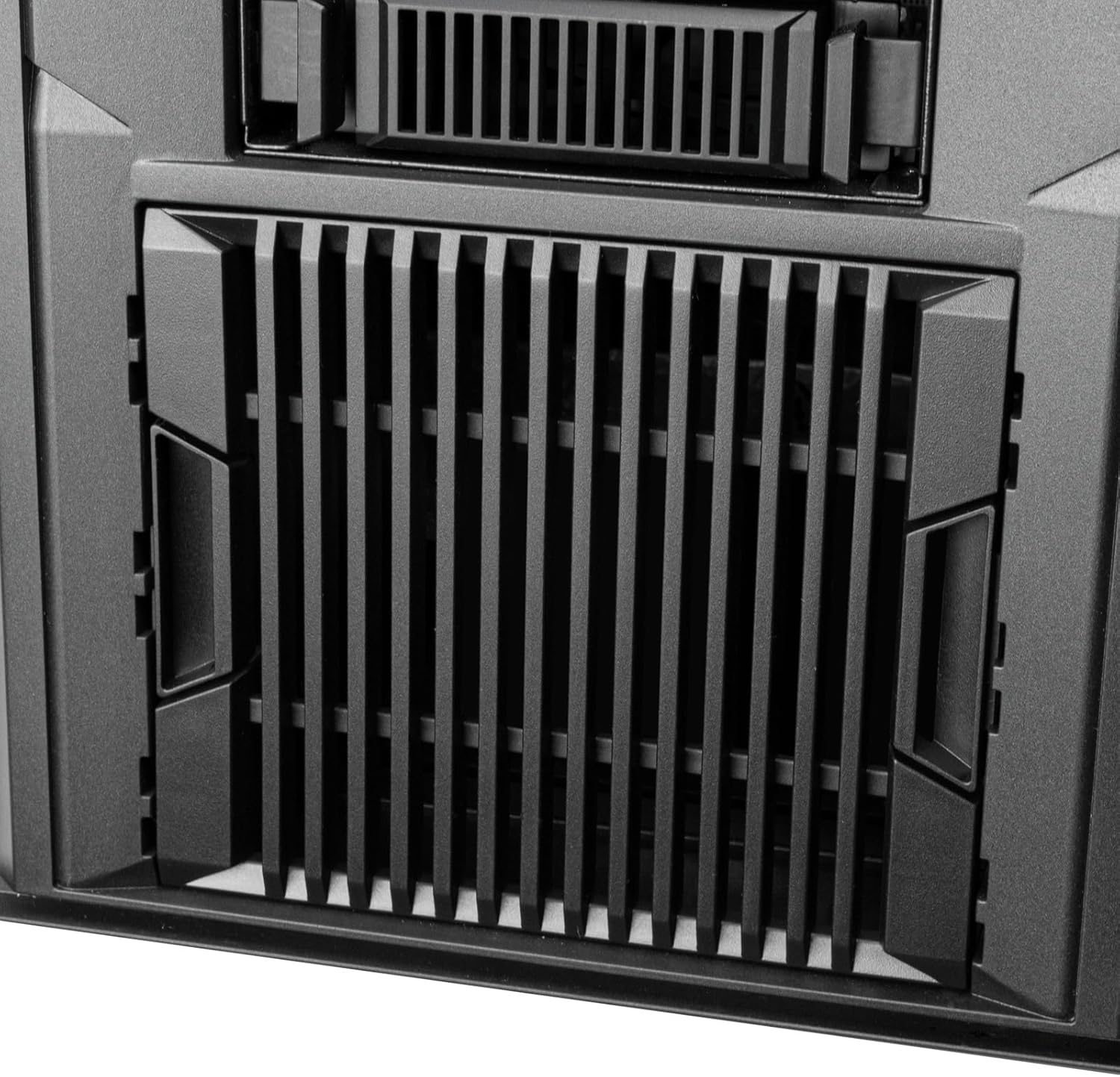

Figure 4.1: Removable dust filter at the bottom of the chassis.

4.2 Технічне обслуговування вентилятора

Periodically check the chassis fans for dust accumulation. Clean them with compressed air to ensure unrestricted airflow.

Увага: Disconnect power to the system before performing any internal cleaning or maintenance.

5. Вирішення проблем

• Система не вмикається:
  • Ensure the power supply is properly connected to the wall outlet and the power switch on the PSU is in the 'ON' position.
  • Verify all power cables (24-pin ATX, 8-pin CPU, PCIe, SATA) are securely connected to the motherboard and components.
  • Перевірте підключення кнопки живлення на передній панелі до материнської плати.
• Диски не виявлено:
  • Confirm drives are fully seated in their hot-swap trays and the trays are locked into the bays.
  • Verify SATA/SAS data and power cables from the backplane are connected to the motherboard/RAID controller and power supply.
  • Check BIOS/UEFI settings to ensure SATA/SAS ports are enabled.
• Проблеми з перегрівом:
  • Ensure all chassis fans are spinning and not obstructed.
  • Регулярно очищуйте пилові фільтри та внутрішні компоненти.
  • Verify CPU cooler and GPU fans are functioning correctly.
  • Consider optimizing fan curves in BIOS/UEFI or adding additional cooling if temperatures remain high under load.
• Не працює вхід/вихід на передній панелі:
  • Check the internal cable connections from the front panel to the motherboard (USB headers, audio headers).

6. Технічні характеристики

7. Гарантія та підтримка

7.1 Гарантія на виріб

SilverStone Technology products are covered by a limited warranty. The specific terms and duration of the warranty may vary by region and product. Please retain your proof of purchase for warranty claims.

7.2 Технічна підтримка

For technical assistance, troubleshooting, or further inquiries regarding your SilverStone CS383 chassis, please visit the official SilverStone Technology website or contact their customer support department. You can find contact information and support resources at www.silverstonetek.com.
