VINGLI 4 Pack Stackable Outdoor Bar Chairs - Instruction Manual

вступ

Thank you for choosing VINGLI Stackable Outdoor Bar Chairs. This manual provides detailed instructions for the assembly, safe operation, and maintenance of your new chairs. Please read this manual thoroughly before assembly and retain it for future reference.

Image: VINGLI 4 Pack Stackable Outdoor Bar Chairs in an outdoor setting.

Інформація про безпеку

• Завжди уважно дотримуйтесь інструкцій зі складання.
• Keep arms and hands away from moving parts during assembly.
• Do not use chair on uneven surfaces to prevent tipping.
• Максимальна вага: 250 фунтів.

Інструкції зі складання

Assembly is required for these chairs. Please ensure all parts are present before beginning. Refer to the video below for a visual guide to the assembly process.

Частини закінченоview

Зображення: Вибух view of the chair components, indicating that the chair is 80% pre-installed and requires 5 parts, 2 steps, and 6 minutes for final assembly. It also highlights the importance of aligning all holes before tightening screws.

Поетапна збірка

1. Зберіть основу стільця: Attach the shortest screws (H size) into the upper screw holes of the chair base. Install the four screws using the same method. Do not tighten the screws too much at this stage.
2. Install Side Crossbars: Attach the side crossbars using the medium-length G screws. Ensure proper alignment.
3. Secure Crossbars with Shims and Bolts: Place thick plastic shims (M) between the chair legs and the crossbar. Install shims (K) and bolts (J) on the inside of the chair legs.
4. Prepare Seat/Back: Cross the two bottom brackets of the seat/back component in an X-shape to facilitate the insertion of the top support rod. Keep the bottom brackets in the crossed position and insert the top support rod.
5. Attach Seat/Back to Base: Insert the longest screw (F) into the upper screw hole of the chair base and then attach the thin washer (K) and bolt (J). Repeat for all four attachment points.
6. Остаточне затягування: Once all components are loosely assembled, tighten all screws securely. Cover the exposed nuts with the provided nut covers (L).

Використання та особливості

These VINGLI bar chairs are designed for outdoor use, offering comfort and practicality.

Комфортний дизайн

Image: This chair features a high back for lumbar and neck support, ergonomically curved armrests, and breathable, quick-drying Textilene fabric for enhanced comfort.

Space-Saving Stackable Design

The chairs feature a stackable design, allowing for effortless and compact storage when not in use. This is ideal for maximizing space in smaller outdoor areas or during off-season storage.

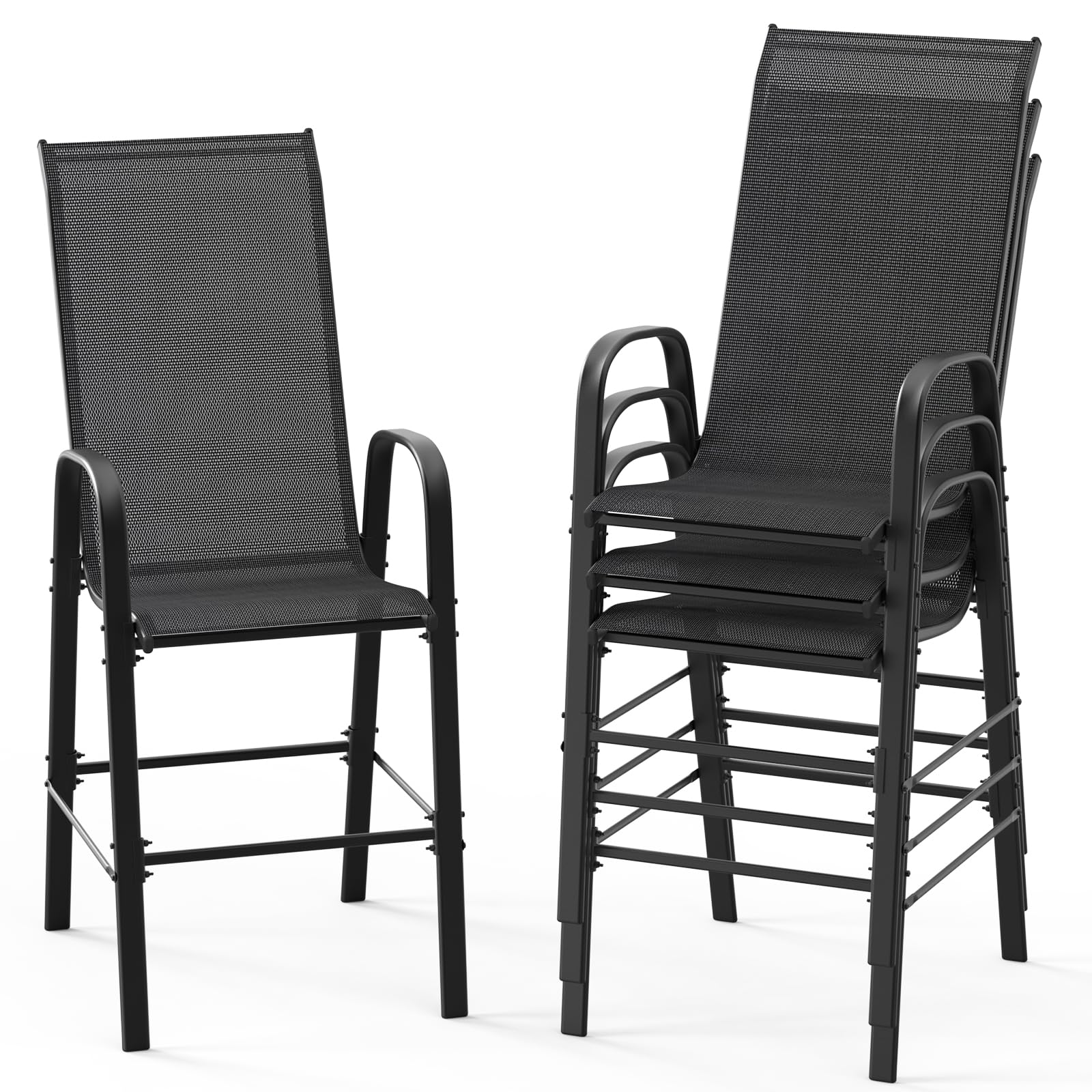

Image: Several VINGLI bar chairs are shown stacked, demonstrating their space-saving capability.

Догляд та обслуговування

• Прибирання: Wipe down the metal frame and Textilene fabric with a damp cloth and mild soap. Rinse thoroughly and dry completely to prevent water spots and corrosion.
• Захист від погодних умов: Although designed for outdoor use, prolonged exposure to extreme weather conditions (heavy rain, snow, intense sun) can affect the lifespan of the chairs. Consider using outdoor furniture covers or storing them indoors during harsh weather.
• Перевірка обладнання: Періодично перевіряйте всі гвинти та болти, щоб переконатися, що вони затягнуті. За потреби підтягуйте їх для забезпечення стабільності та безпеки.
• Зберігання: Utilize the stackable feature for convenient storage in a dry, protected area when not in use for extended periods.

Усунення несправностей

• Складність під час складання: If holes do not align easily, ensure all screws are only loosely fastened before tightening any completely. This allows for minor adjustments. If a part seems misaligned, gently adjust the frame.
• Відсутні частини: If any parts are missing from your package, please contact VINGLI customer support immediately for assistance.
• Хитке крісло: Ensure all screws and bolts are fully tightened. Check that the chair is placed on a flat, even surface.
• Screws Not Long Enough: Double-check that you are using the correct screws for each step as indicated in the assembly instructions. If issues persist, contact customer support.

Технічні характеристики продукту

Image: Detailed product dimensions of the VINGLI bar chair.

Гарантія та підтримка

For warranty information or customer support, please contact VINGLI directly through their official channels or visit their store page. Keep your purchase receipt for any warranty claims.

Відвідайте VINGLI Store для отримання додаткової інформації.
