Yofidra Cordless 2-in-1 Nail Gun & Stapler

1. Важливі інструкції з техніки безпеки

Read and understand all safety warnings and instructions before operating this tool. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Захист очей: Always wear appropriate eye protection (safety glasses or goggles) that comply with current standards when operating this tool.
• Захист органів слуху: Wear hearing protection during extended use to prevent hearing damage.
• Hand and Body Placement: Keep hands and body parts away from the firing area and the fastener discharge opening. Never point the tool at yourself or others.
• Contact Safety Mechanism: This tool is equipped with a contact safety mechanism. The tool will only fire when the nozzle is firmly pressed against the workpiece surface. Do not attempt to bypass or disable this safety feature.
• Відключити живлення: Always disconnect the battery pack before making adjustments, changing accessories, or storing the tool.
• Робоча зона: Тримайте робоче місце чистим і добре освітленим. Засмічені або темні місця сприяють нещасним випадкам.
• Правильні кріплення: Use only the specified types and sizes of nails and staples for this tool.

2. Продукт закінчивсяview

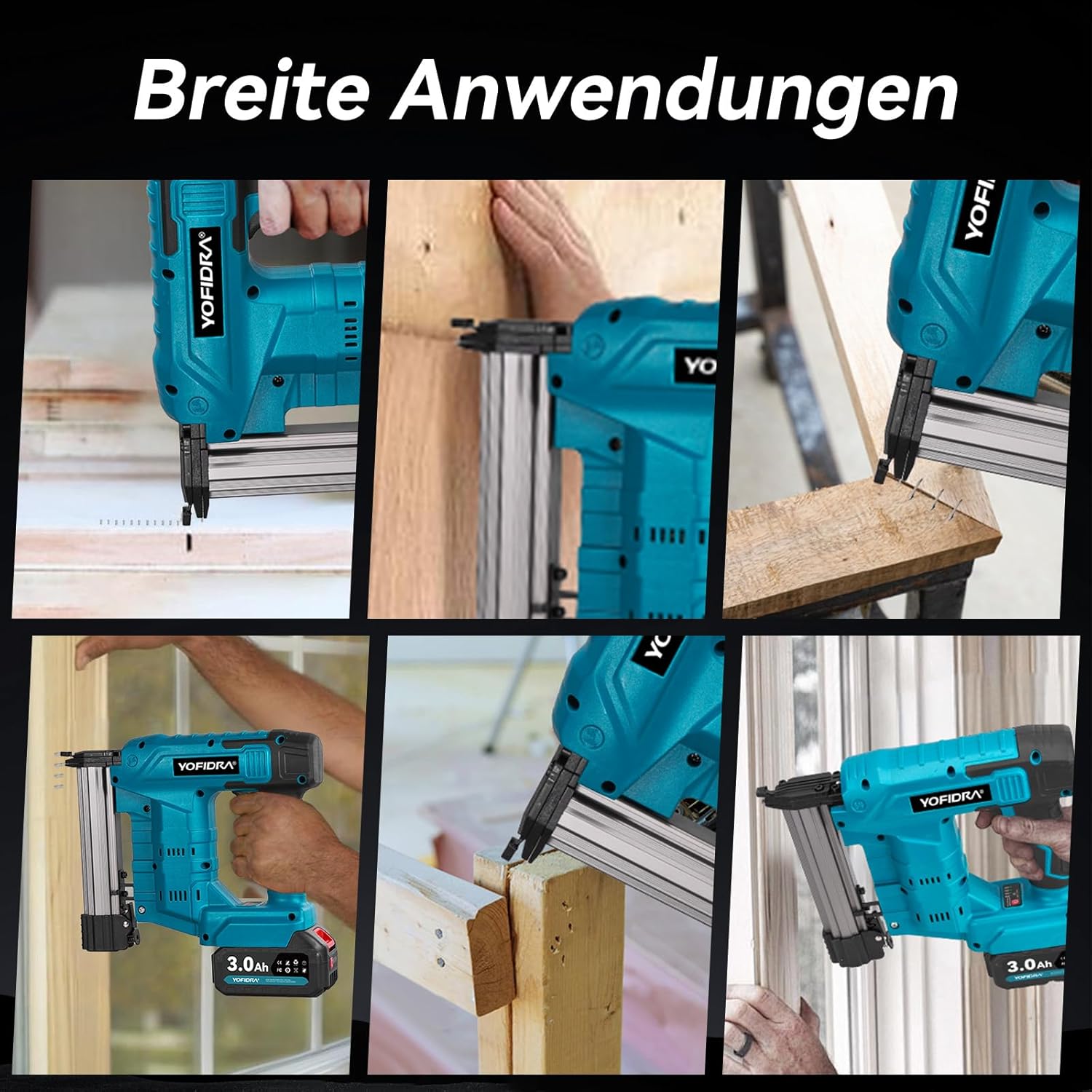

The Yofidra Cordless 2-in-1 Nail Gun & Stapler is a versatile tool designed for various carpentry and DIY projects. It functions as both a nailer and a stapler, offering convenience and efficiency.

Ключові характеристики:

• Функціональність 2-в-1: Operates as both a nail gun and a stapler.
• Висока швидкість: Capable of driving up to 80 fasteners per minute.
• Бездротова робота: Powered by two 3000mAh Lithium-Ion batteries for extended use without power cords.
• Безщеточний двигун: Provides superior nail penetration for various materials.
• Dual Safety: Equipped with a contact safety system to prevent accidental firing.
• Подвійні режими стрільби: Supports both single-shot and continuous firing modes.

Сумісні кріплення:

• Нігті: 18GA F10/F15/F20/F25/F30/F32 (15–32mm length)
• скоби: 416K/419K/422K/425K (15–25mm length)

3. Налаштування

3.1 Встановлення та заряджання акумулятора

1. Ensure the battery is fully charged before first use. Connect the charger to a power outlet and insert the battery. The indicator light on the charger will show charging status.
2. To install the battery, align the battery pack with the receptacle at the base of the tool handle. Slide the battery into place until it clicks securely.
3. Щоб вийняти акумулятор, натисніть кнопку фіксатора на акумуляторному блоці та витягніть його.

3.2 Loading Fasteners (Nails or Staples)

1. З міркувань безпеки переконайтеся, що акумулятор вийнято з інструменту.
2. Locate the magazine latch at the rear of the fastener magazine. Press the latch to open the magazine.
3. Insert the strip of nails or staples into the magazine with the points facing forward. Ensure the fasteners are correctly oriented and fit snugly.
4. Close the magazine by sliding it forward until it locks securely with an audible click. Verify that the magazine is fully closed before re-inserting the battery.

4. Інструкція з експлуатації

4.1 Вибір режиму стрільби

The tool offers two firing modes: single-shot and continuous. Use the mode selector switch, typically located near the trigger, to choose your desired mode.

• Single-Shot Mode: For precise fastener placement. The tool fires one fastener each time the trigger is pulled after the contact safety is engaged.
• Continuous Firing Mode: For rapid fastening. Hold the trigger down, and the tool will fire a fastener each time the contact safety is engaged by pressing the nozzle against the workpiece.

4.2 Firing the Tool

1. Ensure the correct fasteners are loaded and the battery is installed.
2. Select the desired firing mode (single or continuous).
3. Place the nozzle of the tool firmly against the workpiece surface where the fastener is to be driven. The contact safety mechanism must be fully depressed.
4. Pull the trigger to fire the fastener.
5. Release the trigger and lift the tool from the workpiece before moving to the next fastening point (in single-shot mode).

Note on Depth Adjustment: This model does not feature an adjustable depth control. The penetration depth of fasteners will depend on the material density and the pressure applied to the tool. For softer materials, fasteners may be driven deeper than desired. Consider using a sacrificial material or adjusting technique for optimal results.

5. Технічне обслуговування

Регулярне технічне обслуговування забезпечує довговічність та оптимальну продуктивність вашого інструменту.

• Прибирання: Keep the tool clean and free of dust and debris. Use a soft, dry cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners.
• Журнал «Кріплення»: Periodically inspect the fastener magazine for any obstructions or damage. Ensure it slides smoothly.
• Вентиляційні отвори: Keep the air vents clear to prevent overheating of the motor.
• Догляд за акумулятором: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Charge batteries fully before long-term storage.
• Зберігання: When not in use, store the tool in a secure, dry location out of reach of children. Remove the battery pack before storage.

6. Вирішення проблем

If you encounter issues with your Yofidra nail gun, refer to the following common problems and solutions:

7. Технічні характеристики

8. Гарантія та підтримка

For warranty information and customer support, please refer to the documentation included with your purchase or contact Yofidra customer service directly. Keep your proof of purchase for any warranty claims.
