MAHANCRIS Farmhouse Floating TV Stand with Power Outlet

1. Вступ

Thank you for choosing the MAHANCRIS Farmhouse Floating TV Stand with Power Outlet. This wall-mounted entertainment center is designed to provide a convenient and stylish storage solution for your living space. It features integrated power outlets and ample storage, combining functionality with a rustic aesthetic. Please read this manual thoroughly before assembly and use to ensure safe operation and proper installation.

2. Інформація про безпеку

Важливі інструкції з безпеки:

• Do not exceed the maximum load capacity of 150 lb (68 kg). Overloading can cause instability and damage.
• Be cautious of sharp edges and small parts during assembly. Keep all small parts away from children to prevent choking hazards.
• Follow assembly instructions carefully, step-by-step. Incorrect assembly can lead to structural failure.
• Use power outlets with caution. Ensure all devices connected are within the specified voltage and current limits. Unplug the unit from the wall outlet when not in use or during maintenance.
• Ensure the wall where the TV stand is mounted can support the combined weight of the stand and its contents. Consult a professional if unsure about wall suitability.
• Регулярно перевіряйте всі з'єднання та кріплення, щоб переконатися в їх щільності та надійності.

3. Вміст упаковки

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact MAHANCRIS customer support.

• Floating TV Stand Components (MDF panels, metal frames)
• Integrated Power Outlet Unit (2 AC, 1 USB-A, 1 Type-C port)
• Шнур живлення (4.9 м)
• Assembly Hardware (screws, anchors, brackets, etc.)
• Leveler Tool
• Marking Helper Tool
• Інструкція з експлуатації

4. Технічні характеристики продукту

5. Налаштування та складання

The MAHANCRIS Floating TV Stand is designed for straightforward wall installation. All parts are labeled, and comprehensive instructions are included to guide you through the process. A leveler and marking helper are provided to assist with accurate wall mounting.

5.1 Підготовка

• Звільніть простору ділянку для складання.
• Ensure you have the necessary tools (e.g., screwdriver, drill for wall mounting).
• Identify all parts and hardware using the provided list in the separate assembly guide.
• Choose a suitable wall location, ensuring it is structurally sound and free from electrical wires or plumbing.

5.2 Етапи складання

1. Зберіть основний корпус: Follow the step-by-step instructions in the included assembly manual to connect the MDF panels and metal frames. Ensure all screws are tightened securely.
2. Встановити двері: Attach the decorative framed doors to the cabinet sections as indicated in the manual.
3. Інтегрована розетка: Secure the power outlet unit into its designated slot on the top surface of the stand. Connect the power cord.
4. Mark Wall for Mounting: Use the provided marking helper and leveler to accurately mark the drilling points on your wall. Ensure the marks are level and spaced correctly according to the stand's mounting brackets.
5. Просвердліть пілотні отвори: Drill pilot holes at the marked locations. Use appropriate drill bits for your wall type (e.g., drywall, concrete). Insert wall anchors if necessary.
6. Монтажні кронштейни: Secure the wall mounting brackets to the wall using the provided screws. Ensure they are firmly attached.
7. Hang TV Stand: Carefully lift the assembled TV stand and align its rear mounting points with the wall brackets. Secure the stand to the brackets as per the instructions. Double-check for stability.

6. Інструкція з експлуатації

The MAHANCRIS Floating TV Stand includes an integrated power outlet for convenient device charging and power access.

6.1 Power Outlet Usage

• Підключення до живлення: Plug the 4.9-foot power cord from the TV stand into a standard 120V wall outlet.
• Розетки змінного струму: Use the two 120V/12A AC outlets to power your television, media players, or other electronic devices. Do not exceed the maximum current rating.
• Порт USB-A: Connect compatible devices to the 5V/2A USB-A port for charging.
• Порт типу C: Connect compatible devices to the 5V/2A Type-C port for charging.
• Управління кабелем: Utilize the integrated wire hole to route cables neatly, reducing clutter and enhancing safety.

6.2 Функції зберігання

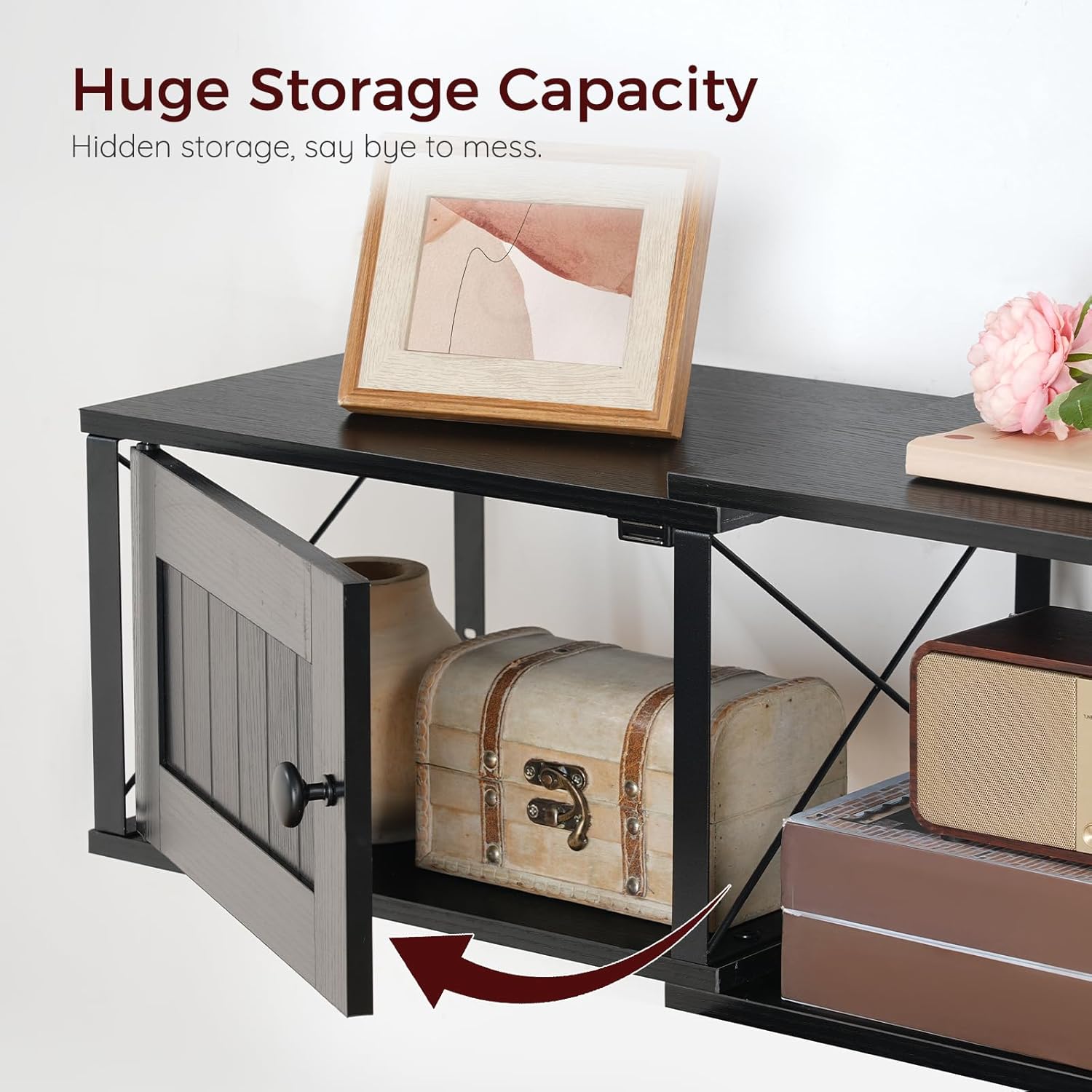

• Зберігання в шафі: The stand features cabinet-door storage sections, ideal for concealing media accessories, books, or other items to maintain a tidy appearance.
• Відкриті полиці: Utilize the open shelves for displaying decorative items, small electronics, or frequently accessed media.

7. Технічне обслуговування

Proper care and maintenance will extend the life and appearance of your MAHANCRIS Floating TV Stand.

• Прибирання: Протріть поверхні м’якою, damp тканиною. Уникайте використання агресивних хімічних речовин або абразивних засобів для чищення, які можуть пошкодити покриття.
• Витирання пилу: Регулярно витирайте пил зі стійки, щоб запобігти його накопиченню.
• Перевірка обладнання: Періодично перевіряйте всі гвинти та кріплення, щоб переконатися, що вони затягнуті. За потреби підтягніть їх для підтримки стабільності.
• Догляд за розеткою: Keep the power outlets clean and free of dust. Do not insert foreign objects into the ports.
• Уникайте вологи: Do not expose the stand to excessive moisture or direct sunlight, which can cause warping or fading.

8. Вирішення проблем

If you encounter any issues with your MAHANCRIS Floating TV Stand, refer to the following common problems and solutions.

9. Гарантія та підтримка

MAHANCRIS stands behind the quality of its products. For specific warranty information, please refer to the documentation included with your purchase or visit the official MAHANCRIS website. If you have any questions, require assistance with assembly, or need to report a defect, please contact MAHANCRIS customer support. Have your model number (TVBK401E01) and purchase details ready when contacting support.
