1. Вступ
The Gedsffati PT06 is a versatile 3-in-1 portable carbon monoxide (CO) detector designed to monitor CO concentration, temperature, and humidity. Its compact and lightweight design makes it suitable for various environments, including homes, vehicles, RVs, and during travel or outdoor activities like camping and mountaineering. This device provides real-time monitoring and alerts to help ensure your safety from carbon monoxide poisoning.
Image: The Gedsffati PT06 Portable Carbon Monoxide Detector, displaying CO levels, temperature, and humidity on its screen.
2. Вміст упаковки
Після відкриття упаковки, будь ласка, перевірте наявність усіх елементів:
- Gedsffati PT06 Carbon Monoxide Detector (1 unit)
- USB-кабель для зарядки (1 шт.)
- Посібник користувача (1 шт.)
3. Ключові характеристики
- Multifunctional & Portable: Combines carbon monoxide, temperature, and humidity detection in a compact, travel-friendly device.
- High Precision Carbon Monoxide Sensor: Utilizes an electrochemical reaction principle for accurate CO measurement. Certified with EN-50291 (EU standard for CO detectors), ensuring reliability and a long service life.
- LCD Screen & Acoustic Alarm: Features a high-resolution 2.45-inch LCD screen for clear, real-time display of readings (updated every two seconds). An audible alarm activates when CO concentration exceeds 50ppm.
- Вбудований літієвий акумулятор: Equipped with a 2000mAh lithium battery, providing approximately 70 hours of continuous operation in standby mode after a 4-hour charge. The device can also function while charging.
- Режим очікування: To conserve energy, the screen backlight automatically turns off after 30 seconds of inactivity. The CO sensor remains active, continuously monitoring CO concentration. Pressing any button reactivates the screen.
Image: Visual representation of the Gedsffati PT06's 5-in-1 detection capabilities, including CO, temperature, humidity, altitude, and atmospheric pressure.

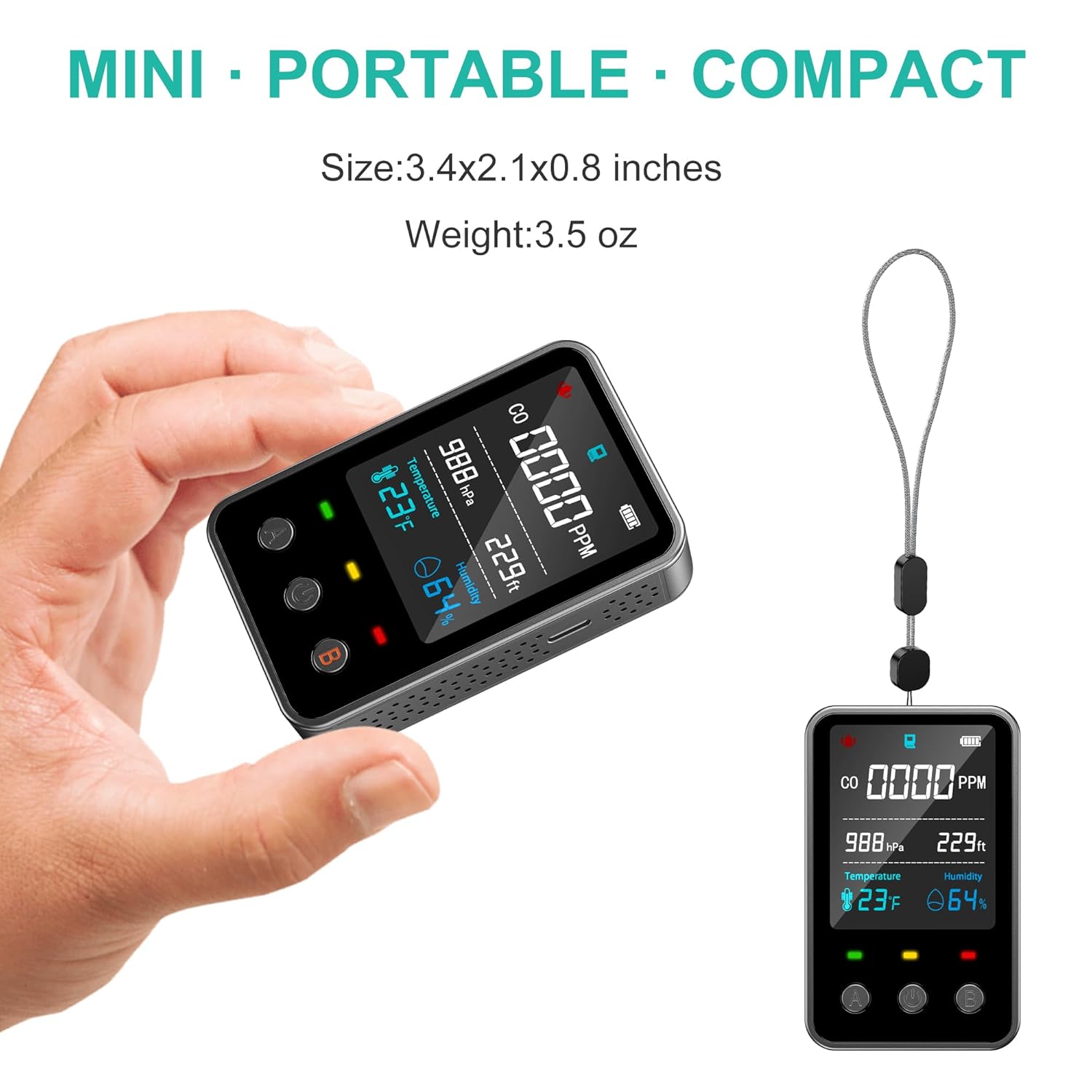

Image: The compact size of the Gedsffati PT06, highlighting its portability with dimensions of 3.4x2.1x0.8 inches and a weight of 3.5 oz.
4. Налаштування
4.1 Початкове заряджання
Before first use, fully charge the device. Connect the provided USB cable to the device's charging port and a standard DC 5V/1A USB power adapter. A full charge typically takes approximately 4 hours. The device can be used while charging.
4.2 Увімкнення/вимкнення живлення
To power on the device, press and hold the power button (usually marked with a power symbol) until the screen illuminates. To power off, press and hold the power button again until the screen turns off.
5. Інструкція з експлуатації
5.1 CO Concentration Display
The device displays the carbon monoxide concentration in parts per million (ppm) on the LCD screen. A colored icon indicates the current CO level:
- Green (0-50ppm): Безпечний рівень.
- Yellow (51-100ppm): Ventilation required.
- Orange (101-200ppm): Ventilation required.
- Red (201-999ppm): Hazardous level.
5.2 CO Concentration Alarm
The device provides audible alarms based on detected CO levels:
- 51-100 ppm: Alarm sounds 3 times every 3 minutes.
- 101-200 ppm: Alarm sounds 5 times every 3 minutes.
- 201-999 ppm: Будильник звучить постійно.
To stop a continuous alarm, press the 'S' button on the device.
5.3 Відображення температури та вологості
In addition to CO levels, the device continuously displays the ambient temperature and humidity on the screen.
Зображення: Детальний view of the Gedsffati PT06 screen showing real-time CO detection, working status, and corresponding CO hazard levels with recommended actions.
6. Технічне обслуговування
6.1 Термін служби батареї та заряджання
The built-in 2000mAh lithium battery provides approximately 70 hours of continuous operation in standby mode. Recharge the device using the provided USB cable and a DC 5V/1A power source. The device can operate normally while charging.
6.2 Режим очікування
To conserve power, the screen backlight automatically turns off after 30 seconds of inactivity. The CO sensor remains active and continues to monitor the environment. Press any button to reactivate the screen.
Image: Illustration of the Gedsffati PT06's battery features, including its 2000mAh capacity, sleep mode for energy saving, and Type-C charging capability.
7. Запис даних
The Gedsffati PT06 supports CO data recording with an SD card (not included). With a 128MB SD card, the device can store up to one year of carbon monoxide detection data. This feature is valuable for analyzing CO levels over time and assessing environmental safety.
Image: The Gedsffati PT06 demonstrating its capability to record CO data to an SD card, with an example of data displayed on a laptop spreadsheet.
8. Вирішення проблем
If you encounter issues with your Gedsffati PT06 detector, consider the following:
- Пристрій не вмикається: Ensure the device is fully charged. Connect it to a power source using the USB cable and allow it to charge for at least 30 minutes before attempting to power on again.
- Неточні показники: Ensure the sensor area is not obstructed. Avoid placing the device in areas with extreme temperatures, high humidity, or near strong chemical fumes, as these can affect sensor performance.
- Сигналізація не звучить: Check if the device is powered on and if the CO concentration exceeds the alarm thresholds. Ensure the speaker is not obstructed.
- Screen backlight off: This is normal behavior for standby mode. Press any button to reactivate the screen.
Якщо проблеми постійно виникають, зверніться до розділу гарантії та підтримки.
9. Технічні характеристики
| Особливість | Специфікація |
|---|---|
| Модель | PT06 |
| Carbon Monoxide Measurement Range | 0-999 ppm (±5 ppm) |
| Діапазон вимірювання температури | -10°C to 50°C (±2%) |
| Діапазон вимірювання вологості | Від 0% до 95% RH (±2% RH) |
| Час розігріву | 35 секунди |
| Data Refresh Frequency | 2 секунди |
| Джерело живлення | Вбудований літієвий акумулятор на 2000 мАг |
| Вхід зарядки | Постійний струм 5 В/1 А |
| Розміри продукту | 90 x 55 x 17 мм (3.54 x 2.17 x 0.67 дюймів) |
| Вага товару | 65 г (2.29 унції) |
| матеріал | ABS пластик |
| Виробник | Shenzhen Prodo Technology Co., Ltd. |
| UPC | 758321309837 |
10. Інформація про безпеку
Carbon monoxide (CO) is a colorless, odorless, and tasteless gas that can be deadly. Always follow these safety guidelines:
- This device is intended as a supplementary safety tool and should not replace proper ventilation or regular maintenance of fuel-burning appliances.
- Do not block the sensor vents on the device.
- Тримайте пристрій подалі від прямих сонячних променів, екстремальних температур та високої вологості.
- If the alarm sounds, immediately move to fresh air, call emergency services, and do not re-enter the area until it has been deemed safe by professionals.
- Regularly test the device according to manufacturer recommendations (if applicable, not specified in provided data).
11. Гарантія та підтримка
For warranty information, technical support, or service inquiries, please contact the manufacturer, Shenzhen Prodo Technology Co., Ltd., or your point of purchase. Keep your purchase receipt as proof of purchase.
