Посібник користувача чохла-клавіатури Logitech Flip Folio

вступ

The Logitech Flip Folio is a versatile keyboard case designed to enhance your iPad experience. It provides front-and-back protection for your device and features a stowable Bluetooth keyboard, offering flexibility for typing, viewing, and portability. This manual provides instructions for setting up, operating, and maintaining your Flip Folio.

Figure 1: Logitech Flip Folio Keyboard Case with iPad and detachable keyboard.

Сумісність

The Logitech Flip Folio Keyboard Case is compatible with the following iPad models:

• iPad Pro 11-inch (M4 & M5) (2024 & 2025) – Models: A2836, A2837, A3006, A3357, A3358, A3359
• iPad Air 11-inch (M2 & M3)
• iPad Air (5 покоління)

Що в коробці

Your Logitech Flip Folio package includes:

• Клавіатура Bluetooth
• iPad Folio Case
• Документація
• Батарейки CR2016 x4 (попередньо встановлені в клавіатурі)

Figure 2: Package contents of the Flip Folio.

Налаштування

Follow these steps to set up your Logitech Flip Folio:

1. Attach your iPad: Open the folio case. Align your iPad with the case and gently place it. Magnets will securely attach the iPad to the folio.
2. Form the Stand: Fold the front cover along the designated crease. Flip it back to prop up the iPad, transforming the case into a stable stand. You can adjust the viewкут за бажанням.
3. Connect the Bluetooth Keyboard: The keyboard is magnetically stowed in the back of the folio. Pull out the keyboard. Ensure the keyboard is powered on (it should automatically activate when removed or by sliding the power switch if present).
4. Pair with iPad:
   • На вашому iPad перейдіть до Налаштування > Bluetooth.
   • Переконайтеся, що Bluetooth увімкнено On.
   • Select "Flip Folio" from the list of available devices.
   • If prompted, type the on-screen code using the Flip Folio keyboard and press Повернення.

For a visual guide, please watch the official setup video below:

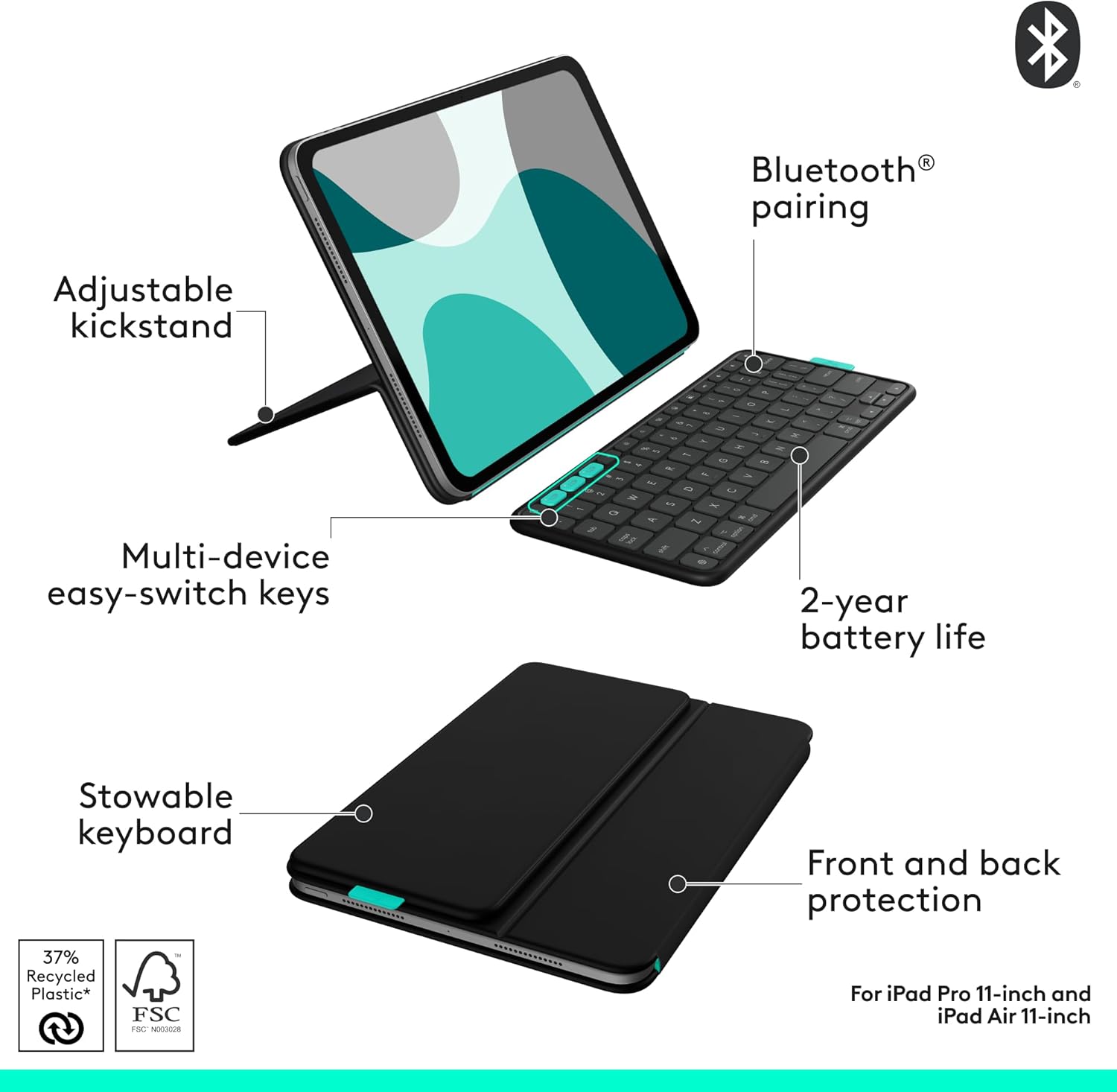

Малюнок 3: Закінченоview of Flip Folio features including adjustable kickstand and stowable keyboard.

Operating Instructions & Features

The Logitech Flip Folio is designed for maximum versatility and ease of use:

• Detachable Wireless Keyboard: The full-size keyboard can be used attached to the folio or detached and placed anywhere for comfortable typing. It magnetically reattaches for easy storage.
• Регульована Viewкути нахилу: The integrated kickstand allows you to adjust your iPad to various viewing angles. You can also position your iPad in both portrait and landscape modes for typing, reading, or video calls.
• Multi-Device Pairing (Easy-Switch Keys): The keyboard supports pairing with up to three Bluetooth devices simultaneously. Use the Easy-Switch keys (usually labeled 1, 2, 3) to seamlessly switch between your iPad, iPhone, or other compatible devices with a single press.
• Клавіші швидкого доступу iOS: A full row of dedicated iOS shortcut keys provides quick access to familiar functions such as home, search, media controls, and screen brightness, optimizing your workflow.
• Front and Back Protection: The folio case shields your iPad from everyday bumps, scratches, and spills, ensuring all-around durability.
• Тривалий термін служби батареї: The keyboard is powered by four replaceable CR2016 coin cell batteries, offering up to 2 years of use, eliminating the need for frequent charging.
• Сумісність з Apple Pencil: The folio's design allows your Apple Pencil to magnetically attach directly to your iPad for convenient storage and charging.

Figure 4: iPad in both landscape and portrait modes using the adjustable stand.

Figure 5: Multi-device pairing with the Flip Folio keyboard, showing an iPad and iPhone side-by-side.

Технічне обслуговування

To ensure the longevity and optimal performance of your Logitech Flip Folio, follow these maintenance guidelines:

• Прибирання: Використовуйте м'який, damp, lint-free cloth to clean the exterior of the folio and keyboard. Avoid abrasive cleaners or solvents.
• Зберігання: When not in use, keep the Flip Folio closed to protect your iPad. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• Заміна батареї: The keyboard uses four CR2016 coin cell batteries. When the battery indicator light signals low power, replace all four batteries simultaneously to maintain optimal performance.

Усунення несправностей

If you encounter issues with your Logitech Flip Folio, refer to the following common troubleshooting steps:

• Клавіатура не реагує:
  • Переконайтеся, що клавіатуру увімкнено.
  • Перевірте рівень заряду батарейок та за потреби замініть батарейки.
  • Verify Bluetooth connection on your iPad (Settings > Bluetooth). Try unpairing and re-pairing the keyboard.
• Складність сполучення:
  • Make sure the keyboard is in pairing mode (refer to setup instructions).
  • Ensure no other devices are actively connected to the keyboard via Bluetooth.
  • Restart your iPad and the keyboard, then attempt pairing again.
• iPad Not Staying in Stand Mode:
  • Ensure the iPad is correctly seated and magnetically attached to the folio.
  • Verify the folds of the stand are properly aligned along the creases.

Технічні характеристики

Гарантія та підтримка

Logitech products are designed for durability and reliability. For specific warranty information and support, please refer to the official Logitech webсайт або документацію, що додається до вашого продукту.

• Інтернет-підтримка: Відвідайте Підтримка Logitech webсайт щоб отримати відповіді на поширені запитання, посібники з усунення несправностей та завантаження програмного забезпечення.
• Реєстрація товару: Register your product online to receive updates and access to exclusive support.
