APlusLift HW-10ASY 10 000 фунтів 2-стійковий автомобільний підйомник Інструкція з експлуатації

1. Вступ та опис продуктуview

This manual provides essential information for the safe and effective installation, operation, and maintenance of your APlusLift HW-10ASY 10,000LB 2-Post Overhead Symmetrical and Truly Asymmetrical Single Release Car Lift. This robust lift is designed for professional and enthusiast use, offering a 10,000 lb lifting capacity and versatile symmetrical or asymmetrical installation options.

Key features include a single point safety lock release system, adjustable screw pads, and CE certified structure and hydraulic system, tested for 115% dynamic load capacity and 150% static load capacity. The lift features a robotically welded structure with a durable powder-coated finish for long-lasting performance.

Figure 1.1: APlusLift HW-10ASY 10,000LB 2-Post Car Lift in operation, lifting a white SUV.

2. Інформація про безпеку

Always prioritize safety when operating the car lift. Failure to follow safety guidelines can result in serious injury or death. Ensure all personnel are trained and aware of potential hazards.

• Read and understand the entire manual before installation or operation.
• Ensure the installation area meets all structural and electrical requirements.
• Never exceed the lift's rated capacity of 10,000 lbs.
• Always engage safety locks before working under a lifted vehicle.
• Тримайте руки та ноги подалі від рухомих частин.
• Використовуйте відповідні засоби індивідуального захисту (ЗІЗ).
• Regularly inspect the lift for wear, damage, or loose components.

Figure 2.1: Detail of the automatic locking arm gears, a critical safety feature.

3. Що в коробці

Upon receiving your APlusLift HW-10ASY, verify that all components are present and undamaged. The package typically includes:

• Main lift columns (2)
• Overhead beam
• Гідравлічний агрегат
• Lifting arms (4)
• Adjustable screw pads (4 pieces)
• 4" tall truck adapters (height extensions) (4 pieces)
• Анкерні болти (10)
• Прокладки (10)
• Tool trays (2)
• Toe guards (2)
• Hydraulic hoses and fittings
• Cables and pulleys

Малюнок 3.1: Закінченоview of included components such as anchor bolts, adjustable pads, truck adapters, and hydraulic unit.

4. Налаштування та встановлення

Proper installation is crucial for the safe and reliable operation of your lift. It is highly recommended to have professional assistance for installation due to the weight and complexity of the equipment.

4.1 Вимоги до сайту

• Бетонний фундамент: A minimum of 6 inches (15.24 cm) of reinforced concrete slab is required. Consult a structural engineer if unsure.
• Електропостачання: A dedicated 250V power supply with a 30 amp circuit is necessary for the hydraulic power unit.
• оформлення: Ensure adequate overhead clearance for the lift's maximum height and sufficient space around the lift for vehicle entry/exit and maintenance.

4.2 Unloading and Assembly

The lift components are heavy. Access to a forklift or tractor is highly recommended for unloading from the freight truck. If not available, individual components will need to be unloaded manually, requiring multiple personnel.

Follow the detailed assembly instructions provided with your lift. Pay close attention to the wiring of the safety bar and the installation of racks/toe guards and tool trays, as these steps may require careful interpretation of diagrams.

Figure 4.1: Technical drawing illustrating the dimensions and symmetrical/asymmetrical configurations of the HW-10ASY lift.

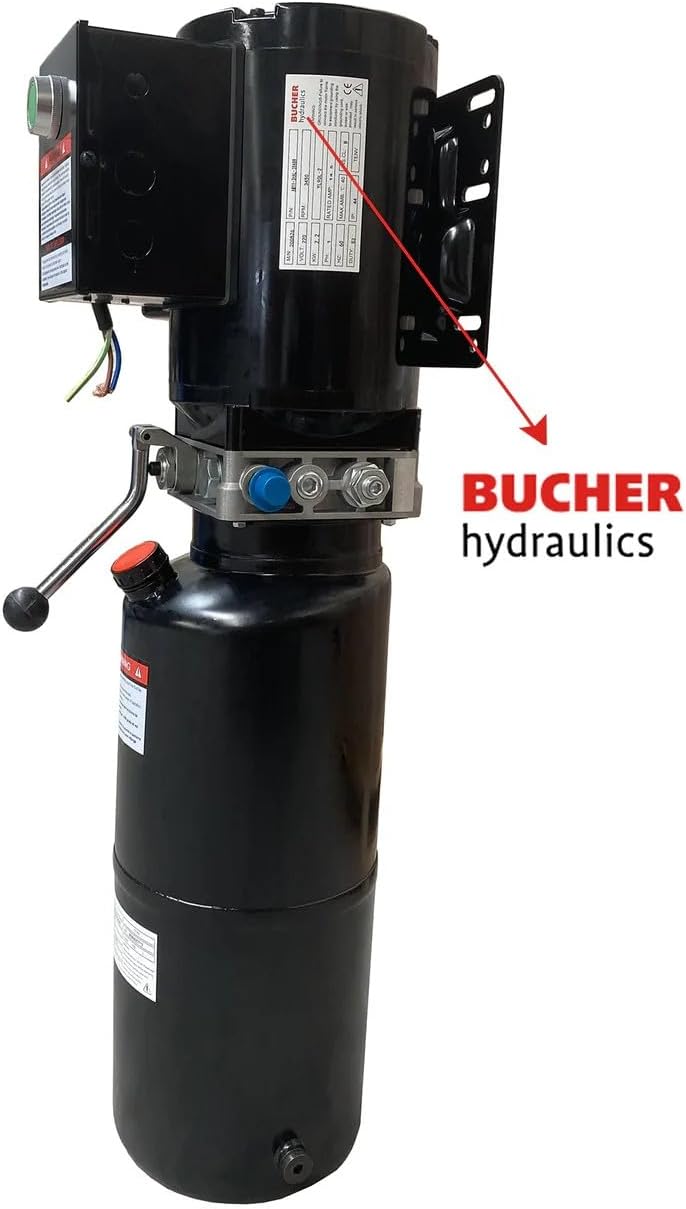

Figure 4.2: The Bucher hydraulic power unit, responsible for the lift's operation.

5. Інструкція з експлуатації

Before operating, ensure the lift is properly installed, all safety checks are performed, and the area is clear of obstructions.

5.1 Preparing the Vehicle

• Position the vehicle centrally between the columns.
• Adjust the lifting arms to ensure proper contact with the vehicle's designated lifting points. Use the adjustable screw pads and truck adapters as needed.
• Ensure the vehicle is stable on the arms before lifting.

Figure 5.1: Adjustable lifting arms with screw pads for secure vehicle contact.

5.2 Lifting the Vehicle

• Activate the hydraulic power unit to raise the lift.
• As the lift rises, the automatic safety locks will engage at various height intervals. Listen for the audible clicks.
• Once the desired working height is reached, lower the lift slightly until it rests securely on the nearest safety locks. This ensures the vehicle is supported mechanically, not just by hydraulic pressure.

5.3 Опускання транспортного засобу

• Ensure the area beneath the vehicle is clear.
• Злегка підніміть підйомник, щоб розблокувати запобіжні замки.
• Operate the single point safety lock release lever to fully disengage the locks.
• Slowly lower the vehicle to the ground. Guide the arms clear of the vehicle as it descends.

Figure 5.2: The single point safety lock release lever for convenient operation.

6. Технічне обслуговування

Regular maintenance ensures the longevity and safe operation of your APlusLift car lift.

• Щоденні перевірки: Inspect cables, hoses, and connections for any signs of wear, fraying, or leaks. Ensure all bolts are tight.
• Щотижневі перевірки: Lubricate all moving parts, including pulleys, cables, and arm pivot points. Check hydraulic fluid levels and top off if necessary.
• Щомісячні перевірки: Inspect anchor bolts for tightness. Check the condition of the safety locks and release mechanism.
• Щорічне обслуговування: Consider a professional inspection to assess the overall condition of the lift, including hydraulic system integrity and structural components.

Figure 6.1: Inspect hydraulic cylinder seals for leaks during maintenance.

7. Вирішення проблем

This section provides solutions for common issues. For problems not listed, contact customer support.

8. Технічні характеристики

9. Інформація про гарантію

The APlusLift HW-10ASY Car Lift comes with an industry-leading Гарантія 3 рік. This warranty covers electrical and hydraulic components, ensuring reliable service and peace of mind. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact APlusLift customer support.

10. Підтримка клієнтів

For any questions, technical assistance, or warranty claims, APlusLift provides comprehensive customer support. You can reach our support team via phone, text, chat, or email. With nationwide warehouses, APlusLift ensures fast delivery and readily available parts for service needs.

Please visit the official APlusLift website or refer to your purchase documentation for the most current contact information.
