Інструкція з експлуатації намету з розсувним навісом Yaheetech 10x10

Продукт закінченийview

The Yaheetech 10x10 Pop-up Canopy Tent is designed for outdoor use, providing shade and protection from the elements. It features a robust alloy steel frame, a durable polyester canopy with UPF 50+ protection, and a convenient wheeled carry bag for easy transport. This manual provides detailed instructions for assembly, use, and care.

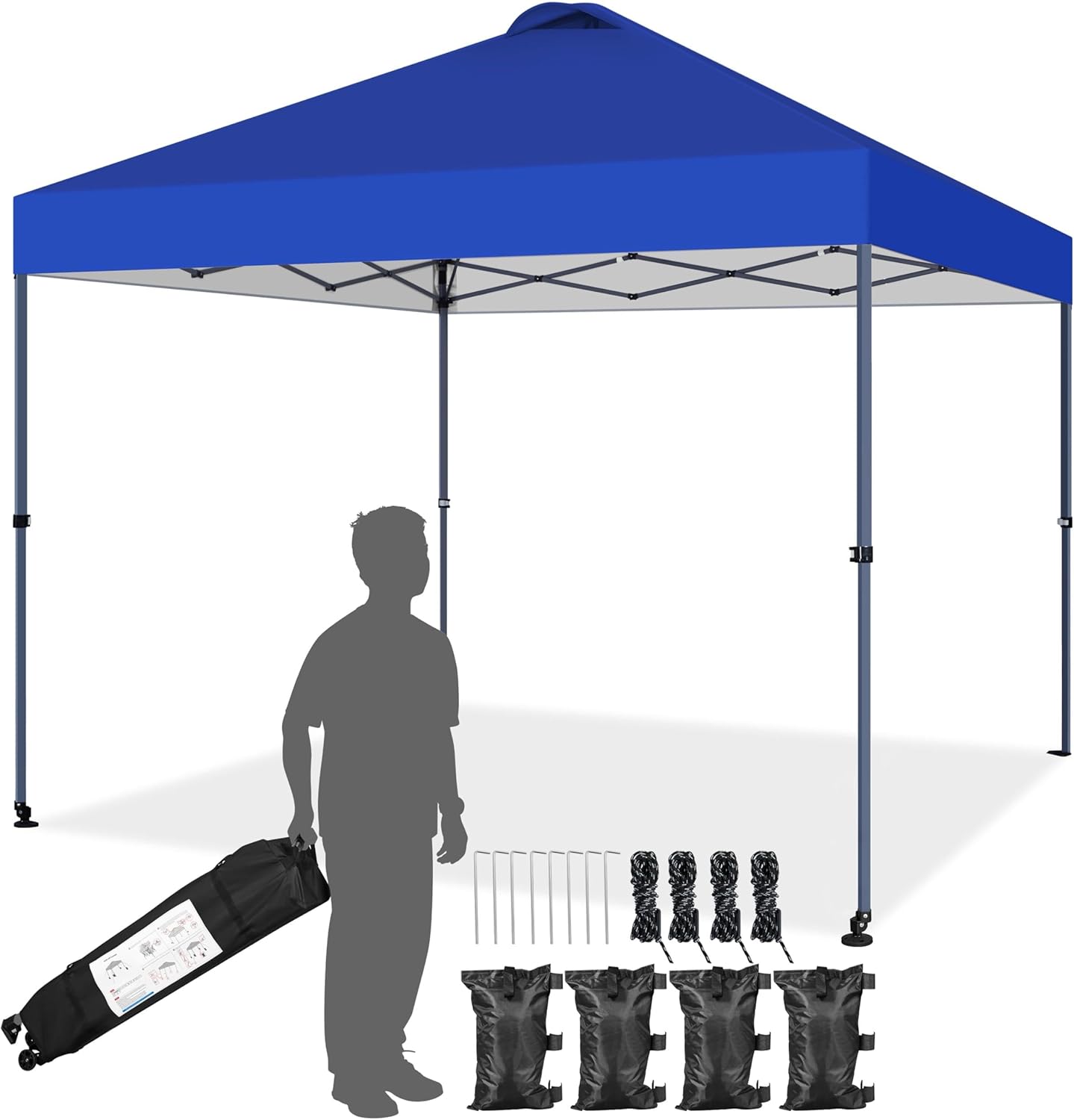

малюнок 1: The Yaheetech 10x10 Pop-up Canopy Tent, including the main tent structure, wheeled carry bag, sandbags, ground stakes, and guy lines.

Вміст упаковки

Перед початком складання переконайтеся, що всі компоненти є в наявності:

• 1 x Canopy Fabric (Blue)
• 1 х Складана рамка
• 1 х Сумка для перенесення на колесах
• 4 х мішки з піском
• 8 х наземних колів
• 4 х відтяжки

малюнок 2: All components included in the Yaheetech 10x10 Pop-up Canopy Tent package.

Інструкції з налаштування

Виконайте такі кроки для швидкого та легкого складання:

1. Розпакуйте рамку: Remove the folded frame from the wheeled carry bag. Stand the frame upright.
2. Частково відкрити рамку: With a partner, gently pull the opposing legs of the frame outwards until it is partially open. This creates enough space to place the canopy fabric.
3. Прикріпіть тканину балдахіна: Drape the canopy fabric over the partially opened frame. Secure the Velcro straps located at each corner of the canopy to the corresponding frame corners. Ensure the fabric is evenly distributed.
4. Повністю розгорніть раму: Continue pulling the opposing legs outwards until the frame is almost fully extended. Secure any remaining Velcro attachments on the canopy to the frame.
5. Engage the Central Locking System: Stand under the canopy. Locate the central locking mechanism at the peak of the tent. Push upwards on this mechanism with one hand until it clicks securely into place. This will raise the canopy to its full height.
6. Відрегулюйте висоту ніг: Locate the height adjustment levers on each leg. Press the lever and extend each leg to your desired height. Ensure all four legs are extended to the same height for stability.
7. Закріпіть намет: For enhanced stability, especially in outdoor conditions, utilize the included accessories:
   • Наземні кілки: Insert the ground stakes through the footpads at the base of each leg and into the ground.
   • Лінії хлопця: Attach the guy lines to the designated loops on the canopy corners and stake them securely into the ground at an angle away from the tent.
   • Мішки з піском: Fill the provided sandbags with sand or other heavy material and attach them to the tent legs for additional weight and stability.

малюнок 3: Visual representation of the easy setup process for the canopy tent.

малюнок 4: Key features such as the one-handed locking mechanism and convenient height adjustments.

Експлуатація намету з балдахіном

The Yaheetech Pop-up Canopy Tent offers a spacious and protective outdoor shelter:

• Spacious Coverage: Provides 100 square feet of shade, comfortably accommodating up to ten people.
• Захист від сонця: The polyester fabric canopy offers UPF 50+ ultraviolet light protection, blocking harmful UV rays.
• Водонепроникність: The canopy is designed with water-resistant properties to protect against light moisture. It is not intended for use in continuous or heavy rainfall.
• мобільність: Two of the tent legs feature integrated wheels. You can lift the opposite side of the tent and easily roll it to a new location without fully dismantling it. The wheels can also be folded to become stable footpads.

малюнок 5: The canopy tent providing shade and comfort in an outdoor setting.

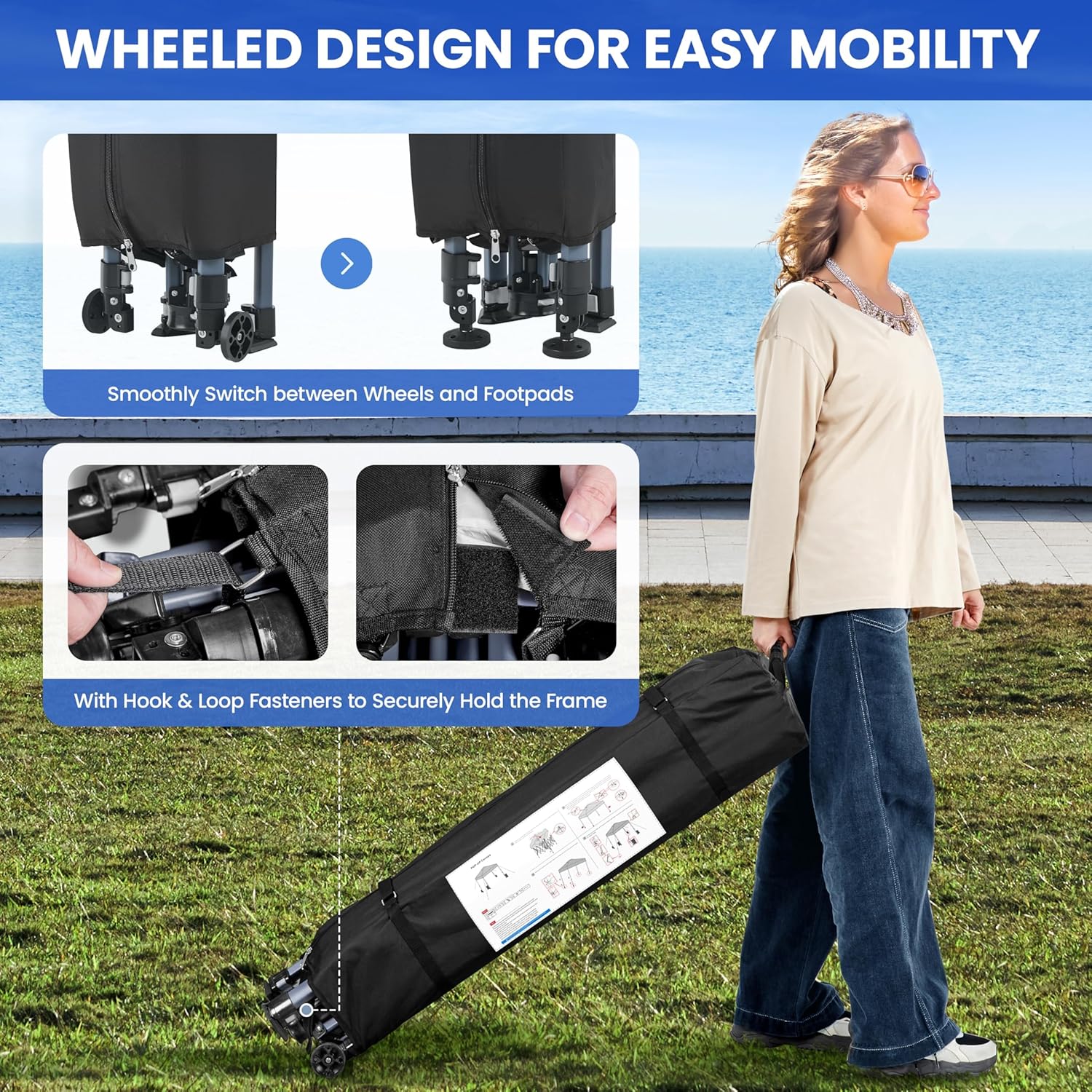

малюнок 6: The innovative wheeled design allows for effortless movement of the folded tent.

малюнок 7: The canopy fabric is designed to be resistant to water and UV rays.

Технічне обслуговування

To ensure the longevity and optimal performance of your canopy tent, follow these maintenance guidelines:

• Прибирання: Clean the canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as this may damage the fabric's protective coating. Allow the fabric to dry completely before storage.
• Перевірка рами: Periodically inspect the alloy steel frame for any signs of damage, rust, or loose connections. Tighten any loose bolts or screws as needed.
• Зберігання: When not in use, collapse the tent and store it in its wheeled carry bag. Ensure the tent is clean and dry to prevent mold or mildew growth. Store in a cool, dry place away from direct sunlight.

Усунення несправностей

If you encounter issues with your Yaheetech Pop-up Canopy Tent, refer to the following common problems and solutions:

• Tent is unstable or blows away easily:
  • Переконайтеся, що всі ноги повністю витягнуті та зафіксовані на одній висоті.
  • Always use the provided ground stakes, guy lines, and sandbags to anchor the tent securely.
  • Avoid using the tent in strong winds. Dismantle and store the tent if high winds are expected.
• Water leaks through the canopy:
  • The canopy fabric is water-resistant, not fully waterproof. It provides protection from light rain and dew.
  • It is not designed to withstand continuous or heavy rainfall, especially around seams or stitching areas.
  • For optimal performance and to prevent damage, avoid use during continuous light rain or heavy rainfall.
• Frame is difficult to open or close:
  • Ensure the central locking mechanism is fully disengaged when collapsing.
  • Check for any obstructions or debris in the frame's joints.
  • Apply a silicone-based lubricant to moving parts if necessary.

Технічні характеристики

малюнок 8: Detailed dimensions of the 10x10 FT canopy tent.

Гарантія та підтримка

For any questions, concerns, or support regarding your Yaheetech 10x10 Pop-up Canopy Tent, please contact Yaheetech Customer Service. While specific warranty details are not provided in this manual, please retain your proof of purchase for any potential claims.

Контактна інформація: Refer to the contact details provided on the product packaging or the official Yaheetech webсайт для отримання найактуальнішої інформації про підтримку.
