Yaheetech Queen Adjustable Bed Frame (Model M-615165) Instruction Manual

1. Важлива інформація з безпеки

Please read and understand all instructions and warnings before assembling and using this adjustable bed frame. Failure to follow these instructions may result in injury or product damage.

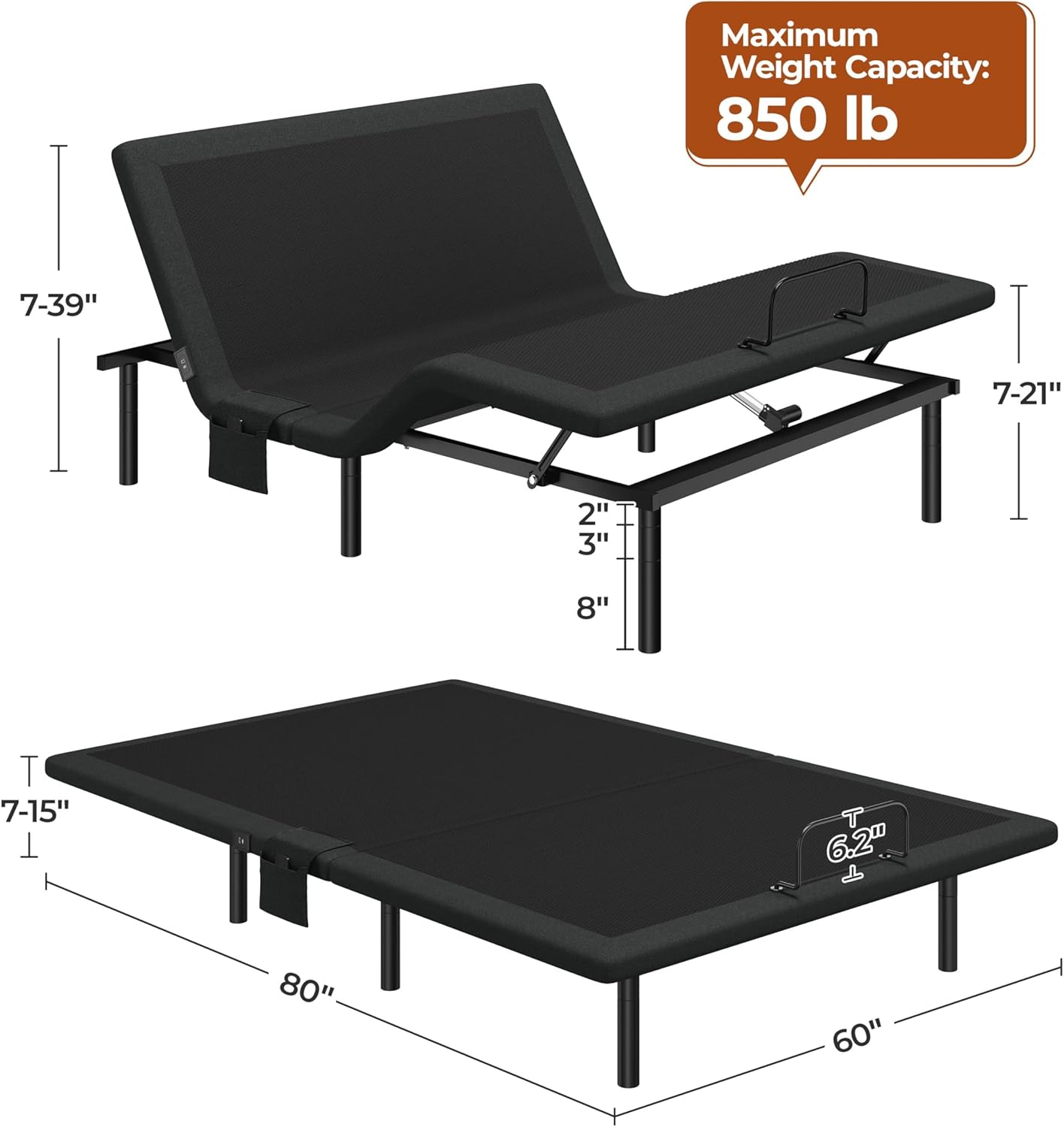

• Не перевищуйте максимальну вагу 850 фунтівЦе включає вагу матраца та людей, що на ньому лежать.
• Follow assembly instructions carefully to prevent instability. Ensure all connections are secure before use.
• Be cautious when using the remote-controlled flashlight in the dark to avoid tripping or falling.
• Keep children and pets away from moving parts of the bed frame during operation.
• Ensure power cords are not pinched or damaged. Do not operate the bed if the power cord is damaged.
• У разі потужності оtage, ensure 9V batteries are installed in the emergency lowering system to return the bed to a flat position.

2. Вміст упаковки

Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Yaheetech customer support.

• Регульована основа каркаса ліжка
• Бездротовий пульт дистанційного керування
• Adjustable Legs (Quantity: 6)
• Фіксатор матраца
• Адаптер живлення та шнур
• Accessory Kit (screws, tools, etc.)
• Інструкції зі складання

3. Інструкції з налаштування

Assembly of the Yaheetech Queen Adjustable Bed Frame is designed to be straightforward. Due to the product's weight, two people are recommended for installation.

1. Розпакування та розташування: Carefully remove all components from the packaging. Place the folded bed frame base in the desired location, ensuring enough space for unfolding.
2. Прикріпіть регульовані ніжки: Screw the six adjustable legs into the designated threaded holes on the underside of the bed frame. You can choose from four height settings: 8", 10", 11", or 13" by adjusting the leg segments. Ensure all legs are tightened securely and are at the same height for stability.
3. Встановлення фіксуючої планки матраца: Insert the mattress retainer bar into the slots at the foot of the bed frame. This bar prevents the mattress from sliding when the bed is adjusted.
4. Підключіть живлення: Connect the power adapter to the bed frame's control box, then plug the power cord into a grounded electrical outlet.
5. Парний пульт дистанційного керування: Follow the instructions provided with the remote control to pair it with the bed base. Typically, this involves holding a pairing button on the control box and the remote simultaneously.
6. Install Emergency Batteries: For emergency lowering during a power outage, install two 9V batteries (not included) into the designated compartment on the control box.
7. Розмістити матрац: Carefully place your Queen-sized mattress onto the adjustable bed frame. This frame is compatible with memory foam, latex, hybrid, and innerspring mattresses under 14" thick.

4. Інструкція з експлуатації

The adjustable bed frame is operated using the wireless remote control.

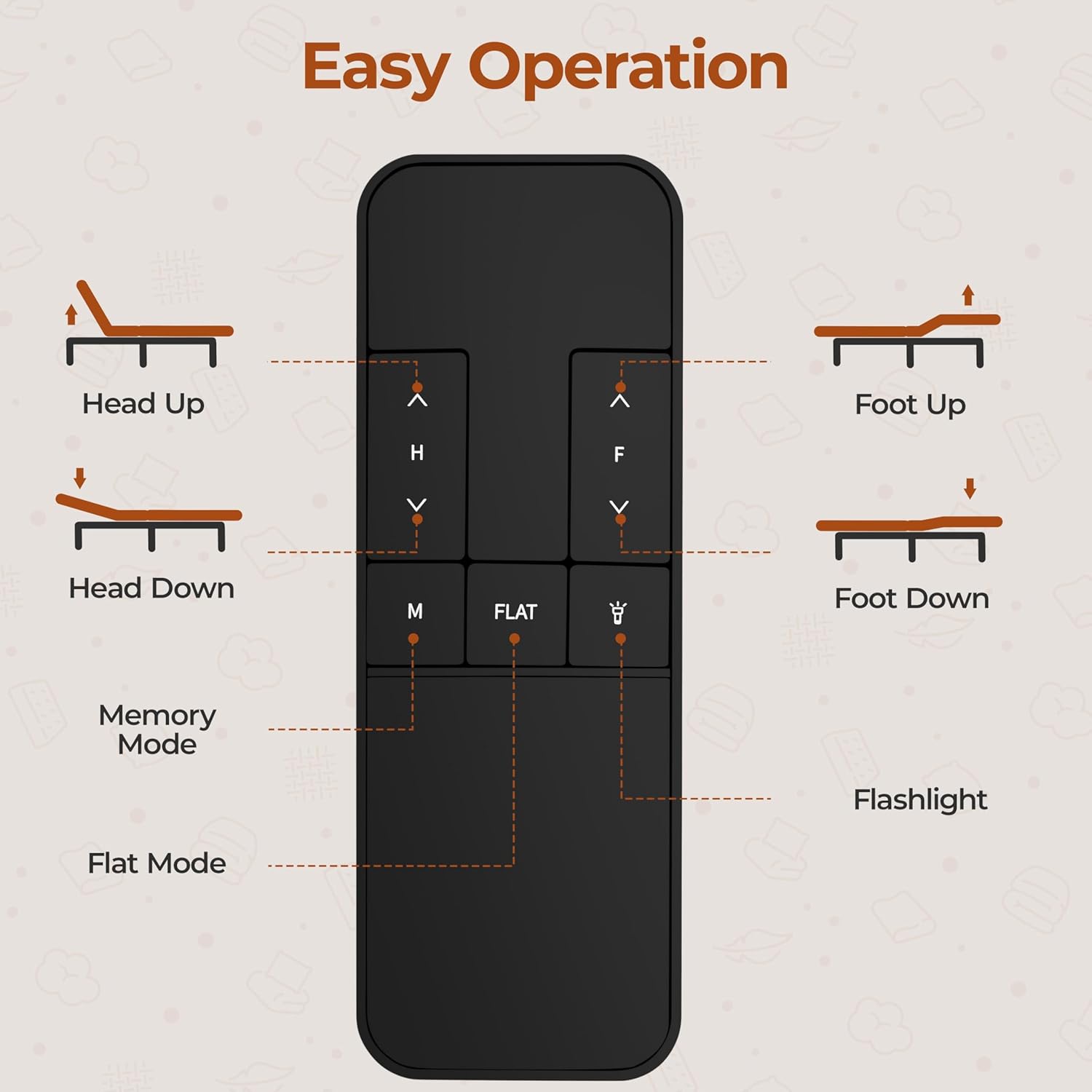

4.1 Функції дистанційного керування

• Голова вгору/вниз: Use the 'H' buttons to raise or lower the head section of the bed. The head section can be adjusted independently up to 60 degrees.
• Нога вгору/вниз: Use the 'F' buttons to raise or lower the foot section of the bed. The foot section can be adjusted independently up to 40 degrees.
• Memory Mode ('M'): Press this button to save your current preferred head and foot position. To recall a saved position, press the 'M' button again.
• Плоский режим: Press this button to return the bed frame to a completely flat position.
• Ліхтарик: Press the flashlight button on the remote to activate a small light, useful for navigating in the dark.

4.2 Independent Head & Foot Adjustments

The bed frame allows for independent adjustment of the head and foot sections, providing personalized comfort for various activities such as reading, watching TV, or sleeping.

4.3 USB Charging Ports & Side Pocket

The bed frame is equipped with built-in USB-A and USB-C ports for convenient device charging. A removable side pocket is also included to keep essentials within reach.

4.4 Нічне світло

The integrated under-bed nightlight provides subtle illumination, useful for navigating your room during the night without disturbing others.

5. Технічне обслуговування

Regular maintenance helps ensure the longevity and optimal performance of your adjustable bed frame.

• Прибирання: Протріть рамку м’якою серветкоюamp тканиною. Уникайте агресивних хімікатів або абразивних засобів для чищення.
• Перевірте підключення: Periodically inspect all bolts, screws, and electrical connections to ensure they are secure. Tighten any loose fasteners.
• Догляд за мотором: The motors are designed for maintenance-free operation. Avoid obstructing the motor areas.
• Пульт дистанційного керування: Replace AAA batteries in the remote control as needed. Ensure 9V emergency batteries in the control box are fresh.

6. Вирішення проблем

If you encounter issues with your adjustable bed frame, refer to the following troubleshooting guide:

7. Технічні характеристики

8. Гарантія та підтримка

For warranty information, product support, or to order replacement parts, please contact Yaheetech customer service. Refer to your purchase documentation for specific warranty terms and contact details.

Yaheetech Customer Service: Будь ласка, відвідайте офіційний сайт Yaheetech webсайт або зверніться до контактної інформації, наданої під час покупки.
