TYAN MiTAC Thunder CX GC68A-B7126 Cloud Server User Manual

1. Вступ

This manual provides essential information for the safe and efficient operation of your TYAN MiTAC Thunder CX GC68A-B7126 B7126G68AV10E2HR -1U2S Cloud Server. It covers installation, configuration, maintenance, and troubleshooting procedures. Please read this manual thoroughly before installing or operating the server.

2. Інформація про безпеку

Дотримуйтесь наступних запобіжних заходів, щоб запобігти травмам та пошкодженню обладнання:

• Завжди відключайте живлення перед виконанням будь-яких процедур технічного обслуговування або встановлення.
• Забезпечте належне заземлення, щоб уникнути ураження електричним струмом.
• Handle components with care to avoid electrostatic discharge (ESD) damage. Use an anti-static wrist strap.
• Do not operate the server in environments with excessive heat, humidity, or dust.
• Забезпечте належну вентиляцію навколо сервера, щоб запобігти перегріву.

3. Вміст упаковки

Verify that all items are present and undamaged. If any items are missing or damaged, contact your vendor immediately.

• TYAN MiTAC Thunder CX GC68A-B7126 Server Unit
• Power Cords (quantity may vary by region)
• Rackmount Rail Kit
• Documentation (Quick Start Guide, CD/USB with drivers and utilities)
• Accessory Kit (screws, cables, etc.)

4. Фізичний overview

Цей розділ забезпечує оверview of the server's external and internal components.

4.1 Передня і задня сторони View

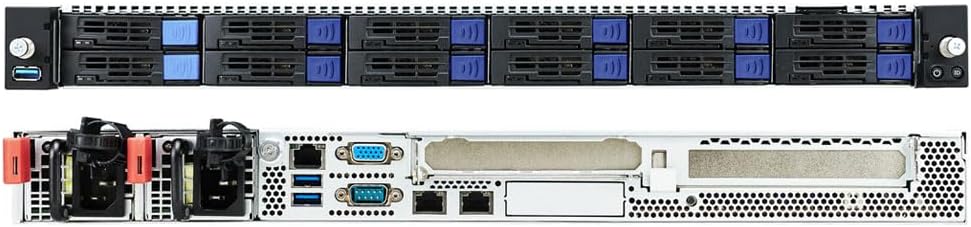

Figure 4.1: Combined front and rear view of the server, showing hot-swap drive bays on the front and I/O ports and redundant power supplies on the rear.

4.2 Передня панель

Figure 4.2: Close-up of the server's front panel, featuring 12 hot-swap 2.5-inch drive bays, USB ports, and system status LEDs.

4.3 Внутрішнє планування

Малюнок 4.3: Внутрішній view of the server, showcasing the motherboard with DIMM slots, CPU sockets, PCIe slots, and cooling fan modules.

5. Налаштування

5.1 Встановлення в стійку

The server is designed for installation in a standard 19-inch rack. Follow the instructions provided with the rackmount rail kit to securely mount the server.

5.2 Встановлення компонентів

Before installing components, ensure the server is powered off and disconnected from the power source.

5.2.1 Memory (DIMMs) Installation

1. Open the server chassis cover.
2. Знайдіть слоти DIMM на материнській платі.
3. Open the retaining clips at both ends of the DIMM slot.
4. Align the memory module with the slot key and press firmly until the clips snap into place.
5. Ensure all DIMMs are seated correctly.

5.2.2 Встановлення накопичувача

The server supports 2.5-inch hot-swap SATA and NVMe drives.

1. For hot-swap drives, ensure the drive tray is empty.
2. Mount the 2.5-inch drive into the drive tray using the provided screws.
3. Slide the drive tray into an available hot-swap bay until it clicks into place.
4. For M.2 NVMe drives, open the chassis and locate the M.2 slot on the motherboard. Install the M.2 drive and secure it with the screw.

5.2.3 Встановлення карти PCIe

The server features 2 x FH/HL PCIe Gen4 x16 slots.

1. Open the server chassis cover.
2. Remove the blanking plate from the desired PCIe slot.
3. Carefully insert the PCIe card into the slot, ensuring it is fully seated.
4. Secure the card with the retaining mechanism or screw.

5.3 Кабель

• Силові кабелі: Connect the redundant power supplies to separate power sources for redundancy.
• Мережеві кабелі: Connect the GbE ports to your network infrastructure. Connect the dedicated IPMI port for remote management.
• Peripheral Cables: Connect any necessary USB devices, keyboard, mouse, or VGA monitor.

5.4 Початкове ввімкнення

After all components are installed and cables connected, press the power button on the front panel. Observe the system LEDs for normal operation. The server should initiate the boot process.

6. Робота сервера

6.1 Конфігурація BIOS/UEFI

Щоб отримати доступ до утиліти налаштування BIOS/UEFI, натисніть відповідну клавішу (зазвичай DEL or F2) during the Power-On Self-Test (POST) sequence. Here you can configure boot order, system time, and other hardware settings.

6.2 Встановлення операційної системи

Insert your operating system installation media (USB drive or network boot) and configure the boot order in BIOS/UEFI to start from the installation media. Follow the on-screen instructions to install your preferred operating system.

6.3 IPMI Management

The Intelligent Platform Management Interface (IPMI) allows for remote monitoring and management of the server, even when the main operating system is not running. Connect the dedicated IPMI LAN port to your network. Access the IPMI web інтерфейс через a web browser using the assigned IP address. Refer to the IPMI user guide for detailed instructions.

7. Технічне обслуговування

Регулярне технічне обслуговування забезпечує оптимальну продуктивність та довговічність вашого сервера.

7.1 оновлень мікропрограми

Періодично перевіряйте дані виробника website for updated BIOS, BMC, and other component firmware. Keeping firmware up-to-date can improve stability, performance, and security. Follow the provided instructions carefully during the update process.

7.2 Заміна компонентів

• Hot-Swap Drives: Drives can be replaced without powering down the server. Ensure the replacement drive is compatible and follow the operating system's procedures for drive replacement in a RAID configuration.
• Redundant Power Supplies: The server features hot-swappable redundant power supplies. If one PSU fails, it can be replaced while the server remains operational. Disconnect the failed PSU, remove it, and insert the new one.

7.3 Очищення

Dust accumulation can impede airflow and cause overheating. Periodically clean the server's interior using compressed air. Ensure the server is powered off and disconnected from power before cleaning. Do not use liquid cleaners directly on components.

8. Вирішення проблем

У цьому розділі наведено рішення поширених проблем, з якими ви можете зіткнутися.

8.1 Поширені проблеми та рішення

• Немає живлення: Check power cable connections, power supply status LEDs, and ensure power outlets are functional.
• Помилка завантаження: Verify boot order in BIOS/UEFI, check for loose memory modules or expansion cards, and ensure storage drives are detected.
• Проблеми з підключенням до мережі: Check network cable connections, network adapter status LEDs, and network configuration in the operating system.
• Перегрів: Ensure proper ventilation, clean dust from fans and heatsinks, and check ambient temperature.

8.2 світлодіодні індикатори

Refer to the server's front panel and internal LEDs for diagnostic information. Different LED patterns or colors indicate specific system statuses or errors. Consult the detailed hardware manual for a complete list of LED codes.

9. Технічні характеристики

10. Гарантія та підтримка

This TYAN server comes with a standard manufacturer's warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Tyan website. For technical support, driver downloads, and further assistance, please contact Tyan customer service or your authorized reseller.
