BILT HARD 30-Ton Gas Powered Hydraulic Log Splitter

1. Інформація про безпеку

Operating a log splitter can be dangerous if proper safety precautions are not followed. Always read and understand the entire manual before operating the machine. Failure to follow instructions can result in serious injury or death.

Загальні правила безпеки:

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and steel-toed boots.
• Never operate the log splitter alone. Ensure another person is within sight or hearing distance.
• Keep children and pets at a safe distance from the work area.
• Operate the log splitter on a firm, level surface to prevent tipping.
• Не носіть вільний одяг або прикраси, які можуть потрапити в рухомі частини.
• Перед початком роботи переконайтеся, що всі захисні пристрої та запобіжні пристрої встановлені та справно функціонують.
• Ніколи не тримайте руки чи ноги поблизу розколюючого клина чи плунжера під час роботи.
• Only split logs that are within the specified length and diameter limits of the machine.
• Inspect logs for nails, wire, or other foreign objects before splitting.
• Do not attempt to split frozen logs.
• Turn off the engine and allow all moving parts to stop before performing any adjustments or maintenance.

2. Продукт закінчивсяview

The BILT HARD 30-Ton Gas Powered Hydraulic Log Splitter is designed for efficient and powerful splitting of hardwood logs. Featuring a robust 223cc OHV engine and a 2-stage gear pump, it delivers 30 tons of splitting force. Its versatile design allows for both horizontal and vertical operation, accommodating logs up to 24 inches in length. Equipped with 16-inch DOT-certified tires and a 2-inch ball coupler, it offers convenient towing for transport.

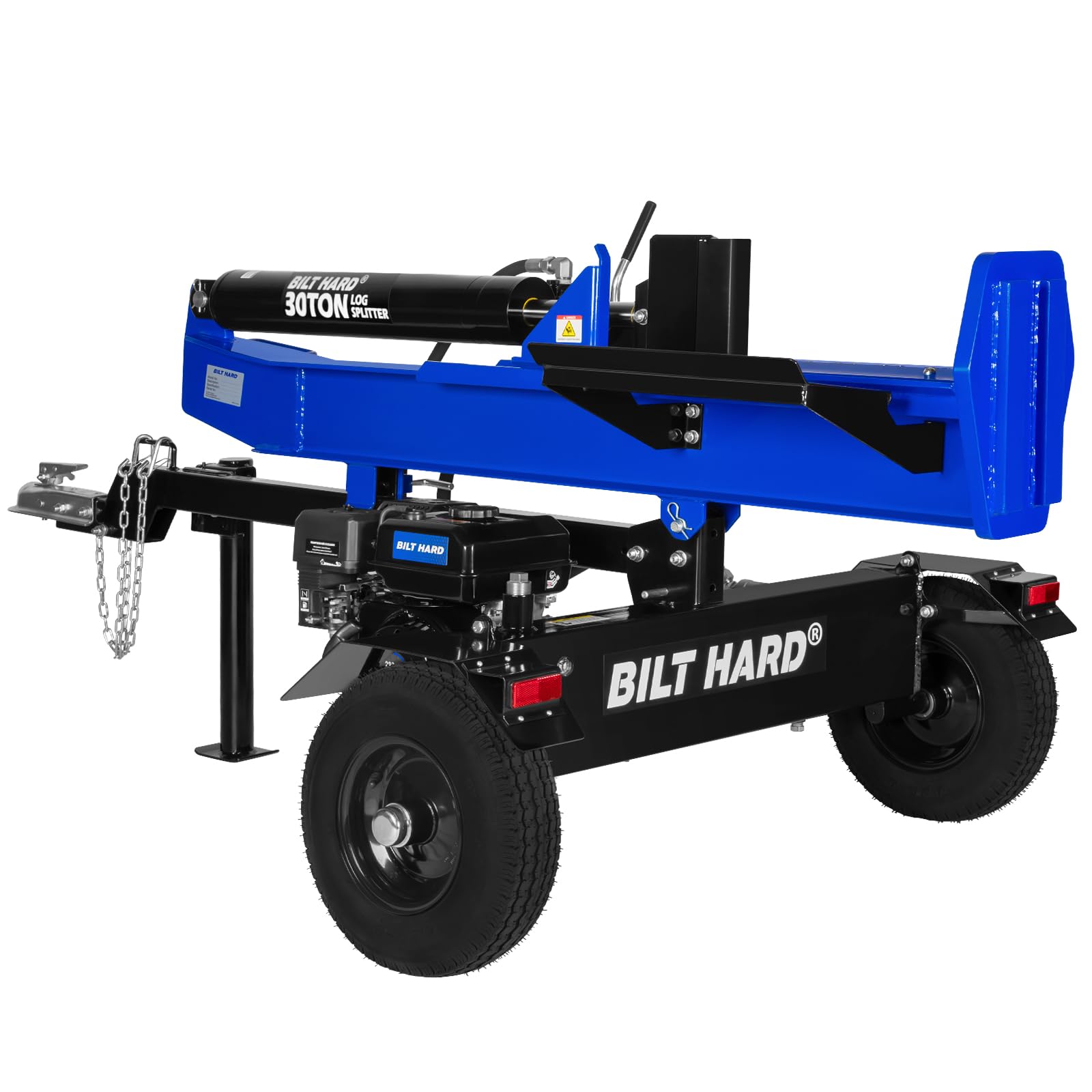

Figure 2.1: BILT HARD 30-Ton Log Splitter in horizontal position.

3. Налаштування та складання

This section provides detailed instructions for assembling your BILT HARD 30-Ton Log Splitter. It is recommended to have at least two people for assembly due to the weight of the components. Refer to the assembly video for visual guidance.

Необхідні інструменти:

• Гумовий або дерев'яний молоток
• Ключі гайкові на 13 мм, 14 мм, 16 мм, 17 мм, 18 мм, 19 мм, 27 мм
• Великий розвідний ключ
• Хрестова або стандартна викрутка
• Плоскогубці

Відео монтажу:

Етапи складання:

1. Uncrating the Unit: Set the shipping crate on a solid, flat surface. Carefully cut the shipping bands to disassemble the crate and access the components.
2. Install the Oil Filter: Using a 27mm wrench, install the oil filter into the corresponding port of the hydraulic tank. The tightening torque should exceed 60 N·m (a tolerance of ± 5° is allowed).
3. Install the Tow Bar:
   • Remove the bolts, washers, and lock nuts from the hydraulic oil tank and set them aside.
   • Rotate the support leg to a vertical position and lock it in place using the lock pin. Ensure the tow bar is approximately level with the ground.
   • Using an 18mm or 19mm wrench, attach the tow bar to the bracket on top of the hydraulic tank using the appropriate bolts, nuts, and washers previously removed.
4. Встановіть колеса:
   • Remove the cotter pin and castle nut from the axle of the hydraulic oil tank. Set them aside.
   • Remove the plastic shipping caps. Ensure the tire valve stem is facing out and slide the wheel onto the axle. If the wheel bearing is accidentally knocked out, reinstall it.
   • Thread the castle nut onto the axle and tighten by hand. Adjust the castle nut to align the holes, making sure not to overtighten. Insert the cotter pin and bend with pliers.
   • Install the axle cap using a soft mallet. Repeat these steps for the other wheel.
5. Install the Beam:
   • Stand the beam vertically on the foot plate. (Recommended to be installed by 2 people at least).
   • Remove the hitch pin and R pin.
   • Roll the tank into position so the pivot holes on the tank and beam are aligned.
   • Secure the beam with the hitch pin and R pin.
   • Block the wheels to prevent the frame from rolling and pivot the beam into the horizontal position. Check that the lock pin automatically aligns and inserts smoothly into the corresponding hole on the tow bar. Ensure smooth operation of the lock pin.
6. Install the Engine: Place the engine and gear pump assembly onto the engine mounting plate of the hydraulic oil tank. Secure it with the appropriate hardware (bolts, nuts, washers) as specified in your operator's manual. You will need a 13mm or 14mm wrench.
7. Install the Hoses:
   • Remove the red shipping plug from the gear pump. Using the provided hose clamps, connect one end of the clear oil hose to the pump inlet and the other end to the hydraulic tank.
   • Please ensure the two high-pressure hoses are connected to the correct positions (A and B as indicated in the assembly video).
   • Remove the white shipping plug from the gear pump, install the O-ring into the outlet fitting, then attach the hydraulic hose assembly's A-end to the pump outlet connector. Tighten with a torque of 50-60 N·m. You will need a 27mm or adjustable wrench.
   • Screw the B-end nut of the return hydraulic hose into the oil filter inlet connector, and tighten with a torque of 70-80 N·m. You will need a 27mm or adjustable wrench.
8. Install the Log Catchers:
   • Attach the large log catcher to the engine side of the beam using the 16mm wrench and appropriate bolts, nuts, and washers.
   • Attach the small log catcher on the opposite side with appropriate bolts, nuts, and washers. You will need the 17mm wrench and 6mm allen wrench.
9. Install the Fenders: Attach the first fender to the side of the hydraulic oil tank using the 16mm wrench and appropriate bolts, nuts, and washers. The safety reflector should be facing the back of the hydraulic tank. Repeat these steps on the second fender.
10. Complete your Installation: Remove the pins from the control valve lever, then secure the lever by reinserting the pins once it has been raised to the proper position.

4. Інструкція з експлуатації

This section outlines the procedures for safely operating your BILT HARD 30-Ton Log Splitter in both horizontal and vertical modes.

Operating Video:

Контрольний список перед операцією:

• Перевірте рівень моторного масла.
• Перевірте рівень гідравлічної рідини.
• Переконайтеся, що всі з'єднання надійні та не мають протікань.
• Verify that the work area is clear of debris and bystanders.
• Confirm the log splitter is on a stable, level surface.

Запуск двигуна:

1. Відкрити паливний кран.
2. Set the choke to the 'ON' position (if cold starting).
3. Перемістіть важіль дросельної заслінки в положення «ШВИДКО».
4. Pull the recoil starter handle until the engine starts.
5. Once the engine is running, gradually move the choke to the 'OFF' position.

Horizontal Operation:

1. Place a log onto the splitting beam against the wedge.
2. Engage the control lever to extend the ram, pushing the log into the wedge.
3. Once the log is split, release the control lever to allow the ram to return automatically.

Figure 4.2: Horizontal splitting operation with 30-Ton force.

Vertical Operation:

1. Ensure the log splitter is securely locked in the vertical position.
2. Roll a log onto the foot plate, positioning it under the wedge.
3. Engage the control lever to extend the ram, splitting the log downwards.
4. Release the control lever for automatic ram return.

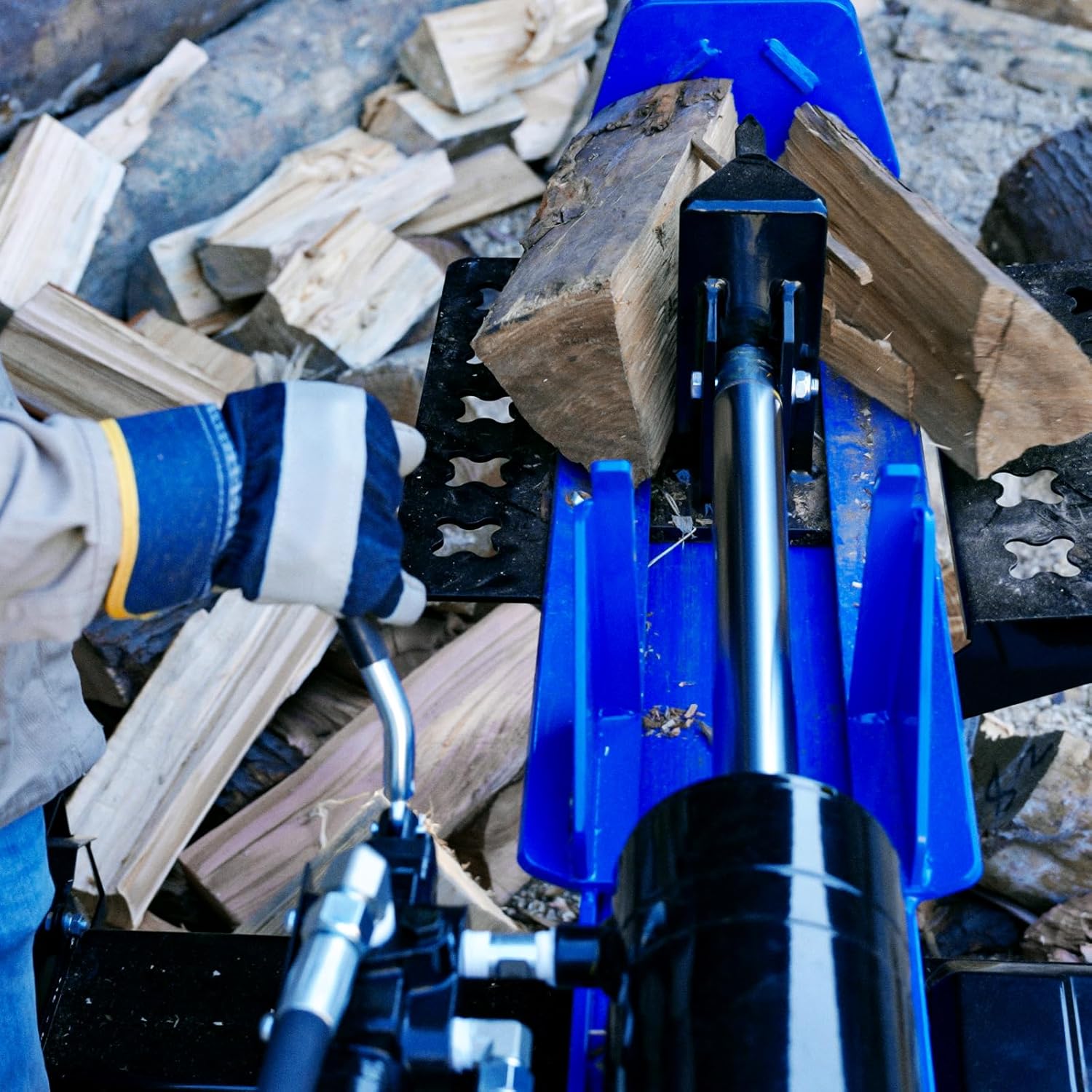

Figure 4.3: Vertical splitting operation for larger logs.

5. Технічне обслуговування

Regular maintenance is crucial for the longevity and safe operation of your log splitter. Always turn off the engine and disconnect the spark plug wire before performing any maintenance.

Технічне обслуговування двигуна:

• Заміна масла: Change engine oil after the first 5 hours of operation, then every 50 hours or annually. Refer to the engine manual for specific oil type and capacity.
• Повітряний фільтр: Очищайте або замінюйте повітряний фільтр кожні 25 годин або частіше в умовах високої запиленості.
• Свічка запалювання: Перевіряйте та очищуйте свічку запалювання кожні 100 годин. За потреби замінюйте.

Технічне обслуговування гідравлічної системи:

• Гідравлічна рідина: Check the hydraulic fluid level before each use. Change the hydraulic fluid annually or every 100 hours of operation. Use recommended hydraulic fluid.
• Hoses and Fittings: Inspect all hydraulic hoses and fittings for wear, damage, or leaks before each use. Replace any damaged components immediately.
• Масляний фільтр: Replace the hydraulic oil filter annually or every 100 hours.

Загальне технічне обслуговування:

• Прибирання: Тримайте дровокол чистим та без сміття, особливо навколо двигуна та гідравлічних компонентів.
• Змащення: Lubricate all pivot points and moving parts as recommended in the manual.
• Wedge Inspection: Inspect the splitting wedge for sharpness and damage. Sharpen or replace as needed.

6. Вирішення проблем

This section provides solutions to common problems you might encounter with your log splitter. For issues not listed here, contact customer support.

7. Технічні характеристики

8. Гарантія та підтримка

BILT HARD is committed to providing reliable products and excellent customer service.

Підтримка клієнтів:

If you have any questions or encounter problems with your BILT HARD gas wood splitter, please contact us freely by Amazon email. Assistance from our support team is readily available.

Інформація про гарантію:

For detailed warranty information, please refer to the documentation included with your product or contact BILT HARD customer support.
