Інструкція з експлуатації настінного ліжка розміру "queen-size Murphy" з боковими шафами та шухлядами CKLLMMC

1. Вступ

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your CKLMMC Queen Size Murphy Wall Bed. Designed for versatility and space-saving, this unit integrates a queen-size bed, two side closets, drawers, and shelves, making it suitable for guest rooms, bedrooms, or home offices.

Ключові особливості:

• Компактний дизайн: The wall bed folds away when not in use, maximizing room space.
• Інтегроване сховище: Features a top shelf, side wardrobes, and two storage drawers for organization.
• Багатофункціональний: Can serve as a dedicated office space with a desk when the bed is closed, and a guest bed when open.
• Легке управління: Equipped with a dual piston system for safe and smooth opening and closing.

2. Інформація про безпеку

Please read and understand all safety warnings and instructions before assembly and use of this product. Failure to follow these instructions may result in injury or product damage.

• Ensure the unit is securely anchored to a wall stud according to assembly instructions to prevent tipping.
• Тримайте дітей та домашніх тварин подалі від пристрою під час складання та експлуатації.
• Do not place heavy objects on the bed frame or desk surface that exceed the recommended weight capacity.
• Always ensure the bed is fully locked in either the open or closed position before use.
• Use only the recommended mattress thickness (8-10 inches) to ensure proper operation of the folding mechanism.
• Assembly and usage instructions and warnings are provided with the product. Refer to these documents for detailed safety guidelines.

3. Вміст упаковки

Your CKLMMC Queen Size Murphy Wall Bed is shipped in multiple packages. Please verify that all components are present before beginning assembly. Refer to the separate assembly instructions for a detailed list of parts and hardware.

• Main Murphy Bed Cabinet components
• Side Closet units (2)
• Компоненти шухляди
• Стелажі
• Hardware kit (screws, bolts, cam locks, etc.)
• Dual piston lifting mechanism
• Assembly tools (basic tools provided)

Note: Mattress is not included.

4. Технічні характеристики

Image: Overall dimensions of the Murphy Wall Bed when closed, showing a width of 113.7 inches and height of 86.9 inches.

Image: Dimensions of the Murphy Wall Bed with the queen-size bed extended, indicating the bed frame length and height.

5. Інструкції з налаштування та складання

Assembly of the CKLMMC Queen Size Murphy Wall Bed is required. Detailed, step-by-step instructions and necessary tools are included with your product packaging. Please follow these instructions carefully to ensure proper and safe assembly.

• Приготування: Clear a spacious area for assembly. Unpack all components and verify against the parts list provided in the assembly manual.
• Настінне кріплення: Securely anchor the unit to a wall stud. This step is critical for stability and safety.
• Установка поршня: Pay close attention to the installation of the dual piston system. Incorrect installation can affect bed operation. If you encounter difficulties, refer to the troubleshooting section or contact customer support.
• Збір команди: Due to the size and weight of the unit, assembly by two or more adults is highly recommended.

Image: The Murphy Wall Bed in its closed configuration, showcasing the integrated desk surface and the two side storage units with shelves and drawers.

6. Інструкція з експлуатації

The CKLMMC Murphy Wall Bed features a dual piston system for smooth and safe operation.

6.1. Відкриття ліжка

1. Ensure the area in front of the bed is clear of obstructions.
2. Gently pull the bed panel downwards from the top edge. The dual piston system will assist in lowering the bed smoothly.
3. Continue to lower the bed until the support legs are fully extended and the bed frame rests securely on the floor.
4. Verify that the bed is stable before use.

Image: The Murphy Wall Bed with the queen-size bed extended, showing the mattress area and the open side closets with hanging rods and shelves.

6.2. Закриття ліжка

1. Remove any bedding or pillows that might obstruct the closing mechanism.
2. Lift the bed frame from the foot end. The dual piston system will assist in lifting the bed upwards.
3. Continue to guide the bed upwards until it is fully vertical and securely latched into the cabinet. The bed will automatically fall into place with inertia once it reaches a certain angle.
4. Ensure the bed is fully closed and secured before using the desk surface or leaving the unit unattended.

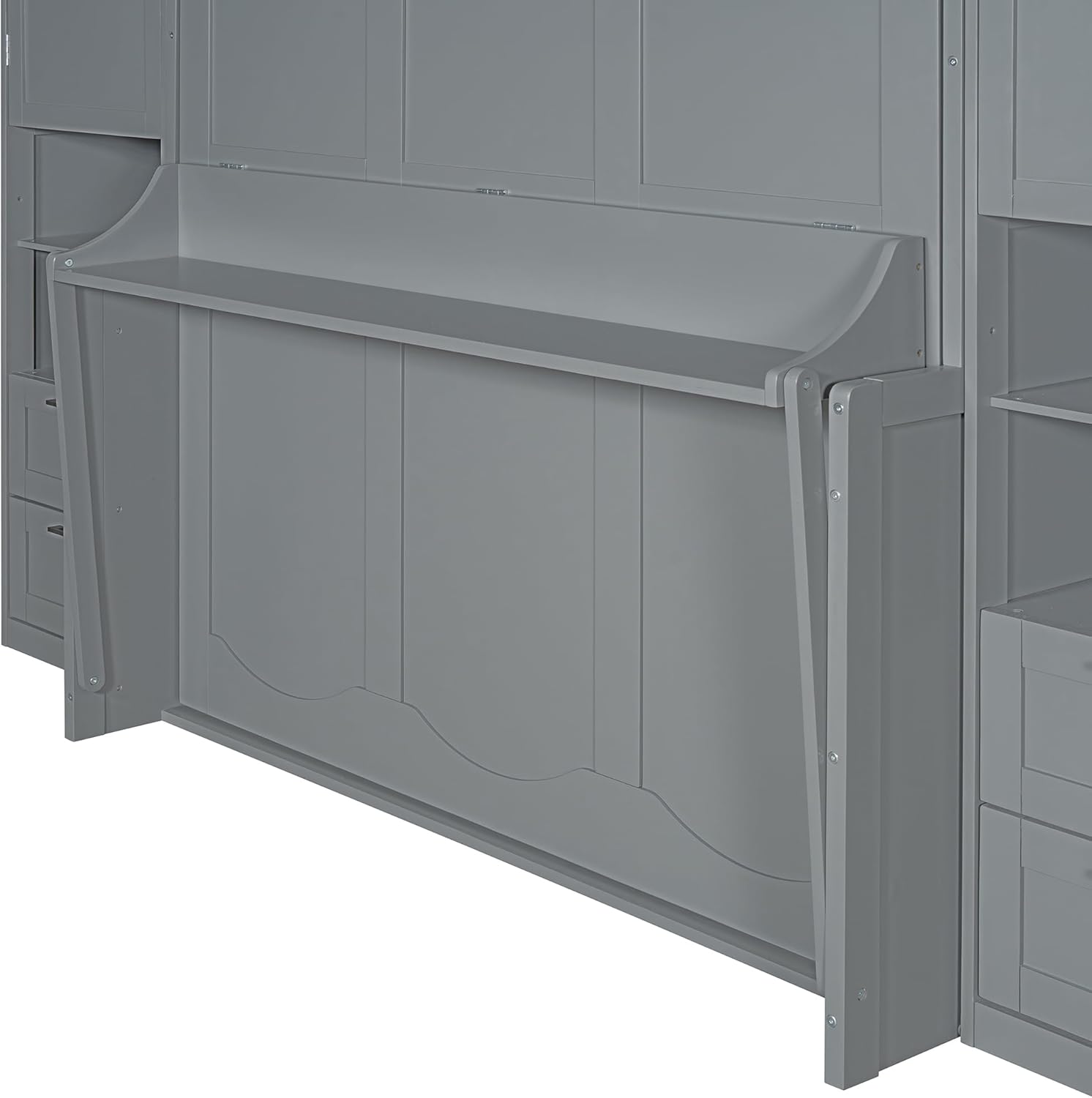

Зображення: Детальний view of the desk area on the Murphy Wall Bed when the bed is in the closed position, highlighting its functional design.

Зображення: Крупний план view of the two pull-out drawers located in one of the side storage units, demonstrating the integrated storage solution.

Зображення: Детальний view of an open side closet, showing the interior with a hanging rod and a lower shelf, designed for clothing storage.

7. Технічне обслуговування

Regular maintenance will help prolong the life and appearance of your Murphy Wall Bed.

• Прибирання: Протріть поверхні м’якою, damp тканиною. Уникайте агресивних хімікатів або абразивних засобів для чищення.
• Перевірка обладнання: Periodically check all screws, bolts, and connections to ensure they are tight. Retighten if necessary.
• Поршнева система: Inspect the dual piston system for any signs of wear or damage. Do not attempt to lubricate or modify the pistons. If issues arise, contact customer support.
• Переміщення пристрою: If you need to move the unit, disassemble it partially or fully as per the assembly instructions to prevent damage. Do not drag the assembled unit.

8. Вирішення проблем

This section addresses common issues you might encounter with your Murphy Wall Bed.

Issue: Bed is difficult to open or close, or mechanism feels stiff.

• Check Piston Installation: Ensure the dual pistons are installed correctly according to the assembly manual. Incorrect installation is a common cause of operational issues.
• Перешкоди: Verify there are no objects (bedding, pillows, items on the desk) obstructing the bed's path.
• Товщина матраца: Confirm your mattress is within the recommended 8-10 inch thickness. An overly thick or heavy mattress can strain the mechanism.
• Кріплення до стіни: Ensure the unit is securely anchored to the wall. A loose unit can affect the alignment and operation.

Issue: Drawers or cabinet doors do not close smoothly.

• Перевірте вирівнювання: Ensure the unit is level. Adjust feet or shims if necessary.
• Перешкоди: Remove any items from inside the drawers or cabinets that might be preventing them from closing fully.
• Обладнання: Check drawer slides and door hinges for proper installation and tightness.

If you experience persistent issues not covered here, please contact CKLMMC customer support.

9. Гарантія та підтримка клієнтів

For specific warranty details, please refer to the documentation included with your purchase or contact CKLMMC directly. The manufacturer, CKLMMC, is committed to providing quality products and support.

If you require assistance with assembly, parts replacement, or have questions regarding your product, please contact CKLMMC customer service through their official channels. Please have your model number ("Murphy Bed") and purchase information ready when contacting support.
