Інструкція з використання шафи для ніші у ванній кімнаті Yaheetech

вступ

Дякуємо за покупкуasing the Yaheetech Bathroom Niche Cabinet. This manual provides important information regarding the assembly, operation, maintenance, and troubleshooting of your new cabinet. Please read this manual carefully before assembly and retain it for future reference.

This cabinet is designed to offer practical storage in compact spaces, featuring durable construction and versatile compartments.

Технічні характеристики

Figure 1: Product Dimensions. This image illustrates the overall dimensions of the cabinet, including length, width, and height, along with internal compartment measurements.

Налаштування та збірка

The Yaheetech Bathroom Niche Cabinet requires assembly. Please ensure all parts are present before beginning. A Phillips head screwdriver may be required (not included).

Вміст упаковки:

• All MDF panels (sides, top, bottom, shelves, drawer components)
• Hardware pack (screws, hinges, drawer slides, wheels, knob)
• Інструкції з монтажу (цей посібник)

Figure 2: Components and Hardware. This image displays the various panels and hardware pieces included in the package, essential for assembly.

Етапи складання:

1. Підготуйте територію: Choose a clean, flat, and spacious area for assembly to prevent scratching the panels.
2. Визначте частини: Lay out all panels and hardware. Refer to the component list (Figure 2) to identify each piece.
3. Зберіть основну раму: Connect the side panels to the bottom and top panels using the provided screws. Ensure all connections are secure.
4. Встановлення внутрішніх полиць: Insert the fixed internal shelves into the designated slots or attach them with screws as per the design.
5. Assemble the Pull-Out Drawer: Construct the drawer frame. Attach the wheels to the bottom of the pull-out drawer assembly.


   Figure 3: Detail of the Wheels. This image shows a close-up of one of the cabinet's wheels, highlighting its design for smooth movement.

6. Attach Drawer Mechanism: Secure the drawer slides or guiding rails to the main cabinet frame and the pull-out drawer.


   Figure 4: Pull-out Mechanism. This image details the internal structure and guiding rails of the pull-out drawer, demonstrating how it extends from the main cabinet.

7. Встановлення верхніх кришок: Attach the hinged top lids to the cabinet using the provided hinges. Ensure they open and close smoothly.


   Figure 5: Top Lid Hinges. This image shows the hinges that allow the top lids to open, providing access to the upper compartments.
8. Прикріпити ручку: Secure the decorative knob to the front of the pull-out drawer.


   Figure 6: Drawer Knob. A close-up of the round knob on the pull-out drawer, designed for easy access.

9. Остаточна перевірка: Verify all screws are tightened and the cabinet is stable.

Операція

The Yaheetech Bathroom Niche Cabinet is designed for convenient storage in various narrow spaces.

Використання кабінету:

• Top Compartments: Lift the hinged lids on the top surface to access two hidden compartments. These are ideal for smaller items, toiletries, or cleaning supplies.

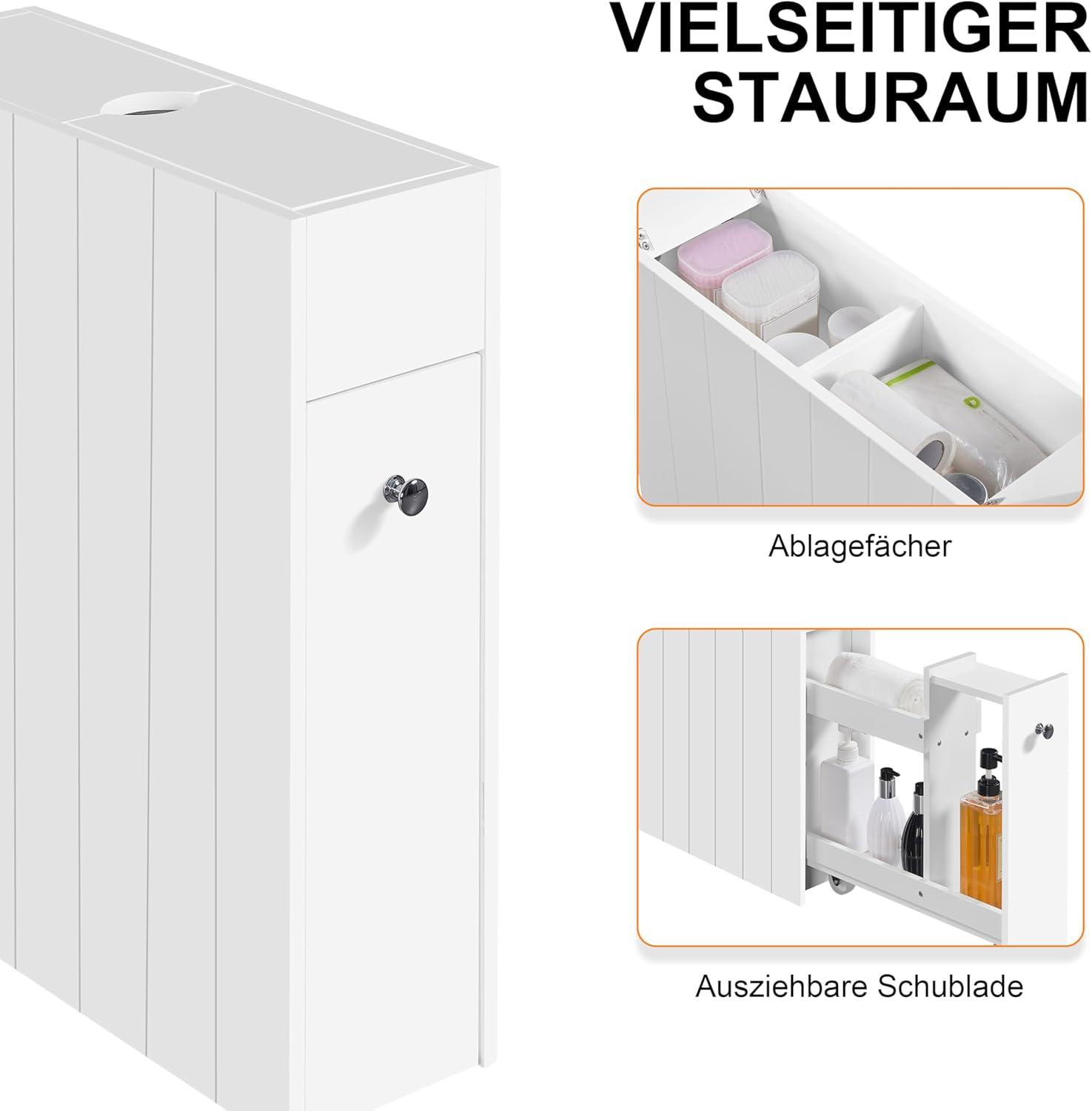

  Figure 7: Versatile Storage. This image demonstrates the two top compartments with their lids open, and the pull-out drawer extended, showcasing the cabinet's storage capabilities.

• Pull-Out Drawer: Gently pull the knob on the front of the cabinet to extend the lower storage drawer. This drawer is equipped with wheels for smooth operation and offers two tiers for organizing taller bottles and other items.


  Figure 8: Pull-Out Drawer in Use. This image shows the main product with its pull-out drawer fully extended, revealing various bottles and items stored within.

• Розміщення: The slim design allows the cabinet to fit into narrow spaces, such as beside a toilet, sink, or washing machine. The wheels on the pull-out drawer facilitate easy movement for cleaning or repositioning.


  Figure 9: Bathroom Placement. The cabinet is shown positioned neatly next to a toilet, demonstrating its space-saving design.


  Figure 10: Laundry Room Placement. The cabinet is shown next to a washing machine, illustrating its versatility in different household areas.

Вага:

Do not exceed the maximum load capacity of 3 kg (6.6 lbs) per shelf/compartment to ensure stability and prevent damage to the cabinet.

Технічне обслуговування та догляд

Proper care will extend the life and appearance of your Yaheetech Bathroom Niche Cabinet.

• Прибирання: Протріть поверхні шафи м’якою тканиноюamp cloth. Avoid using abrasive cleaners, harsh chemicals, or excessive water, as these can damage the water-coated finish.
• Розливи: Immediately wipe up any spills, especially water or liquids, to prevent moisture damage to the MDF panels.
• Огляд: Періодично перевіряйте всі гвинти та з'єднання, щоб переконатися, що вони міцно затягнуті. За потреби підтягніть.
• Середовище: While the surface is water-coated, prolonged exposure to excessive moisture or direct water spray should be avoided. Ensure adequate ventilation in humid environments.
• Переїзд: When moving the cabinet, lift it rather than dragging it to prevent damage to the base and wheels.

Усунення несправностей

У цьому розділі розглядаються поширені проблеми, з якими ви можете зіткнутися під час використання вашої шафи.

Гарантія та підтримка

Specific warranty information for the Yaheetech Bathroom Niche Cabinet is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to your purchase documentation or contact Yaheetech customer service directly through their official webсайт або роздрібний продавець, де було придбано товар.

Ви можете відвідати офіційний магазин Yaheetech для отримання додаткової інформації: Магазин Yaheetech
