Amonax Motorized Elliptical Pedal Exerciser User Manual

1. Вступ

The Amonax Motorized Elliptical Pedal Exerciser is designed to provide a low-impact, effective exercise solution, particularly beneficial for seniors and individuals undergoing rehabilitation. It aids in strengthening leg and ankle muscles, improving mobility, and supporting post-operative recovery, such as after knee replacements. This manual provides essential information for the safe and efficient use of your new exerciser.

Figure 1.1: Amonax Motorized Elliptical Pedal Exerciser (Black Pro Model) with remote control.

2. Що в коробці

Після відкриття упаковки переконайтеся, що всі компоненти є в наявності та не пошкоджені:

• 1 x Amonax Leg Exerciser
• 1 x Пульт дистанційного керування
• 1 х кабель живлення
• 1 x Посібник користувача (цей документ)

3. Ключові характеристики

• Enhanced Rehabilitation and Mobility: Specifically designed for low-impact exercise, promoting strength in leg and ankle regions and aiding post-operative recovery.
• Dual-Direction Workouts: Effortlessly switch between forward and backward rotations to target different muscle groups for a balanced lower body workout.
• Світлодіодний дисплей та пульт дистанційного керування: Features a touch-sensitive LED screen for real-time data (time, distance, speed, count, calories burned) and a remote control for convenient adjustments without bending.
• Adjustable Speed and Safety: Offers up to 12 adjustable speed levels for optimal comfort and efficiency. Equipped with meticulously crafted anti-slip pedals for stability and safety.
• Попередньо зібраний дизайн: The unit comes fully assembled, ready for immediate use.
• Smooth Track and Anti-slip Pedals: Designed with a smooth rolling track to reduce joint impact and anti-slip pedal surfaces for secure footing.

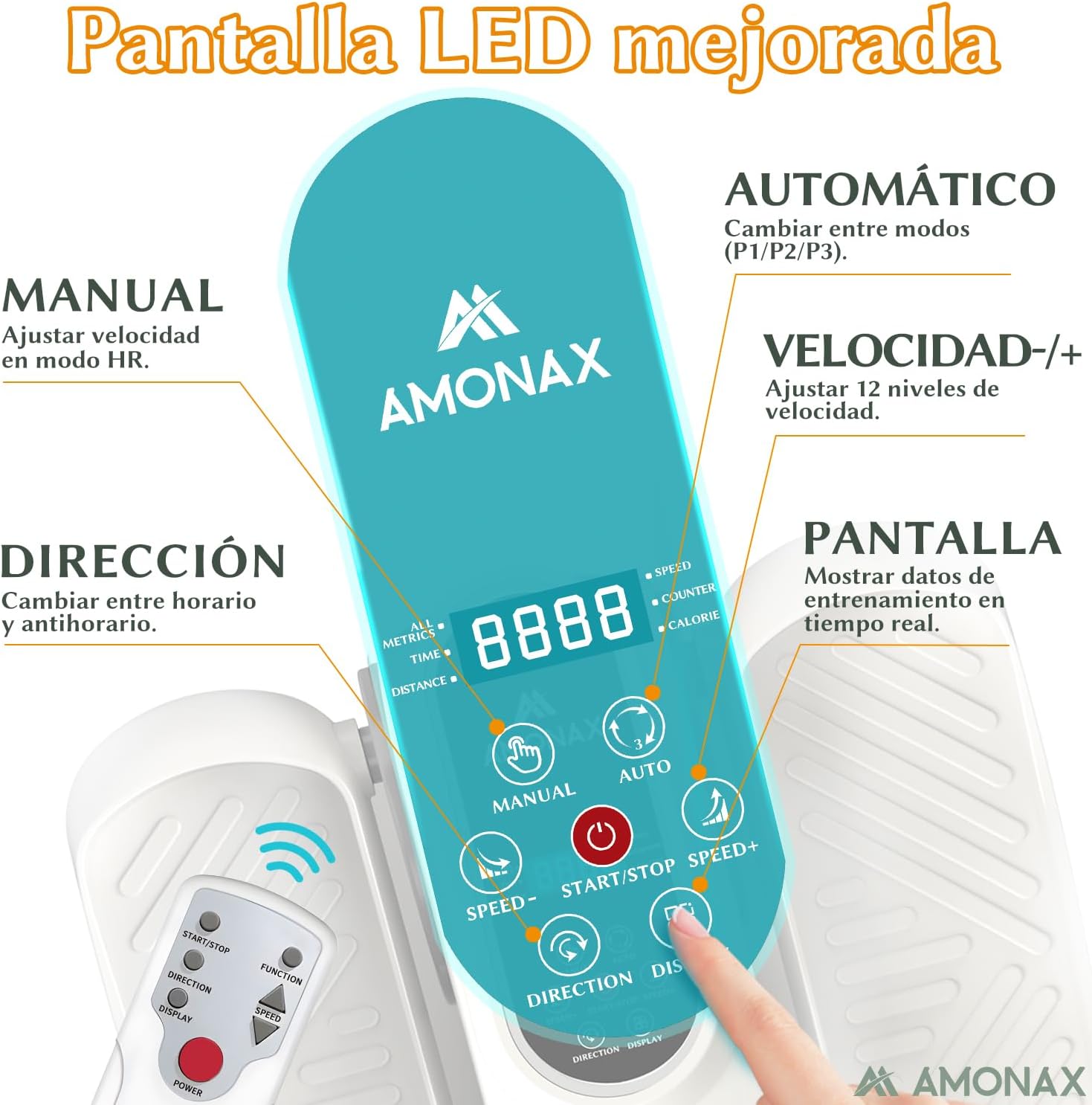

Figure 3.1: Close-up of the LED display and remote control, highlighting various functions like manual/auto modes, speed adjustment, direction, and real-time data display.

Figure 3.2: Illustration of the smooth rolling track and textured anti-slip pedals, designed for comfort and safety.

4. Налаштування

The Amonax Motorized Elliptical Pedal Exerciser comes pre-assembled, requiring minimal setup before use.

1. Розпакувати: Carefully remove the exerciser and all accessories from the packaging.
2. Розміщення: Place the exerciser on a flat, stable surface. Ensure there is enough clear space around the unit for comfortable use and to prevent obstruction.
3. Підключення живлення: Connect the power cable to the exerciser's power port and then plug it into a standard electrical outlet.
4. Пульт дистанційного керування: Ensure the remote control has batteries installed (if not pre-installed) and is ready for use.

Figure 4.1: The exerciser is ready to use right out of the box. Dimensions: 48cm (L) x 29cm (W) x 42cm (H), Weight: 6.6 kg.

5. Інструкція з експлуатації

Ознайомтеся з панеллю керування та пультом дистанційного керування для оптимального використання.

5.1 Панель керування та функції пульта дистанційного керування

Figure 5.1: Control Panel and Remote Control Button Functions.

1. СТАРТ/СТОП: Press to turn the unit on or off, or to start/pause the exercise.
2. ІНСТРУКЦІЯ: Adjust speed in Manual (HR) mode.
3. АВТО: Switch between preset automatic programs (P1, P2, P3).
4. SPEED -/+: Adjust speed levels (1-12) in Manual (HR) mode.
5. НАПРЯМОК: Change the pedaling direction (forward/backward) in Manual (HR) mode.
6. ДИСПЛЕЯ: Toggle through real-time data metrics on the LED screen (Time, Distance, Speed, Count, Calories).

5.2 Режими тренувань

• Ручний режим (HR): Allows you to manually control the speed and direction of the pedals. Use the ШВИДКІСТЬ +/- buttons to adjust the intensity and the НАПРЯМОК button to change rotation.
• Автоматичні режими (P1, P2, P3): The exerciser comes with three pre-programmed modes that vary speed and direction automatically. Select the desired program using the АВТО кнопку.

Figure 5.2: Preset Modes (P1, P2, P3) speed profiles over a 30-minute period. Data from Amonax laboratory tests.

5.3 Starting an Exercise Session

1. Sit comfortably in a chair with your feet placed securely on the pedals. Ensure your feet are centered and stable.
2. Натисніть ПУСК/СТОП button on the control panel or remote control to power on the unit.
3. Виберіть потрібний режим:
   • For Manual Mode: Use the ІНСТРУКЦІЯ button, then adjust speed with ШВИДКІСТЬ +/- and direction with НАПРЯМОК.
   • For Automatic Mode: Press the АВТО button to cycle through P1, P2, or P3.
4. The pedals will begin to move. Adjust the speed as needed for your comfort and fitness level.
5. Відстежуйте свій прогрес на світлодіодному дисплеї.
6. To stop the exercise, press the ПУСК/СТОП кнопку знову.

Figure 5.3: User demonstrating proper seated use of the exerciser.

6. Технічне обслуговування

Regular maintenance ensures the longevity and optimal performance of your Amonax exerciser.

• Прибирання: Протріть пристрій м'якою гумкою, damp cloth after each use to remove dust and sweat. Do not use abrasive cleaners or solvents.
• Зберігання: Store the exerciser in a cool, dry place away from direct sunlight and extreme temperatures.
• Огляд: Periodically check all parts for any signs of wear or damage. Ensure the power cable is not frayed or damaged.
• Змащення не потрібне: The internal mechanisms are designed for maintenance-free operation and do not require lubrication.

7. Вирішення проблем

8. Технічні характеристики

9. Інформація про безпеку

Будь ласка, прочитайте та дотримуйтесь наступних правил безпеки, щоб запобігти травмам або пошкодженню пристрою:

• Тільки для використання сидячи: This elliptical pedal exerciser is designed exclusively for seated use. DO NOT STAND ON THE EXERCISER. Standing on the unit can lead to instability, falls, and damage to the device.
• Зверніться до лікаря: If you have a pacemaker, EKG machine, or any other medical condition, consult your doctor before using this device.
• Автоматичне відключення: The device features an automatic shut-off after approximately 30 minutes of continuous use. This is a safety mechanism to prevent overheating and ensure product longevity. You can restart the session after a brief pause.
• Стабільна поверхня: Завжди ставте тренажер на стійку, рівну поверхню під час використання.
• Очистити область: Ensure the area around the exerciser is clear of obstructions to prevent accidents.
• Діти та домашні тварини: Keep children and pets away from the exerciser during operation.
• Шнур живлення: Do not place the exerciser on the power cord. Keep the power cord away from heated surfaces.
• Відключайте, коли не використовуєте: Always unplug the exerciser from the power outlet when not in use or before cleaning.

Figure 9.1: Important Safety Warning: Use the elliptical only while seated. Do not stand on the elliptical.

Figure 9.2: Consult your doctor if you use a pacemaker or EKG machine before using this product.

10. Гарантія та підтримка

Specific warranty details are not provided in the product information. For warranty claims, technical support, or any inquiries regarding your Amonax Motorized Elliptical Pedal Exerciser, please contact Amonax customer service directly through their official webсайт або роздрібний продавець, де було придбано товар.

You can visit the Amonax brand store on Amazon for more information: Amonax Brand Store
