вступ
Welcome to your new Mersoco M415-BLACK Portable 3-Speed Bluetooth Suitcase Vinyl Record Player. This manual provides essential information for setting up, operating, and maintaining your device. Please read it thoroughly before use to ensure proper function and longevity of your record player.
Вміст упаковки
The following items are included with your Mersoco M415-BLACK record player:
- Suitcase record player
- Адаптер живлення
- Адаптер на 45 об / хв
- Інструкція з експлуатації
- RCA кабель
- Кабель AUX
- Installation Drivers and Utilities CD (for LP recording)
Продукт закінченийview
This section details the main parts and functionalities of your record player.
A view of the Mersoco M415-BLACK portable record player in its open position, highlighting the turntable platter, tonearm with stylus, and the integrated stereo speakers on the front.
- Поворотний стіл: Supports your vinyl records during playback.
- Тонеарм: Утримує стилус та відстежує канавки платівки.
- Стилус: A durable ruby stylus designed for accurate sound reproduction.
- Вбудовані стереодинаміки: Provide integrated audio output.
- Перемикач швидкості: Allows selection of 33 1/3, 45, or 78 RPM playback speeds.
- Auto-Stop Switch: Stops the platter rotation automatically at the end of a record.
- Приймач Bluetooth: For wireless audio streaming from compatible external devices.
- Лінійний вихід RCA: Підключається до зовнішнього amplifiers or powered speakers for enhanced audio.
- Роз'єм AUX-in: Connects external audio sources such as MP3 players or tablets.
- Роз'єм для навушників: Для приватного прослуховування.
- Порт USB: For converting vinyl to digital formats (MP3/WAV) via a PC.
- Споживана потужність: Підключається до наданого адаптера живлення.
This image displays the rear panel of the record player, detailing the 3.5mm headphone jack, RCA output jacks for connecting to external speakers, and the AUX-in jack for connecting other audio devices. It also shows the speed selector for 33, 45, and 78 RPM records.
Налаштування
Виконайте такі кроки для початкового налаштування програвача платівок:
- Розпакування: Обережно вийміть усі компоненти з упаковки. Зберігайте упаковку для подальшого транспортування або зберігання.
- Підключення живлення: Connect the power adapter to the DC IN port on the back of the unit and then to a standard wall outlet.
- Platter Protection: Remove any protective packaging or ties from the turntable platter and tonearm.
- Захист стилуса: Gently remove the clear plastic stylus protector from the needle. Be careful not to bend the stylus.
- 45 RPM адаптер: If you plan to play 45 RPM records, place the included 45 RPM adapter on the center spindle of the turntable.
Інструкція з експлуатації
Відтворення вінілових платівок
- Відкрийте кришку програвача платівок.
- Покладіть вінілову платівку на тарілку.
- Select the appropriate speed (33 1/3, 45, or 78 RPM) using the speed selector switch located on the unit.
- When placing a 12-inch vinyl record on the turntable, gently tilt it toward the tonearm to ensure proper playback and avoid contact with the edge.
- Push the auto-stop switch to the ON position if you want the platter to stop spinning automatically at the end of the record.
- Gently lift the tonearm using the cueing lever and position it over the desired track on the record.
- Lower the tonearm slowly onto the record using the cueing lever.
- Налаштуйте гучність за допомогою регулятора гучності.
- To stop playback, lift the tonearm, return it to its rest, and engage the tonearm lock.
Режим Bluetooth
- Turn on the record player.
- Switch the function selector to Bluetooth mode. The Bluetooth indicator light will flash, indicating it is ready for pairing.
- On your Bluetooth-enabled device (e.g., smartphone, tablet), search for available Bluetooth devices in the settings.
- Select "Turntable" from the list to pair. Once connected, the indicator light will stop flashing and remain solid.
- Play audio from your device. The sound will be output through the record player's built-in speakers.
This image illustrates the process of connecting a smartphone to the record player via Bluetooth. The phone screen shows "Turntable" as a connected device, indicating successful pairing.
Режим входу AUX
- Connect one end of the AUX cable (included) to the AUX-in jack on the record player.
- Connect the other end to the audio output of your external device (e.g., MP3 player, tablet).
- Switch the function selector to AUX-in mode.
- Play audio from your external device. The sound will be played through the record player's speakers.
Лінійний вихід RCA
- Connect an RCA cable (included) to the RCA Line Out jacks on the back of the record player.
- Connect the other end of the RCA cable to the audio input of an external amplifier або активні колонки.
- Переконайтеся, що зовнішня аудіосистема увімкнена та налаштована на правильний вхід.
- Adjust volume on both the record player and the external system as needed.
Використання навушників
- Plug 3.5mm headphones into the headphone jack on the back of the unit.
- Audio will be routed to the headphones, silencing the built-in speakers for private listening.
LP Recording to MP3/WAV (USB)
The record player can convert vinyl records to digital MP3/WAV files via a USB connection to a computer. This feature requires specific software.
- Connect the record player to your computer using a USB cable (not explicitly listed as included, but implied by "Installation Drivers and Utilities CD").
- Install the provided software from the "Installation Drivers and Utilities CD" on your computer.
- Follow the software instructions to record and convert your vinyl audio to the desired digital format.
This image shows the record player connected to a laptop via a USB cable, with audio editing software visible on the laptop screen, demonstrating the capability to convert vinyl records to digital formats.
Технічне обслуговування
Догляд і очищення
- Очищення пристрою: Wipe the exterior of the record player with a soft, dry cloth. Do not use harsh chemicals, abrasive cleaners, or waxes, as these can damage the finish.
- Догляд за стилусом: The stylus is delicate. Avoid touching it with your fingers. Clean it gently with a soft brush designed for stylus cleaning, moving from back to front. Replace the stylus if you notice significant wear or damage, as a worn stylus can damage your records.
- Догляд за записами: Keep records clean and free of dust. Store them vertically in their protective sleeves to prevent warping and scratches.
- Пилозахисний чохол: Keep the lid closed when the record player is not in use to protect the turntable and stylus from dust and debris.

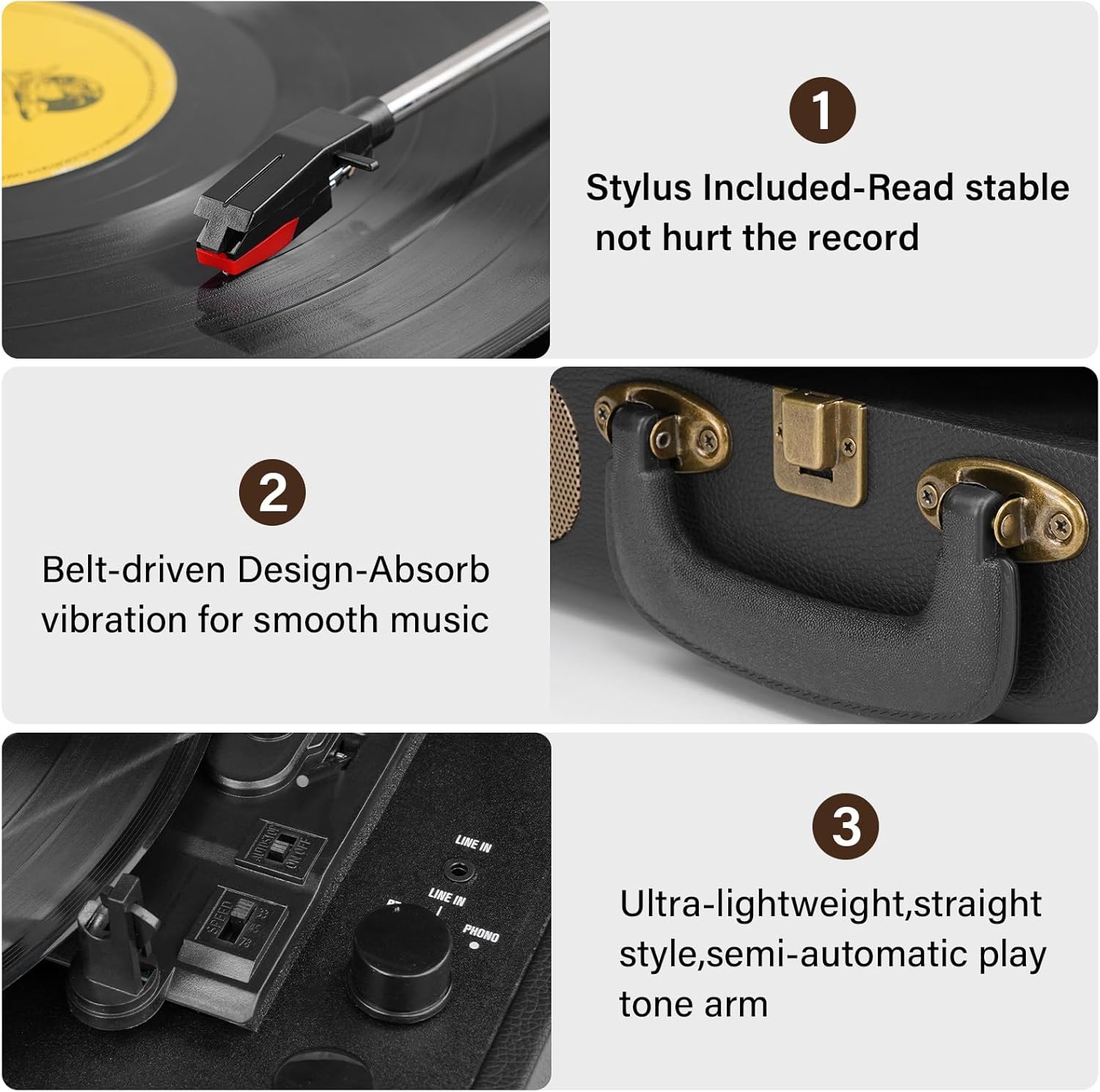

Крупним планом views of the record player's components, including the stylus for stable reading, the belt-driven design for vibration absorption, and the semi-automatic tonearm.
Усунення несправностей
If you encounter any issues with your record player, please refer to the table below for common problems and their solutions.
| проблема | Рішення |
|---|---|
| Немає живлення | Ensure the power adapter is securely connected to the unit and a working power outlet. Check if the power outlet is functional. |
| Немає звуку з динаміків | Check the volume level on the record player. Ensure the correct input mode (Phono, Bluetooth, AUX) is selected. If using external speakers, check their connection, power, and input selection. Ensure headphones are not plugged in. |
| Record skips or sound distortion | Ensure the record player is placed on a stable, level surface to prevent vibrations. Clean the record and stylus. Check if the stylus is damaged or worn and replace if necessary. |
| Bluetooth не підключається | Ensure the record player is in Bluetooth pairing mode (indicator light flashing). Make sure your device's Bluetooth is enabled and within range (approx. 10 meters). Try restarting both the record player and your Bluetooth device. |
| Тарілка не обертається | Check power connection. Ensure the tonearm is lifted from its rest. If the auto-stop switch is ON, the platter will stop at the end of a record; ensure it's not stopping prematurely. |
Технічні характеристики
Key technical specifications for the Mersoco M415-BLACK record player:
- модель: M415-BLACK
- Бренд: Мерсоко
- Розміри продукту: 16.02 x 12.8 x 6.38 дюймів
- Вага товару: 5.72 фунта
- Підтримувані швидкості: 33 1/3, 45, 78 об/хв
- Тип диска: Привідний ремінь
- Стилус: Ruby stylus
- Підключення: Bluetooth, AUX Input, RCA Line Out, Headphone Jack, USB
- Вбудовані динаміки: так
- матеріал: Деревина
- Споживання енергії у увімкненому режимі: 5 Вт
Гарантія та підтримка
Гарантія виробника
This product comes with a standard manufacturer's warranty. For details regarding warranty coverage, duration, and claims, please refer to the warranty card included in your package or contact Mersoco customer support directly.
Підтримка клієнтів
If you encounter any issues or have questions not covered in this manual, please contact Mersoco customer support. Contact information can typically be found on the manufacturer's website or on the product packaging. Please have your model number (M415-BLACK) and purchase date ready when contacting support.
