APlusLift AP-12SR 12000LB Двостійковий підйомник для автомобілів з прозорою підлогою Інструкція з експлуатації

1. Інформація про безпеку

Read and understand all safety warnings and instructions before operating this equipment. Failure to follow these instructions may result in serious injury or death.

• Тільки кваліфікований персонал: Only trained and authorized personnel should operate this lift.
• Правильна установка: Переконайтеся, що підйомник встановлено на рівному, міцному бетонному фундаменті, здатному витримати вагу підйомника та максимальне навантаження.
• Вантажопідйомність: Do not exceed the maximum rated load capacity of 12,000 lbs (5443 kg).
• Розміщення транспортного засобу: Always center the vehicle on the lift arms and ensure proper weight distribution. Use appropriate adapters for different vehicle types.
• Запобіжні замки: Always engage the safety locks before working under the vehicle. Never work under a lift that is not fully engaged on its safety locks.
• Очистити область: Keep the area around the lift clear of obstructions, tools, and personnel during operation.
• Регулярні перевірки: Perform daily inspections of the lift for any signs of wear, damage, or malfunction. Refer to the Maintenance section for details.
• Аварійна зупинка: Ознайомтеся з розташуванням та принципом роботи кнопки аварійної зупинки.

2. Продукт закінчивсяview

The APlusLift AP-12SR is a heavy-duty 12,000 LB two-post overhead clear floor car lift designed for professional automotive service. It features a robust alloy steel construction and a hydraulic lifting system.

Ключові характеристики:

• 12,000 LB (5443 kg) lifting capacity.
• Overhead clear floor design for unobstructed workspace.
• Single point safety lock release system.
• Extra wide 109" drive-through clearance.
• Screw-up pads with 3" and 6" tall truck adapters included.
• CE Certified structure and hydraulic system.
• Robotically welded structure with durable powder-coated finish.
• Direct drive cylinders, eliminating chains or pulleys.

Компоненти:

The AP-12SR lift consists of the following main components:

• Two Vertical Columns (Power Side and Off Side)
• Cross Beam (Overhead)
• Lifting Carriages
• Lifting Arms (Triple-Telescoping Symmetrical Arms)
• Lift Pads with Screw-Up Adapters
• Гідравлічний блок
• Hydraulic Cylinders and Hoses
• Система безпеки
• Anchor Bolts and Shims

Малюнок 2.1: Закінченоview of the APlusLift AP-12SR Two Post Overhead Clear Floor Car Lift. This image shows the complete lift assembly with its two vertical columns, overhead cross beam, and lifting arms.

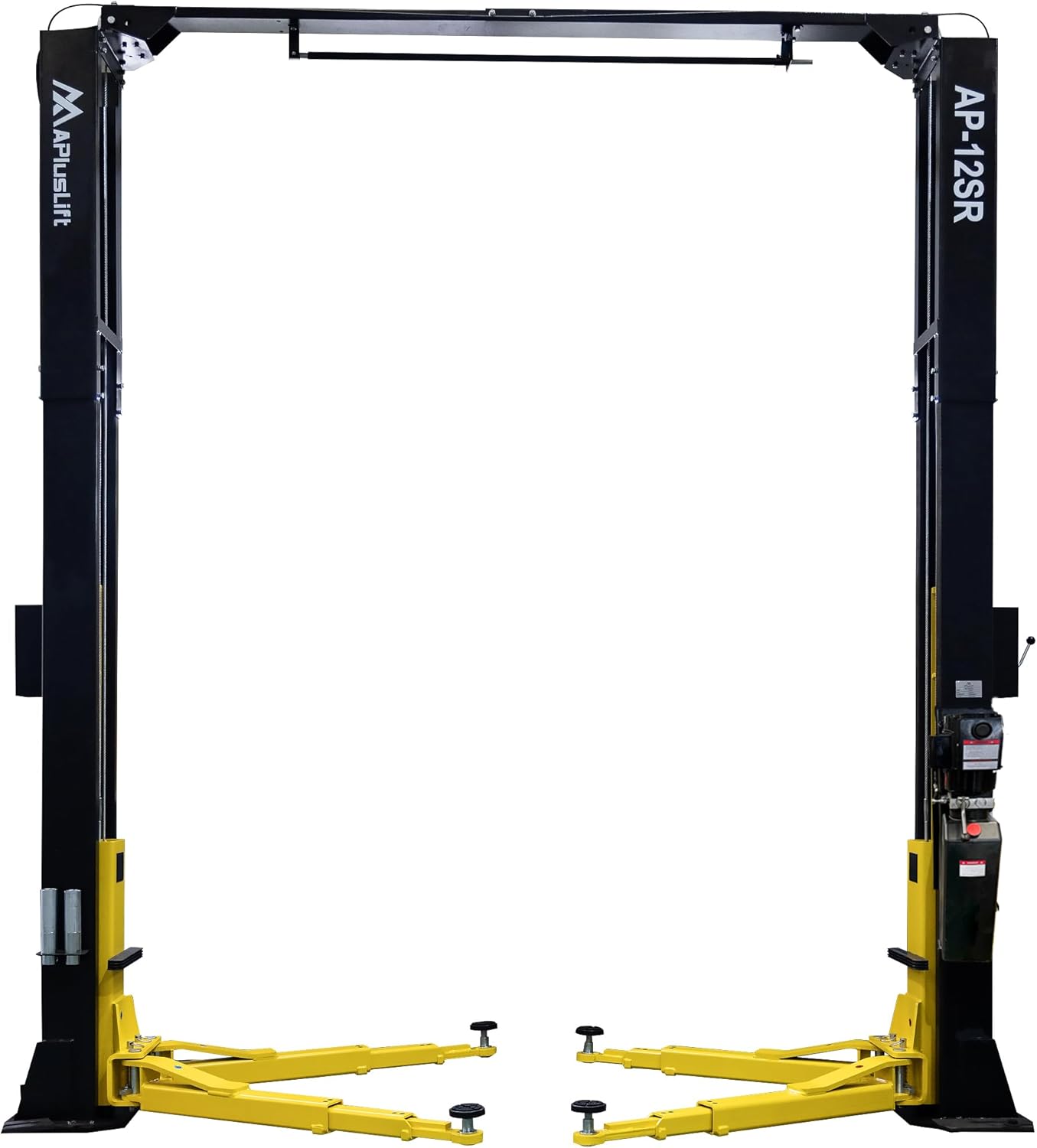

Figure 2.2: The APlusLift AP-12SR car lift with its lifting arms extended, demonstrating the full reach of the symmetrical arms.

Малюнок 2.3: Збільшений план view of the top section of an APlusLift AP-12SR column, showing the cable routing and structural connection points.

Малюнок 2.4: Детально view of the hydraulic cylinder and equalization cables within the APlusLift AP-12SR lift column, essential for smooth and synchronized lifting.

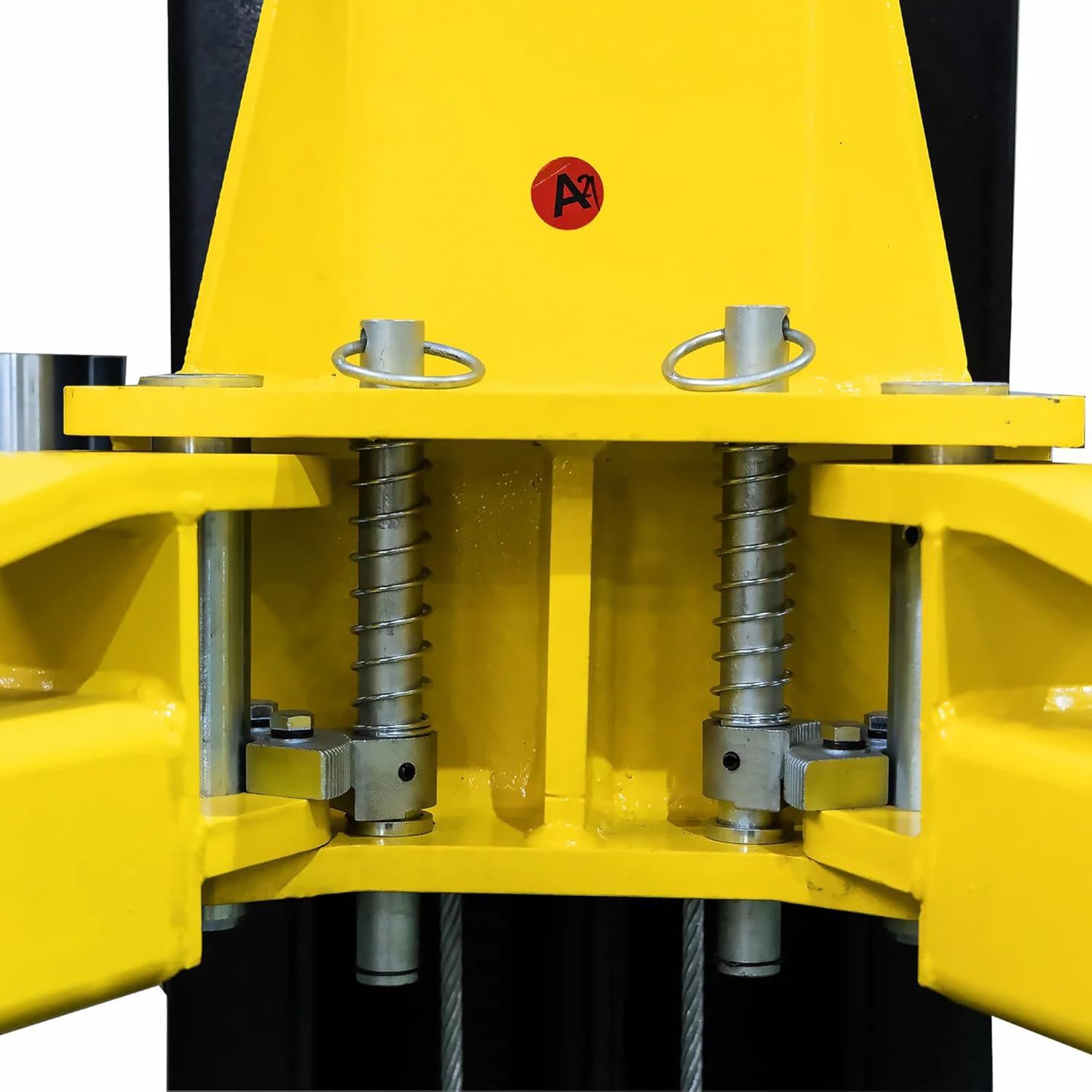

Figure 2.5: Close-up of the automatic arm locking gears on the APlusLift AP-12SR, which engage to secure the lifting arms in position.

Figure 2.6: Detail of the screw-up lift pad with its rubber top, providing adjustable height and secure contact with the vehicle's frame.

Figure 2.7: The included 3-inch and 6-inch tall truck adapters, which extend the reach of the lift pads for vehicles with higher ground clearance.

Figure 2.8: The robust base plate of an APlusLift AP-12SR column, showing the anchor points and a hydraulic line connection.

3. Технічні характеристики

Figure 3.1: Technical drawing showing key dimensions of the APlusLift AP-12SR lift, including overall height, width, and drive-through clearance.

4. Налаштування та встановлення

Proper installation is critical for the safe and reliable operation of your APlusLift AP-12SR. It is highly recommended that installation be performed by qualified professionals.

4.1 Site Requirements:

• Фонд: A level concrete floor, minimum 4 inches thick, with a minimum compressive strength of 3000 PSI. The concrete must be cured for at least 28 days.
• Зазор над головою: Sufficient overhead clearance is required for the lift's maximum height (165 inches / 13'9") plus the height of the vehicle being lifted.
• Джерело живлення: A dedicated electrical circuit suitable for the hydraulic power unit (typically 220V, single-phase, 30A). Consult the power unit's label for exact requirements.
• Пробіл: Ensure adequate space around the lift for vehicle entry/exit, arm swing, and safe operation. Refer to the dimensional drawing in Section 3.

4.2 Розпакування та перевірка:

1. Carefully unpack all components and check against the packing list.
2. Inspect all parts for shipping damage. Report any damage immediately to the carrier and your supplier.
3. Ensure all anchor bolts, shims, and small components are present.

4.3 Етапи складання (загальні положення)view):

This is a general guide. Always refer to the detailed installation manual provided with your lift for precise instructions and torque specifications.

1. Position Columns: Carefully position the two columns according to the specified dimensions and ensure they are plumb and level.
2. Anchor Columns: Drill holes and secure the columns to the concrete floor using the provided anchor bolts. Use shims as necessary to ensure columns are perfectly plumb.
3. Install Overhead Beam: Lift and secure the overhead cross beam between the two columns.
4. Install Carriages and Cables: Slide the lifting carriages onto the columns and route the equalization cables through the pulleys as per the diagram.
5. Install Hydraulic Cylinders and Hoses: Install the hydraulic cylinders within the columns and connect the hydraulic hoses between the cylinders and the power unit.
6. Mount Power Unit: Secure the hydraulic power unit to the designated column.
7. Електричне підключення: Connect the power unit to the electrical supply. This step must be performed by a qualified electrician.
8. Fill Hydraulic Fluid: Fill the power unit reservoir with appropriate hydraulic fluid (e.g., AW-32 or AW-46).
9. Install Arms and Pads: Attach the lifting arms to the carriages and install the screw-up pads and truck adapters.
10. Перевірте та налаштуйте: Perform initial test cycles without a load to bleed air from the hydraulic system and verify proper operation of all components, especially the safety locks and equalization system. Adjust cable tension as needed.

5. Інструкція з експлуатації

Follow these steps for safe and effective operation of your APlusLift AP-12SR car lift.

5.1 Контрольний список перед експлуатацією:

• Ensure the lift area is clear of personnel and obstructions.
• Verify that the lift is properly anchored and all components are secure.
• Перевірте рівень гідравлічної рідини.
• Inspect hydraulic hoses and fittings for leaks or damage.
• Confirm safety locks are functioning correctly.

5.2 Lifting a Vehicle:

1. Позиція транспортного засобу: Drive the vehicle onto the lift, centering it between the columns. Ensure adequate clearance for the lifting arms.
2. Позиція рук: Swing the lifting arms into position under the vehicle's designated lifting points. Use the screw-up pads and truck adapters as needed to ensure solid contact. The automatic arm locking gears will engage.
3. Raise Vehicle: Press and hold the "UP" button on the power unit. The lift will begin to raise.
4. Увімкніть запобіжні замки: Raise the vehicle slightly past the desired working height, then lower it slowly until the safety locks engage with an audible click. This ensures the vehicle is resting securely on the mechanical locks, not just hydraulic pressure.
5. Перевірка стабільності: Gently shake the vehicle to confirm it is stable and securely supported on all four pads.
6. Працюйте безпечно: You may now safely work under the vehicle.

5.3 Lowering a Vehicle:

1. Очистити область: Ensure no tools, equipment, or personnel are under or around the vehicle.
2. Трохи підняти: Press the "UP" button to raise the vehicle just enough to disengage the safety locks.
3. Release Safety Locks: Pull the single point safety lock release handle to disengage both safety locks simultaneously.
4. Нижній транспортний засіб: Press and hold the "DOWN" lever/button on the power unit. The vehicle will begin to descend.
5. Full Descent: Continue lowering until the arms are fully retracted and the vehicle is resting on the floor.
6. Retract Arms: Swing the lifting arms clear of the vehicle.
7. Drive Off: Carefully drive the vehicle off the lift.

6. Технічне обслуговування

Regular maintenance is essential to ensure the longevity and safe operation of your APlusLift AP-12SR.

6.1 Daily Checks:

• Inspect all cables and chains for wear, fraying, or damage.
• Перевірте гідравлічні шланги та фітинги на наявність витоків.
• Verify proper operation of safety locks and arm restraints.
• Ensure all fasteners (bolts, nuts) are tight.
• Check for any unusual noises during operation.

6.2 Monthly Checks:

• Lubricate all moving parts, including cables, pulleys, and arm pivots, with appropriate grease or oil.
• Перевірте рівень гідравлічної рідини та за потреби долийте її.
• Inspect anchor bolts for tightness. Re-torque if needed.
• Clean columns and carriages to prevent debris buildup.

6.3 Annual Checks:

• Drain and replace hydraulic fluid.
• Inspect all structural components for cracks, bends, or deformation.
• Check electrical connections for corrosion or damage.
• Have a qualified technician perform a thorough inspection and certification.

7. Вирішення проблем

This section provides solutions to common issues you might encounter with your AP-12SR lift. For problems not listed here, contact APlusLift customer support.

8. Гарантія та підтримка

APlusLift provides comprehensive warranty coverage and customer support for the AP-12SR lift.

8.1 Інформація про гарантію:

The APlusLift AP-12SR comes with an industry-leading Гарантія 3 рік on parts. This warranty covers electrical and hydraulic components, ensuring reliable service.

For specific warranty terms and conditions, please refer to the warranty document included with your purchase or contact APlusLift directly.

8.2 Підтримка клієнтів:

APlusLift is committed to providing exceptional customer service. Support is accessible via phone, text, chat, or email.

For technical assistance, parts inquiries, or warranty claims, please contact APlusLift customer support through their official channels. Refer to the contact information provided at the time of purchase or on the APlusLift webсайт.

With nationwide warehouses, APlusLift ensures fast delivery and discounted pick-up options for parts and accessories.
