1. Вступ
This manual provides detailed instructions for the assembly, usage, and maintenance of your Yaheetech 5-Tier Heavy-Duty Standing Shelf Unit. Designed for versatile storage, this unit is suitable for various environments including garages, offices, kitchens, workshops, and warehouses. Please read this manual thoroughly before assembly and use to ensure safe and correct operation.

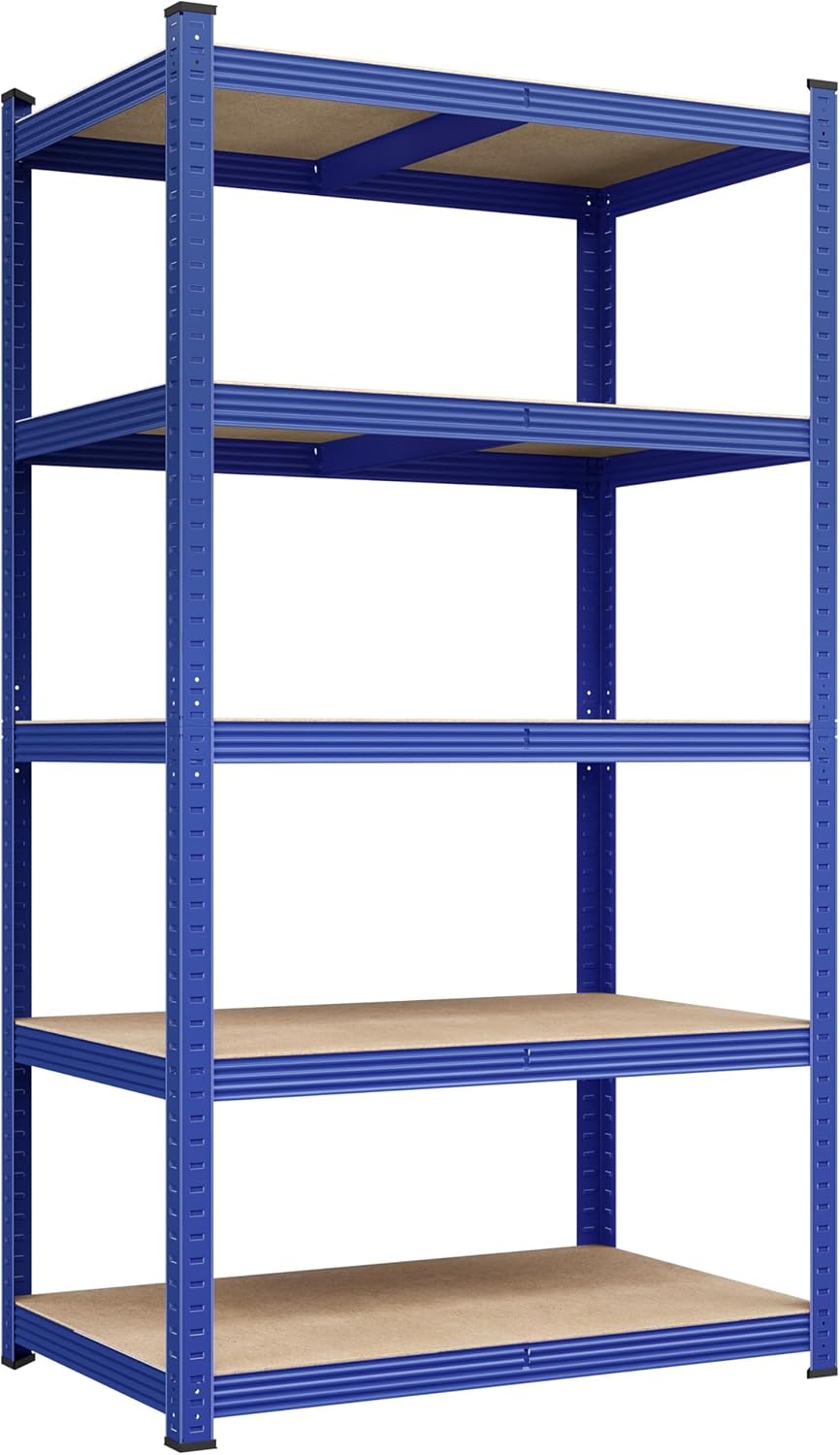

Image 1.1: The Yaheetech 5-Tier Heavy-Duty Standing Shelf Unit in blue, showcasing its five adjustable shelves and sturdy construction.
2. Інформація про безпеку
Дотримання цих правил безпеки є надзвичайно важливим для запобігання травмам та пошкодженню виробу.
- Не перевантажуйте: The maximum weight capacity per shelf is 386 lb (175 kg). The total maximum weight capacity for the entire unit is 1925 lb (873 kg). Exceeding these limits can cause structural failure.
- Правильна збірка: Ensure all components are correctly assembled and secured according to the instructions. Incorrect assembly can compromise stability.
- Стабільне розміщення: Place the shelf unit on a flat, level, and stable surface. Uneven surfaces can lead to tipping.
- Anti-skid Pads: Utilize the provided anti-skid rubber pads to enhance stability and protect your flooring from scratches.
- Діти та домашні тварини: Keep children and pets away from the unit during assembly. Do not allow them to climb on the assembled unit.
- інструменти: A rubber mallet (not included) is highly recommended for assembly to prevent damage to components.
3. Вміст упаковки
Перед початком складання перевірте наявність усіх компонентів. Якщо якісь деталі відсутні або пошкоджені, зверніться до служби підтримки клієнтів.
- Vertical Posts (Uprights)
- Horizontal Beams (Long and Short)
- MDF Boards (5 pieces)
- Fixed Connection Plates
- Anti-slip Footpads
- Gloves (for assembly)
- Інструкція з експлуатації
4. Інструкція зі складання
The boltless design allows for straightforward assembly. Two people are recommended for easier installation. A rubber mallet (not included) will be helpful.
- Підготуйте компоненти: Lay out all parts on a clean, flat surface. Wear the provided gloves to protect your hands.
- Assemble Vertical Posts: Connect the vertical posts using the fixed connection plates if assembling a taller unit. Ensure they are securely interlocked.
- Прикріпити балки: Connect the horizontal beams to the vertical posts. The beams feature tabs that slot into the post openings. Use a rubber mallet to gently tap them into place until fully seated.
- Form Shelf Levels: Repeat step 3 for all four sides of each shelf level. Ensure the beams are level and securely attached before proceeding.
- Вставка МДФ-плит: Once a shelf frame is complete, place an MDF board onto the assembled beams. Ensure it sits flush within the frame.
- Повторіть для всіх рівнів: Continue assembling the remaining shelf tiers, adjusting the height of each tier as desired before inserting the MDF boards.
- Прикріпіть накладки на ноги: Secure the anti-slip footpads to the bottom of the vertical posts.
Image 4.1: Visual guide for assembly, showing connecting beams to posts, snapping crossbars, placing wooden boards, and attaching non-slip footpads.
Зображення 4.2: Крупний план view of key features including durable protective surface, adjustable height mechanism, fixed connection plate, easy boltless assembly, durable medium density fiberboard, and anti-slip footpads.
5. Використання та конфігурація
The Yaheetech shelf unit offers flexible configuration options to suit your storage needs.
5.1 Регульовані полиці
The five shelves are fully adjustable. You can customize the height of each shelf to accommodate items of various sizes. To adjust, simply detach the beams from the vertical posts, reposition them to the desired height, and re-secure them.
5.2 Changeable Design
Beyond a single tall unit, this rack can be configured into different forms, such as two shorter, separate units or an L-shaped workbench. This adaptability maximizes its utility in diverse spaces.
Зображення 5.1: Наприкладamples of different shelf configurations, including a tall 5-tier unit, two shorter 2-tier units, and an L-shaped setup.
Image 5.2: Demonstrations of the shelf unit's versatility in different environments: a kitchen for pantry storage, a garage for tools and supplies, and a supermarket for product display.
Image 5.3: A blue Yaheetech shelf unit neatly organized with various storage bins, tools, and tires in a garage setting.
Image 5.4: A blue Yaheetech shelf unit used in a kitchen, holding various kitchenware, appliances, and food items.
6. Технічне обслуговування
To ensure the longevity and appearance of your shelf unit, follow these simple maintenance steps:
- Прибирання: Wipe the surfaces with a dry cloth to remove dust and debris. Avoid using abrasive cleaners or harsh chemicals, which can damage the painted finish and MDF boards.
- Огляд: Periodically check all connections to ensure they remain secure. Re-tap any loose beams with a rubber mallet if necessary.
- вологість: While the MDF boards are durable, prolonged exposure to excessive moisture should be avoided to prevent warping or damage.
7. Вирішення проблем
If you encounter issues with your shelf unit, consider the following:
- Коливання агрегату: Ensure the unit is placed on a level surface. Check that all beams are fully seated and securely locked into the vertical posts. Verify that the anti-slip footpads are correctly installed.
- Складність збирання: If beams are hard to connect, ensure they are aligned correctly with the slots. A rubber mallet can assist in seating them firmly. Do not force components, as this may cause damage.
- Провисання полиць: Ensure the weight on the shelf does not exceed the individual shelf capacity of 386 lb (175 kg). Distribute weight evenly across the shelf.
8. Технічні характеристики
| Особливість | Деталь |
|---|---|
| Назва моделі | 5-рівнева регульована полиця для стояння |
| Номер моделі | YT-00139034# |
| Габаритні розміри (Д x Ш x В) | 35.5 дюйма x 16 дюйма x 71 дюйма (90.17 см x 40.64 см x 180.34 см) |
| Кількість полиць | 5 |
| матеріал | Heavy-duty Steel Frame, CARB P2-compliant MDF Boards |
| Max. Weight Capacity Per Shelf | 386 фунта (175 кг) |
| Total Max. Weight Capacity | 1925 фунта (873 кг) |
| Вага товару | 29.1 фунта (13.2 кг) |
| Потрібна збірка | Yes (Boltless Assembly) |
| Особливості | Adjustable Shelves, Changeable Design, Anti-skid Rubber Pads |
| Інструкція по догляду | Протріть сухою тканиною |
Image 8.1: Diagram illustrating the dimensions of the 5-tier shelf unit: 35.5 inches wide, 16 inches deep, and 71 inches high, with a maximum load of 386 lbs per shelf.
9. Гарантія та підтримка
For any questions, concerns, or assistance with your Yaheetech 5-Tier Heavy-Duty Standing Shelf Unit, please contact Yaheetech customer support. Refer to your purchase documentation for specific warranty details and contact information.
