Інструкція з експлуатації 5-рівневої регульованої металевої стелажної системи Yaheetech

1. Вступ

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Yaheetech 5-Tier Adjustable Metal Storage Shelving Unit. This heavy-duty unit is designed to offer versatile storage solutions for various environments, including garages, pantries, workshops, and more. Please read these instructions carefully before assembly and use to ensure safe and proper installation and operation.

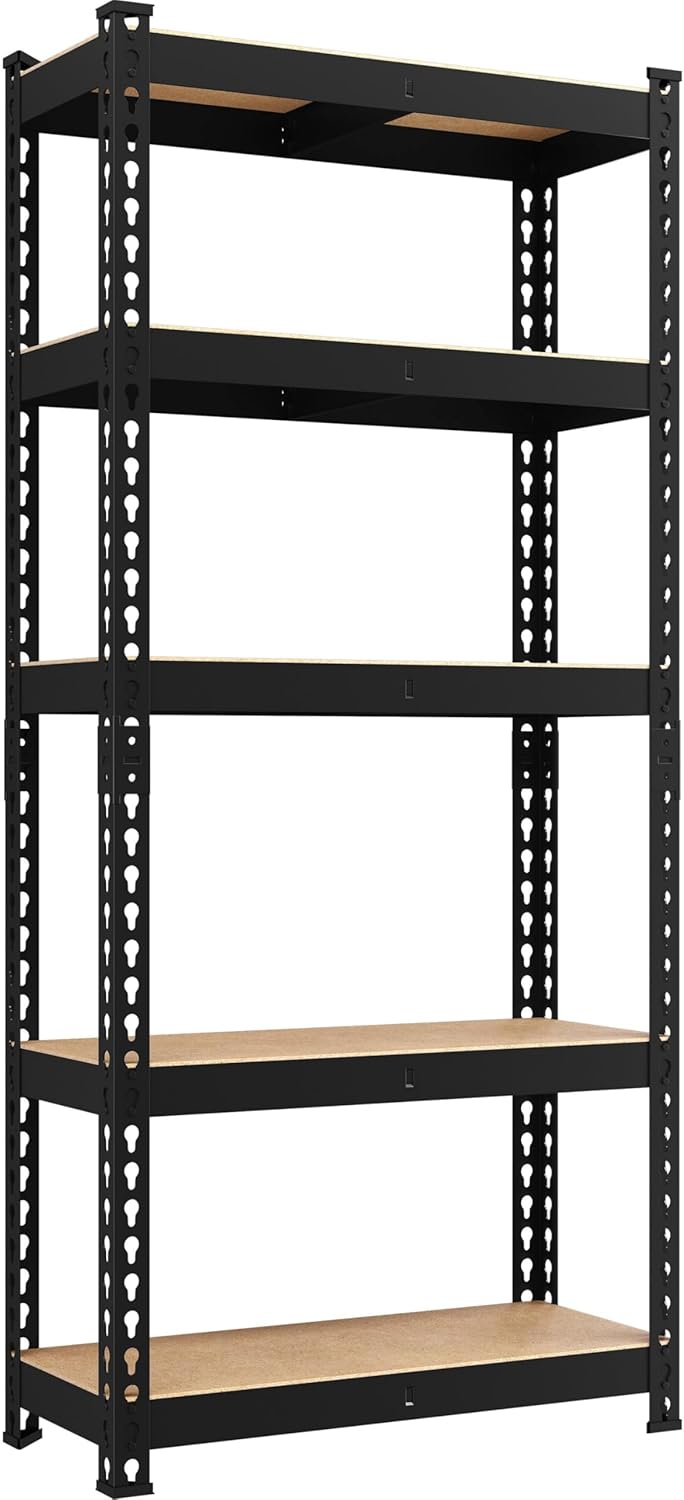

Image: The Yaheetech 5-Tier Adjustable Metal Storage Shelving Unit.

2. Інформація про безпеку

Важливі заходи безпеки:

• Обмеження ваги: Do not exceed the maximum load capacity of 386 lb (175 kg) per tier. The total weight capacity for the unit is 1930 lb (875 kg). Overloading can cause structural failure and injury.
• Застереження щодо монтажу: Exercise caution during assembly. Wear gloves to protect hands from sharp edges. A rubber mallet is recommended for assembly to prevent damage to components (not included).
• Стабільність: Ensure the shelving unit is stable and level after assembly. Use the included anti-slip footpads for extra stability. For maximum safety, especially with heavy loads or in areas prone to movement, consider anchoring the unit to a wall (anchoring hardware not included).
• Діти та домашні тварини: Keep children and pets away from the shelving unit during assembly. Do not allow children to climb on or play with the shelves once assembled.
• Розміщення: Place the unit on a flat, stable surface. Avoid placing it in high-traffic areas where it could be easily bumped or tipped.
• Обробка матеріалів: Be aware that MDF boards can be susceptible to moisture. Avoid prolonged exposure to water or high humidity.

3. Вміст упаковки

Before beginning assembly, please verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer service.

• Vertical Posts (Uprights)
• Horizontal Beams (Long and Short)
• MDF Boards (5 pieces)
• Fixed Connection Plates (for splitting into two smaller units, if desired)
• Anti-slip Footpads
• Пара рукавичок
• Інструкція з експлуатації

Tools Recommended (Not Included): Гумовий молоток

4. Технічні характеристики

Image: Product dimensions and maximum load capacity per shelf. Note: The image states 330lb per shelf, while specifications state 386lb. Always adhere to the lower stated weight limit for safety.

5. Налаштування та складання

The Yaheetech 5-Tier Storage Shelving Unit features a boltless design for quick and easy assembly. A rubber mallet is highly recommended to ensure components are securely fitted.

Етапи складання:

1. Підготуйте компоненти: Lay out all components on a clean, flat surface. Ensure you have all parts as listed in the "Package Contents" section. Wear the provided gloves to protect your hands.
2. Assemble Vertical Posts: Connect the vertical posts (uprights) by sliding the interlocking tabs into the slots. Use a rubber mallet to gently tap them into place for a secure fit. If assembling two smaller units, use the fixed connection plates to join the shorter vertical posts.
3. Прикріпіть горизонтальні балки: For the bottom shelf, connect the horizontal beams (long and short) to the vertical posts. The beams have tabs that fit into the keyhole slots on the posts. Ensure all four beams for a single shelf level are securely in place. Use a rubber mallet to tap them down until they are flush and firm.
4. Place MDF Board: Once the frame for a shelf level is assembled, carefully place an MDF board onto the horizontal beams. Ensure it sits flat and securely within the frame.
5. Повторіть для решти полиць: Repeat steps 3 and 4 for the remaining four shelves. The height of each shelf is adjustable; you can choose the desired height by selecting different keyhole slots on the vertical posts.
6. Attach Anti-slip Footpads: Once all shelves are assembled, attach the anti-slip footpads to the bottom of the vertical posts. These provide additional stability and protect your floor.

Image: Visual guide for the 10-minute boltless assembly process.

Image: The shelving unit can be assembled as a single tall unit or two shorter, workbench-style units.

6. Інструкція з експлуатації

Регулювання висоти полиці:

The shelves are fully adjustable to accommodate items of various sizes. To adjust a shelf:

1. Вийміть з полиці всі предмети, які ви хочете відрегулювати.
2. Carefully lift the MDF board out of its position.
3. Disengage the horizontal beams from the vertical posts by gently tapping them upwards with a rubber mallet or by hand.
4. Reattach the horizontal beams to the desired keyhole slots on the vertical posts, ensuring they are level and securely seated.
5. Place the MDF board back onto the newly positioned beams.

Завантаження полиць:

• Distribute weight evenly across each shelf to prevent stress on individual points.
• Place heavier items on lower shelves to improve overall stability of the unit.
• Do not exceed the maximum load capacity of 386 lb (175 kg) per tier or the total weight capacity of 1930 lb (875 kg) for the entire unit.

Зображення: Прample of custom-fit shelving with adjustable heights.

7. Технічне обслуговування

• Прибирання: Wipe the metal frame and MDF boards with a dry cloth to remove dust and debris. Avoid using abrasive cleaners or harsh chemicals that could damage the finish.
• Захист від вологи: The MDF boards are susceptible to moisture. Avoid prolonged exposure to water or high humidity to prevent warping or damage. If spills occur, wipe them immediately.
• Регулярна перевірка: Periodically check all connections to ensure they remain secure. If any part becomes loose, gently tap it back into place with a rubber mallet.
• Керування навантаженням: Регулярно переview the items stored on the shelves to ensure the weight limits are not exceeded and weight is distributed evenly.

8. Вирішення проблем

9. Гарантія та підтримка

Щоб отримати інформацію про гарантію, підтримку продукту або запитати про запасні частини, зверніться безпосередньо до служби підтримки клієнтів Yaheetech. Зверніться до контактної інформації, наданої під час покупки, або відвідайте офіційний веб-сайт Yaheetech. webсайт.

You can visit the Yaheetech store for more products and information: Магазин Yaheetech
