Metzler VDM10 2.0 Modular Video Intercom System User Manual

1. Вступ

The Metzler VDM10 2.0 Horizon is an advanced modular video intercom system designed for both single and multi-family buildings, supporting up to 500 units. It integrates a high-resolution 4-inch IPS display with a Full HD camera, offering secure and convenient access control through various methods.

Ключові особливості:

• High-Resolution IPS Display: A 4-inch IPS touchscreen display (IP65, IK08 rated) with an intuitive user interface, activating automatically upon approach.
• Методи множинного доступу: Supports door opening via RFID cards, customizable PIN codes, and a dedicated smartphone application.
• Full HD Camera with Night Vision: Features a 2 MP ultra-wide-angle camera for clear video, enhanced with infrared night vision for low-light conditions.
• Інтеграція додатків для смартфонів: Provides live video streaming and remote door opening capabilities through a free smartphone app, developed in collaboration with Hikvision. No subscription fees for core functionalities, updates, or data storage.

2. Налаштування та встановлення

Proper installation is crucial for the optimal performance and security of your Metzler VDM10 2.0 system. It is highly recommended that installation be performed by a qualified professional.

2.1 Компонент закінченоview

The system typically consists of an outdoor station (the video intercom unit) and optional indoor monitor units. Ensure all components are present before beginning installation.

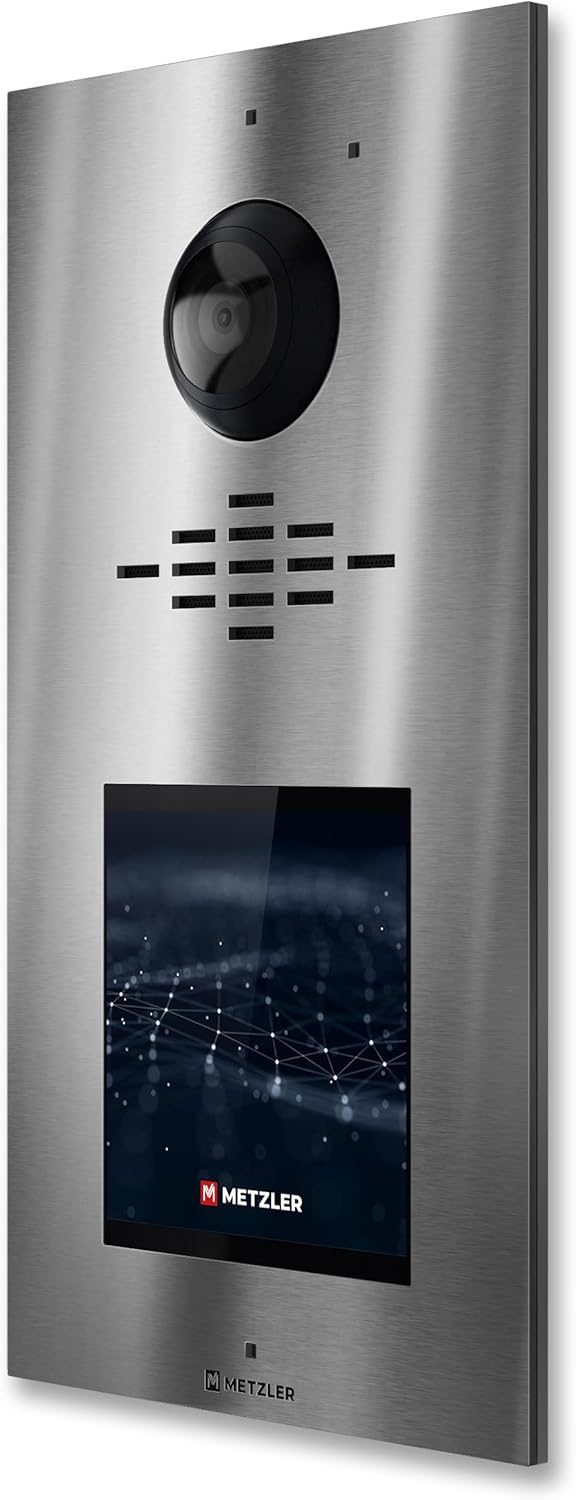

Малюнок 1: Спереду view of the Metzler VDM10 2.0 outdoor station. This image displays the stainless steel finish, the central camera lens, the speaker and microphone grilles, and the integrated 4-inch IPS touchscreen display at the bottom.

2.2 Міркування щодо монтажу

The outdoor station should be mounted at an appropriate height to ensure the camera captures visitors effectively. Consider the typical height of adults and children who will use the intercom.

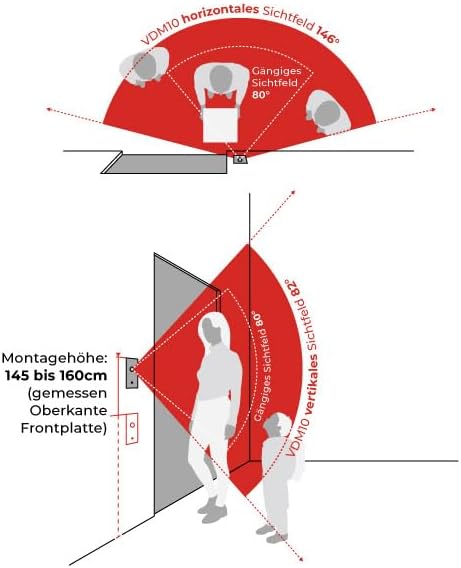

Figure 2: Mounting height and camera field of view. This diagram illustrates the recommended installation height for the VDM10, typically between 145 cm and 160 cm (measured to the top edge of the front plate), and demonstrates the wide 146° horizontal and 82° vertical camera viewкути.

Ensure the mounting location is secure and protected from direct heavy rain or extreme weather conditions, even though the unit is IP65 rated.

2.3 Wiring (2-Wire System)

The VDM10 2.0 operates as a 2-wire system, simplifying installation. Connect the power and data lines according to the wiring diagram provided in the full installation guide (not included here). Proper polarity and secure connections are essential.

• Джерело живлення: Connect to a compatible power source as specified in the detailed electrical requirements.
• Підключення даних: Establish communication with indoor monitors and network components.
• Door Lock Integration: Connect to your electronic door lock system for remote access control.

After physical installation, configure the system via the touchscreen interface and the smartphone app. This includes setting up user accounts, RFID cards, PIN codes, and network connectivity.

3. Інструкція з експлуатації

The Metzler VDM10 2.0 offers multiple ways to interact with visitors and manage access.

3.1 Visitor Interaction

1. Ініціювання дзвінка: Visitors can use the intuitive touchscreen display to select a recipient (e.g., apartment number) and initiate a video call. The display activates automatically when a person approaches.
2. Двосторонній зв'язок: Once a call is established, residents can communicate with the visitor via an indoor monitor or the smartphone app.
3. Viewing Live Video: The 2 MP HD camera provides a live video feed to the indoor monitor and smartphone app, allowing residents to see who is at the door.

3.2 Контроль доступу

The system supports various secure methods for granting access:

• RFID-картки: Present a pre-programmed RFID card to the integrated reader on the outdoor station to unlock the door.
• PIN Codes: Enter a unique PIN code on the touchscreen keypad. PIN codes can be assigned individually for different users or access points.
• Додаток для смартфона: Use the Metzler smartphone application to remotely unlock the door from anywhere with an internet connection.
• Внутрішній монітор: Unlock the door directly from an indoor monitor unit during a call or independently.

3.3 Smartphone App Usage

Download the official Metzler app from your device's app store. Follow the in-app instructions to pair your smartphone with the VDM10 2.0 system. The app allows you to:

• Receive video calls from the intercom.
• View живе відео з камери.
• Дистанційно відімкнути двері.
• Manage system settings and user access (for administrators).

Figure 3: Metzler VDM10 2.0 installed. This image shows the video intercom unit mounted on a wall, highlighting its modern stainless steel aesthetic and how it integrates into a building's exterior.

4. Технічне обслуговування

Regular maintenance ensures the longevity and optimal performance of your Metzler VDM10 2.0 system.

4.1 Очищення

• Зовні: Wipe the stainless steel surface and display with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or screen.
• Об'єктив камери: Gently clean the camera lens with a microfiber cloth to ensure clear video quality. Do not use harsh chemicals.

4.2 Оновлення програмного забезпечення

The system receives free software updates. Ensure your system is connected to the internet to receive these updates automatically or manually check for them via the system settings or smartphone app. Updates often include performance improvements, new features, and security enhancements.

4.3 Регулярні перевірки

• Періодично перевіряйте всі з'єднання проводів на предмет надійності та цілісності.
• Test the intercom's calling, video, and door-opening functions regularly.
• Ensure the RFID reader and PIN pad are responsive.

5. Вирішення проблем

If you encounter issues with your Metzler VDM10 2.0, refer to the following common troubleshooting steps:

5.1 No Power / System Unresponsive

• Перевірте джерело живлення: Ensure the system is receiving power and all power connections are secure.
• Автоматичний вимикач: Verify that the circuit breaker supplying power to the intercom has not tripped.

5.2 No Video or Poor Video Quality

• Очистіть об'єктив камери: Gently clean the camera lens as described in the Maintenance section.
• Перевірте підключення: Ensure all video signal cables are securely connected.
• Підключення до мережі: For app-based viewing, verify your internet connection and the intercom's network status.

5.3 Door Not Unlocking

• Check Door Lock Wiring: Ensure the wiring to the electronic door lock is correct and secure.
• Valid Credentials: Verify that the RFID card or PIN code used is valid and correctly programmed.
• Підключення до програми: If using the app, confirm it is connected to the intercom system.

5.4 Cannot Connect to Smartphone App

• Підключення до Інтернету: Ensure both your smartphone and the intercom system have a stable internet connection.
• Версія програми: Переконайтеся, що ваш додаток оновлено до останньої версії.
• Відновлення пари пристрою: Try removing and re-pairing the intercom system within the app settings.

For persistent issues, consult the full product manual or contact Metzler customer support.

6. Технічні характеристики

7. Гарантія та підтримка

For warranty information, please refer to the documentation included with your purchase or visit the official Metzler website. Metzler GmbH provides customer support for their products.

If you require technical assistance or have questions regarding your VDM10 2.0 system, please contact Metzler customer service through their official channels. Ensure you have your product model and purchase details available when contacting support.
