Продукт закінченийview
The Yaheetech 10x10 Pop Up Canopy is designed for various outdoor activities, offering shelter and protection. It features a robust construction with weather-resistant materials and includes removable sidewalls for enhanced versatility.
- Матеріали, стійкі до атмосферних впливів: Constructed from durable polyester canopy fabric with a UPF 50+ UV protective coating. The frame and truss are made of powder-coated steel for enhanced durability and strength.
- 4-sided Walls For Enhanced Protection: Includes three solid sidewalls and one mid-zip sidewall. Two sidewalls feature transparent arched windows for natural light. All sidewalls are detachable.
- Adjustable Height For Versatility: The overall height can be adjusted from 8.8 feet to 9.4 feet in 4-inch increments using convenient press buttons on the telescopic legs.
- Easily Transported With Roller Bag: The canopy tent folds compactly into the included 10" L × 8" W × 45.3" H roller bag, facilitating transport and storage.
Інформація про безпеку
Для оптимальної продуктивності та безпеки дотримуйтесь наступних рекомендацій:
- Always anchor the tent securely using the provided sandbags, anchor ropes, and ground anchors to prevent it from being lifted or blown away in windy conditions.
- Ensure the tent is set up on stable, level ground.
- Do not use this canopy in conditions of strong breeze, continuous light rain, heavy rain, or any other extreme weather scenarios.
- When disassembling the canopy tent, start by separating the hook and loop fasteners that secure the canopy fabric to the frame.
Вміст упаковки
Перед початком складання перевірте наявність усіх компонентів:

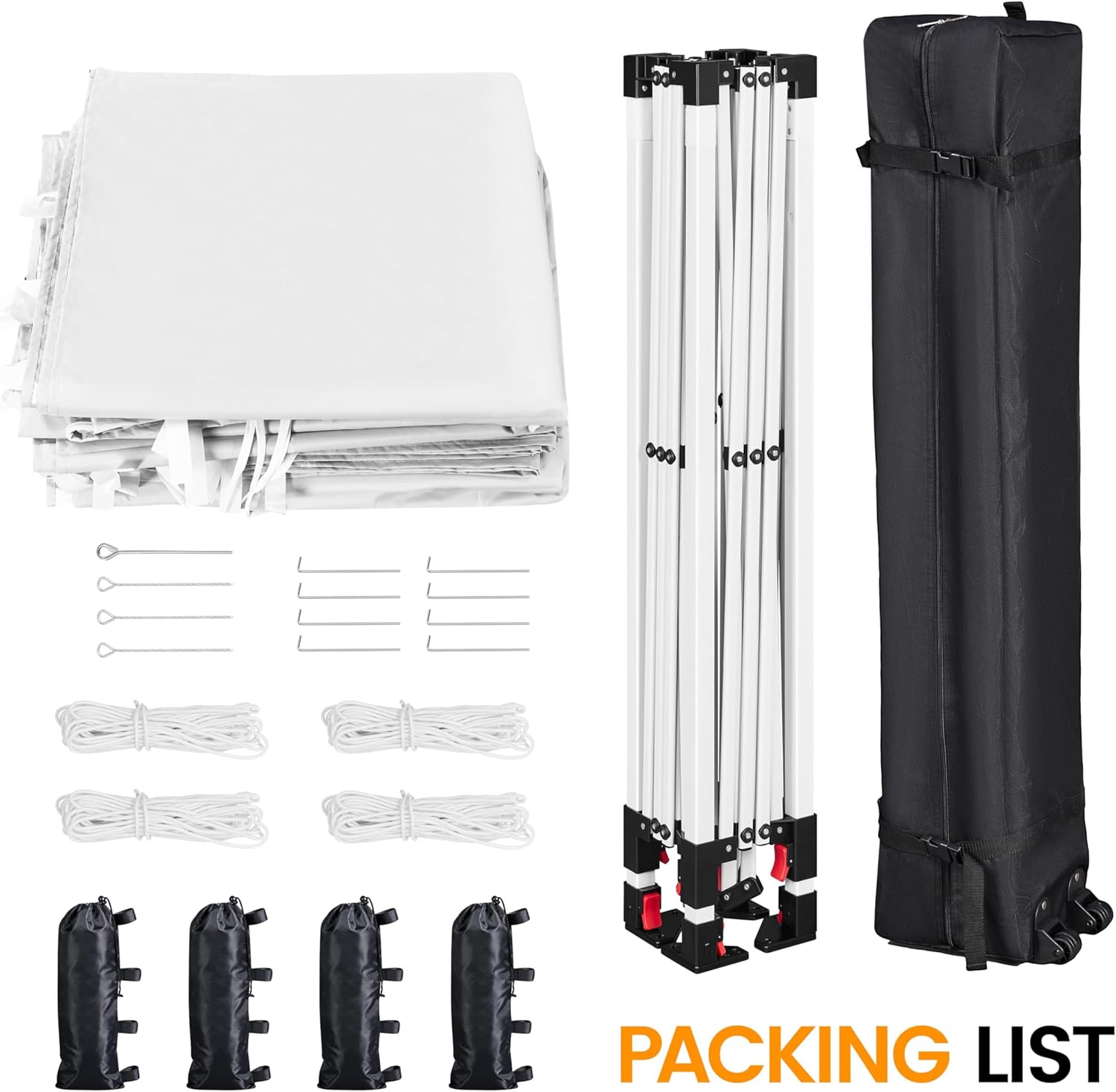

Image: All components included in the Yaheetech 10x10 Pop Up Canopy package, showing the roller bag, folded frame, canopy fabric, sandbags, guy lines, and ground stakes.
- 1 х сумка на колесах
- 1 х рамка
- 1 х Тканина для балдахіна
- 4 x Sidewalls (3 solid, 1 mid-zip with windows)
- 4 х відтяжки
- 4 х мішки з піском
- 12 х наземних колів
Інструкції з налаштування
Assembly typically requires two people for ease and safety. Follow these steps for quick setup:
- Unpack and Position Frame: Remove the folded frame from the roller bag. Place the frame in the desired setup location, ensuring it is on stable, level ground.
- Розгорнути рамку: With a person at opposite corners, gently pull the frame outwards until it is partially expanded. Do not fully extend the legs yet.
- Прикріпіть верхню частину навісу: Drape the canopy fabric over the partially expanded frame. Ensure the corners of the canopy align with the corners of the frame. Secure the canopy to the frame using the integrated hook and loop fasteners.
- Витягнути ноги: Press the red quick-release buttons on each leg and extend them upwards until they click into place at the desired height. There are multiple height settings available.
- Прикріпіть боковини (необов'язково): If desired, attach the sidewalls using the hook and loop fasteners along the top and sides of the frame. The mid-zip sidewall can be used as an entry point.
- Закріпіть навіс: Fill the provided sandbags with sand and attach them to the legs for added stability. Use the guy lines and ground stakes to anchor the canopy firmly to the ground, especially in breezy conditions. Angle the ground stakes at 45-60 degrees for optimal hold.
Image: Visual guide illustrating the three main steps for quick and easy installation of the canopy frame and top.
Зображення: Крупний план view of key features such as the silver-coated oxford cloth with UPF50+ UV protection, quick-release buttons for frame adjustment, hook & loop fasteners for securing the cover, and enhanced stability with anchor ropes.
Інструкція з експлуатації
The Yaheetech Pop Up Canopy is designed for straightforward operation:
- Регулювання висоти: To change the canopy's height, locate the red press buttons on each leg. Press the button and slide the leg to the desired position until it clicks securely into place. Ensure all four legs are set to the same height.
- Використання бічних стінок: The included sidewalls can be attached or removed as needed for privacy, wind protection, or sun shade. They attach to the frame using hook and loop fasteners. The mid-zip sidewall allows for easy entry and exit when all walls are in place.
- Вентиляція: While the canopy provides shelter, ensure adequate ventilation, especially when sidewalls are attached. The transparent arched windows on two of the sidewalls allow natural light and can be opened if the design permits, or the mid-zip door can be left open.
Image: Features of the mid-zip sidewall for convenience and transparent arched windows that provide an aesthetically pleasing look and allow natural light.
Технічне обслуговування
Proper maintenance extends the life of your Yaheetech Pop Up Canopy:
- Прибирання: Clean the canopy fabric and sidewalls with mild soap and water. Do not use harsh detergents or abrasive cleaners, as these can damage the material and UV coating. Rinse thoroughly and allow to air dry completely before storage.
- Догляд за каркасом: Inspect the steel frame periodically for any signs of rust or damage. Clean any dirt or debris from the frame. If rust spots appear, clean them and apply a rust-inhibiting paint to prevent further corrosion.
- Зберігання: Always ensure the canopy and frame are completely dry before folding and storing them in the roller bag. Store in a cool, dry place away from direct sunlight and extreme temperatures to prevent mildew and material degradation.
- Перевірка компонентів: Regularly check all fasteners, ropes, and stakes for wear and tear. Replace any damaged components to maintain the canopy's stability and safety.
Усунення несправностей
Поширені проблеми та їх вирішення:
| проблема | Можлива причина | Рішення |
|---|---|---|
| Складнощі з висуванням/складанням рами | Legs are not aligned or buttons are stuck. | Ensure all legs are pulled evenly. Press the red buttons firmly to release the locking mechanism. Apply a silicone-based lubricant if needed. |
| Canopy top does not fit properly | Canopy is not centered or corners are misaligned. | Ensure the canopy is correctly oriented and centered over the frame. Double-check that all hook and loop fasteners are securely attached to the frame. |
| Canopy is unstable/wobbles | Insufficient anchoring or uneven ground. | Verify that sandbags are filled and attached, and all guy lines are staked firmly into the ground. Ensure the canopy is on level ground. Do not use in high winds. |
| Скупчення води на верхівці крони | Improper setup or heavy rainfall. | Ensure the canopy is fully extended and taut. The peaked design is intended to shed water, but in very heavy rain, temporary pooling may occur. Do not use in heavy rain. |
Технічні характеристики
- Бренд: Yaheetech
- Номер моделі: YT4xqa0001001
- матеріал: Сталь з порошковим покриттям, поліефірна тканина
- колір: Білий
- Вага товару: 37.5 фунта
- Рекомендоване використання: Пляж, Сamping, Активний відпочинок на природі
- Розміри продукту (Д x Ш x В): 116.93" x 116.93" x 112.99" (approximately 10ft x 10ft x 9.4ft)
- Захист від ультрафіолетового випромінювання: УФ-захист 50+
- Матеріал рами: легована сталь
- Рівень водонепроникності: Водостійкий
- Покриття: 100 квадратних футів
- Необхідна збірка: так

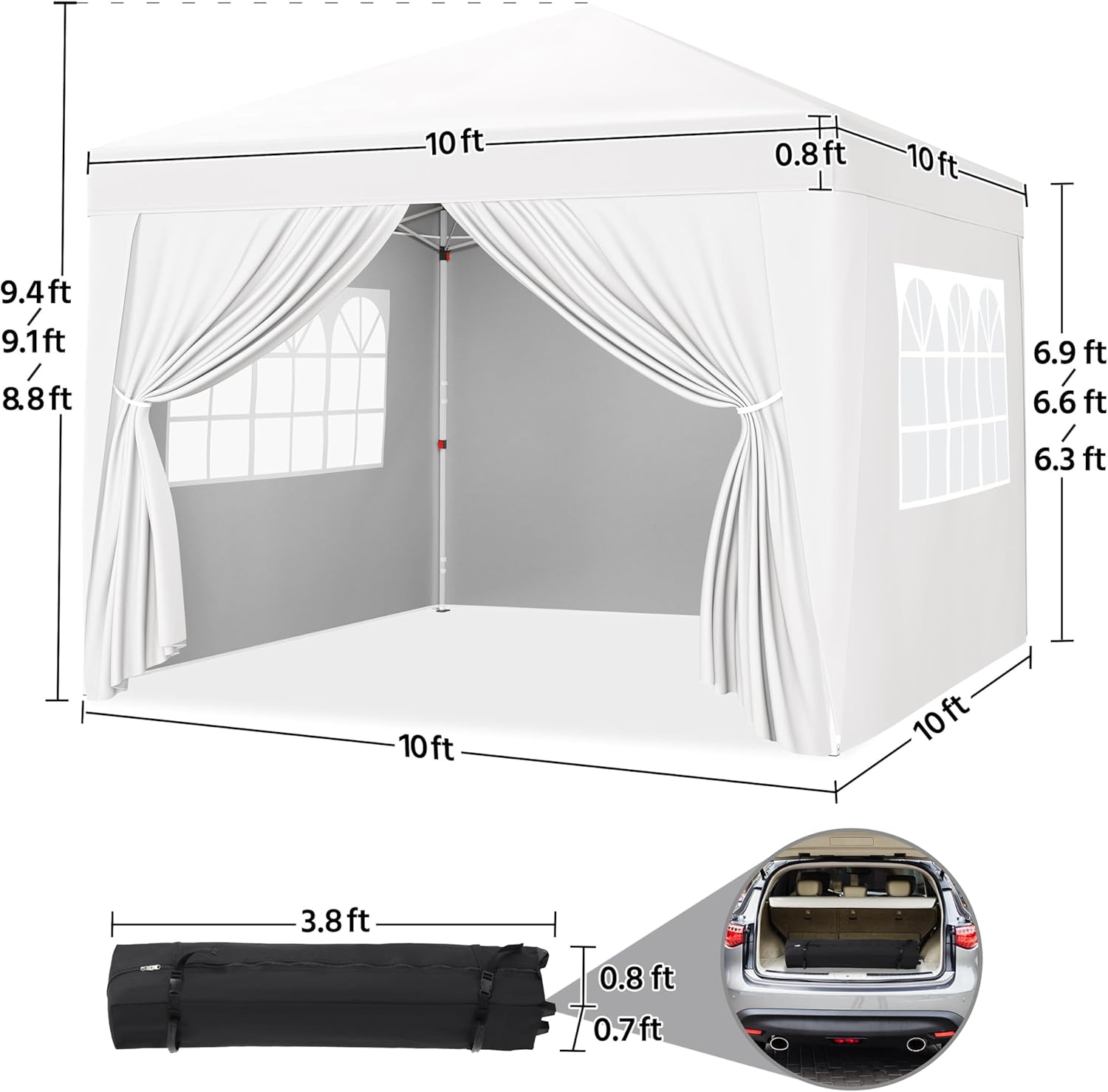

Image: Detailed dimensions of the canopy, including height and base measurements, and folded bag dimensions for transport.
Гарантія та підтримка
For information regarding product warranty, returns, or technical support, please refer to the official Yaheetech website or contact their customer service directly. Additional protection plans may be available for purchase.
Інструкція з встановлення у форматі PDF доступна для завантаження: Завантажити інструкцію з встановлення (PDF)
