Haswing ULTIMA 3HP Electric Outboard User Manual

1. Вступ

Thank you for choosing the Haswing ULTIMA 3HP Electric Outboard. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new electric outboard motor. Please read this manual thoroughly before using the product to ensure proper function and longevity.

The Haswing ULTIMA 3HP Electric Outboard is designed for reliable and quiet propulsion, featuring an integrated lithium battery and a powerful brushless motor. Its compact and foldable design makes it ideal for various boating applications.

2. Інформація про безпеку

Always prioritize safety when operating any marine equipment. Failure to follow these instructions may result in injury or damage to the product.

• Прочитайте та зрозумійте всі інструкції перед початком роботи.
• Ensure the motor is securely mounted to the transom before starting.
• Always wear a personal flotation device (PFD) when on the water.
• Keep hands, feet, and clothing clear of the propeller when the motor is in operation.
• Do not operate the motor if the propeller is damaged.
• Disconnect the battery before performing any maintenance or inspection.
• Avoid submerging the motor head or battery compartment in water.
• Зберігайте батарею в прохолодному сухому місці подалі від прямих сонячних променів і екстремальних температур.
• Use only the provided charger for the integrated lithium battery.

3. Вміст упаковки

Перевірте наявність усіх елементів в упаковці:

• Haswing ULTIMA 3HP Electric Outboard Motor with integrated battery
• Мережевий зарядний пристрій
• Посібник користувача (цей документ)

Figure 3.1: Haswing ULTIMA 3HP Electric Outboard Motor. This image shows the complete outboard unit, including the motor, shaft, propeller, and the integrated battery housing at the top.

Figure 3.2: Mains Battery Charger. This image displays the compact black battery charger with its power cord and charging connector.

4. Налаштування

4.1 Заряджання батареї

The integrated 1030 Watt-hour lithium battery should be fully charged before first use. The battery is removable for convenient charging.

1. Remove the battery from the motor unit by unlatching the securing mechanism.
2. Connect the provided mains charger to the battery's charging port.
3. Підключіть зарядний пристрій до стандартної розетки.
4. Monitor the charging indicator lights on the battery or charger (refer to battery display for charge status).
5. Once fully charged, disconnect the charger from the battery and the wall outlet.

Figure 4.1: Integrated Lithium Battery. This image shows a close-up of the silver-colored integrated battery pack, highlighting its sleek design and top handle.

4.2 Встановлення підвісного двигуна

The ULTIMA 3HP Electric Outboard is designed for transom mounting.

1. Ensure the boat's transom is clean and free of obstructions.
2. Place the motor's mounting clamps over the transom.
3. Затягніть клamping screws firmly and evenly until the motor is securely attached and does not wobble.
4. Adjust the motor's depth and angle as needed for optimal performance. The 76cm long shaft provides flexibility for various transom heights.

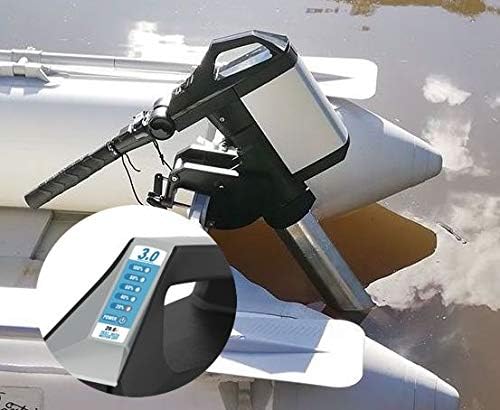

Figure 4.2: Outboard Mounted on Transom. This image shows the Haswing ULTIMA outboard motor securely mounted on the stern of a boat, with a close-up inset of the digital display on the motor head.

5. Інструкція з експлуатації

5.1 Увімкнення/вимкнення

To power on the motor, ensure the battery is correctly inserted and secured. The digital display on the motor head will illuminate, showing battery status and power level.

Figure 5.1: Control Handle and Display. This image provides a top-down view of the motor's control handle, clearly showing the integrated digital display with battery and power indicators.

5.2 Регулювання швидкості

The ULTIMA 3HP features stepless speed control for precise maneuverability. Rotate the telescopic handle to adjust the speed. Forward and reverse directions are controlled by the handle's rotation.

• Rotate the handle clockwise for forward thrust.
• Rotate the handle counter-clockwise for reverse thrust.
• The further the handle is rotated, the higher the speed.

The Digimax controller and brushless motor optimize power delivery, maximizing running time and battery efficiency.

5.3 Рульове управління

Steer the boat by rotating the entire motor unit using the tiller handle. The motor can be rotated 360 degrees for full directional control.

6. Технічне обслуговування

Regular maintenance ensures the longevity and optimal performance of your Haswing ULTIMA outboard motor.

• Після кожного використання:
  • Rinse the motor shaft and propeller with fresh water, especially after use in saltwater, to prevent corrosion.
  • Inspect the propeller for any fishing line, debris, or damage. Remove any obstructions carefully.
  • Wipe down the motor head and battery compartment with a damp cloth. Ensure all connections are dry before storage.
• Догляд за акумулятором:
  • Зберігайте акумулятор у прохолодному, сухому місці. Уникайте екстремальних температур.
  • For long-term storage, charge the battery to approximately 50-60% capacity. Do not store fully discharged or fully charged for extended periods.
  • Під час тривалого зберігання заряджайте акумулятор кожні 3-6 місяців, щоб підтримувати його в робочому стані.
• Заміна гвинта:

  If the propeller is damaged, it should be replaced. Refer to the propeller replacement instructions (not detailed in this manual, consult Haswing support for specific steps).

7. Вирішення проблем

This section addresses common issues you might encounter with your ULTIMA 3HP Electric Outboard.

If the problem persists after attempting these solutions, please contact Haswing customer support.

8. Технічні характеристики

9. Гарантія та підтримка

The Haswing ULTIMA 3HP Electric Outboard comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use conditions.

For warranty claims, technical support, or spare parts, please contact Haswing Motors UK or your authorized dealer. Please have your model number (MD1247/76) and proof of purchase ready when contacting support.

For further assistance, visit the official Haswing webсайту або зв’яжіться зі своїм відділом обслуговування клієнтів.
