Raddy WM6 Weather Station User Manual

вступ

Thank you for choosing the Raddy WM6 Weather Station. This device provides comprehensive environmental monitoring, including indoor and outdoor temperature, humidity, barometric pressure, and a 12-hour weather forecast. It also features an atomic clock, moon phase display, and comfort level indicators. This manual will guide you through the setup, operation, and maintenance of your new weather station to ensure optimal performance.

Image: The Raddy WM6 Weather Station main unit displaying calendar, weather forecast, temperature, humidity, barometer, comfort level, mold risk, moon phase, atomic clock, and high/low alerts.

Що в коробці

Будь ласка, перевірте вміст вашої упаковки, щоб переконатися, що всі предмети присутні:

• Raddy WM6 Main Display Unit
• Remote Sensor (R3) - Note: This model includes 2 extra sensors, totaling 3 remote sensors.
• Адаптер живлення
• Монтажне обладнання
• Built-in Rechargeable Battery (2000mAh)

Інструкції з налаштування

1. Початкове налаштування

1. Живлення головного блоку: Connect the provided power adapter to the main display unit and plug it into a wall outlet. The unit also has a built-in 2000mAh rechargeable battery for portable or wall-mounted use without a constant power connection.
2. Activating Remote Sensors: Open the battery compartment of each R3 remote sensor and insert the required batteries (typically AA or AAA, not specified in product data, assume standard). Ensure correct polarity. The sensors will automatically attempt to pair with the main unit.
3. Автоматична синхронізація часу: The WM6 features an atomic clock with WWVB technology. Upon initial power-up, the unit will attempt to synchronize the time automatically. This process may take several minutes or hours depending on signal strength.

2. Розміщення дистанційного датчика

Proper placement of the remote sensors is crucial for accurate readings and reliable transmission. The sensors have a transmission range of up to 330ft (100m).

• Орієнтація: Always position the remote sensor upright. Avoid laying it down horizontally.
• захист: Place the sensor in a shaded area, protected from direct sunlight and rain. Ensure good air circulation around the sensor.
• Перешкоди: Keep the sensor away from large metal objects, electronic devices, and other potential sources of interference.
• Висота: Mount the sensor at least 1.2 meters (approximately 4 feet) above the ground for optimal readings. Avoid placing it directly on the ground.

Image: Visual guide for correct remote sensor usage, illustrating upright positioning, shade protection, distance from interfering sources, and minimum height from the ground.

Інструкція з експлуатації

1. Відображенняview

The main display unit shows various information simultaneously:

• Час і дата: Відображає поточний час, день тижня та дату.
• Температура та вологість у приміщенні: Показники внутрішніх датчиків головного блоку.
• Температура та вологість на вулиці: Readings from the connected remote sensors.
• Прогноз погоди: A 12-hour forecast indicated by icons (sunny, cloudy, rainy, snowy, etc.).
• Барометричний тиск: Поточний атмосферний тиск.
• Фаза Місяця: Графічне представлення поточної фази місяця.
• Рівень комфорту: Indicates indoor comfort based on temperature and humidity.
• High/Low Alerts: Customizable alerts for temperature and humidity.

2. Налаштування часу та дати

While the atomic clock automatically sets the time, manual adjustments may be necessary for time zone or daylight saving time. Refer to the specific buttons on your device (usually 'SET' or 'MODE') to enter time setting mode and use '+' or '-' buttons to adjust values.

3. Налаштування будильника

The WM6 features dual alarm clocks, customizable for weekdays and weekends.

• Натисніть кнопку «ТРИВОГА», щоб view or set alarms.
• Use the 'SET' button to toggle between Alarm 1 and Alarm 2.
• Використовуйте «+» або «-», щоб налаштувати час будильника.
• The snooze function can be activated by pressing a designated button (often labeled 'SNOOZE' or 'LIGHT') when the alarm sounds.

Image: The Raddy WM6 Weather Station showcasing its atomic clock with WWVB technology and dual alarm clock functionality for weekdays and weekends.

4. Налаштування яскравості

The display brightness is adjustable and can be scheduled for specific times.

• Press the 'LIGHT' or 'BRIGHTNESS' button to cycle through brightness levels (e.g., OFF, 1%, 60%, 100%).
• To set a schedule, access the brightness settings menu (refer to your device's specific button combinations). For example, you can set 60% brightness from 8:00 AM to 6:00 PM and turn the display OFF from 6:00 PM to 11:00 PM.

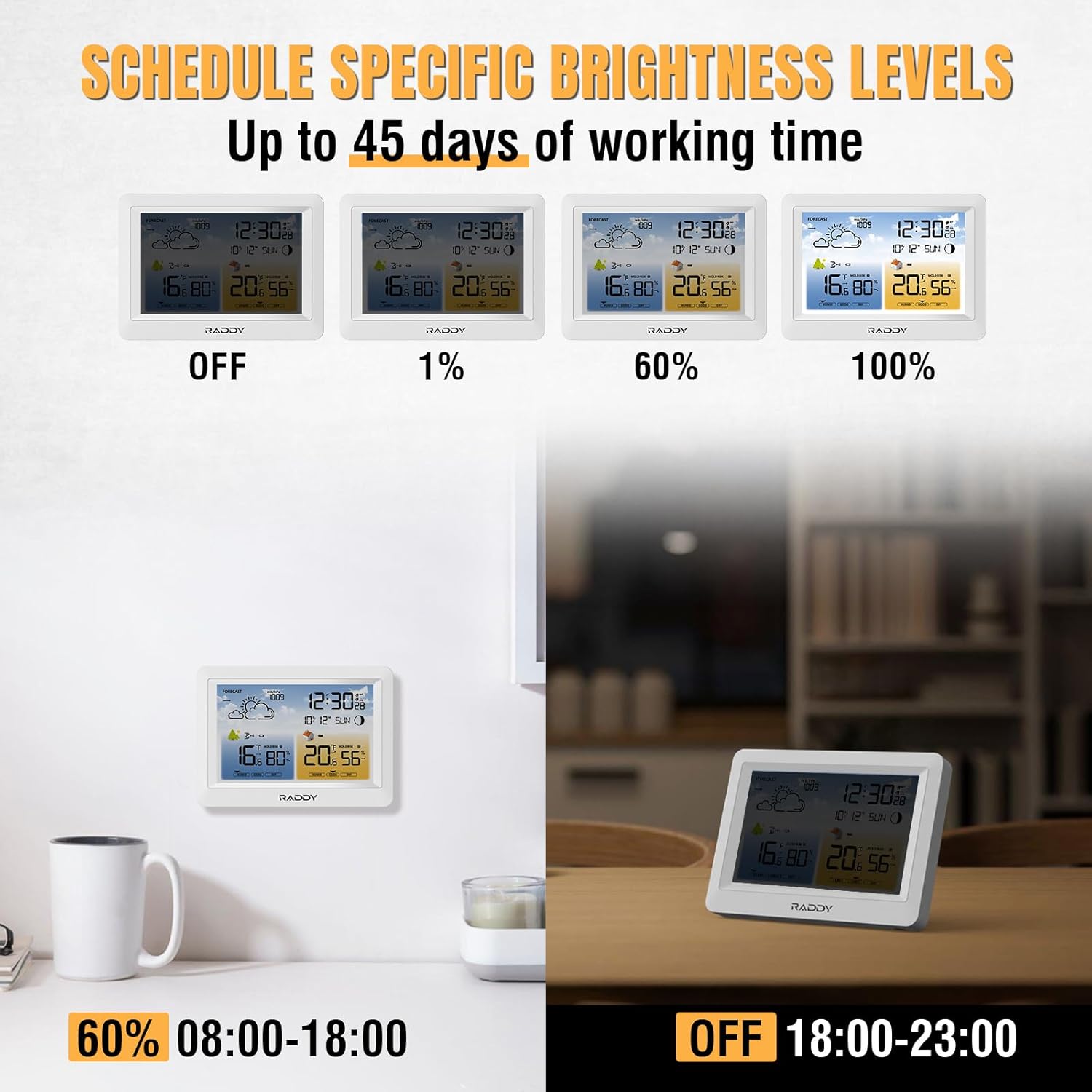

Image: The Raddy WM6 Weather Station demonstrating various brightness levels (Off, 1%, 60%, 100%) and examples of scheduled brightness settings for different times of the day.

5. Weather Forecast Interpretation

The weather station provides a 12-hour forecast based on barometric pressure changes. The icons displayed represent:

• Сонячно
• Мінлива хмарність
• Хмарно
• Дощова
• Сильний дощ
• Сніжно

These forecasts are predictions and may not always perfectly match local conditions.

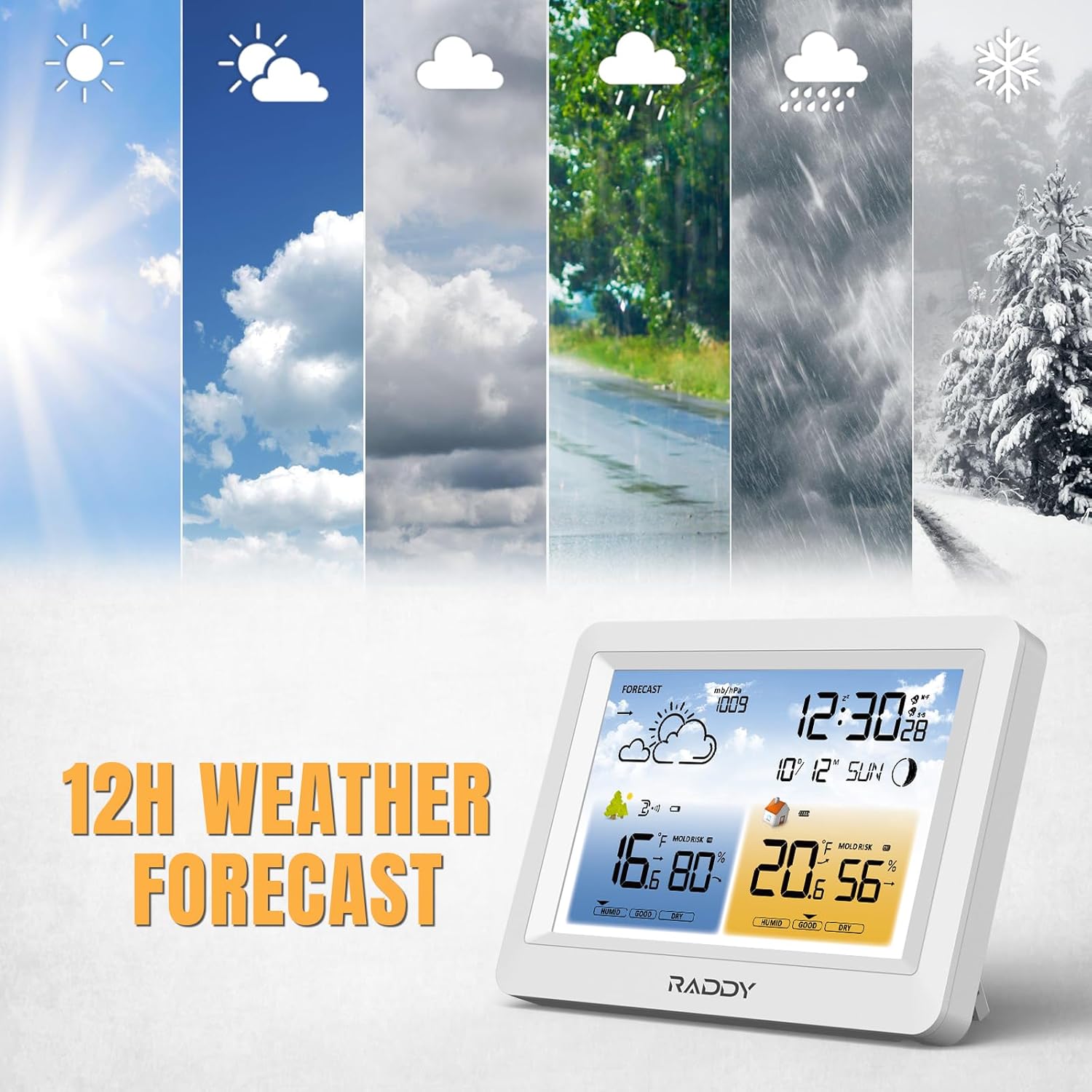

Image: The Raddy WM6 Weather Station showing its 12-hour weather forecast feature with various weather icons.

6. Сполучення датчиків

The main unit supports up to 3 remote sensors (R3 model). If a sensor loses connection or you are adding a new one:

• Ensure the remote sensor has fresh batteries and is within range.
• On the main unit, press and hold the 'CHANNEL' or 'SEARCH' button (refer to your device's specific buttons) to initiate a search for remote sensors.
• The main unit will display readings from the connected sensors, cycling through channels if multiple sensors are paired.

Image: The Raddy WM6 Weather Station main unit displaying data from multiple remote sensors, highlighting its capability to monitor up to 3 channels with a transmission range of up to 330ft.

Технічне обслуговування

1. Догляд за акумулятором

The main unit features a built-in 2000mAh rechargeable battery, providing up to 45 days of operation on a single charge. For extended screen usage and consistent functionality, it is recommended to keep the power adapter connected to prevent rapid battery drainage.

Image: A graphic illustrating the benefits of the Raddy WM6's built-in rechargeable battery, including 45-day battery life and data retention after power loss, compared to other devices using disposable batteries.

2. прибирання

To clean the main unit and remote sensors, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse the devices in water.

Усунення несправностей

Технічні характеристики

Інформація про гарантію

Raddy products are designed for reliability and performance. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Raddy webсайт. Будь ласка, збережіть підтвердження покупки для будь-яких гарантійних претензій.

Підтримка клієнтів

If you encounter any issues or have questions regarding your Raddy WM6 Weather Station, please contact Raddy customer support. You can typically find contact information (email, phone, or support portal) on the Raddy official webсайті або в упаковці продукту.

Щоб отримати додаткові ресурси та інформацію про продукт, відвідайте Raddy Store on Amazon.
