вступ
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your VONROC replacement saw blade for the CS504DC telescopic chainsaw. Please read this manual thoroughly before use and keep it for future reference.

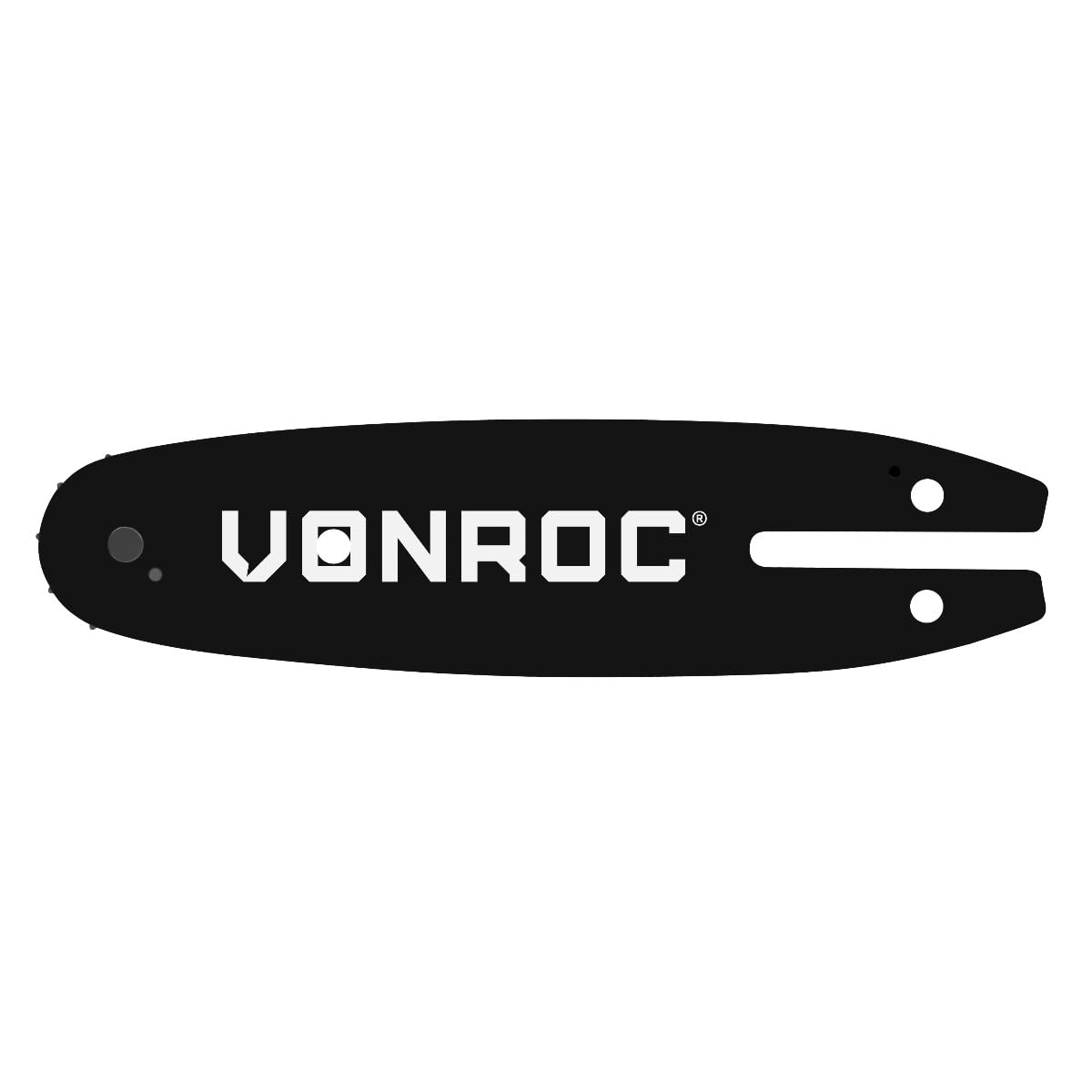

Image: A VONROC replacement saw blade, designed for telescopic chainsaws.
Інформація про безпеку
WARNING: Always disconnect the chainsaw from its power source (battery or mains) before performing any maintenance, adjustments, or blade replacement.
- Засоби індивідуального захисту: Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and sturdy footwear when handling or replacing the saw blade.
- Гострі краї: Saw blades are extremely sharp. Handle with extreme care to prevent injury.
- Correct Blade: Ensure you are using the correct replacement blade for your VONROC CS504DC telescopic chainsaw. Using an incorrect blade can lead to poor performance or damage.
- Безпечне встановлення: Ensure the blade is correctly and securely installed before operating the chainsaw. A loose blade can be dangerous.
Налаштування та встановлення
Follow these steps to safely replace the saw blade on your VONROC CS504DC telescopic chainsaw:
- Відключити живлення: Ensure the chainsaw is completely disconnected from its power source. For battery-powered models, remove the battery pack. For corded models, unplug from the mains.
- Access Blade Area: Locate the blade cover or housing on your chainsaw. You may need a wrench or screwdriver to open it. Refer to your chainsaw's main instruction manual for specific details on accessing the blade.
- Зняти старе лезо: Carefully loosen the nuts or bolts securing the old blade. Support the blade to prevent it from falling. Remove the old blade, taking care to avoid contact with sharp edges.
- Чиста зона: Clean any sawdust or debris from the blade mounting area and the chain tensioning mechanism.
- Встановлення нового леза: Position the new VONROC replacement blade onto the mounting studs. Ensure the blade is oriented correctly according to the chainsaw's design (e.g., direction of teeth).
- Безпечний клинок: Re-install the nuts or bolts and tighten them securely. Do not overtighten, but ensure there is no wobble.
- Регулювання натягу ланцюга: If applicable, adjust the chain tension according to your chainsaw's manual. The chain should be snug but still able to be pulled around the guide bar by hand.
- Замінити кришку: Re-attach the blade cover or housing and secure it firmly.
- Остаточна перевірка: Before reconnecting power, manually check that the blade moves freely and is properly seated.
Робота з новим лезом
Once the new blade is installed, operate your CS504DC telescopic chainsaw according to its original instruction manual. The replacement blade is designed to restore optimal cutting performance. Always observe the following:
- Перевірка перед початком роботи: Before each use, inspect the blade for any damage, dullness, or loose components.
- Правильне змащування: Ensure the chainsaw chain is adequately lubricated with appropriate chain oil.
- Техніка різання: Use proper cutting techniques as described in your chainsaw's manual to maximize blade life and ensure safety. Avoid forcing the blade through material.
- Придатність матеріалу: Only use the chainsaw and blade for cutting wood and similar materials for which it is designed.
Технічне обслуговування
Regular maintenance extends the life of your replacement blade and ensures safe operation:
- Прибирання: After each use, clean the blade and guide bar to remove sap, resin, and sawdust. Use a suitable cleaner and a brush.
- Заточка: A dull blade reduces cutting efficiency and increases kickback risk. Sharpen the blade regularly using appropriate sharpening tools (e.g., a round file of the correct diameter) or have it professionally sharpened. Follow the sharpening angles specified for your chain type.
- Огляд: Periodically inspect the blade for bent teeth, cracks, or excessive wear. Replace the blade if any significant damage is observed.
- Зберігання: Store the blade in a dry place, protected from moisture and corrosion. If storing separately from the chainsaw, use a blade guard.
Усунення несправностей
Here are some common issues related to the saw blade and their potential solutions:
| проблема | Можлива причина | Рішення |
|---|---|---|
| Лезо не ріже ефективно | Dull blade, incorrect chain tension, insufficient lubrication. | Sharpen the blade, adjust chain tension, apply chain oil. |
| Blade smoking during use | Dull blade, insufficient lubrication, cutting too fast. | Sharpen the blade, ensure proper lubrication, reduce cutting speed. |
| Надмірна вібрація | Loose blade, damaged blade, worn guide bar. | Check blade installation, replace damaged blade, inspect guide bar. |
Технічні характеристики
This replacement saw blade is designed for the VONROC CS504DC telescopic chainsaw.
- Виробник: ВОНРОК
- ASIN: B0CBSRZ1PR
- Сумісність: Specifically designed for VONROC CS504DC Telescopic Chainsaw
- Note: Specific dimensions and tooth count should be verified against your chainsaw's requirements.
Гарантія та підтримка
For warranty information and customer support, please refer to the documentation provided with your original VONROC CS504DC telescopic chainsaw or visit the official VONROC webсайт. Зберігайте чек про покупку як підтвердження покупки.
For further assistance, you may contact VONROC customer service directly.
