COSTWAY Over-the-Toilet Storage Cabinet User Manual

1. Продукт закінчивсяview

The COSTWAY Over-the-Toilet Storage Cabinet, model BA7886FR, is designed to provide efficient storage solutions for your bathroom. This industrial-style unit fits over most standard toilets, utilizing vertical space to organize various bathroom essentials. It features multiple storage compartments, including a top shelf with a raised edge, an open storage shelf, and a section with a sliding barn door, along with a dedicated toilet paper holder.

Figure 1: The COSTWAY Over-the-Toilet Storage Cabinet in a bathroom setting, showcasing its design and placement over a toilet.

2. Важлива інформація з безпеки

Будь ласка, прочитайте та зрозумійте всі інструкції з техніки безпеки перед складанням та використанням. Недотримання цих інструкцій може призвести до травмування або пошкодження виробу.

• Пристрій проти перекидання: This cabinet must be securely fastened to the wall using the provided anti-tip devices to prevent accidental tipping, especially in households with children or pets.
• Вага: Do not exceed the maximum weight capacity of 10 kg (22 lbs) for the entire unit. Distribute weight evenly across shelves.
• Стабільна поверхня: Ensure the cabinet is placed on a flat, stable, and level surface. Adjustable feet are provided to help stabilize the unit on uneven floors.
• Збірка: Assemble the unit according to the instructions. Do not modify the product.

Figure 2: Illustration of the dual anti-tip devices, demonstrating how to secure the cabinet to the wall for enhanced stability and safety.

3. Вміст упаковки

Before beginning assembly, ensure all parts and hardware are present and undamaged. If any parts are missing or damaged, contact customer support.

3.1. Parts List (Illustrative)

• Верхня панель
• Бічні панелі (ліва та права)
• Задні панелі
• Fixed Shelves
• Регульовані полиці
• Розсувні двері сараю
• Компоненти металевого каркаса
• Тримач для туалетного паперу

3.2. Hardware List (Illustrative)

• Гвинти різних розмірів
• Дюбель-штифти
• Cam locks and studs
• Sliding rail and rollers
• Дверна ручка
• Регульовані ніжки
• Anti-tip straps and wall anchors
• Allen wrench (if required)

4. Інструкція зі складання

Assembly is designed to be straightforward with detailed instructions and complete accessories. It is recommended to assemble the unit with two people.

1. Розпакуйте та ідентифікуйте: Carefully unpack all components and hardware. Lay them out on a clean, soft surface to prevent scratches. Identify each part by referring to the included parts diagram.
2. Зберіть основну раму: Begin by connecting the metal frame components. Ensure all connections are secure. The reinforced 'X' shaped metal bars provide additional stability.
3. Прикріпіть дерев'яні панелі: Secure the wooden side panels, back panels, and fixed shelves to the metal frame using the provided hardware. Pay close attention to the orientation of each panel.
4. Встановлення регульованих полиць: Insert the shelf pins into the desired holes for the adjustable shelves. The shelves offer 3 positions for flexible storage.
5. Mount Sliding Barn Door: Attach the sliding rail mechanism and then install the barn-style door. Ensure the door slides smoothly along the rail.
6. Install Toilet Paper Holder: Attach the toilet paper holder to the side of the metal frame at the desired height.
7. Adjust Bottom Bar: The lower support bar is adjustable to 3 positions, allowing the cabinet to fit over various toilet heights. Adjust as needed for your specific toilet.
8. Вирівняйте пристрій: Once assembled, place the cabinet over your toilet. Adjust the height-adjustable feet at the bottom to ensure the unit is level and stable on the floor.
9. Secure with Anti-Tip Device: Crucially, attach the anti-tip devices to the top rear of the cabinet and secure them firmly to the wall. This step is essential for safety.

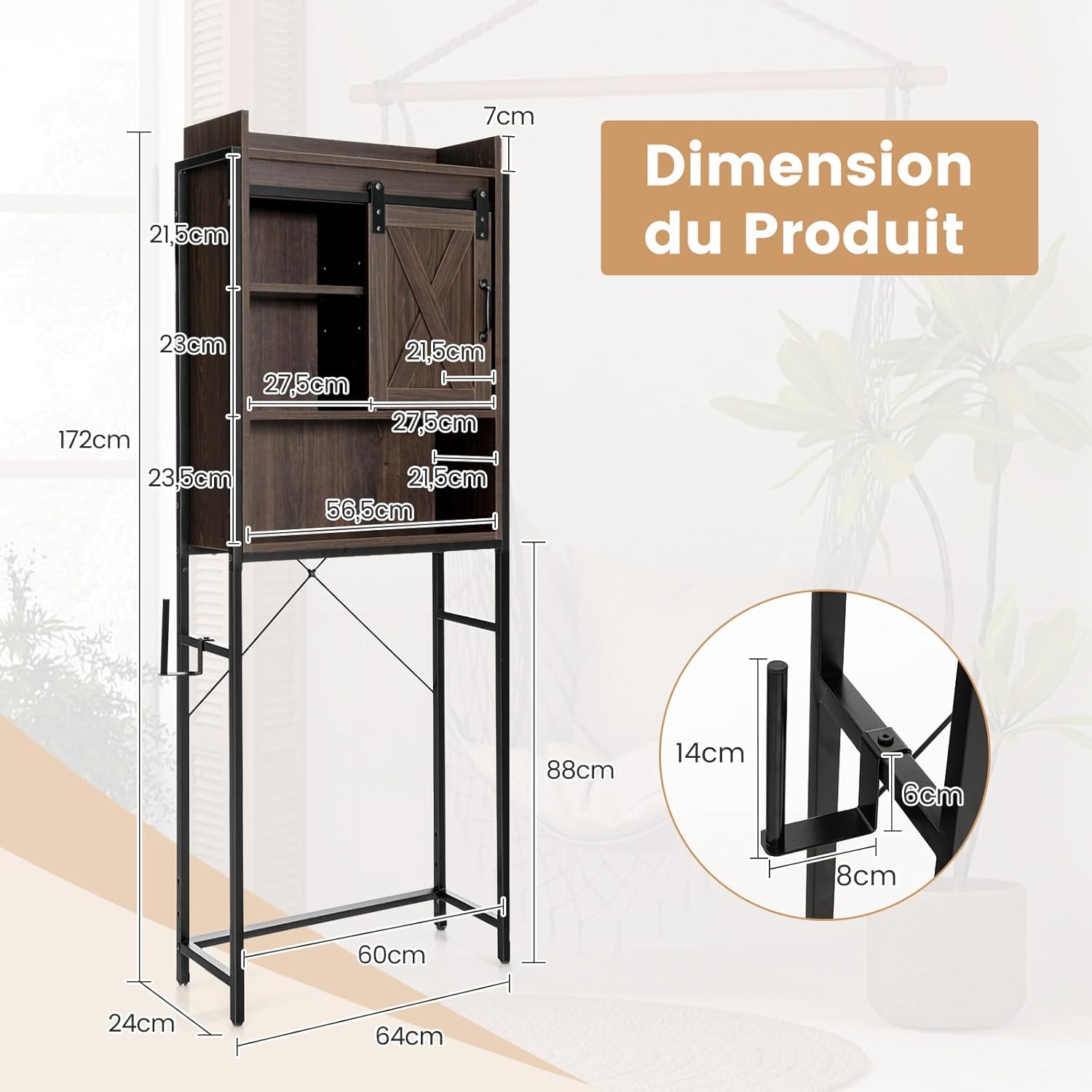

Figure 3: Detailed product dimensions, including overall height, width, depth, and internal shelf measurements, crucial for assembly and placement.

Figure 4: Visual representation of the cabinet's robust structure, highlighting the reinforced X-shaped metal bars and 360-degree adjustable feet for enhanced stability.

5. Операція

5.1. Регулювання полиць

The cabinet features adjustable shelves within the enclosed compartment. To adjust, remove any items from the shelf, lift the shelf, and reposition the shelf pins into the desired holes. Ensure the shelf is securely seated on all four pins before placing items back.

5.2. Using the Sliding Barn Door

The barn-style door slides horizontally along a smooth rail. Gently push or pull the door by its handle to access the enclosed compartments. The flexible movement allows for easy access to stored items.

Малюнок 5: Детально view of the sliding barn door mechanism and the three-level adjustable shelves, demonstrating the flexibility of storage options.

5.3. Using the Toilet Paper Holder

The integrated toilet paper holder is designed for convenience. Simply slide a roll of toilet paper onto the holder for easy access.

5.4. Adjusting the Lower Bar

The lower support bar of the cabinet can be adjusted to three different positions. This feature allows the cabinet to accommodate various toilet heights and plumbing configurations, ensuring a proper fit.

Figure 6: Illustration of the adjustable lower bar with three height settings and the integrated toilet paper holder, designed for practical use.

6. Технічне обслуговування та догляд

• Прибирання: Протріть поверхні шафи м’якою тканиноюamp тканиною. Уникайте використання агресивних хімікатів або абразивних засобів для чищення, які можуть пошкодити покриття.
• Розливи: Негайно витирайте будь-які розливи, щоб запобігти пошкодженню деревини вологою.
• Регулярні перевірки: Періодично перевіряйте всі гвинти та з'єднання, щоб переконатися, що вони міцно затягнуті. За потреби підтягніть.
• Пристрій проти перекидання: Regularly inspect the anti-tip device to ensure it is still securely attached to both the cabinet and the wall.

7. Вирішення проблем

• Difficulty during Assembly (Misaligned Holes): If screw holes do not align perfectly, gently adjust the position of the panels or frame components. Do not force screws, as this can strip the threads or damage the material. Ensure all parts are oriented correctly as per the diagrams.
• Шафа нестійка/хитка:
  • Ensure all screws and connections are tightened.
  • Adjust the leveling feet at the bottom of the unit to compensate for uneven flooring.
  • Verify that the anti-tip device is correctly installed and securely fastened to the wall.
• Sliding Door Not Moving Smoothly:
  • Check the sliding rail for any obstructions or debris.
  • Ensure the rollers are properly seated in the rail.
  • Verify that the rail itself is securely attached and level.
• Відсутні частини: If any parts are missing from the package, refer to the package contents list and contact COSTWAY customer support for assistance.

8. Технічні характеристики продукту

9. Гарантія та підтримка клієнтів

For warranty information, missing parts, or any questions regarding your COSTWAY Over-the-Toilet Storage Cabinet, please refer to the purchase documentation or contact COSTWAY customer service directly. Contact details can typically be found on the retailer's webсайті або на упаковці продукту.
