COMPUTHERM Q20RF Wireless Programmable Room Thermostat

1. Вступ

Thank you for choosing the COMPUTHERM Q20RF Wireless Programmable Room Thermostat. This device is designed to provide precise and efficient control over your heating and air conditioning systems. It features daily independent programming, temporary manual modes, and a clear backlit display for optimal comfort and energy savings. Please read this manual carefully before installation and operation to ensure proper use and to maximize the benefits of your new thermostat.

2. Інформація про безпеку

• Електрична безпека: Installation and wiring should only be performed by a qualified electrician or service technician. Ensure the main power supply to the heating/cooling system is turned off before any wiring work.
• Поводження з акумулятором: The thermostat unit requires 2 AA batteries. Do not mix old and new batteries, or different types of batteries. Dispose of used batteries responsibly according to local regulations.
• Розміщення: Install the thermostat in a location away from direct sunlight, drafts, or heat sources that could affect temperature readings.
• Прибирання: Використовуйте для очищення м’яку суху тканину. Не використовуйте абразивні засоби для чищення або розчинники.
• діти: Keep the device out of reach of children to prevent accidental tampering.

3. Вміст упаковки

Перевірте наявність усіх компонентів в упаковці:

• COMPUTHERM Q20RF Thermostat Unit (Transmitter)

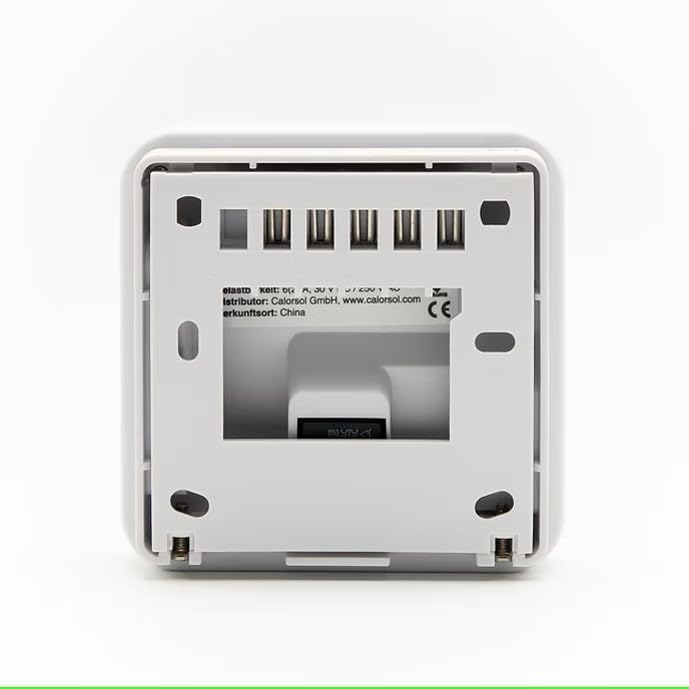

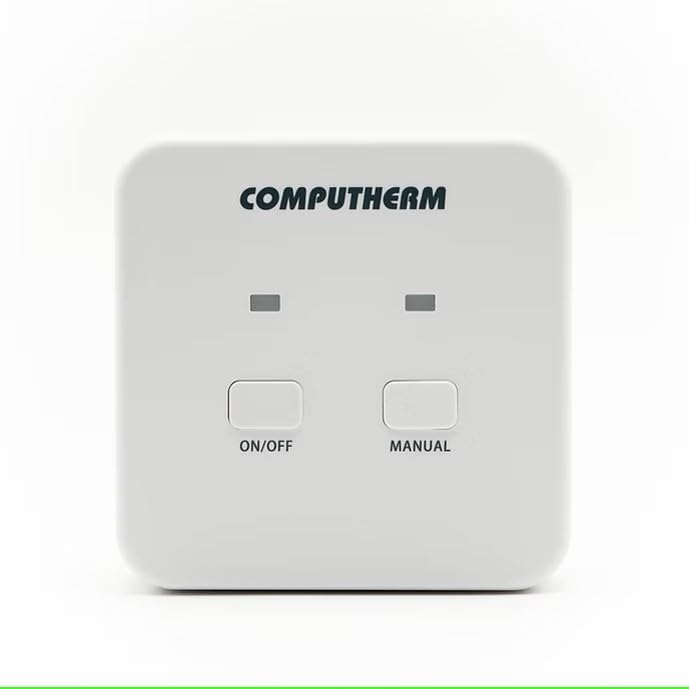

• COMPUTHERM Q20RF Receiver Unit
• Mounting Support / Stand for Thermostat Unit
• Connection Cables/Wires
• Посібник користувача (цей документ)
• 2 AA Batteries (may be included or sold separately)

4. Налаштування та встановлення

4.1. Thermostat Unit (Transmitter)

The thermostat unit is portable and can be placed on its mounting stand in any room where you want to measure and control the temperature. It requires 2 AA batteries for operation.

1. Вставте батареї: Open the battery compartment on the back of the thermostat unit and insert 2 AA batteries, observing the correct polarity.
2. Розміщення: Place the thermostat unit on its stand in a central location in the room, away from direct heat sources, drafts, or direct sunlight.

4.2. Receiver Unit Installation

The receiver unit connects directly to your heating or cooling system. This installation should be performed by a qualified professional.

1. Вимкнення живлення: Ensure the main power supply to your heating/cooling system is completely turned off before proceeding.
2. Монтаж: Mount the receiver unit in a suitable location near your heating/cooling system, ensuring good signal reception from the thermostat unit.
3. Електропроводка: Connect the receiver unit to your heating/cooling system using the provided connection cables according to the wiring diagram specific to your system. Refer to the detailed wiring instructions provided with your heating/cooling appliance or consult a professional. The receiver unit operates on 230 Volts.
4. Увімкнення: Once wiring is complete and secure, restore power to your heating/cooling system.

4.3. Pairing (Wireless Connection)

The thermostat unit and receiver unit are typically pre-paired at the factory. If they are not communicating, follow the pairing instructions in the full manual or contact support.

5. Інструкція з експлуатації

5.1. Дисплей і кнопки

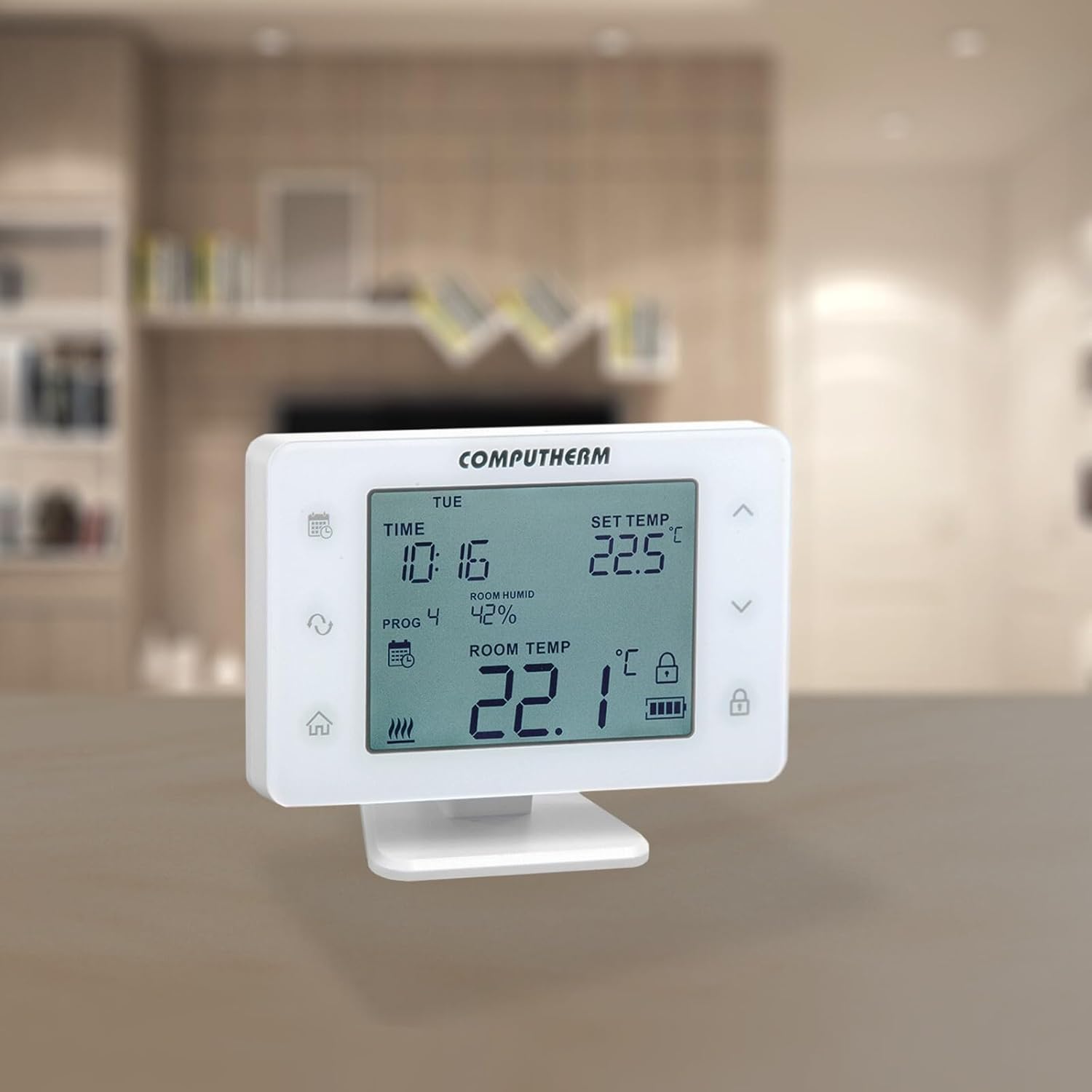

The large display shows current time, set temperature, room humidity, and room temperature. The display features a backlight with adjustable brightness. Buttons activate an acoustic signal when touched.

5.2. Режими роботи

The thermostat allows easy switching between various modes:

• Режим нагріву: Активує систему опалення, коли температура в приміщенні падає нижче встановленого значення.
• Режим охолодження: Активує систему охолодження, коли температура в приміщенні піднімається вище встановленого значення.
• Режим зволоження: Controls a humidifier to increase room humidity.
• Режим осушення: Controls a dehumidifier to reduce room humidity.

The thermostat also features a humidity limit for cooling. This function allows you to set a humidity level above which the thermostat will stop cooling to prevent condensation.

5.3. Programming Daily Schedules

You can create independent daily programs for each day of the week. For each day, in addition to a fixed switching time, 10 freely adjustable switching times can be set. A different temperature and humidity can be assigned to each switching time.

1. Access the programming menu (refer to the full manual for specific button sequences).
2. Виберіть день тижня, який ви хочете запрограмувати.
3. Set up to 10 switching times and their corresponding desired temperature and humidity levels.
4. Повторюйте для інших днів за потреби.

5.4. Ручні режими

• Тимчасовий ручний режим: Allows you to override the current program setting for a specified duration (1 to 99 hours or 1 to 99 days) until the next programmed switching time.
• Permanent Manual Mode: Maintains a constant temperature setting, overriding all programmed schedules until manually changed.

5.5. Розширені налаштування

• Selectable Switching Sensitivity: Adjust the temperature differential before the system activates (e.g., 0.1°C, 0.2°C).
• Temperature and Humidity Sensor Calibration: Allows for fine-tuning the sensor readings if they appear inaccurate.
• Pump Protection Function: Periodically activates the pump to prevent seizing during long periods of inactivity.

6. Технічне обслуговування

6.1. Заміна батареї

The thermostat unit will indicate low battery power on its display. Replace the 2 AA batteries promptly to ensure continuous operation. Always use new, high-quality alkaline batteries.

6.2. прибирання

Wipe the thermostat and receiver units with a soft, dry, or slightly damp cloth. Do not use chemical cleaners, abrasives, or solvents, as these can damage the plastic casinг та електронні компоненти.

7. Вирішення проблем

If you encounter issues with your COMPUTHERM Q20RF thermostat, try the following steps:

• No Display / Unit Not Responding: Check if the batteries in the thermostat unit are correctly inserted and have sufficient charge. Replace them if necessary.
• Опалення/охолодження не активується:
  • Ensure the receiver unit has power.
  • Verify the thermostat is in the correct operating mode (Heating/Cooling).
  • Check the set temperature; it must be above (for heating) or below (for cooling) the current room temperature to trigger the system.
  • Confirm the thermostat and receiver units are paired and within wireless range.
• Неточні показники температури: Consider calibrating the temperature sensor through the advanced settings menu. Ensure the thermostat is not exposed to drafts, direct sunlight, or other heat sources.
• Проблеми програмування: Review the programming steps in the manual. Ensure the current time and day are set correctly.

Якщо проблеми не зникають після спроби цих рішень, зверніться до служби підтримки клієнтів.

8. Технічні характеристики

9. Гарантія

COMPUTHERM products are designed for reliability and user-friendliness. This product is covered by a manufacturer's warranty against defects in materials and workmanship under normal use. The specific terms and duration of the warranty may vary by region. Please retain your proof of purchase for warranty claims.

Information regarding the availability of spare parts is not provided. For detailed warranty information, please refer to the documentation included with your purchase or contact the manufacturer directly.

10. Підтримка клієнтів

For further assistance, technical support, or warranty inquiries, please contact the manufacturer:

• Виробник: Quantrax LTD
• Webсайт: Please visit the official COMPUTHERM webсайт для отримання контактної інформації та додаткових ресурсів.
• Дистриб'ютор: CalorSol GmbH (for specific regions, check your purchase details)

When contacting support, please have your product model number (Q20RF) and proof of purchase readily available.
