Інструкція з експлуатації каркаса металевого ліжка-платформи Yaheetech Twin Size

вступ

This manual provides comprehensive instructions for the assembly, use, and maintenance of the Yaheetech Twin Size Metal Platform Bed Frame. It includes detailed steps, safety guidelines, and product specifications to ensure proper setup and long-term durability. Please read all instructions carefully before beginning assembly.

Інформація про безпеку

• Be cautious when getting in and out of bed due to high ground clearance.
• Не перевищуйте максимальну вантажопідйомність 450 фунтів (136 кг).
• Be careful around sharp edges on the headboard and footboard during assembly and use.
• Перед використанням переконайтеся, що всі болти та гвинти надійно затягнуті.
• Тримайте дрібні деталі подалі від дітей під час збирання.

Список запчастин

Before assembly, verify that all parts and hardware are present and undamaged. Refer to the diagrams below for identification.

Компоненти рами

Обладнання

Detailed diagram of all bed frame components and hardware, including bolts, washers, and tools.

Інструкції зі складання

Follow these steps carefully to assemble your Yaheetech Twin Size Metal Platform Bed Frame. It is recommended to have two people for assembly.

1. Step 1: Assemble Headboard and Footboard Units

   Begin by assembling the headboard and footboard units. Connect the Headboard/Footboard Upper Horizontal Bar (Part 3) and Headboard/Footboard Lower Horizontal Bar (Part 6) between the Headboard/Footboard Outer Vertical Posts (Part 1) and Headboard/Footboard Inner Vertical Posts (Part 2). Secure these connections using M6x30mm Bolts (Hardware B) and M6 Washers (Hardware F). Then, insert the Headboard/Footboard Decorative Panel (Part 7) into the designated slots on the assembled frame. Repeat this process for the second unit.



   The cloud-inspired design of the headboard and footboard adds an aesthetic touch.



   A closer look at the cloud-inspired design, highlighting the unique wave pattern.

2. Step 2: Assemble Side Rails with Center Support Legs

   Attach the Center Support Legs (Part 4) to the Side Rails (Part 5) using M6x15mm Bolts (Hardware C) and M6 Washers (Hardware F). Ensure the legs are firmly attached and perpendicular to the side rails for proper support.

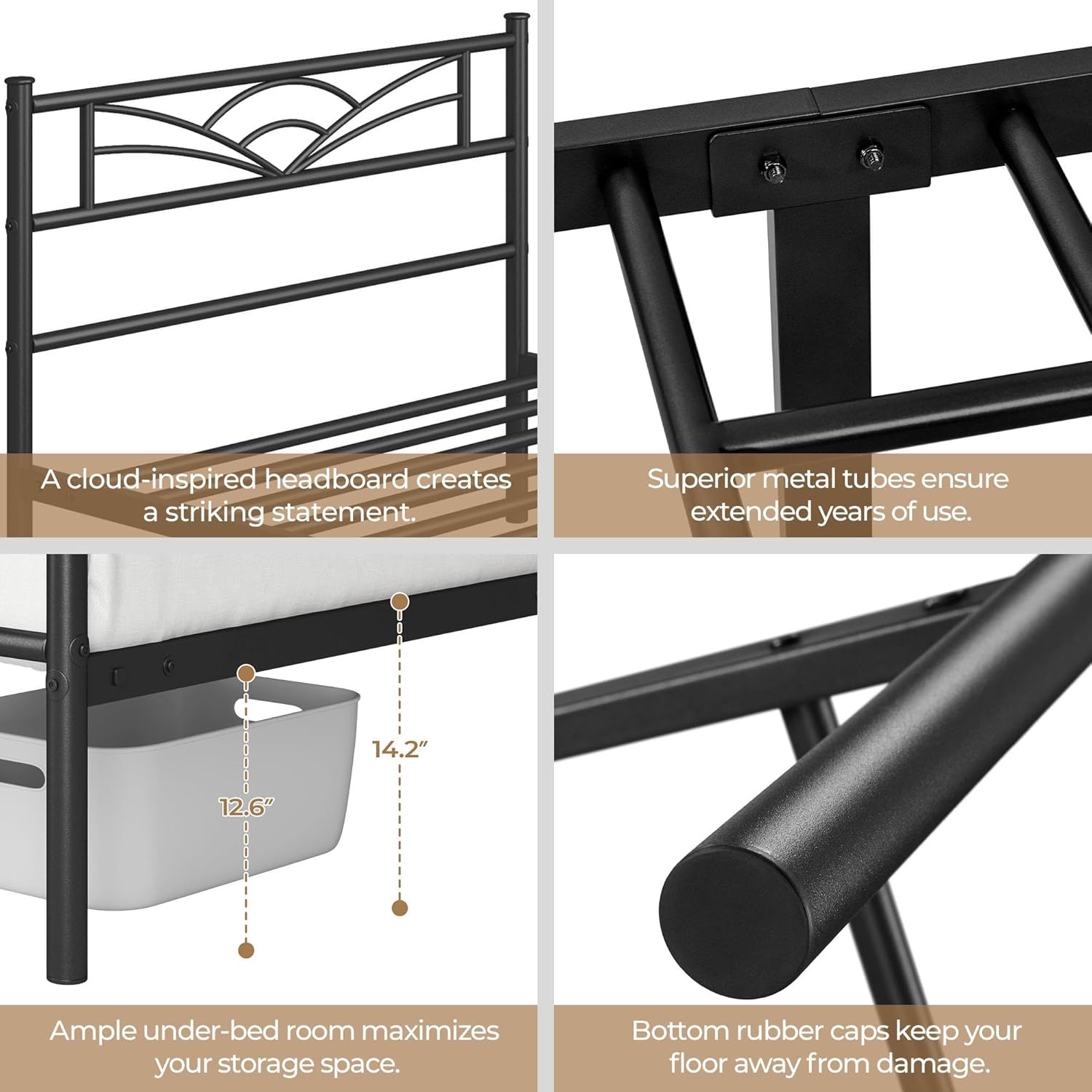

   L-shaped brackets reinforce the joints for enhanced stability and durability.

3. Step 3: Connect Headboard/Footboard to Side Rails

   Connect the assembled headboard and footboard units to the Side Rails (Part 5) using M8x50mm Bolts (Hardware A) and M8 Washers (Hardware E). Tighten all connections securely with the provided Allen wrench and small wrench (Hardware G). Ensure all connections are snug to prevent wobbling.



   The complete bed frame structure before mattress placement.

4. Крок 4: Встановлення ламелей ліжка

   Place the Bed Slats (Part 9) across the Side Rails (Part 5). Secure each slat to the frame using M4x10mm Screws (Hardware D). Ensure even spacing for optimal mattress support. The built-in slats are designed to prevent mattress sliding.



   The integrated slat design helps keep your mattress securely in place, preventing unwanted movement.



   Детальний view of slat installation, showing the secure connection mechanism.

Інструкція з експлуатації

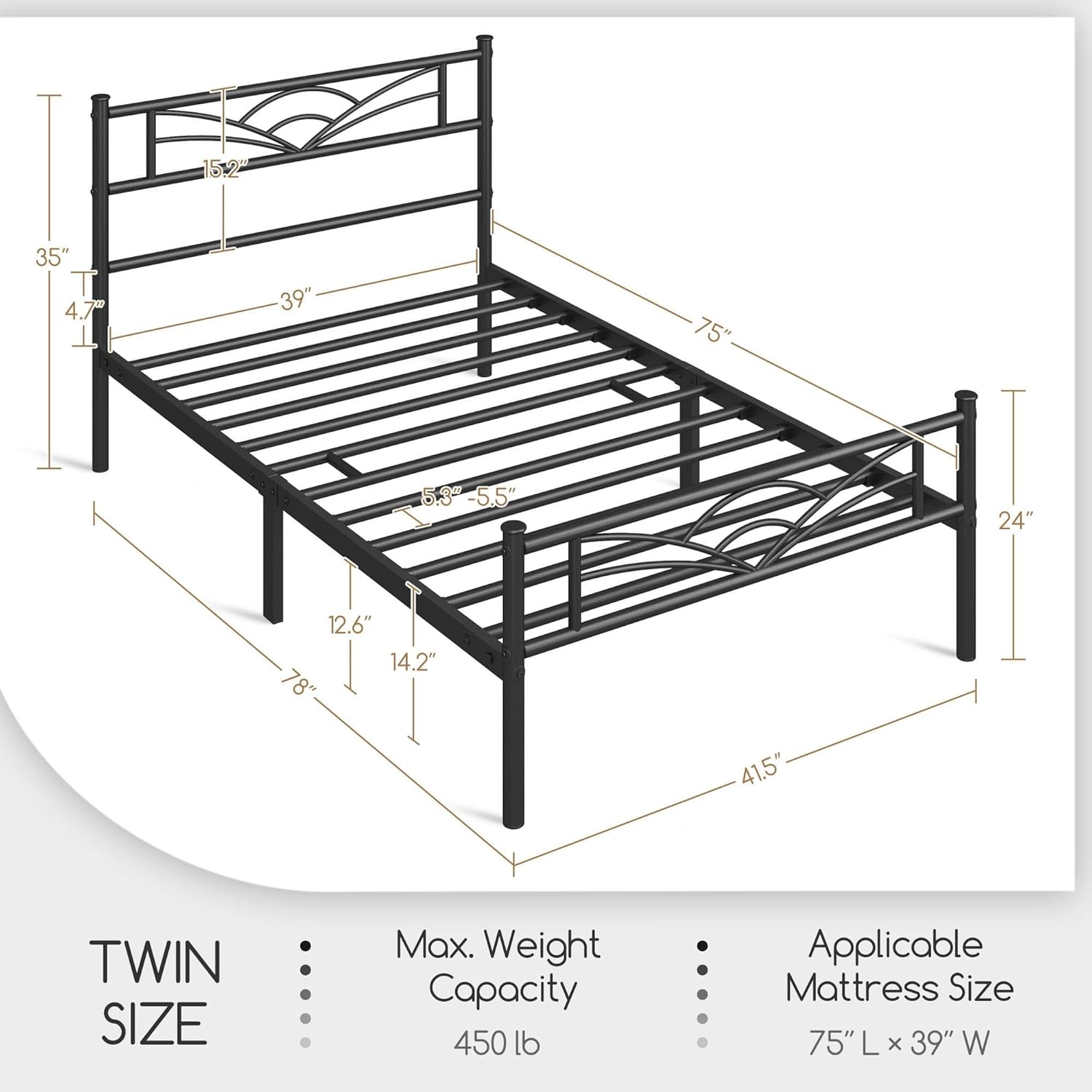

Once assembled, place your mattress directly onto the bed slats. No box spring is needed for this platform bed frame. The frame is designed to support a mattress of 75" L × 39" W. Ensure the mattress is centered on the frame for even weight distribution and stability.

The 12.6-inch ground clearance provides ampбільше місця для рішень для зберігання речей під ліжком.

Технічне обслуговування

To maintain your Yaheetech Metal Platform Bed Frame, regularly wipe clean with a dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, as these may damage the powder-coated finish. Periodically check all bolts and connections to ensure they remain tight. Re-tighten if any looseness is detected to maintain structural integrity and prevent squeaking.

Усунення несправностей

• Скрипучі звуки: If the bed frame produces squeaking noises, it is likely due to loose connections. Re-tighten all bolts and screws, especially those connecting the side rails to the headboard/footboard and the center support legs.
• Розсувний матрац: While the frame has built-in features to minimize sliding, some mattresses may still shift. Consider using a non-slip mattress pad or rubber grippers placed between the mattress and the slats to further secure it.
• Хитка рама: A wobbly frame indicates loose connections. Systematically check and tighten every bolt and screw on the entire frame. Ensure the center support legs are properly aligned and secured.
• Відсутні частини: Якщо після розпакування відсутні будь-які деталі, негайно зверніться до служби підтримки клієнтів Yaheetech для отримання допомоги.

Технічні характеристики

Гарантія та підтримка

Yaheetech stands behind the quality of its products. For warranty information, technical support, or assistance with missing/damaged parts, please contact Yaheetech customer service. Refer to your purchase documentation for specific warranty terms and contact details.
