Yaheetech Convertible Sofa Bed Instruction Manual

1. Продукт закінчивсяview

The Yaheetech Convertible Sofa Bed is a versatile and space-saving furniture solution designed for modern living spaces. This multi-functional futon can easily transform from a comfortable 3-seater sofa to a lounge chair or a platform bed, making it ideal for living rooms, guest rooms, or small apartments. It features a robust construction with durable polyester upholstery, engineered wood frame, and chrome-plated metal legs, ensuring stability and longevity. User-friendly features include a drop-down table with two cup holders and two supportive throw pillows.

Image 1.1: The Yaheetech Convertible Sofa Bed shown in both its upright sofa configuration and fully reclined bed configuration, highlighting its dual functionality.

2. Налаштування та складання

This product requires assembly. Please ensure all components are present before beginning. It is recommended to assemble the sofa bed with at least two people.

2.1 Розпакування та перевірка компонентів

• Обережно вийміть весь вміст з упаковки.
• Identify all parts against the included parts list (not provided in this manual, refer to your product's physical manual).
• Locate the metal legs, which are typically stored within a zippered compartment on the underside of the sofa body.

Image 2.1: The underside of the sofa bed, illustrating the zippered compartment where the metal legs are securely stored for shipping.

2.2 Прикріплення ніжок

1. Carefully turn the sofa body upside down, ensuring it is stable.
2. Attach each metal leg to the designated mounting points on the frame. Ensure the legs are securely tightened.
3. Once all legs are attached, carefully turn the sofa bed upright.

Note: Do not drag the sofa bed across the floor after assembly, as this may damage the legs or floor. Lift and place it in the desired location.

3. Інструкція з експлуатації

The Yaheetech Convertible Sofa Bed offers multiple configurations to suit your needs.

3.1 Converting Between Sofa, Lounge, and Bed Modes

The backrest of the sofa bed can be adjusted to various angles to transition between different modes:

• Sofa Mode (105°): The backrest is in an upright position, ideal for sitting, reading, or watching TV.
• Lounge Mode (140°): The backrest is slightly reclined, perfect for lounging and napping.
• Bed Mode (180°): The backrest is fully flat, transforming the sofa into a comfortable platform bed for sleeping.

To adjust the backrest, gently push the backrest forward until you hear a click, then slowly recline it to the desired angle. To return to an upright position, push the backrest fully forward until it locks into the upright position, then release.

Image 3.1: Visual representation of the three adjustable angles of the futon: 105° for reading/TV, 140° for lounging/napping, and 180° for sleeping.

Image 3.2: This image demonstrates the versatile convertible structure, showing the sofa in platform bed, lounge, 3-seater futon, and 3-seater futon with cup holders configurations.

3.2 Using the Drop-Down Cup Holders

The sofa bed features a convenient drop-down table with two cup holders located in the center of the backrest. To access them, simply pull the center section of the backrest forward and down. To stow them away, push the section back up until it locks into place.

Зображення 3.3: Детальний опис view highlighting the drop-down cup holders, the comfortable throw pillows, and the sleek chromed metal legs of the sofa bed.

4. Технічне обслуговування та догляд

Proper care will extend the life and appearance of your Yaheetech Convertible Sofa Bed.

• Регулярне прибирання: Регулярно пилососьте тканину за допомогою насадки для оббивки, щоб видалити пил та сміття.
• Точкове прибирання: У разі розливу негайно промокніть пляму чистою сухою тканиною. Не тріть, оскільки це може поширити її. Для стійких плям використовуйте м’який засіб для чищення тканин, спеціально призначений для оббивки, попередньо протестувавши його на непомітній ділянці.
• Уникайте прямих сонячних променів: Prolonged exposure to direct sunlight can cause fabric fading. Position the sofa bed away from direct sunlight or use curtains/blinds.
• Уникайте агресивних хімікатів: Do not use abrasive cleaners, bleach, or strong chemical solvents, as these can damage the fabric and frame.
• Обслуговування ніг: Periodically check and tighten the leg screws to ensure stability.

5. Вирішення проблем

If you encounter any issues with your sofa bed, refer to the following common troubleshooting tips:

• Диван хитається:
  • Check if all legs are securely tightened.
  • Переконайтеся, що диван розташований на рівній, рівній поверхні.
• Backrest mechanism is stiff or not locking:
  • Ensure no obstructions are preventing the mechanism from moving freely.
  • Apply gentle, even pressure when adjusting the backrest. Do not force it.
• Тканина виглядає зморшкуватою або погнутою:
  • This is normal for upholstered furniture, especially after shipping or prolonged use in one position. Gentle steaming (with caution) or allowing the fabric to relax over time can help.

Якщо проблеми не зникають, зверніться до служби підтримки клієнтів.

6. Технічні характеристики

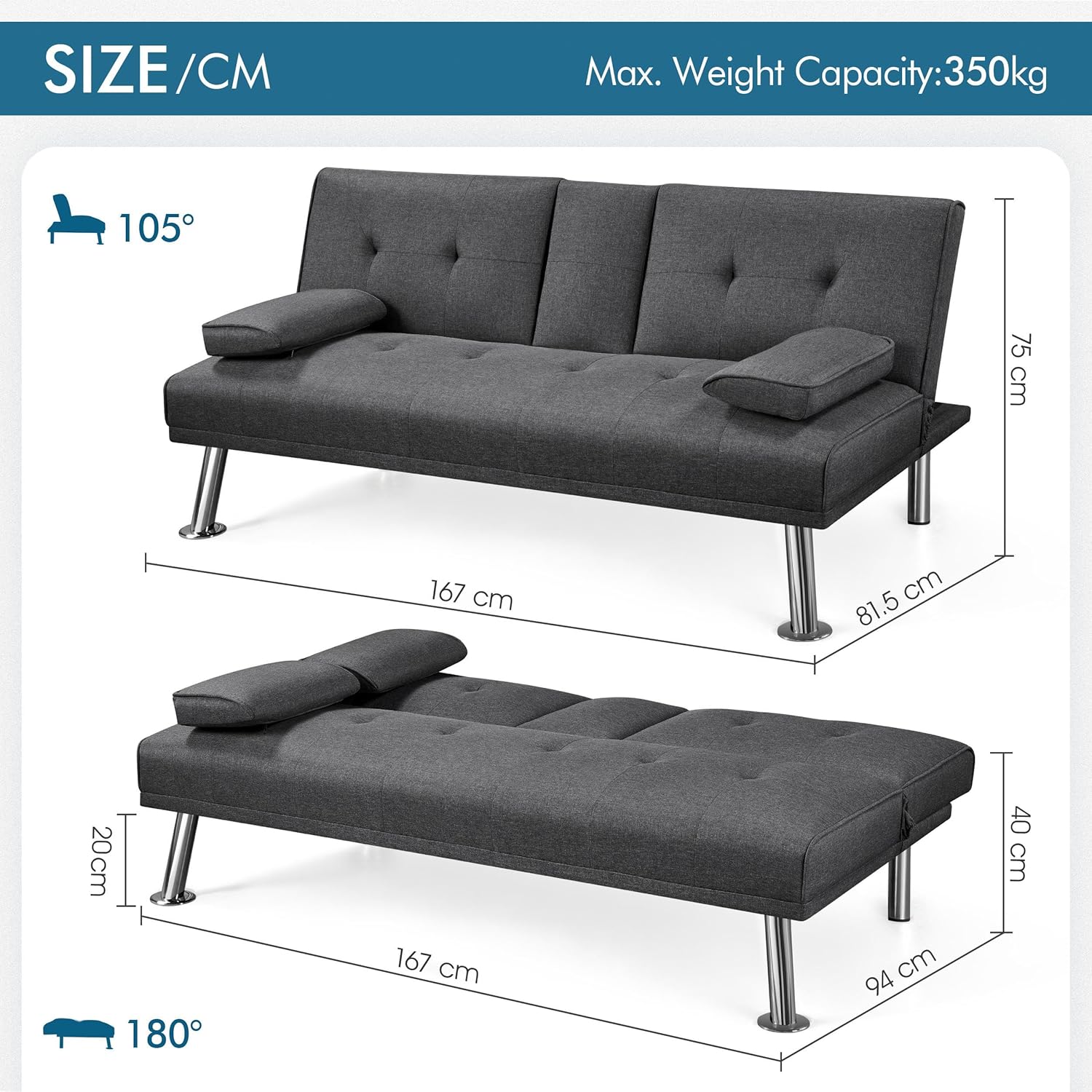

Image 6.1: Detailed dimension diagram of the Yaheetech Convertible Sofa Bed in both its upright (105°) and fully flat (180°) configurations, including length, width, and height measurements.

7. Гарантія та підтримка

For information regarding warranty coverage, spare parts availability, or technical support, please refer to the documentation included with your purchase or contact Yaheetech customer service directly. Contact details can typically be found on the manufacturer's webсайті або на чеку про покупку.

Note: Information regarding spare parts availability is not provided in this manual.
