вступ
Thank you for choosing the VINGLI 80 Quart Wagon Rolling Cooler Ice Chest. This manual provides essential information for the safe and efficient use of your cooler. Please read these instructions carefully before initial use and retain them for future reference.
Image: The VINGLI 80 Quart Wagon Rolling Cooler, demonstrating its capacity to keep drinks cool for up to 48 hours.
Налаштування та початкова підготовка
The VINGLI 80 Quart Wagon Rolling Cooler arrives largely pre-assembled. Follow these steps for initial setup:
- Unfolding the Cooler: Carefully unfold the cooler wagon frame until it locks into its open position. Ensure all locking mechanisms are engaged for stability.
- Кріплення ручки: Attach the long pull handle to the designated slot on the cooler frame. Ensure it is securely fastened.
- Перевірка коліс: Verify that the 10-inch all-terrain wheels are securely attached and rotate freely. If any wheels require inflation (check tire type), ensure they are adequately inflated for optimal mobility.
- Початкове очищення: Перед першим використанням протріть внутрішню та зовнішню сторони холодильникаamp тканиною та м’яким милом. Ретельно промийте та дайте повністю висохнути на повітрі.
Image: Detail of the 10-inch all-terrain wheels and long handle, designed for easy maneuverability across various surfaces.
Інструкція з експлуатації
To ensure optimal performance and longevity of your VINGLI cooler, follow these operating guidelines:
- Заповнення охолоджувача:
Open the ergonomic lid handles to access the cooler compartment. For best cooling results, pre-chill the cooler with a small amount of ice before adding beverages and food. Fill with ice and desired items. The cooler has an 80-quart capacity, capable of holding approximately 100 cans or 55 bottles.
Image: Internal capacity and dimensions of the 80-quart cooler, illustrating its ability to hold up to 100 cans or 55 bottles.
- Закріплення кришки: Ensure the lid is closed securely to maintain internal temperature and prevent ice melt. The lid features ergonomic handles for easy opening and closing.
- Транспортування охолоджувача: Use the long pull handle to transport the cooler. The 10-inch all-terrain wheels are designed for smooth movement over various surfaces, including grass, sand, and pavement.
- Використання відкривачки для пляшок: A built-in bottle opener and cap catcher are located on the side of the cooler for convenience.
- Злив води: The cooler is equipped with a food-safe PVC liner and a drainage spout. To drain melted ice water, open the drainage spout located at the bottom side of the cooler. A detachable pipe may be included for directing water away from the cooler.
Image: Key features including the drain hole, bottle opener, ergonomic lid handle, and drawbar for user convenience.
Догляд та обслуговування
Proper care will extend the life and performance of your cooler:
- Прибирання: After each use, drain all water and remove any remaining food or beverage debris. Clean the interior and exterior with warm water and mild dish soap. Rinse thoroughly and dry completely to prevent mold and mildew growth.
- Сушка: Leave the lid slightly ajar after cleaning to allow for complete air drying before storage.
- Зберігання: Store the cooler in a cool, dry place away from direct sunlight when not in use. If storing for extended periods, ensure it is clean and dry.
- Технічне обслуговування коліс: Periodically check the wheels for debris and ensure they rotate smoothly. If tires are inflatable, check pressure regularly.
Усунення несправностей
If you encounter issues with your VINGLI cooler, refer to the following common problems and solutions:
| проблема | Можлива причина | Рішення |
|---|---|---|
| Drinks not staying cold for expected duration. | Lid not sealed properly; insufficient ice; cooler not pre-chilled; frequent opening of lid. | Ensure lid is fully closed. Use adequate ice and pre-chill the cooler. Minimize lid openings. |
| Difficulty moving the cooler. | Wheels obstructed; tires under-inflated (if applicable); excessive weight. | Clear any debris from wheels. Check and inflate tires to recommended pressure. Reduce load if exceeding 150 lbs. |
| Water not draining from spout. | Drain spout blocked; spout cap not fully removed. | Ensure the drain spout is fully open and clear of any ice or debris. |
Технічні характеристики продукту
| Особливість | Деталь |
|---|---|
| Бренд | ВІНГЛІ |
| Модель | 80 Quart Wagon Rolling Cooler Ice Chest |
| Ємність | 80 Quarts (approx. 100 cans or 55 bottles) |
| матеріал | Steel Frame, 600D Polyester Fabric, Rubber (wheels) |
| Вага | 150 фунти (68 кг) |
| Cooler Dimensions (L x W) | 35.4 x 19 дюймів (90 x 48 см) |
| Height (Ground to Wagon Top) | 21.3 дюйма (54 см) |
| Height (Ground to Handle Top) | 37.8 дюйма (96 см) |
| Діаметр колеса | 10 дюйма (25.4 см) |
| Вага товару | 22 фунти (10 кг) |
| Колір | Сірий |

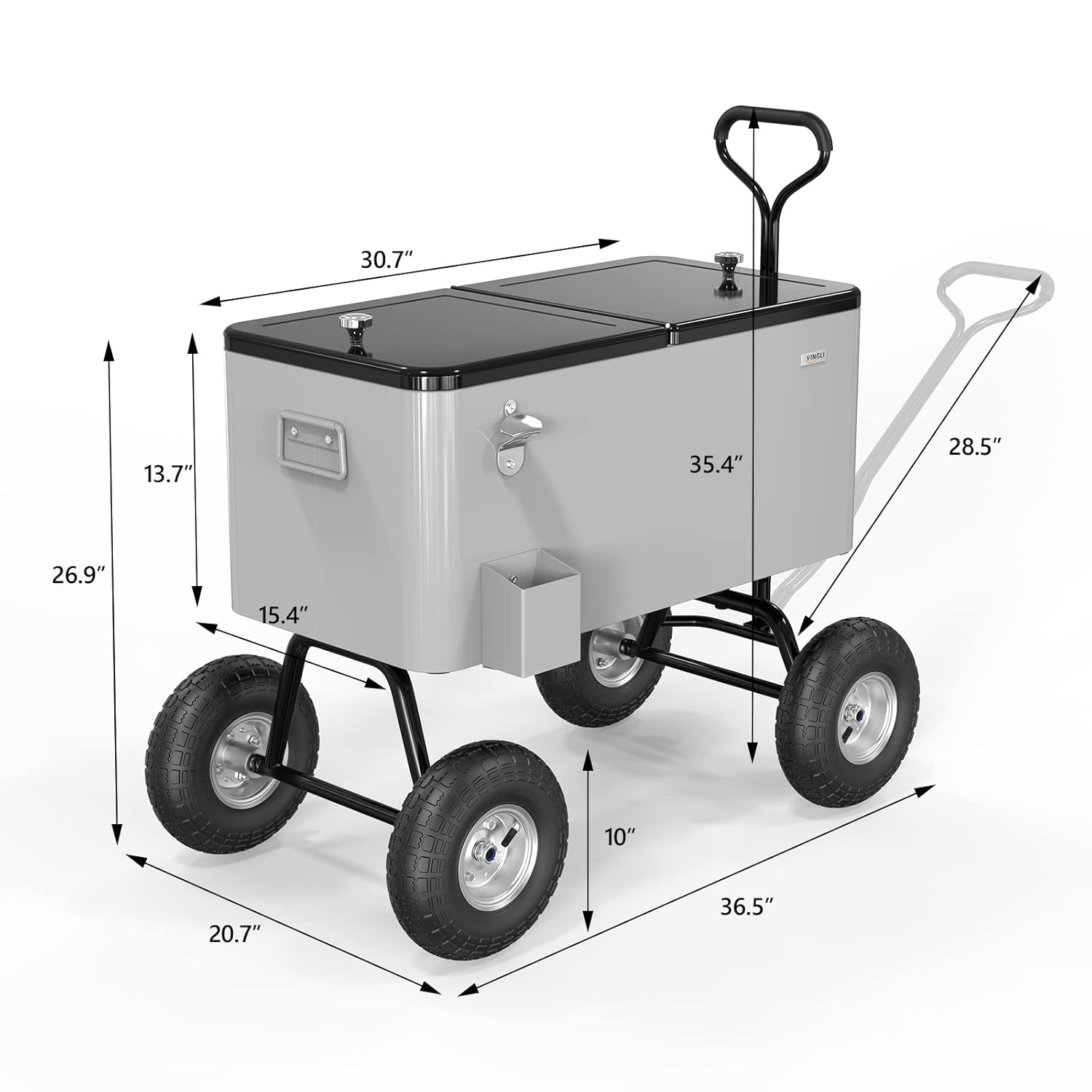

Image: External dimensions of the VINGLI 80 Quart Wagon Rolling Cooler.
Обмежена гарантія
VINGLI products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship under normal use. Please refer to the product packaging or contact VINGLI customer support for specific warranty terms and conditions.
Підтримка клієнтів
For further assistance, questions, or to report any issues, please contact VINGLI customer support through the retailer's platform or the official VINGLI website. Please have your product model number (80 Quart Wagon Rolling Cooler Ice Chest) and ASIN (B0BTD84DYB) available when contacting support.
