вступ
This manual provides detailed instructions for the AquaMiracle Automatic Fish Feeder, Model AF01. This device is designed to automatically dispense food for your aquatic pets, offering convenience and ensuring consistent feeding schedules. It features adjustable feeding times, variable food volume control, and a moisture-proof design to keep food dry. Please read this manual thoroughly before use to ensure proper setup and operation.
Image: The AquaMiracle Automatic Fish Feeder, showing its main components and a 360-degree rotation feature.
Налаштування
1. Розпакування та компоненти
Carefully remove all components from the packaging. Ensure you have the following:
- AquaMiracle Automatic Fish Feeder unit
- Монтажний кронштейн
- Double-sided sticker
2. Встановлення батареї
- Locate the battery compartment on the underside of the feeder unit.
- Відкрийте кришку батарейного відсіку.
- Insert two (2) AA batteries (not included), ensuring correct polarity (+/-).
- Надійно закрийте кришку батарейного відсіку.
Image: The feeder's battery compartment, requiring two AA batteries, and an illustration of its 360-degree rotatable base.
3. Монтаж живильника
The feeder offers two mounting options to suit various aquarium types:
Mode 1: Bracket Installation (for rimless or framed aquariums)
- Attach the mounting bracket to the feeder unit.
- Secure the bracket to the edge of your aquarium using the adjustable screw. Ensure it is firmly attached.
- The feeder can be rotated 360 degrees on the bracket to position the food outlet correctly over the water surface.
Mode 2: Double-Sided Sticker Installation (for aquariums with hoods/lids)
- Clean and dry the desired mounting surface on your aquarium lid.
- Peel off one side of the protective film from the double-sided sticker and attach it to the bottom of the feeder unit.
- Peel off the other side of the protective film and firmly press the feeder onto the cleaned surface of your aquarium lid.
Image: Two mounting methods for the feeder: using a bracket for rimless tanks and a double-sided sticker for tanks with lids.
4. Заповнення харчового барабана
- Slide the lid on the food drum to open the filling port.
- Fill the drum with your desired fish food. The drum has a capacity of 200ml (6.8 oz).
- Slide the lid back to close the filling port.
5. Adjusting Food Volume
The feeder allows you to adjust the amount of food dispensed per feeding. A sliding mechanism on the food drum controls the size of the opening.
- Slide the adjustment lever to increase or decrease the opening size.
- Важливо: Before setting a feeding schedule, use the manual feeding button (see Operating Instructions) to test the dispensed volume. Adjust the slider until the ideal amount of food is released for your fish.
Image: Illustrations showing how to slide the lid for refilling the 200ml food drum and how to adjust the food volume using a slider.
Інструкція з експлуатації
1. Setting Feeding Times
The AquaMiracle Automatic Fish Feeder offers three preset feeding intervals. To select a feeding schedule, simply press the corresponding button:
- 8 години: Press the '8' button for one feeding every 8 hours.
- 12 години: Press the '12' button for one feeding every 12 hours.
- 24 години: Press the '24' button for one feeding every 24 hours.
The feeder will begin its cycle from the moment the button is pressed.
Image: The control panel of the feeder, highlighting the 8-hour, 12-hour, 24-hour, and manual feeding buttons.
2. Ручне годування
To dispense food immediately, press the 'Manual' button (represented by a hand icon). This will perform a single feeding cycle without affecting your programmed schedule.
3. Сумісність з їжею
This feeder is suitable for various types of dry fish food, including:
- Гранули
- Пелети
- Смужки
- пластівці
Note for Flakes: For optimal and consistent dispensing, it is recommended to break flake food into smaller pieces before filling the drum. This feeder is also suitable for feeding turtles.
Зображення: Прamples of fish and reptiles that can be fed, along with various food types like flakes, granules, pellets, and strips.
Технічне обслуговування
1. прибирання
To ensure hygiene and proper function, clean the feeder regularly.
- Remove the feeder from the aquarium.
- Empty any remaining food from the drum.
- The food drum and dispensing mechanism can be hand washed with mild soap and water.
- Перед повторним складанням та заповненням продуктами переконайтеся, що всі деталі повністю сухі.
- Do not immerse the main electronic unit in water.
2. Заміна батареї
Replace the AA batteries when the feeder's operation becomes inconsistent or stops. It is recommended to replace both batteries simultaneously to ensure optimal performance.
3. Moisture Prevention
The feeder is designed with a moisture-proof mechanism where the food dispensing opening always faces upward after rotation, preventing moisture from entering the food drum. Ensure the feeder is positioned correctly to utilize this feature effectively.
Усунення несправностей
| проблема | Можлива причина | Рішення |
|---|---|---|
| Feeder does not dispense food. | Низький або розряджений акумулятор. Food drum is empty. Food outlet is clogged. Incorrect food type/size. | Замініть батареї. Refill food drum. Clear any obstructions from the food outlet. Ensure food is suitable for the feeder (break flakes into smaller pieces). |
| Dispensing too much or too little food. | Food volume adjustment is incorrect. | Adjust the sliding lever on the food drum to control the opening size. Test with the manual feed button until desired volume is achieved. |
| Food inside the drum is damp або запліснявілі. | High humidity near the feeder. Improper positioning allowing moisture entry. | Ensure the feeder is placed in a location with adequate ventilation. Verify the feeder is mounted correctly so the food opening faces upward after dispensing. |
| Feeder makes unusual noises. | Механічна перешкода. Низький заряд батарей. | Check for any foreign objects or food particles obstructing the motor or drum rotation. Clean if necessary. Replace batteries. |
Технічні характеристики
| Особливість | Деталь |
|---|---|
| Номер моделі | AF01 |
| Бренд | AquaMiracle |
| Розміри (ДxШxВ) | 5.75 x 2.7 x 4.1 дюйми (14.6 x 6.8 x 10.4 см) |
| Вага товару | 8.8 унцій (0.25 кілограма) |
| Місткість харчового барабана | 200 мл (6.8 унцій) |
| Джерело живлення | 2 батарейки типу АА (не входять в комплект) |
| матеріал | пластик |
| Колір | чорний |
| Інтервали годування | 8 hours, 12 hours, 24 hours, Manual |
| Варіанти монтажу | Bracket (360° rotatable), Double-sided sticker |

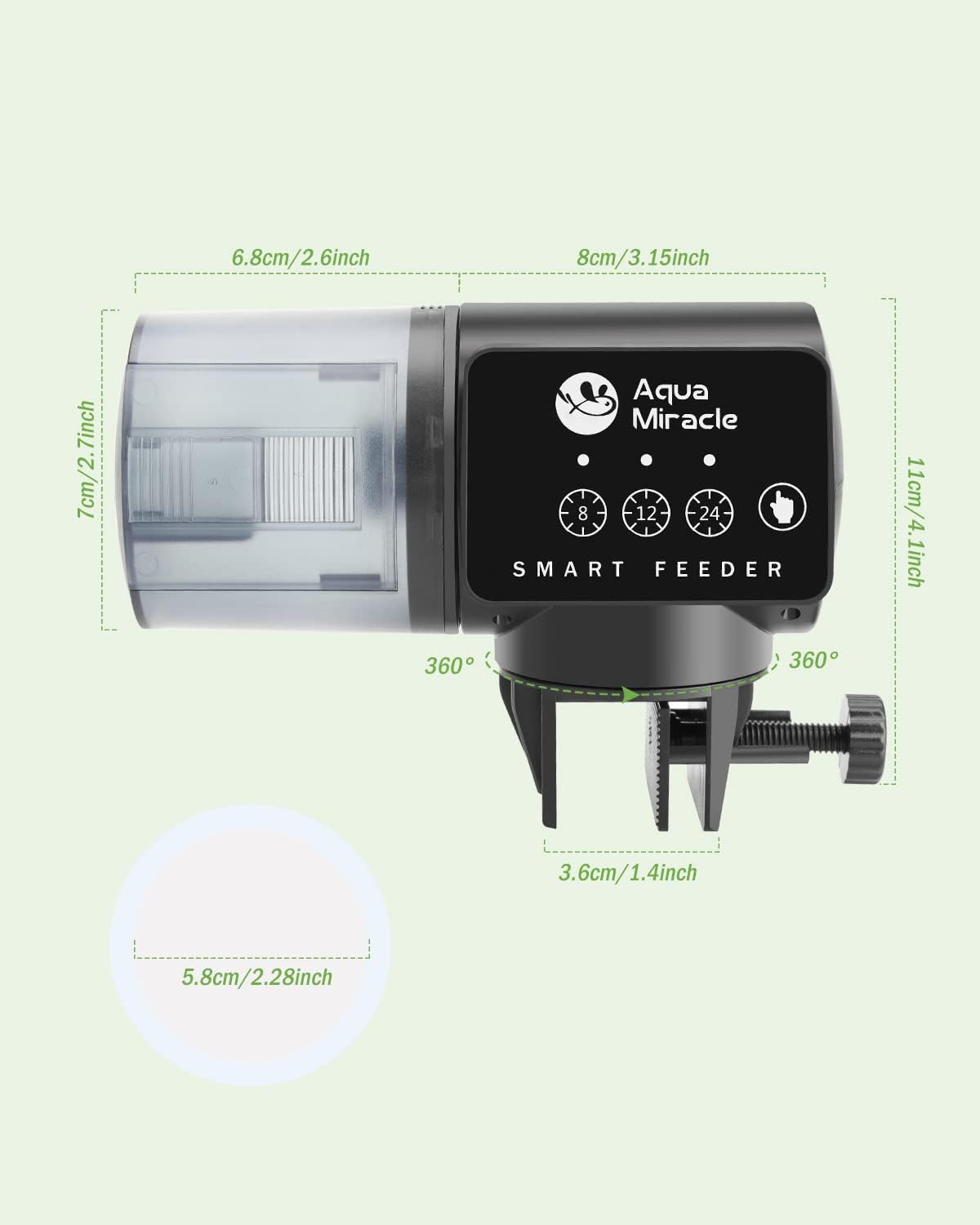

Image: Detailed dimensions of the AquaMiracle Automatic Fish Feeder unit and its mounting base.
Інформація про гарантію
The AquaMiracle Automatic Fish Feeder (Model AF01) comes with a 1 роки гарантії from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact customer support.
Підтримка клієнтів
If you have any questions, require assistance with setup, or encounter issues not covered in this manual, please contact AquaMiracle customer support. Refer to the product packaging or the official AquaMiracle webна сайті для отримання контактної інформації.
