1. Вступ
The Miaoke Portable Blender Model GZJ-5 is designed for convenient preparation of fresh juices, smoothies, and baby food. Its compact size and USB-rechargeable battery make it ideal for home, office, or outdoor use. Constructed from food-grade, non-toxic PCTG material, this blender is BPA-free and features a powerful 6-blade system and a magnetic safety sensor for secure operation.
Image 1.1: Miaoke Portable Blender with fresh fruits and a cleaning brush.
2. Компоненти продукту
The Miaoke Portable Blender consists of several key components designed for ease of use and safety. Familiarize yourself with each part before operation.

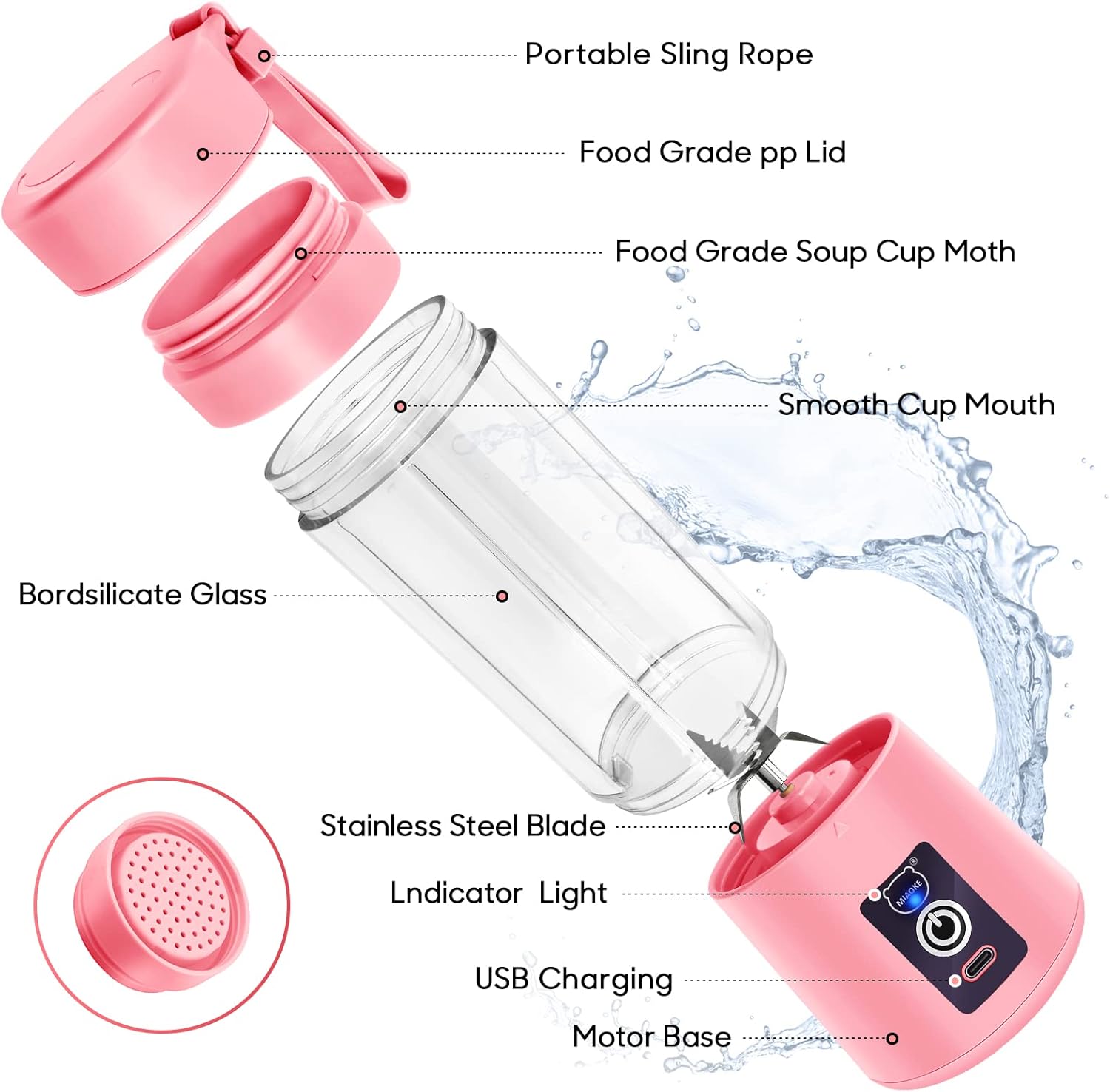

Зображення 2.1: Розгорнуто view showing the individual components of the blender.
- Portable Sling Rope: Для зручного перенесення.
- Food Grade PP Lid: Securely seals the cup.
- Smooth Cup Mouth: Designed for comfortable drinking.
- Borosilicate Glass Cup: Durable and food-grade material for blending.
- Леза з нержавіючої сталі: Six 304 stainless steel blades for efficient blending.
- Світловий індикатор: Displays operational and charging status.
- Порт заряджання USB: Для підзарядки внутрішнього акумулятора.
- База двигуна: Contains the pure copper motor and control electronics.
3. Налаштування
3.1 Початкова плата
Before first use, fully charge the blender. Connect the USB charging cable to the blender's charging port and a compatible USB power source (e.g., car charger, power bank, laptop, or wall adapter). The indicator light will illuminate during charging and change color or turn off when fully charged.
Image 3.1: The blender can be charged via car charger, power bank, laptop, or wall adapter.
3.2 Збірка
Ensure the blending cup is securely twisted onto the motor base. The magnetic safety sensor requires proper alignment for the blender to operate. A click or firm seating indicates correct assembly.
4. Інструкція з експлуатації
4.1 Підготовка інгредієнтів
Cut fruits and vegetables into small pieces (approximately 1-inch cubes) to ensure optimal blending. Do not overfill the cup; leave some space for liquid and blending action.
4.2 Процес змішування
- Add prepared ingredients to the blending cup.
- Pour in an appropriate amount of liquid (water, milk, etc.). Do not exceed 80% of the cup's capacity.
- Securely attach the lid.
- Double-press the power button on the motor base to start blending. The blender will run for approximately 30-45 seconds per cycle.
- For thicker mixtures, gently shake the blender during operation to ensure all ingredients come into contact with the blades.
- To stop blending, press the power button once.
Image 4.1: Double-press the power button to start blending.
Image 4.2: The powerful six-blade system blends ingredients efficiently.
4.3 Функції безпеки
The blender is equipped with a magnetic safety sensor. It will only operate when the cup is correctly aligned and securely attached to the motor base. If the cup is separated from the base, the blender will not start or will stop automatically, preventing accidental operation.
Image 4.3: The blender can be used to prepare various beverages and foods.
5. Очищення та технічне обслуговування
5.1 Cleaning the Blender
After each use, rinse the cup and blades immediately. For thorough cleaning, add a small amount of water and a drop of dish soap to the cup, then double-press the power button to run a short blending cycle. Rinse thoroughly. The motor base should be wiped clean with a damp тканина; do not immerse it in water. The cup and lid are detachable for easy cleaning. A cleaning brush is included for convenience.
6. Вирішення проблем
If you encounter any issues with your Miaoke Portable Blender, please refer to the following common problems and solutions:
| проблема | Можлива причина | Рішення |
|---|---|---|
| Блендер не запускається | Cup not securely attached Низький заряд батареї Power button not double-pressed | Ensure cup is firmly twisted onto the motor base Recharge the blender Double-press the power button quickly |
| Інгредієнти не змішуються рівномірно | Ingredients too large Insufficient liquid Overfilled cup | Cut ingredients into smaller pieces (approx. 1-inch) Додайте більше рідини Do not exceed 80% capacity; gently shake during blending |
| Світловий індикатор блимає | Низький заряд батареї Неправильна збірка | Перезарядіть пристрій Re-secure the cup to the motor base |
7. Технічні характеристики
Detailed technical specifications for the Miaoke Portable Blender Model GZJ-5:
| Особливість | Специфікація |
|---|---|
| Бренд | МІАКЕ |
| Номер моделі | GZJ-5 |
| Розміри (Д x Ш x В) | 7 x 7 x 21 см (2.7 x 2.7 x 8.3 дюйма) |
| вага | 496 грами (1.1 фунта) |
| Ємність | 500 мілілітрів |
| потужність | 14.8 Вт |
| томtage | 7.4 вольт |
| матеріал | Боросилікатне скло, нержавіюча сталь |
| Особливість | Портативний |
| Джерело живлення | Працює від батареї |
| Тип батареї | 1 літій-іонний акумулятор |
Image 7.1: Dimensions of the Miaoke Portable Blender and its cleaning brush.
8. Гарантія та підтримка
All MIAOKE products are covered by a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use.
For any issues encountered during the use of your Miaoke Portable Blender, please contact customer support. Specific contact details are not provided in this manual; please refer to your purchase documentation or the manufacturer's official webсайт для контактної інформації служби підтримки.
