FreedConn FX Motorcycle Bluetooth Headset Instruction Manual

вступ

This manual provides detailed instructions for the installation, operation, and maintenance of your FreedConn FX Motorcycle Bluetooth Headset. Please read this manual thoroughly before using the device to ensure proper function and safety.

Image: FreedConn FX Helmet Communication system mounted on a motorcycle helmet, highlighting its sleek design and integration.

Продукт закінченийview

The FreedConn FX is a versatile motorcycle Bluetooth headset designed for group communication, music sharing, and hands-free calling. It features Bluetooth 5.0, IP67 water repellency, and a long-lasting battery.

Ключові характеристики:

• 10-Way Group Intercom: Communicate with up to 10 riders simultaneously over a distance of 400 meters between two FX units.
• BT5.0 Universal Bluetooth: Compatible with most intercom brands and can connect to 2 mobile phones concurrently.
• 2-Way Music Sharing: Share music with a second headset within 10-50 meters, featuring D6 Hi-Res bass high-resolution sound quality.
• IP67 Water Repellency: Fully waterproof and dustproof, ensuring reliable operation in various weather conditions.
• Ultra-Long Working Life: 1100mAh battery with Type-C fast charging, providing 30 hours of intercom, 25 hours of music playback, and 720 hours of standby time.

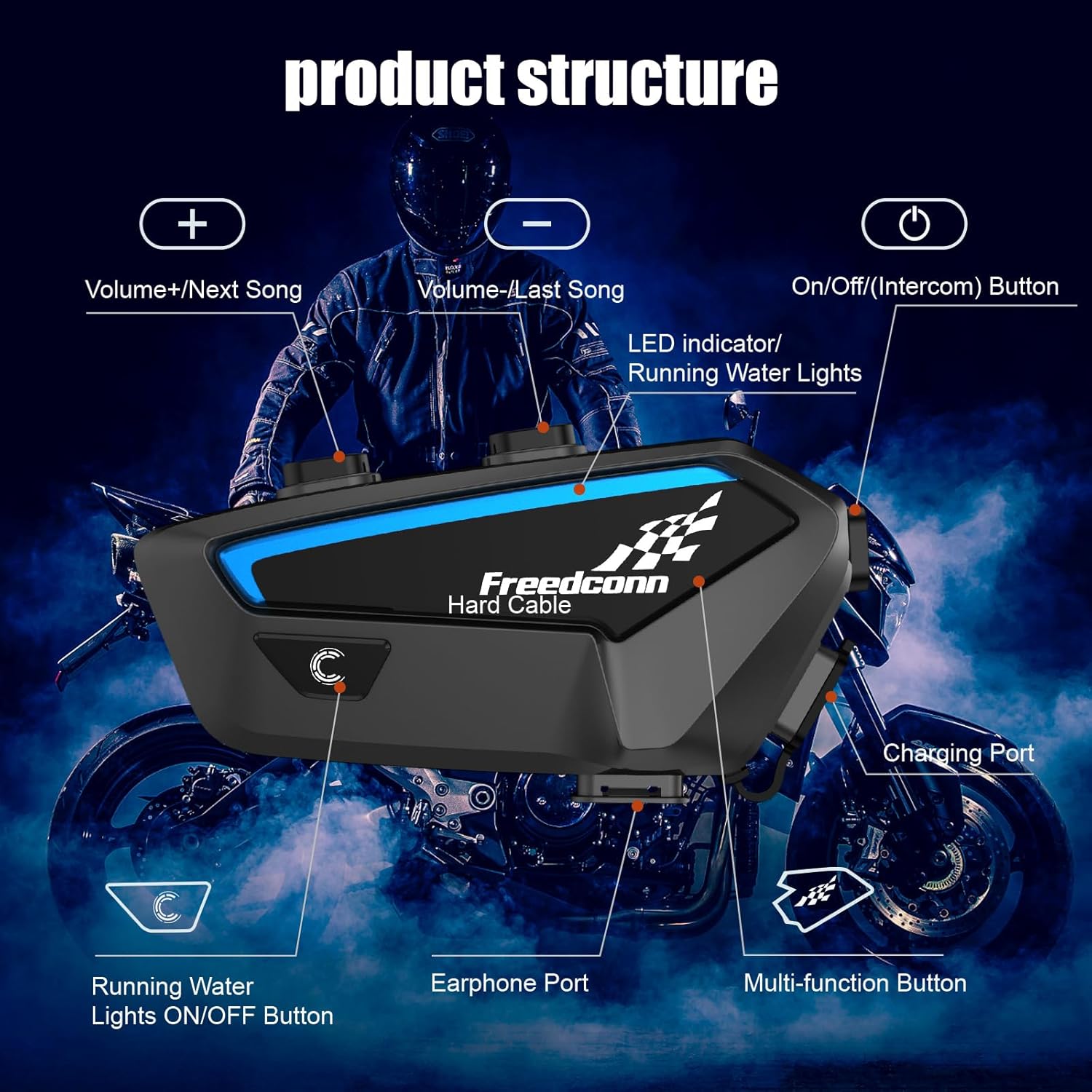

Image: Detailed diagram illustrating the buttons and ports on the FreedConn FX unit, including volume controls, multi-function button, charging port, and earphone port.

Налаштування та встановлення

Follow these steps to properly install your FreedConn FX headset onto your helmet.

Вміст упаковки:

Перед початком встановлення переконайтеся, що всі компоненти є в наявності.

Image: Contents of the FreedConn FX package, including the main unit, speakers, microphones, mounting clips, and charging cable.

Кроки встановлення:

1. Підготуйте шолом: Remove the helmet's inner lining and cheek pads if possible to access the ear pockets.
2. Attach Speaker Velcro: Peel the adhesive backing from the circular Velcro pads and firmly attach them inside the helmet's ear pockets.
3. Встановлення динаміків: Press the speakers onto the attached Velcro pads, ensuring they are positioned directly over your ears for optimal sound.
4. Кріплення мікрофона: Choose between the boom microphone (for open-face helmets) or the wired microphone (for full-face helmets). Attach the microphone using its adhesive or clip, positioning it close to your mouth.
5. Маршрутні дроти: Carefully route all speaker and microphone wires under the helmet's lining to prevent discomfort and ensure they are not exposed.
6. Install Main Unit Mount: Виберіть або clamp mount or the adhesive mount based on your helmet type and preference. Securely attach it to the left side of your helmet.
7. Підключіть основний блок: Slide the FreedConn FX main unit onto the installed mount until it clicks securely into place.
8. Підключіть кабелі: Plug the speaker/microphone cable into the designated port on the main unit.
9. Reinstall Helmet Lining: Replace the helmet's inner lining and cheek pads, ensuring no wires are pinched.

Візуальний посібник з встановлення:

Інструкція з експлуатації

Основні операції:

• Увімкнення/вимкнення живлення: Press and hold the power button for 2 seconds to power on (blue light flashes quickly then slowly). Press and hold for 3 seconds to power off (red light on).
• Перемикання мови: In standby or music pause state, short press the multi-function button and the on/off button simultaneously.
• Running Water Indicator Light: In power on state, press the "C" button once to turn on/off the running-water indicator light.
• Delete Pairing Information: In power on state, press the on/off button for 8 seconds. The red LED indicator light will remain on and then flash twice quickly.
• Automatic Phone Call Answer: Short press the on/off button and the volume up button simultaneously to enable or disable automatic answer of phone calls.

Функціональність внутрішнього зв'язку:

• Pairing with Third-Party Brands: Long press the multi-function key for 8 seconds to enter third-party brand pairing state.
• Груповий домофон: The FX supports up to 10 riders for group communication.

Image: Illustration of 2-10 riders group intercom communication, showing multiple motorcyclists on a road.

Music and Radio:

• Регулювання гучності: Long press the volume up button to increase volume; long press the volume down button to decrease volume.
• Увімкнення/вимкнення FM-радіо: In standby state, double click the multi-function button to turn on/off the radio mode.
• FM Channel Switching: Short press the volume up button for the next channel; short press the volume down button for the previous channel.
• Switching between Music and Radio: In music mode, press the multi-function button twice to switch to frequency modulation (FM radio), and press twice again to return to music mode.

Image: Two motorcyclists sharing and enjoying the same music wirelessly via their FreedConn FX headsets.

Голосовий помічник:

• Trigger Voice Assistant: Refer to the instruction video for specific steps on how to activate your phone's voice assistant through the headset.

Технічне обслуговування

• Захист від води та пилу: The FreedConn FX is IP67 rated, making it fully waterproof and dustproof. It can withstand heavy rain, snow, and even submersion up to one meter. Ensure all ports are securely closed when not in use to maintain water resistance.
• Догляд за акумулятором: The 1100mAh battery provides extended usage. For optimal battery life, charge the device fully before first use and avoid completely draining the battery regularly. Use the provided Type-C fast charging cable.
• Прибирання: Протріть пристрій м'якою гумкою, damp тканина. Уникайте використання агресивних хімікатів або абразивних засобів для чищення.

Image: The FreedConn FX headset is shown to be IP67 waterproof and dustproof, functioning reliably in rain, snow, and muddy conditions.

Image: The FreedConn FX headset highlighting its 1100mAh large-capacity battery, with details on 2.5 hours charging time, 30 hours talking time, and 720 hours standby time.

Усунення несправностей

• Проблеми зі сполученням: If devices fail to pair, ensure all previous pairing records are cleared from both units. Refer to the "Delete Pairing Information" section or the basic operation video for instructions.
• Intercom Connection Problems: For group intercom, ensure all devices have cleared previous pairing records before attempting to connect. Follow the specific pairing sequence for multiple devices.
• Якість звуку: Ensure speakers are correctly positioned directly over your ears. Adjust volume levels as needed. Check microphone placement to ensure it is close to your mouth and facing the correct direction (yellow triangle on boom mic).
• Немає живлення: Ensure the battery is charged. Connect the device to a power source using the Type-C cable.

Технічні характеристики

Гарантія та підтримка

For any product inquiries, technical support, or warranty claims, please contact FreedConn customer service. Additional protection plans are available for purchase to extend coverage beyond the standard warranty period.

Доступні плани захисту:

• 2-річний план захисту: Подовжує покриття на 24 місяці.
• 3-річний план захисту: Подовжує покриття на 36 місяці.
• Повний захист: Щомісячний план, що охоплює всі відповідні минулі та майбутні покупки.

For more details on protection plans, please refer to the product listing or contact your retailer.
