Yaheetech 5-Tier Heavy Duty Adjustable Storage Shelf

вступ

This manual provides comprehensive instructions for the assembly, safe operation, and proper maintenance of your Yaheetech 5-Tier Heavy Duty Adjustable Storage Shelf. This versatile unit is designed for organizing various items in environments such as garages, warehouses, kitchens, and living rooms. Please read this manual thoroughly before assembly and use to ensure safe and efficient operation.

Інформація про безпеку

To prevent injury or damage to the product, please adhere to the following safety guidelines:

• Зберігати в недоступному для дітей місці.
• Do not stand or climb on the shelf unit.

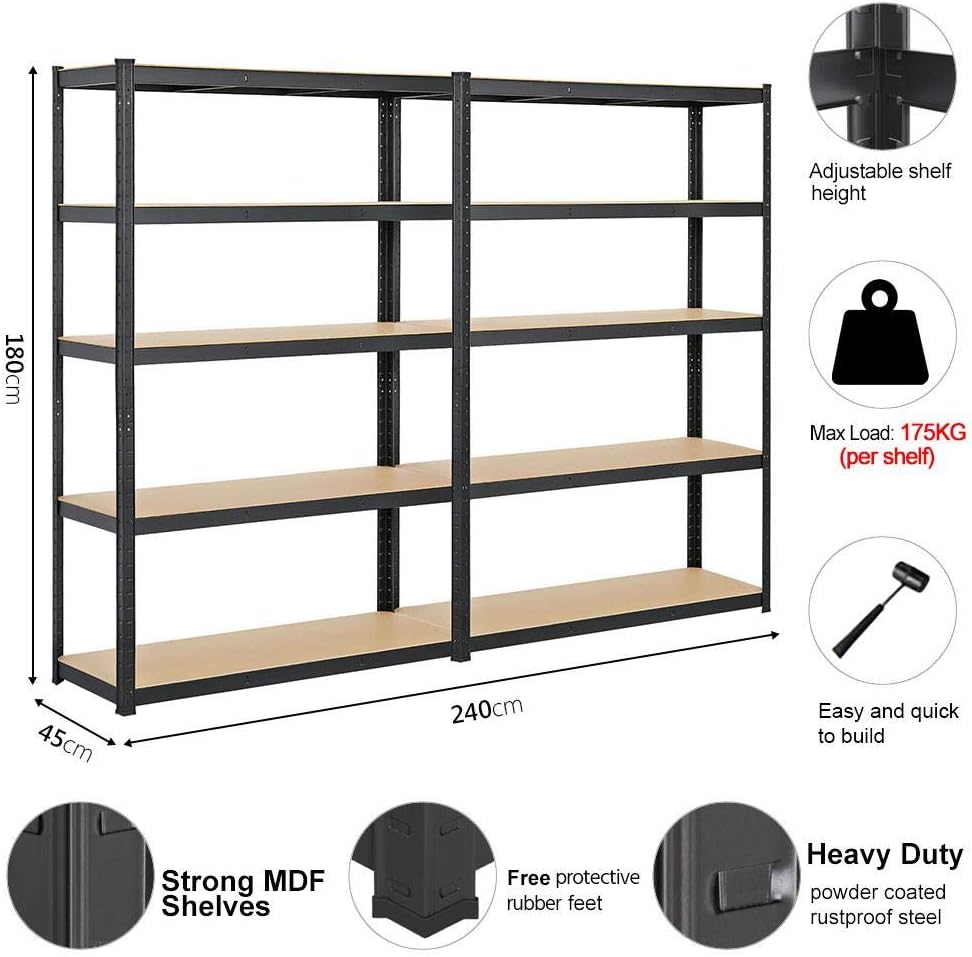

• Do not overload the storage rack. Each layer has a maximum weight capacity of 175 kg (386 lb).
• Always use the product according to its intended purpose as a storage unit.
• Переконайтеся, що пристрій розміщено на стійкій рівній поверхні.
• Consider anchoring the unit to a wall for added stability, especially in areas prone to seismic activity or if heavy items are stored on upper shelves.

Вміст упаковки

Перед початком складання перевірте наявність усіх компонентів та їх цілісність. Якщо якісь деталі відсутні або пошкоджені, зверніться до служби підтримки клієнтів.

• Metal Uprights (Vertical Posts)
• Metal Beams (Horizontal Supports)
• 5 x MDF Boards (Shelves)
• 16 x Plastic Feet (for floor protection)
• Pair of Assembly Gloves
• Інструкція з експлуатації

Інструкції з налаштування та складання

This storage rack features a boltless design for straightforward assembly. A rubber mallet (not included) is highly recommended to secure connections firmly.

1. Розпакуйте та перевірте: Carefully remove all components from the packaging. Lay them out and compare them against the package contents list to ensure everything is present.
2. Зберіть каркас: Begin by connecting the vertical uprights with the horizontal beams. The boltless design allows components to interlock. Ensure each tab is fully seated into its corresponding slot. A rubber mallet can be used to gently tap connections into place for a secure fit.
3. Встановлення опор для полиць: Attach the shorter support beams for each shelf level. These will provide the base for the MDF boards.
4. Вставка МДФ-плит: Once the frame for a shelf level is complete, carefully place an MDF board onto the supports. Repeat for all five levels.
5. Прикріпіть пластикові ніжки: Secure the plastic feet to the bottom of the uprights. These feet protect your floor from scratches and provide additional stability.

Інструкції з експлуатації та використання

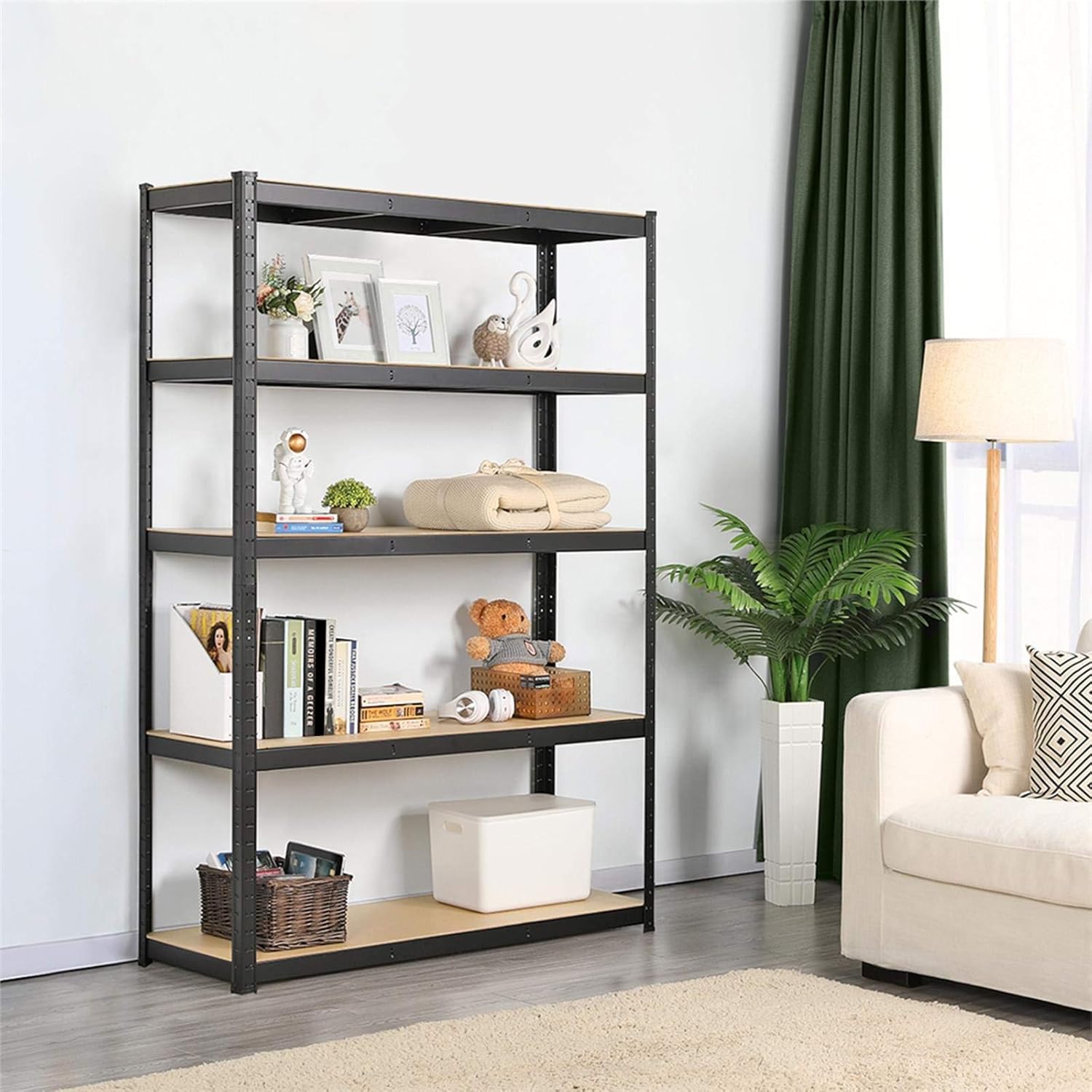

The Yaheetech storage shelf is designed for versatility and can be adapted to various storage needs.

Регулювання висоти полиці

The height of each of the five tiers can be adjusted to accommodate items of different sizes. To adjust a shelf, carefully remove the MDF board and detach the support beams from the uprights. Reattach the beams at the desired height by aligning them with the slots on the uprights and securing them with a rubber mallet. Then, replace the MDF board.

Параметри конфігурації

The unit can be assembled as a single tall 5-tier shelving unit or reconfigured into two shorter, separate units (e.g., a 3-tier and a 2-tier shelf) or even a workbench setup. Refer to the assembly diagram for visual guidance on these configurations.

Технічне обслуговування

Regular maintenance ensures the longevity and continued performance of your storage shelf.

• Прибирання: Wipe the metal frame and MDF boards with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the powder-coated finish and MDF.
• Огляд: Periodically check all connections to ensure they remain tight and secure. If any connections feel loose, gently tap them with a rubber mallet to re-seat them.
• Захист підлоги: Ensure the plastic feet are always in place on the bottom of the uprights to prevent scratching or damage to your flooring.
• Запобігання іржі: The metal frame is powder-coated for rust resistance. If the coating is scratched or damaged, consider applying a rust-inhibiting paint to prevent corrosion.

Усунення несправностей

Якщо під час складання або використання у вас виникли проблеми, розгляньте такі поширені рішення:

• Difficulty Assembling / Loose Connections: The boltless design requires tabs to be fully seated. Use a rubber mallet to firmly tap each connection point until it is secure. Sometimes, two people may be required to hold components steady during initial assembly.
• Нестабільність полиці: Ensure the unit is on a flat, level surface. Verify that all frame connections are fully engaged. For maximum stability, especially with heavy loads or in active environments, consider anchoring the unit to a wall using appropriate hardware (not included).
• Damaged MDF Boards: While the MDF boards are designed for durability, they can be susceptible to damage from impact or excessive moisture. If a board is cracked or damaged, it may need to be replaced to maintain the shelf's load capacity.

Технічні характеристики

Гарантія та підтримка

For warranty information or technical support, please refer to the purchase documentation or contact Yaheetech customer service directly. Contact details can typically be found on the Yaheetech official webсайті або через вашого продавця.
