1. Вступ
This manual provides essential information for the installation, operation, and maintenance of your Directed C510 Plug & Play Remote Starter. The C510 is designed to provide remote starting capabilities for select 2015-2016 Toyota and Lexus vehicles equipped with a Smart Key system. It features a T-Harness for simplified integration.
Please read this manual thoroughly before attempting any installation or operation.
2. Інформація про безпеку
- Потрібне професійне встановлення: Installation of this product requires specialized knowledge and tools. It is strongly recommended that installation be performed by a qualified automotive electronics technician. Improper installation can lead to vehicle damage, electrical issues, or personal injury.
- Сумісність з автомобілем: Ensure the product is compatible with your specific vehicle make, model, and year. Refer to the product specifications and consult with the seller or a professional installer to confirm compatibility before installation.
- Тип двигуна: This system is compatible with both gas and diesel engines.
- Manual Transmission Vehicles: If installing in a manual transmission vehicle, ensure the manual transmission mode is correctly configured to prevent accidental starting while in gear.
- Електрична система: Disconnect the vehicle's battery before beginning any electrical work to prevent short circuits and damage.
- Легкозаймисті матеріали: Do not install the unit near flammable materials or in areas exposed to excessive heat or moisture.
3. Вміст упаковки
Перед початком встановлення перевірте наявність усіх компонентів.
- Directed C510 Remote Starter Module
- Vehicle-Specific T-Harness
- (Additional components may be required and are sold separately)
4. Налаштування та встановлення
Важливо: This unit does not come with installation instructions or wiring diagrams. Professional installation is required.
- Перевірка на сумісність: Confirm your vehicle is a compatible 2015-2016 Toyota or Lexus model with a Smart Key system. Contact the seller or a professional installer if unsure.
- Прошивка: The unit is pre-flashed with Firmware 800.TL10. It is recommended to reflash the firmware prior to installation to ensure the latest version and optimal performance.
- T-Harness Connection: Utilize the included no-cut, no-splice T-harness for an OEM-like installation. Follow the vehicle-specific wiring instructions provided by your professional installer.
- Розміщення модуля: Secure the C510 module in a safe, dry location within the vehicle, away from moving parts or excessive heat.
- Додаткові частини: Be aware that some vehicles may require extra parts not included with this unit. These parts are sold separately.

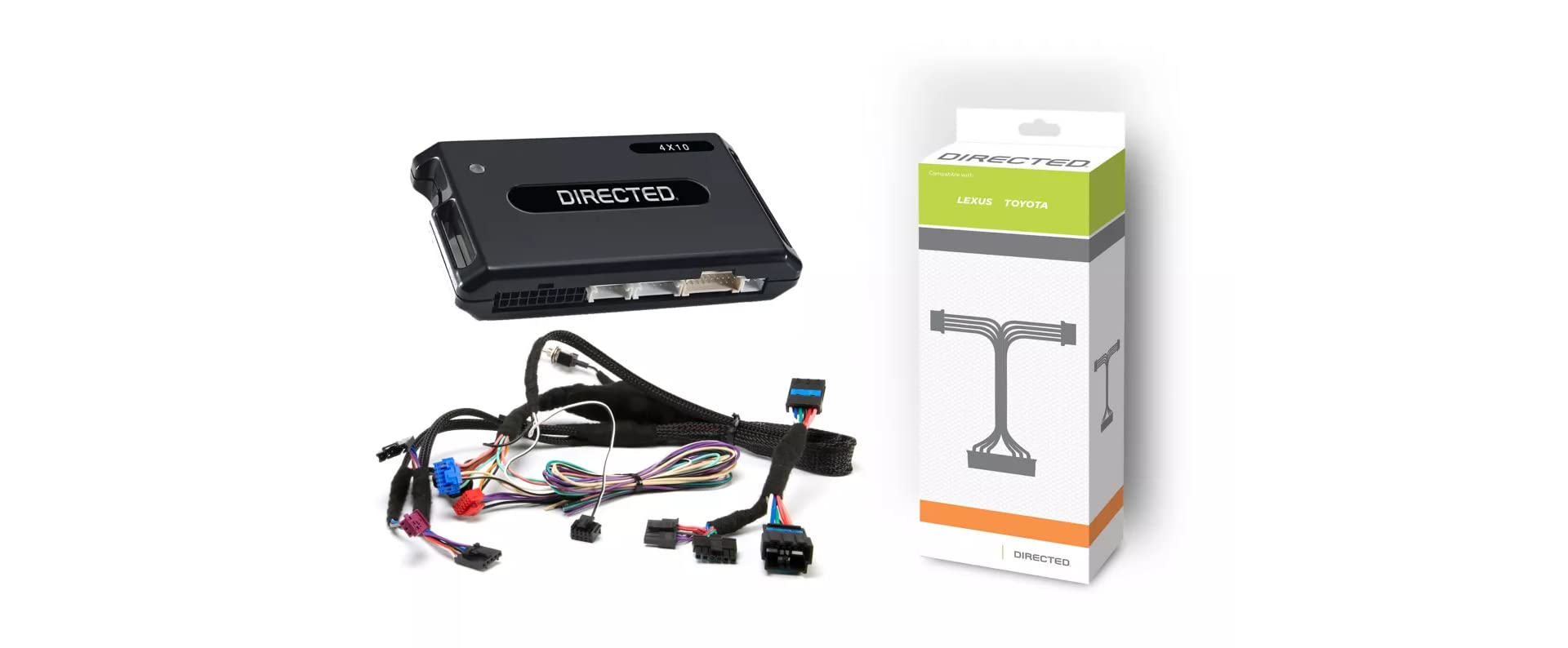

малюнок 1: Directed C510 Remote Starter Module. This image shows the compact electronic module, which is the core component of the remote starter system.
5. Інструкція з експлуатації
The C510 remote starter system can be controlled using various Directed accessories.
- SmartStart: Control your remote starter using the Directed SmartStart system (sold separately). This allows for control via a smartphone application.
- ProStart Long Range RF Systems: The C510 is compatible with ProStart long-range RF systems, such as models 34-0843 and 34-0845 (sold separately). These systems provide extended range remote control.
- Активація дистанційного запуску: Refer to the specific operating instructions provided with your chosen SmartStart or ProStart RF system for details on activating the remote start function.
- Manual Transmission Mode: For vehicles with manual transmissions, ensure the system is correctly engaged in manual transmission mode before exiting the vehicle to allow for safe remote starting.
6. Технічне обслуговування
The Directed C510 remote starter is designed for reliable operation with minimal maintenance.
- Зберігати сухим: Переконайтеся, що модуль залишається сухим і не містить вологи.
- Чистота: Keep the area around the module free from dust and debris. Do not use harsh chemicals for cleaning.
- Періодичний огляд: Periodically check the wiring connections for any signs of wear or looseness. This should be done by a qualified technician.
7. Вирішення проблем
If you experience issues with your Directed C510 remote starter, consider the following:
- Немає відповіді від віддаленого користувача:
- Check the battery in your remote control (if applicable).
- Ensure you are within the operating range of the remote system.
- Vehicle Does Not Start:
- Verify the vehicle's battery is charged and in good condition.
- Ensure all doors, hood, and trunk are closed securely.
- For manual transmission vehicles, confirm manual transmission mode is correctly engaged.
- Check for any active vehicle security system alerts.
- Несправність системи:
- If the system exhibits unusual behavior, it may indicate a wiring issue or module fault.
- Зверніться до професіонала: For any persistent issues or complex troubleshooting, it is highly recommended to consult the professional installer or a qualified automotive electronics technician. Do not attempt to repair the module yourself.
8. Технічні характеристики
| Особливість | Специфікація |
|---|---|
| Бренд | Режисер |
| Модель | C510 |
| Номер деталі | 342322 |
| матеріал | Метал, пластик |
| Wattage | 1.4 кВт |
| Сумісність | Select 2015-2016 Toyota/Lexus Smart Key Type |
| Прошивка | 800.TL10 (Pre-Loaded) |
| GTIN (UPC) | 714712007638 |
