1. Вступ
The VTech RM5752 Wi-Fi 1080p HD Video Monitor provides a secure and reliable way to monitor your baby. This system includes a 5-inch color screen parent unit and a 1080p HD camera unit, offering both local and remote viewing capabilities. Utilizing your home's wireless network, the monitor streams live video and audio, allowing you to stay connected whether you are at home or away via the MyVTech Baby 1080p app.
Ключові особливості:
- 5-inch full color HD parent unit with 1080p HD camera.
- Automatic night vision for clear viewробота в умовах слабкого освітлення.
- 2x local digital zoom and 10x remote digital zoom for detailed viewінж.
- Дистанційний viewing access and control via the free VTech app.
- Motion alerts and temperature sensor with alerts on both parent unit and app.
- 9 soothing sounds and lullabies to assist with sleep.
- Local and remote two-way talk functionality.
2. Вміст упаковки
Ensure all items are present in your package. If any items are missing or damaged, contact your retailer.
- Parent Unit (with rechargeable battery)
- Блок камери
- Parent Unit Power Adapter
- Camera Unit Power Adapter
- Wall Mount Bracket (for camera)
- Короткий посібник
Image: The VTech RM5752 Wi-Fi 1080p HD Video Monitor package contents, including the parent unit, camera unit, and power adapters.
3. Початок роботи
3.1 Увімкнення
- Connect the small plug of the parent unit power adapter to the parent unit's power jack.
- Connect the large plug of the parent unit power adapter to a wall outlet.
- Натисніть і утримуйте ПОТУЖНІСТЬ button on the parent unit until the screen turns on.
- Connect the small plug of the camera unit power adapter to the camera unit's power jack.
- Connect the large plug of the camera unit power adapter to a wall outlet. The camera unit will power on automatically.
3.2 Розміщення камери
Place the camera unit on a flat surface, such as a dresser or shelf, or mount it on a wall. Ensure the camera is positioned to provide a clear view of the desired area. The camera features an adjustable angle for optimal positioning.
Image: The camera unit of the VTech RM5752, illustrating its adjustable angle for flexible placement.
4. Експлуатація монітора
4.1 Parent Unit Functions
The 5-inch color LCD screen on the parent unit displays the live video feed from the camera. Use the control buttons to navigate menus and adjust settings.

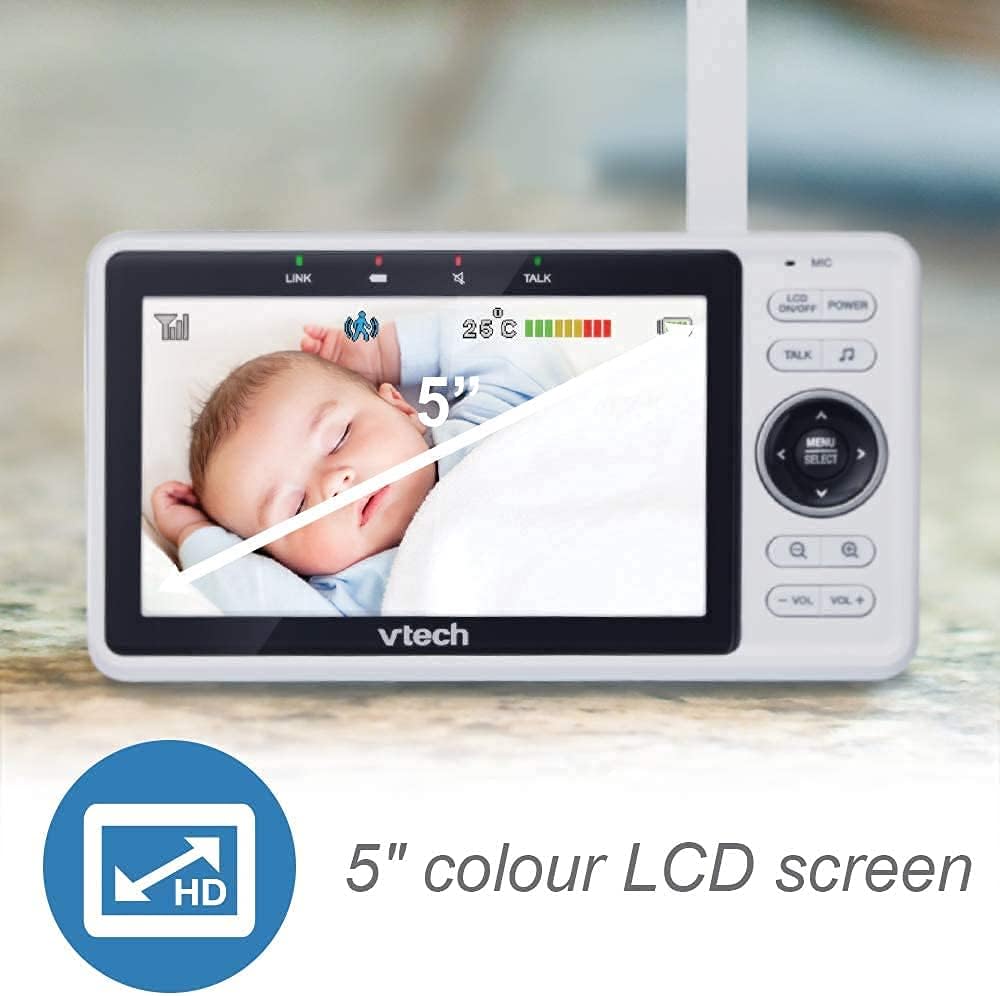

Image: The VTech RM5752 parent unit, showcasing its 5-inch color LCD screen with a live video feed.
- Регулювання гучності: Відрегулюйте гучність прослуховування за допомогою ГУЧНІСТЬ - і ГУЧНІСТЬ + кнопки.
- Цифрове збільшення: Натисніть ZOOM button to activate 2x local digital zoom.
- Двостороння розмова: Натисніть і утримуйте ПОГОВОРИТИ button to speak through the camera unit. Release to listen.
- Колискові: Access and play 9 pre-set lullabies and 4 natural sounds through the menu.
- Нічне бачення: The camera automatically activates infrared night vision in low light conditions.
- Датчик температури: The parent unit displays the room temperature detected by the camera. Alerts can be set for temperature fluctuations.
Image: A composite image highlighting the VTech RM5752's features: temperature sensor, automatic infrared night vision, two-way talk, and soothing sounds/lullabies.
4.2 Mobile App Integration (MyVTech Baby 1080p App)
For remote access and additional features, download the free MyVTech Baby 1080p app on your smartphone or tablet. This app allows you to:
- View live video and audio from anywhere with an internet connection.
- Control the camera's digital zoom (10x remote digital zoom).
- Receive motion alerts directly on your device.
- Engage in two-way talk with the camera unit.
- Monitor room temperature and receive alerts.
Image: A smartphone screen showing an instant motion alert notification from the VTech baby monitor app.
5. Догляд і технічне обслуговування
5.1 Очищення монітора
To keep your VTech RM5752 monitor clean, wipe the surfaces of the parent unit and camera unit with a soft, damp cloth. Do not use cleaning sprays or liquid cleaners. Ensure the units are unplugged before cleaning.
5.2 Догляд за батареєю (батьківський блок)
The parent unit contains a rechargeable battery. To maximize battery life:
- Повністю зарядіть батарею перед першим використанням.
- Уникайте впливу на акумулятор екстремальних температур.
- If the unit will not be used for an extended period, remove the battery.
6. Вирішення проблем
If you experience issues with your VTech RM5752 monitor, refer to the following common problems and solutions:
| проблема | Рішення |
|---|---|
| No link to camera / Disconnects frequently | Ensure both parent and camera units are within range of your Wi-Fi router. Check for obstructions. Restart both units and your Wi-Fi router. Verify your Wi-Fi network is stable. |
| No picture on parent unit | Check if the camera unit is powered on. Ensure the parent unit is charged and powered on. Re-pair the camera if necessary (refer to the full user manual for pairing instructions). |
| Немає звуку або низький звук | Increase the volume on the parent unit. Ensure the camera's microphone is not obstructed. |
| App not connecting or working | Ensure your smartphone/tablet has a stable internet connection. Verify the MyVTech Baby 1080p app is updated to the latest version. Restart the app and your device. Check your home Wi-Fi network settings. |
| Poor picture quality / Blurry image | Clean the camera lens. Ensure adequate lighting (night vision will activate in low light). Check for strong Wi-Fi signal strength. |
7. Технічні характеристики
Below are the technical specifications for the VTech RM5752 Wi-Fi 1080p HD Video Monitor:
- Назва моделі: RM5752
- Роздільна здатність захоплення відео: 1080p
- Технологія підключення: Бездротовий, Wi-Fi
- Джерело живлення: Провідний електричний (5 вольт)
- Сумісні пристрої: Смартфон, планшет
- Тип монтажу: Настінне кріплення
- Особливості: Датчик руху, нічне бачення
- колір: Білий
- Розміри продукту: 3 x 10 x 9 дюймів
- Вага товару: 1.7 фунта
- Міжнародний рейтинг захисту: IP54
- Тип фокусування: Автофокус
- Тип масштабування: Цифровий зум
- Тип сповіщення: Лише рух
- Формат запису відео: MPEG-4
8. Гарантія та підтримка
For detailed warranty information and technical support, please refer to the warranty card included with your product or visit the official VTech webсайт. The website provides comprehensive support resources, including FAQs, product registration, and contact information for customer service.
