вступ
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Güde GPR 822 PRO Post Driver. Please read these instructions carefully before using the device to ensure proper handling and to prevent injury or damage. Keep this manual in a safe place for future reference.
Інструкції з техніки безпеки
Always observe general safety regulations when operating power tools. Failure to follow these instructions may result in serious injury or property damage.
- Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy gloves.
- Переконайтеся, що в робочій зоні немає сторонніх осіб, особливо дітей та домашніх тварин.
- Operate the post driver only in well-ventilated areas.
- Do not operate the machine if you are tired, under the influence of drugs, alcohol, or medication.
- Inspect the device for any damage before each use. Do not operate a damaged machine.
- Handle fuel with extreme care. Store fuel in approved containers and away from ignition sources.
- Never refuel the engine while it is running or hot. Allow it to cool down.
- Тримайте руки та ноги подалі від рухомих частин.
- Secure the post firmly before driving to prevent kickback.
- Do not modify the post driver in any way.
Продукт закінченийview
The Güde GPR 822 PRO is a powerful, portable post driver designed for efficiently installing fence posts. It features a robust 4-stroke engine for reliable performance.
Image: The Güde GPR 822 PRO Post Driver, showcasing its engine and driving mechanism. This view highlights the main components of the device.

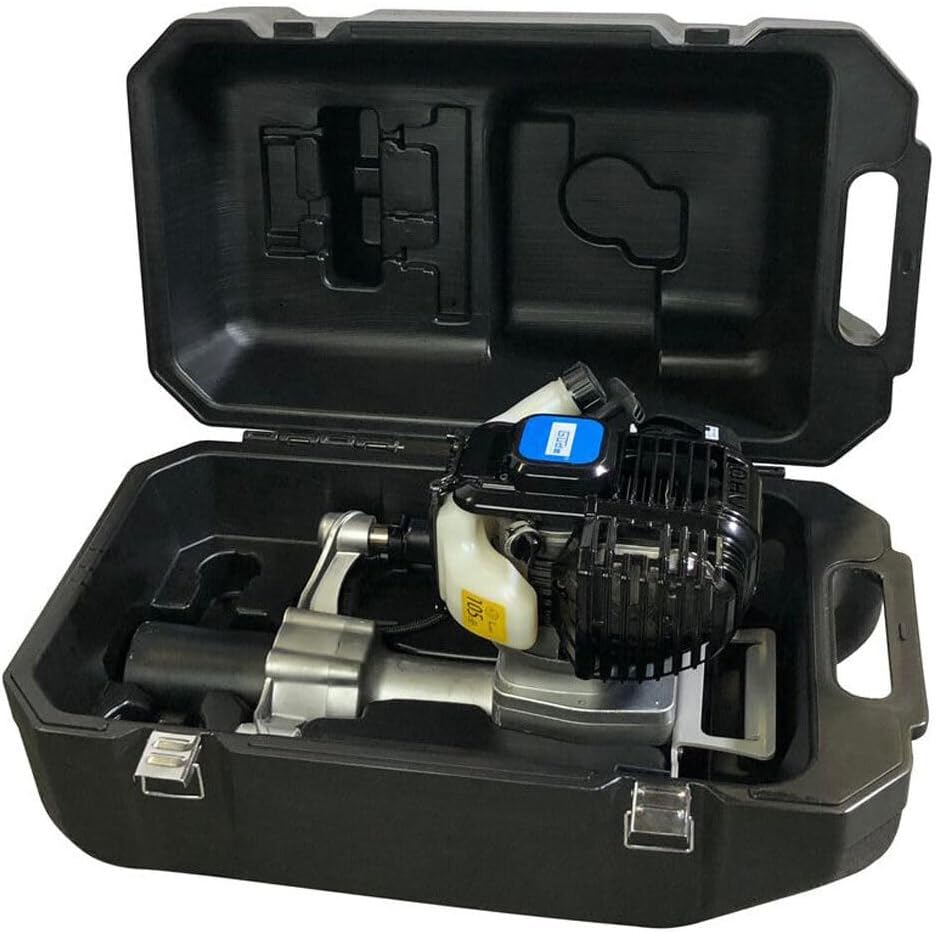

Image: The Güde GPR 822 PRO Post Driver stored securely within its durable black carrying case, ready for transport or storage.
Ключові компоненти:
- двигун: 4-stroke gasoline engine.
- Паливний бак: Для бензину.
- Масляний бак: Для моторної оливи.
- Ручка: For gripping and controlling the device.
- Driving Mechanism: The part that impacts the post.
- Стартер: Recoil start system.
Технічні характеристики
| Особливість | Значення |
|---|---|
| Тип двигуна | 4-тактний |
| Витрата палива | 0.65 л/год |
| Потужність двигуна | 0.8/1.0 (kW/HP) |
| Переміщення | 31 см³ |
| Engine Speed (max) | 7500 об/хв |
| Ємність паливного баку | 0.6 л |
| Тип палива | Бензин |
| Запуск системи | Початок відновлення |
| Ємність моторного масла | 0.07 л |
| Тип моторного масла | 10W40 |
| Довідка виробника | 94422 |
Налаштування та підготовка
Before starting the post driver, ensure it is properly prepared with fuel and oil.
1. Fueling the Engine:
Use only clean, fresh gasoline. The fuel tank capacity is 0.6 liters.
- Переконайтеся, що двигун вимкнений і охолонув.
- Move to a well-ventilated area away from open flames or sparks.
- Обережно відкрийте кришку паливного бака.
- Fill the tank with gasoline, being careful not to overfill.
- Щільно закрийте кришку паливного бака.
- Негайно витирайте розлите паливо.
2. Додавання моторного масла:
The engine requires 10W40 engine oil. The oil capacity is 0.07 liters.
- Place the post driver on a level surface.
- Locate the oil filler cap.
- Remove the cap and carefully pour 0.07 liters of 10W40 engine oil into the oil tank.
- Replace the oil filler cap securely.
- Перед кожним використанням перевіряйте рівень масла.
Image: A clear measuring cup, typically used for accurately measuring fuel or oil volumes before adding them to the engine.

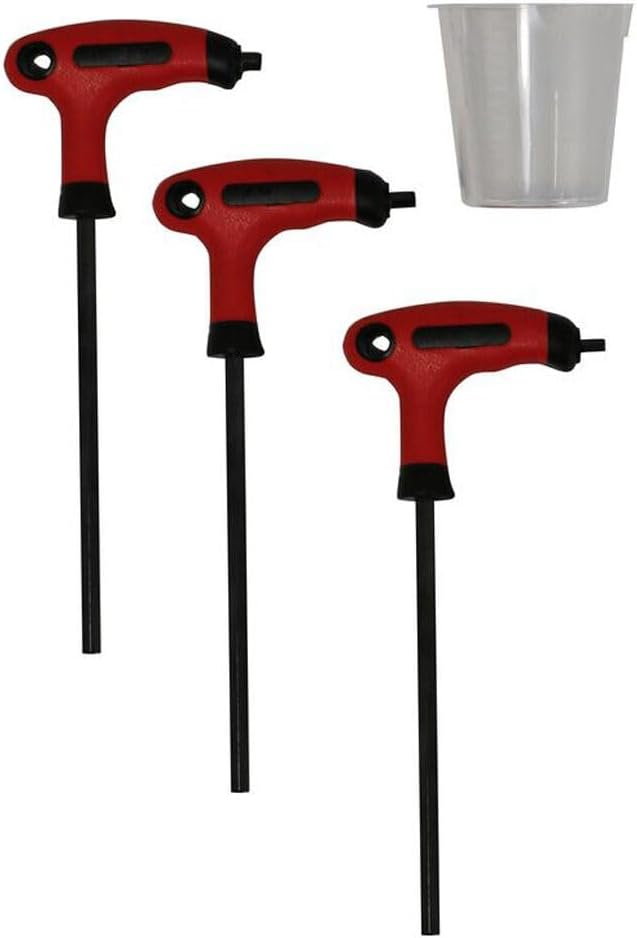

Image: A set of T-handle wrenches and a measuring cup, essential tools for assembly, maintenance, and precise fluid measurement for the post driver.
Інструкція з експлуатації
Запуск двигуна:
- Place the post driver on a stable, level surface.
- Ensure the fuel and oil levels are correct.
- Встановіть вимикач двигуна в положення «УВІМК.».
- Якщо двигун холодний, увімкніть дросельну заслінку.
- Pull the recoil starter handle firmly and smoothly until the engine starts. Do not pull the cord to its full extension.
- Once the engine starts, gradually open the choke (if used).
- Дайте двигуну прогрітися кілька хвилин перед роботою.
Driving Posts:
- Position the post driver squarely over the top of the fence post.
- Ensure the post is vertical and stable before beginning to drive.
- Hold the post driver firmly with both hands, maintaining a secure grip on the handles.
- Engage the throttle to increase engine speed and begin the driving action.
- Apply steady, downward pressure to guide the post driver and keep it centered on the post.
- Continue driving until the post reaches the desired depth.
- Release the throttle to reduce engine speed and stop the driving action.
- Carefully lift the post driver off the post.
Зупинка двигуна:
- Release the throttle to allow the engine to idle.
- Set the engine switch to the "OFF" position.
- Wait for the engine to cool down before storing or performing maintenance.
Технічне обслуговування
Regular maintenance ensures the longevity and optimal performance of your post driver.
Після кожного використання:
- Clean the exterior of the post driver, removing dirt, dust, and debris.
- Check for any loose fasteners and tighten them as necessary.
- Inspect the driving mechanism for wear or damage.
Regular Checks (e.g., every 10-20 operating hours):
- Моторне масло: Check the oil level and top up if necessary. Change the oil according to the manufacturer's recommendations (typically after the first 5-10 hours, then every 50 hours).
- Повітряний фільтр: Inspect and clean the air filter. Replace if heavily soiled or damaged.
- Свічка запалювання: Inspect the spark plug for wear and carbon buildup. Clean or replace as needed.
- Паливний фільтр: Check and clean or replace the fuel filter if necessary.
Зберігання:
- For long-term storage, drain the fuel tank or add a fuel stabilizer.
- Clean the entire machine thoroughly.
- Store the post driver in a dry, clean, and secure location, out of reach of children.
Усунення несправностей
У цьому розділі розглядаються поширені проблеми, з якими ви можете зіткнутися. Якщо у вас проблеми, не перелічені тут, зверніться до кваліфікованого сервісного персоналу.
| проблема | Можлива причина | Рішення |
|---|---|---|
| Двигун не запускається | No fuel; Engine switch OFF; Choke not applied (cold engine); Fouled spark plug; Clogged fuel filter. | Add fuel; Turn switch ON; Apply choke; Clean/replace spark plug; Clean/replace fuel filter. |
| Двигун працює погано/не має потужності | Dirty air filter; Stale fuel; Incorrect oil level; Fouled spark plug. | Clean/replace air filter; Use fresh fuel; Check/adjust oil level; Clean/replace spark plug. |
| Надмірна вібрація | Loose components; Damaged driving mechanism. | Check and tighten all fasteners; Inspect driving mechanism for damage and replace parts if necessary. |
Гарантія та підтримка
Information regarding warranty coverage and spare parts availability is not provided in the product details. For warranty claims, technical support, or to inquire about spare parts, please contact your authorized Güde dealer or the manufacturer's customer service directly. Always provide your model number (94422) and purchase date when seeking support.
Manufacturer: Güde
Номер моделі: 94422
