Schildmeyer Cosmo 146318 Vanity Unit Instruction Manual

вступ

This manual provides essential information for the assembly, operation, maintenance, and specifications of your Schildmeyer Cosmo 146318 Vanity Unit. Please read these instructions carefully before beginning assembly or use to ensure proper installation and longevity of your product.

Налаштування та збірка

The Schildmeyer Cosmo 146318 Vanity Unit requires assembly. It is designed for freestanding installation.

Розпакування та перевірка

• Обережно вийміть усі компоненти з упаковки.
• Verify that all parts are present according to the included parts list. The unit consists of an under-sink cabinet and associated hardware.
• Inspect all components for any damage. Do not proceed with assembly if parts are damaged. Contact customer support for replacements.

Tools Required (General)

While specific tools are not listed, typical assembly of furniture of this type may require:

• Викрутка (хрестова та/або плоска)
• Молоток (для дюбелів, якщо є)
• Мірна стрічка
• Рівень

Етапи складання (загальні рекомендації)

Refer to the detailed assembly instructions provided in the product packaging for step-by-step guidance. Key assembly considerations include:

• Assembling the main cabinet structure using the engineered wood panels and metal fittings.
• Attaching the plastic base feet for stability.
• Installing the two doors, ensuring proper alignment and function of the handle-less opening mechanism.
• Positioning the unit in your bathroom, ensuring the syphon cut-out aligns with your plumbing.

It is recommended to assemble the unit on a soft, clean surface to prevent scratches.

Операція

The Schildmeyer Cosmo 146318 Vanity Unit is designed for storage in a bathroom environment, typically beneath a sink.

Операція дверей

• The unit features two doors with a handle-less opening design. To open, gently pull the top edge of the door.
• The doors provide access to the internal compartment, which has dimensions of approximately 21 inches (width) x 11 inches (depth) x 18.3 inches (height).

Syphon Cut-out

The top panel of the vanity unit includes a syphon cut-out with a width of approximately 6.00 cm and a length of approximately 22.5 cm, designed to accommodate standard sink plumbing.

Технічне обслуговування та догляд

Proper care will help maintain the appearance and longevity of your vanity unit.

• Прибирання: Протріть поверхні рекламоюamp cloth. Avoid abrasive cleaners, harsh chemicals, or excessive moisture, as these can damage the engineered wood and matte finish.
• Розливи: Immediately wipe up any water spills or moisture to prevent damage to the wood material.
• Дверні петлі: Periodically check the door hinges and fittings to ensure they are secure. Tighten if necessary.
• Середовище: Ensure the bathroom environment has adequate ventilation to prevent excessive humidity, which can affect furniture.

Усунення несправностей

У цьому розділі розглядаються поширені проблеми, з якими ви можете зіткнутися під тумбою під умивальник.

Doors Not Aligning Properly

• Перевірте петлі: Ensure all hinges are securely fastened to both the door and the cabinet frame. Adjust hinge screws if necessary to align the doors.
• Рівень поверхні: Verify that the vanity unit is placed on a level surface. Uneven flooring can cause the cabinet frame to twist, affecting door alignment. Use the adjustable feet if available, or shims.

Unit Wobbles

• Check Feet: Ensure all plastic base feet are firmly attached and making even contact with the floor.
• Вирівнювання: Use a level to check if the unit is stable. Adjust the feet or use shims under the feet to eliminate wobbling.

Water Damage/Swelling

• Негайна дія: If water spills occur, wipe them immediately. Engineered wood can swell if exposed to prolonged moisture.
• Профілактика: Ensure your sink and plumbing connections are leak-free.

Технічні характеристики

Продукт закінченийview

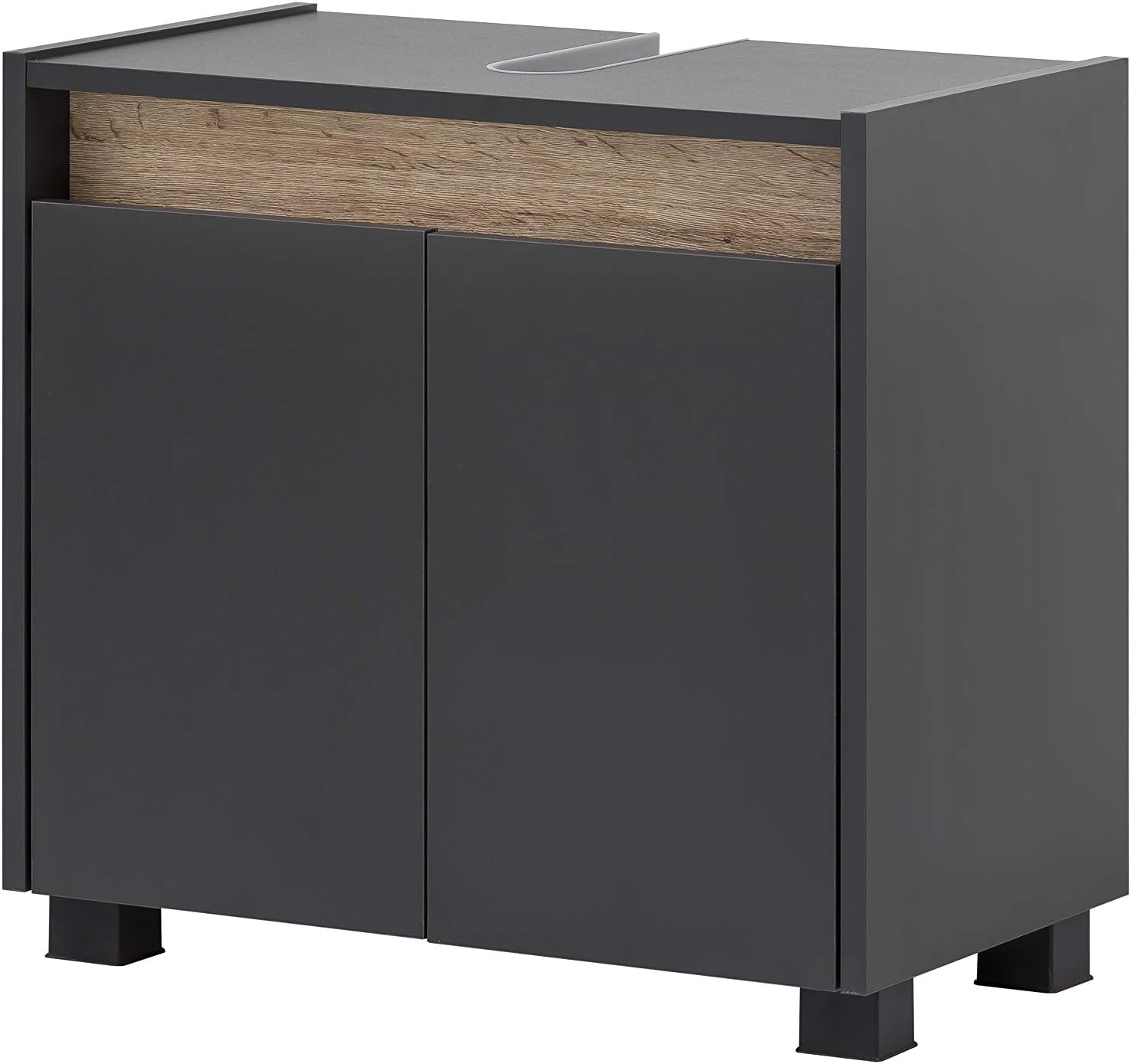

Малюнок 1: Спереду view of the Schildmeyer Cosmo 146318 Vanity Unit in charcoal with closed doors, showing the handle-less design and wooden crossbar detail.

Figure 2: The Schildmeyer Cosmo vanity unit integrated into a modern bathroom setting, showcasing its aesthetic appeal alongside other matching furniture pieces.

Малюнок 3: Детально view of the vanity unit with key dimensions: 57cm (width), 54.5cm (height), and 33cm (depth).

Figure 4: The vanity unit with both doors open, revealing the spacious interior compartment and the syphon cut-out at the top.

Figure 5: The "Made in Germany" emblem, indicating the product's country of manufacture.

Гарантія та підтримка

For specific warranty information and details regarding customer support, please refer to the documentation included with your purchase or contact Schildmeyer directly through their official webсайт або уповноважених продавців. Зберігайте чек про покупку для будь-яких гарантійних претензій.
