вступ
This manual provides detailed instructions for the installation, operation, and maintenance of your Westek BL-CLNG5RC 5-inch Rechargeable Motion Sensor Light. This LED light offers a slim profile, rechargeable battery, and multiple operational modes for various indoor applications.

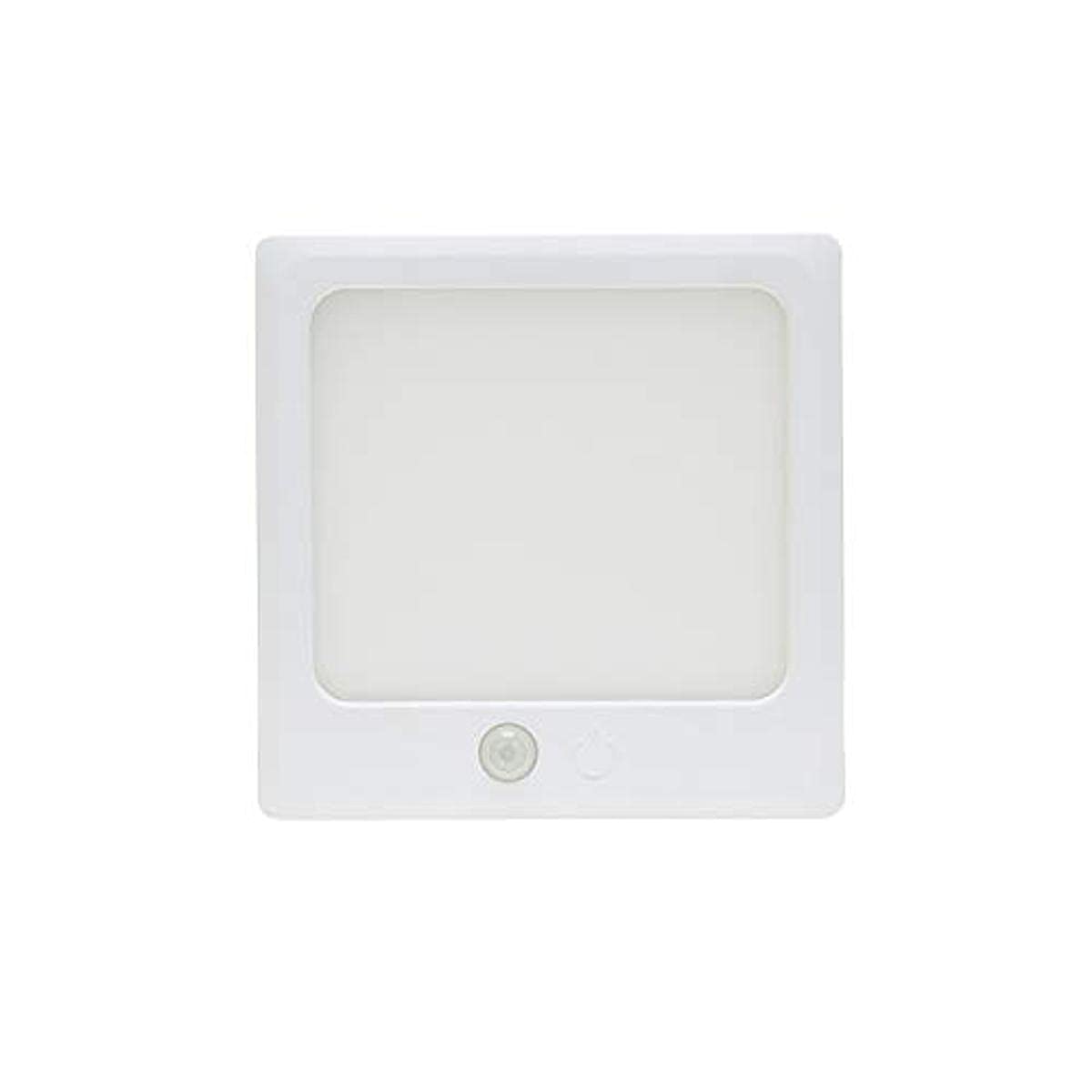

Image: The Westek BL-CLNG5RC 5-inch rechargeable motion sensor light.
Включені компоненти
Перевірте, чи всі наступні компоненти входять до вашої упаковки:
- Westek BL-CLNG5RC 5-inch Rechargeable Motion Sensor Light
- 39-inch USB Micro B Charging Cable
- Metal Mounting Plates
- Клейка стрічка 3M
- Монтажні гвинти
Image: The included mounting plates and screws.
Налаштування та встановлення
The Westek BL-CLNG5RC light offers flexible mounting options using either built-in magnets with adhesive metal plates or traditional screws.
- Виберіть місце монтажу: Select a clean, dry, and flat surface for installation. Common locations include under cabinets, inside closets, or on ceilings.
- Magnetic Mounting (Recommended for easy removal):
- Ретельно очистіть потрібну поверхню для монтажу.
- Peel the backing from the 3M adhesive tape and attach it to the metal mounting plates.
- Press the metal plates firmly onto the chosen surface. Allow the adhesive to set for at least 24 hours before attaching the light.
- Align the light's built-in magnets with the installed metal plates and attach the light. This allows for easy removal for recharging.
- Screw Mounting (Permanent Installation):
- Mark the desired screw locations on the mounting surface using the light's screw holes as a guide.
- Просвердліть пробні отвори, якщо необхідно.
- Secure the light to the surface using the provided mounting screws.
Video: This video demonstrates the features and installation of the Westek rechargeable light bar series, including its motion sensing, dimming, and easy mounting options.
Інструкція з експлуатації
The Westek BL-CLNG5RC light features multiple modes of operation and adjustable settings.
Режими роботи
The light can be switched between standard light mode and motion-activated mode. A touch of a finger changes the mode.
- Сенсорна активація: Briefly touch the sensor to cycle between standard light mode and motion-activated mode.
- Режим активації руху: In this mode, the light detects motion up to 12 feet away at an angle of 100°. The light will automatically shut off after 30 seconds of no detected motion.
Image: A hand demonstrating motion activation of the light.
Функція Dimming
The light features continuous touch dimming.
- To Dim: Touch and hold the sensor to dim the light from 100% brightness down to 10%. Release when the desired brightness level is reached.
Image: A finger touching the light to adjust brightness.
Color Temperature Selection (CCT Selectable)
Adjust the light's color temperature to suit your preference using the switch located on the bottom of the light.
- Теплий білий (3000K): Provides a soft, yellowish light.
- Bright White (4000K): Offers a neutral, balanced white light.
- Daylight (5000K): Produces a crisp, bluish-white light.
Image: Illustration of selectable color temperatures (3000K, 4000K, 5000K).
Зарядка
The Westek BL-CLNG5RC light is equipped with a rechargeable Lithium-ion battery.
- Зарядка: Use the included 39-inch USB Micro B charging cable to recharge the battery. Connect the Micro B end to the light and the USB-A end to a compatible USB power source (e.g., wall adapter, computer USB port).
- Індикатор зарядки: The light will typically have an indicator to show charging status (e.g., red for charging, green/off for fully charged).
- Термін служби батареї: Battery life varies based on usage frequency and brightness settings.

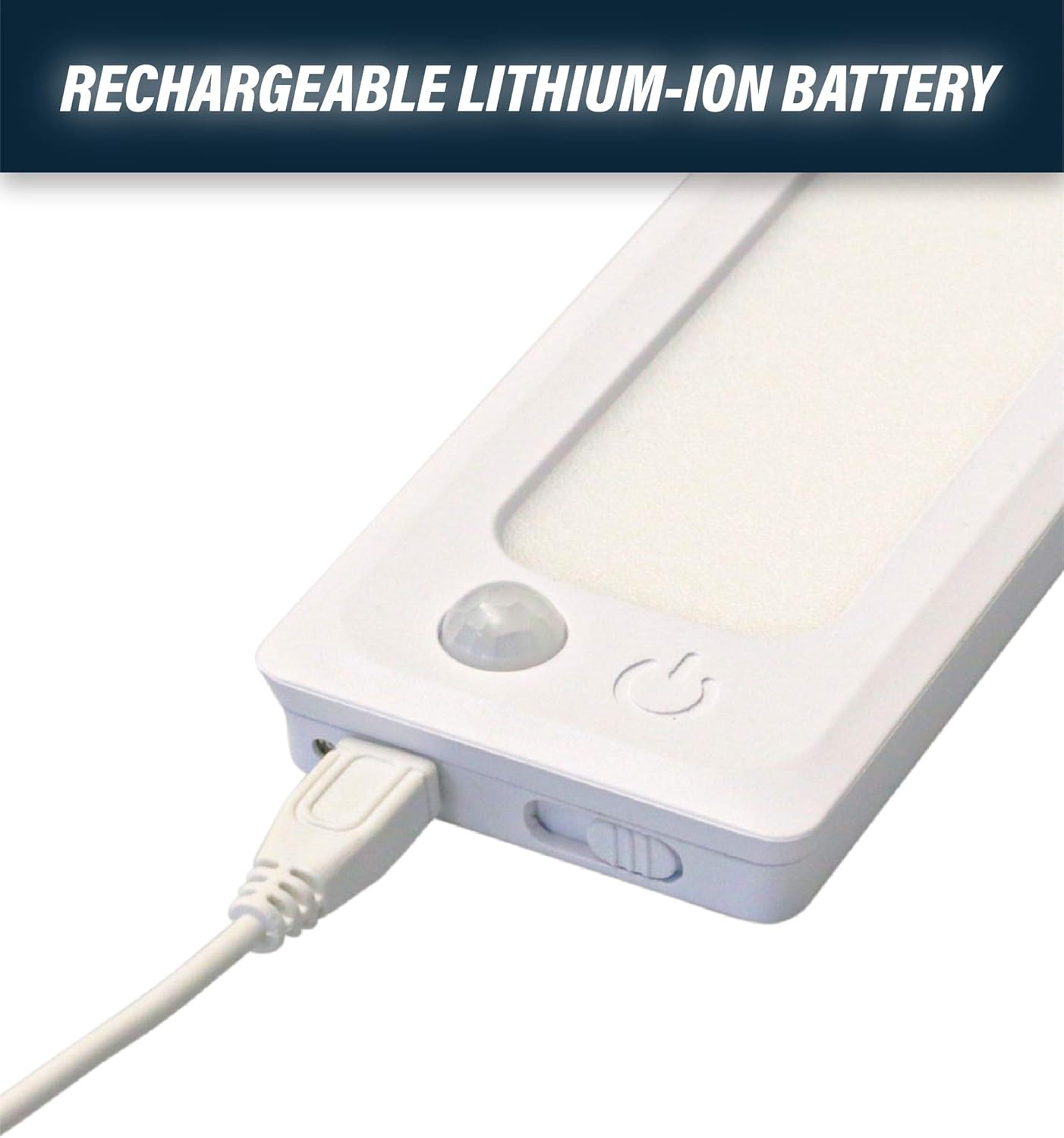

Image: The light being charged via its USB Micro B cable.
Технічне обслуговування
To ensure optimal performance and longevity of your Westek light, follow these maintenance guidelines:
- Прибирання: Wipe the light's surface with a soft, dry, or slightly damp тканиною. Не використовуйте абразивні засоби для чищення або розчинники, оскільки вони можуть пошкодити покриття або електронні компоненти.
- Догляд за акумулятором: Avoid fully discharging the battery frequently. Recharge the light when the brightness noticeably diminishes. If storing the light for an extended period, charge it periodically to maintain battery health.
- Умови навколишнього середовища: This product is designed for indoor use only. Avoid exposure to moisture, extreme temperatures, or direct sunlight, which can affect performance and battery life.
Усунення несправностей
If you encounter issues with your Westek BL-CLNG5RC light, refer to the following common solutions:
| проблема | Можлива причина | Рішення |
|---|---|---|
| Світло не вмикається. | Акумулятор розрядився. | Recharge the light using the provided USB cable. |
| Motion sensor is not activating consistently. | Insufficient motion, ambient light too bright, or sensor obstruction. | Ensure there is clear motion within the 12-foot, 100° detection range. Check if the sensor is obstructed. Test in a darker environment. |
| Light dims quickly or battery life is short. | Battery not fully charged, frequent activation, or high brightness setting. | Ensure the light is fully charged. Reduce brightness if possible. Consider the frequency of motion activation in the area. |
| Світло не тьмяніє. | Некоректна робота. | Торкніться і утримувати the sensor to activate the continuous dimming function. |
Технічні характеристики
| Особливість | Деталь |
|---|---|
| Бренд | Вестек |
| Номер моделі | BL-CLNG5RC |
| Розміри | 5 x 5 x 0.73 дюймів |
| Вага товару | 7.8 унції |
| Джерело живлення | Живлення від батареї (1 літій-іонна батарея в комплекті) |
| Тип джерела світла | LED |
| Яскравість | 155/160/155 люмен (залежно від CCT) |
| Колірна температура | 3000K (Warm White), 4000K (Bright White), 5000K (Daylight) |
| Особливості | З можливістю затемнення, датчик руху |
| Спосіб контролю | Дотик |
| Тип установки | Ceiling Mount, Magnetic Mount |
| Використання в приміщенні/зовні | закритий |
Гарантія та підтримка
The Westek BL-CLNG5RC light comes with a 1 рік обмеженої гарантії з дати покупки. Ця гарантія поширюється на дефекти матеріалів і виготовлення за нормального використання.
For warranty claims or technical support, please contact Westek customer service. Keep your proof of purchase for warranty validation.
