Wiltec 500 kg Hydraulic Workshop Crane Instruction Manual

1. Інформація про безпеку

Read and understand all safety warnings and instructions before operating this hydraulic workshop crane. Failure to follow these instructions may result in serious injury or property damage.

• Максимальна вантажопідйомність: Do not exceed the maximum load capacity of 500 kg. Refer to the boom extension settings for corresponding load limits.
• Стабільна поверхня: Always operate the crane on a flat, level, and stable surface.
• Засоби індивідуального захисту: Одягайте відповідні засоби безпеки, включаючи захисні окуляри та рукавички.
• оформлення: Ensure adequate clearance around the crane and the load during lifting and moving operations. Keep bystanders away from the work area.
• Огляньте перед використанням: Before each use, inspect the crane for any signs of damage, wear, or loose components. Do not use if damaged.
• Безпечне завантаження: Always ensure the load is properly secured and balanced before lifting. Use appropriate lifting chains and attachments.
• Гідравлічна система: Не робіть цьогоamper with the hydraulic system. If maintenance is required, consult a qualified technician.
• Зберігання: Store the crane in a safe, dry place when not in use. Ensure it is folded and secured to prevent accidental movement.

2. Продукт закінчивсяview

The Wiltec 500 kg Hydraulic Workshop Crane is designed for safe and efficient lifting of heavy loads in workshop environments. Its robust steel construction and hydraulic pump system provide reliable performance.

Ключові характеристики:

• Висока вантажопідйомність: Lifts loads up to 500 kg, suitable for engine removal and other heavy lifting tasks.
• Гідравлічна система: Equipped with an easy-to-operate hydraulic pump for smooth and controlled lifting and lowering.

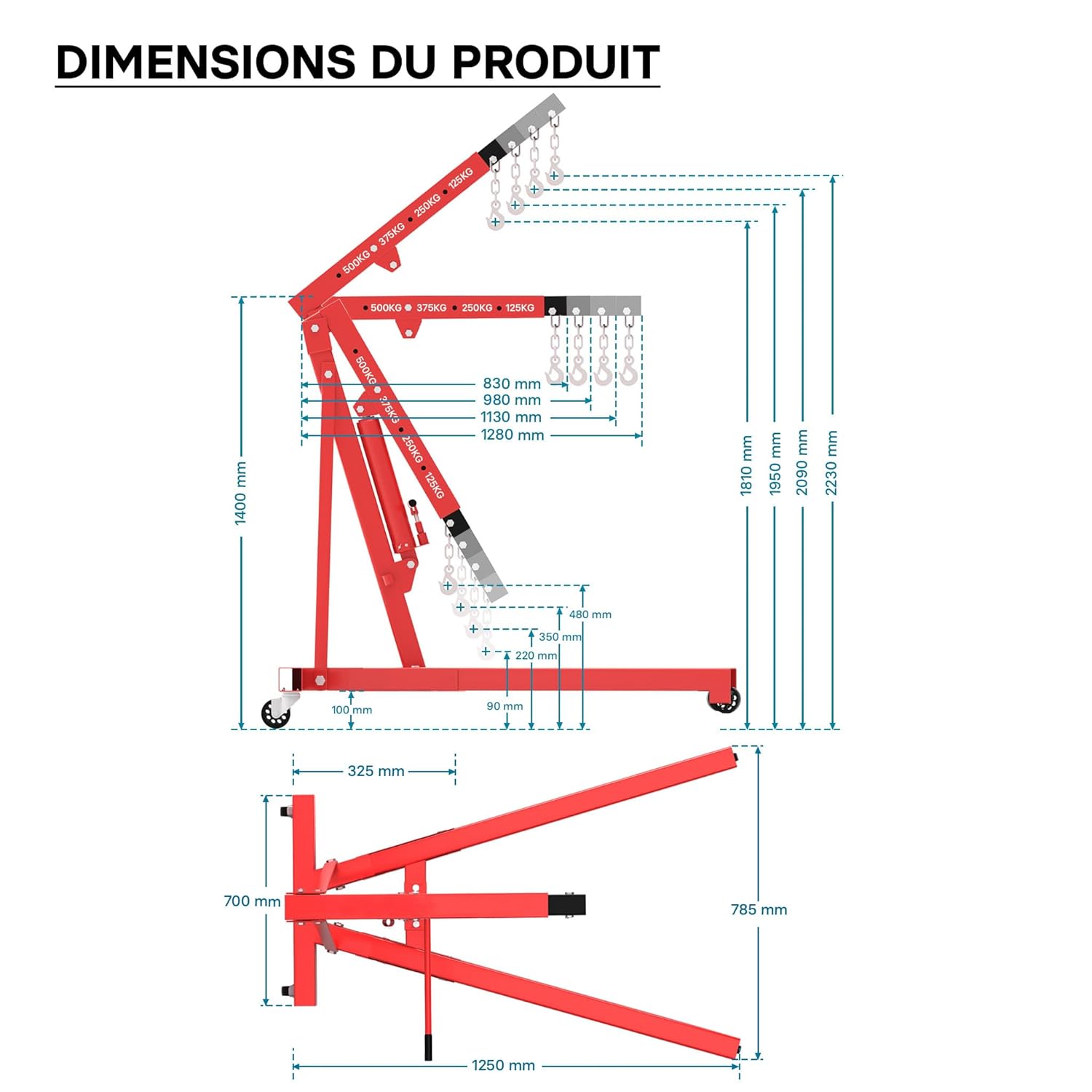

• Adjustable Boom: Features a 4-level adjustable boom (830-1280 mm) for versatile lifting heights and reach.
• мобільність: Four robust swivel casters ensure easy maneuverability, even with a load.
• Компактний дизайн: Foldable for compact storage and transport, optimizing workshop space.
• Міцна конструкція: Made from high-quality steel for exceptional robustness and longevity.

Технічні характеристики:

3. Інструкція зі складання

Follow these steps to assemble your Wiltec Hydraulic Workshop Crane. It is recommended to have assistance during assembly due to the weight and size of components.

1. Розпакуйте компоненти: Carefully unpack all parts and verify against the parts list (not provided in this manual, refer to product packaging).
2. Прикріпити ролики: Securely attach the four swivel casters to the base frame. Ensure all bolts are tightened.
3. Assemble Base Legs: Extend the foldable base legs. Insert the safety pins to lock them in the open position.


   Figure 1: Extending and securing the base legs of the crane.
4. Install Vertical Mast: Attach the vertical mast to the base. Ensure it is properly aligned and secured with the provided fasteners.
5. Mount Hydraulic Cylinder: Install the hydraulic cylinder to the mast and boom assembly.
6. Attach Boom: Connect the adjustable boom to the top of the mast and the hydraulic cylinder.
7. Insert Lifting Handle: Insert the lifting handle into the hydraulic pump mechanism.
8. Остаточна перевірка: Перед першим використанням перевірте всі з'єднання та кріплення, щоб переконатися в їх щільності та надійності.

4. Інструкція з експлуатації

This section details the proper procedure for operating your hydraulic workshop crane.

4.1. Preparing for Lift:

1. Position the Crane: Roll the crane to the desired lifting location. Ensure the area is clear of obstructions.
2. Витягнути ноги: If not already done, extend the base legs and secure them with the safety pins.
3. Adjust Boom Length: Select the appropriate boom extension based on the weight of the load. The boom has markings for 500 kg, 375 kg, 250 kg, and 125 kg.


   Figure 2: Adjustable boom with load capacity markings.
4. Безпечне завантаження: Attach the lifting chain and hook securely to the load. If lifting an engine, use an engine leveling bar (load balancer) for better control and balance.


   Figure 3: Crane lifting an engine using an engine leveling bar.

4.2. Lifting the Load:

1. Close Release Valve: Ensure the hydraulic release valve (usually a knob or screw) is fully closed by turning it clockwise.
2. Ручка насоса: Insert the lifting handle into the pump socket and pump it up and down to raise the boom and lift the load.
3. Навантаження монітора: Continuously monitor the load for stability and balance during lifting.

4.3. Lowering the Load:

1. Open Release Valve: Slowly turn the hydraulic release valve counter-clockwise to gradually lower the boom and the load.
2. Контрольований спуск: Control the lowering speed by adjusting how much the valve is opened.
3. Remove Load: Once the load is safely on the ground or support, detach the lifting chain and hook.

4.4. Video Demonstration:

5. Технічне обслуговування

Regular maintenance ensures the longevity and safe operation of your Wiltec Hydraulic Workshop Crane.

• Прибирання: Keep the crane clean and free from dirt, grease, and debris. Wipe down surfaces with a clean cloth.
• Змащення: Periodically lubricate all moving parts, including pivot points and casters, with appropriate grease or oil.
• Гідравлічна рідина: Check the hydraulic fluid level regularly. Top up with hydraulic jack oil if necessary. Do not overfill.
• Огляд: Regularly inspect the hydraulic cylinder, hoses, chains, and hooks for any signs of wear, corrosion, or damage. Replace worn or damaged parts immediately.
• Зберігання: When storing the crane, ensure the boom is fully retracted and the release valve is slightly open to relieve pressure on the hydraulic system. Fold the legs for compact storage.

6. Вирішення проблем

This section provides solutions to common issues you might encounter with your workshop crane.

7. Гарантія та підтримка

This product is covered by standard legal guarantees. For specific warranty details, returns, or technical support, please contact Wiltec Wildanger Technik GmbH directly or refer to your purchase documentation.

Продавець: Вілтек Вільдангер Технік ГмбХ

Повернення: 30-денна політика повернення

підтримка: Specialized Customer Support

Щоб отримати додаткову допомогу, відвідайте WilTec Store on Amazon.
