VOUNOT 5-in-1 Electric Weed Burner Hot Air Gun User Manual

1. Важлива інформація з безпеки

Please read and understand all safety instructions before operating the VOUNOT 5-in-1 Electric Weed Burner Hot Air Gun. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Always use with caution. This device generates high temperatures.
• Тримайте подалі від легкозаймистих матеріалів. Ensure a safe distance from dry grass, wood, plastics, and other combustible items.
• Уникайте прямого контакту зі шкірою та очима. The hot air can cause severe burns.
• Використовуйте захисний одяг. Wear heat-resistant gloves, long sleeves, and eye protection.
• In case of accidental exposure, seek medical advice immediately.
• Не залишайте пристрій без нагляду під час роботи.
• Ensure the device is completely cooled before storing.
• Зберігати в недоступному для дітей та домашніх тварин місці.
• Do not use in wet conditions or expose to rain.

2. Продукт закінчивсяview і компоненти

The VOUNOT 5-in-1 Electric Weed Burner is a versatile tool designed for weed removal, hot air applications, and barbecue lighting. It features a powerful 2000W motor and multiple temperature settings.

малюнок 2.1: The VOUNOT Electric Weed Burner shown as a long-handled weed burner, a short-handled hot air gun, and a compact handheld hot air gun.

малюнок 2.2: All components of the VOUNOT Electric Weed Burner, including the main unit, handle, extension pole, power cable, and various nozzles. Dimensions are also indicated.

Включені компоненти:

• Main Unit (Hot Air Gun)
• Long Handle / Extension Pole (67 cm)
• Ергономічна ручка
• Кабель живлення (5 м)
• 5 змінних насадок:
  • Weed Burning Nozzle
  • Barbecue Lighter Nozzle
  • Flat Nozzle (for paint removal)
  • Reduction Nozzle (for precision work, e.g., plastic welding, rust removal)
  • Glass Protection Nozzle (not explicitly mentioned but common for hot air guns)

3. Налаштування та складання

The VOUNOT Electric Weed Burner can be assembled in different configurations depending on the intended use.

малюнок 3.1: Detailed assembly steps showing how to attach the extension pole, handle, and various nozzles to the main unit.

3.1. Assembling the Long-Handled Weed Burner:

1. Attach the extension pole to the main unit by aligning the connectors and twisting until secure.
2. Attach the ergonomic grip handle to the top of the extension pole, ensuring it clicks into place.
3. Select the weed burning nozzle and attach it to the front of the main unit.
4. Secure the power cable along the extension pole using the provided clips if desired.

3.2. Assembling the Handheld Hot Air Gun:

1. Ensure the extension pole and ergonomic handle are detached from the main unit.
2. Select the appropriate nozzle for your task (e.g., flat nozzle for paint removal, reduction nozzle for plastic welding) and attach it to the front of the main unit.

Before plugging in the device, always ensure all components are securely attached and the correct nozzle is in place for your intended application.

4. Інструкція з експлуатації

The VOUNOT Electric Weed Burner offers three temperature settings and various nozzles for different applications.

малюнок 4.1: The three selectable temperature modes: 100°C, 350°C, and 650°C, controlled by a switch on the main unit.

4.1. Налаштування температури:

The device features a switch to select one of three temperature levels:

• Level I: 100°C - Suitable for gentle heating tasks.
• Level II: 350°C - Medium heat for various applications.
• Level III: 650°C - High heat for intensive tasks like weed burning or paint removal.

Allow the device a few moments to reach the selected temperature after switching on.

4.2. Застосування:

малюнок 4.2: Examples of the device's functions: burning weeds with the long handle, welding plastics with a precision nozzle, and lighting a barbecue with the dedicated nozzle.

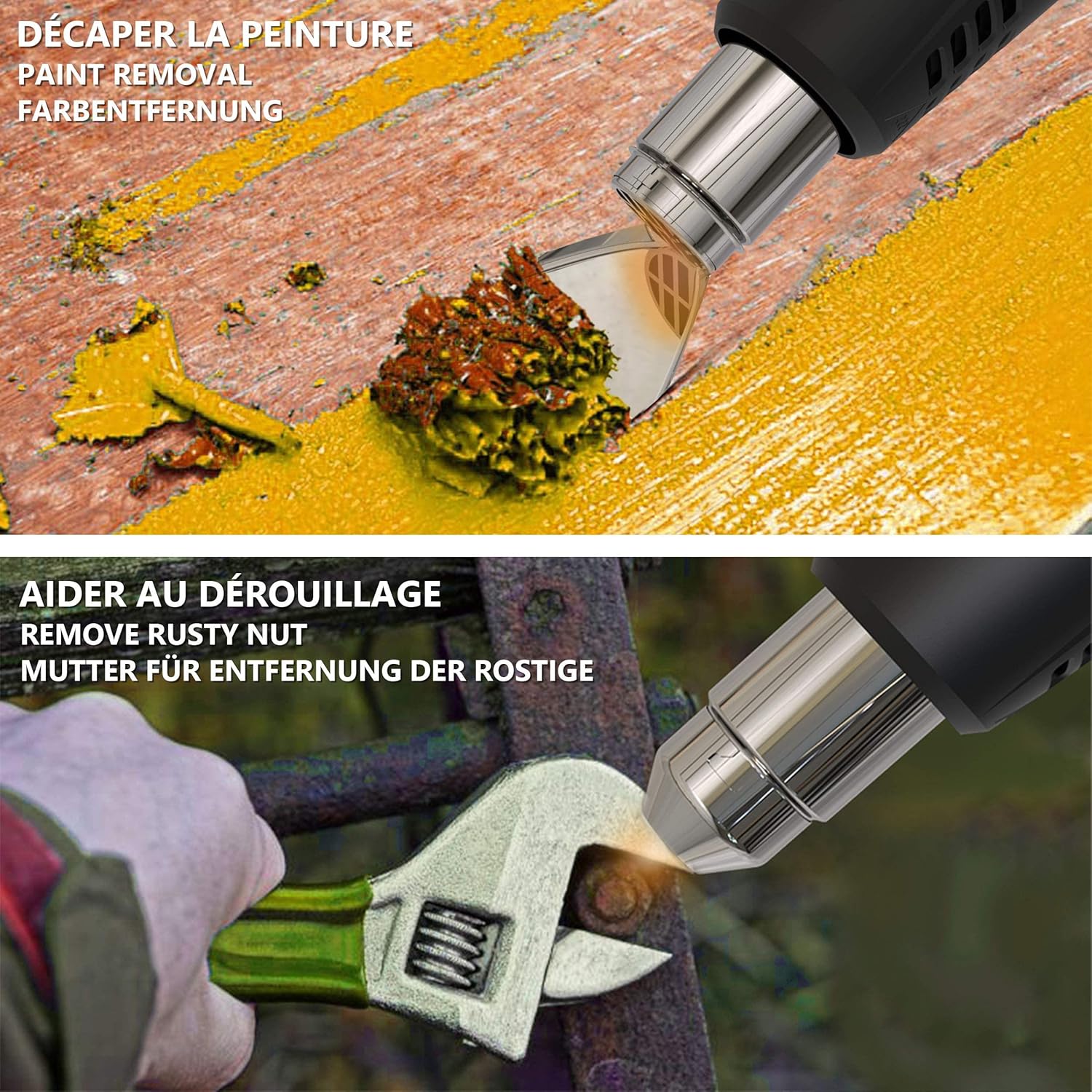

малюнок 4.3: Additional applications: removing paint from a surface using a flat nozzle and assisting in loosening a rusty nut with a reduction nozzle.

4.2.1. Weed Burning:

• Assemble the device with the long handle and weed burning nozzle.
• Select the highest temperature setting (650°C).
• Підключіть пристрій до мережі.
• Direct the hot air stream onto the weeds for a few seconds. The goal is to heat the plant cells, not to burn the plant to ash. The weed will wilt and die within a few days.
• Move slowly and deliberately over the target area.
• Ensure no flammable materials are nearby.

4.2.2. Hot Air Gun Applications (e.g., Paint Removal, Plastic Welding, Rust Removal):

• Assemble the device in handheld mode with the appropriate nozzle (e.g., flat nozzle for paint, reduction nozzle for welding/rust).
• Select the desired temperature setting (350°C or 650°C depending on the material and task).
• Підключіть пристрій до мережі.
• Direct the hot air onto the workpiece. For paint removal, heat the paint until it softens and then scrape it off. For plastic welding, heat the plastic until pliable. For rusty nuts, heat the nut to expand it, making it easier to loosen.
• Завжди працюйте в добре провітрюваному приміщенні.

4.2.3. Barbecue Lighter:

• Assemble the device in handheld mode with the barbecue lighter nozzle.
• Select a high temperature setting (650°C).
• Підключіть пристрій до мережі.
• Direct the hot air onto charcoal or wood until it ignites. Maintain a safe distance.
• Не використовувати з легкозаймистими рідинами.

5. Обслуговування та зберігання

Proper maintenance ensures the longevity and safe operation of your device.

• Прибирання: Після кожного використання переконайтеся, що пристрій відключено від мережі та повністю охолонув. Протріть зовнішню частинуamp тканина. Не використовуйте абразивні засоби чи розчинники.
• Догляд за насадками: Clean nozzles of any residue after use. Ensure they are free from blockages.
• Перевірка шнура: Regularly inspect the power cord for any signs of damage, cuts, or fraying. If damaged, do not use the device and seek professional repair.
• Зберігання: Store the device in a dry, cool place, away from direct sunlight and moisture. Ensure it is out of reach of children. Disassemble the long handle for more compact storage if desired.
• Вентиляційні отвори: Keep the air intake and exhaust vents clear of dust and debris to prevent overheating.

6. Вирішення проблем

If you encounter issues with your VOUNOT Electric Weed Burner, refer to the following common problems and solutions.

7. Технічні характеристики

8. Гарантія та підтримка клієнтів

For warranty information or customer support, please refer to the purchase documentation or contact VOUNOT directly through their official webсайт або роздрібний продавець, де було придбано товар.

Будь ласка, підготуйте номер вашої моделі (4512943079447) та підтвердження покупки, коли звертаєтесь до служби підтримки.
