1. Продукт закінчивсяview and Condition
This document provides guidance for the Harley-Davidson FLHTK1690 Right Pannier Case, identified by part numbers 90200729 and 32000402. This is a used genuine Harley-Davidson component. As a pre-owned item, it exhibits signs of prior use.
The pannier case generally shows scratches and touch-up marks consistent with normal wear for a used part. However, it is free from major defects such as significant cracks, breaks, or deep gouges. All mounting points are confirmed to be in good condition, ensuring proper installation. This item is suitable for direct use or as a base for restoration or custom painting projects.

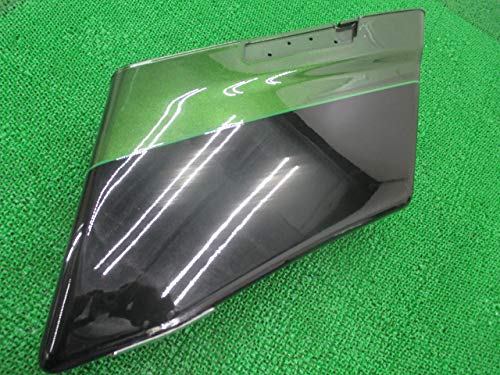

Рисунок 1: Загалом view of the Harley-Davidson FLHTK1690 Right Pannier Case. Note the green and black finish.
2. Сумісність
This right pannier case is designed for the Harley-Davidson FLHTK1690 motorcycle model. Please verify compatibility with your specific motorcycle year and model before attempting installation. Consult your motorcycle's service manual or a certified Harley-Davidson dealer for precise fitment information.
- Виробник: Harley-Davidson
- Motorcycle Model: FLHTK1690
- Тип частини: Right Pannier Case
- Engraving/Part Number: 90200729, 32000402
3. Pre-Installation Inspection
Before installing the pannier case, perform a thorough inspection to ensure its integrity and readiness for use.
- Візуальний огляд: Carefully inspect the exterior and interior surfaces for any new damage that may have occurred during shipping.
- Точки кріплення: Verify that all mounting tabs and holes are intact, free from cracks, deformation, or stripped threads. Ensure they align correctly with your motorcycle's mounting hardware.
- Latching Mechanism (if applicable): If the case includes a latch, test its operation to confirm it opens and closes smoothly and securely.
- Seals/Gaskets (if applicable): Check any rubber seals or gaskets for signs of deterioration, cracking, or compression that could compromise water resistance.
- Internal Condition: Inspect the interior for any foreign objects or damage.
Рисунок 2: Зовнішній вигляд view of the pannier case, highlighting the surface finish and potential areas for inspection.
4. Інструкції зі встановлення
Installation of this pannier case typically involves attaching it to existing mounting points on the motorcycle. Always refer to your specific Harley-Davidson FLHTK1690 service manual for detailed, model-specific installation instructions and torque specifications.
- Безпека перш за все: Ensure the motorcycle is stable on a level surface, preferably on a stand, before beginning any work. Disconnect the battery if necessary.
- Необхідні інструменти: Gather all necessary tools as specified in your motorcycle's service manual (e.g., wrenches, sockets, torque wrench).
- Монтажне обладнання: Use appropriate mounting hardware. If reusing existing hardware, inspect it for wear and replace if necessary.
- Вирівнювання: Carefully align the pannier case with the motorcycle's mounting brackets. Do not force the case into position.
- Кріплення: Secure all fasteners according to the torque specifications provided in your motorcycle's service manual. Overtightening can damage the case or mounting points.
- Остаточна перевірка: After installation, gently tug on the pannier case to ensure it is securely attached and does not interfere with any other motorcycle components or rider movement.

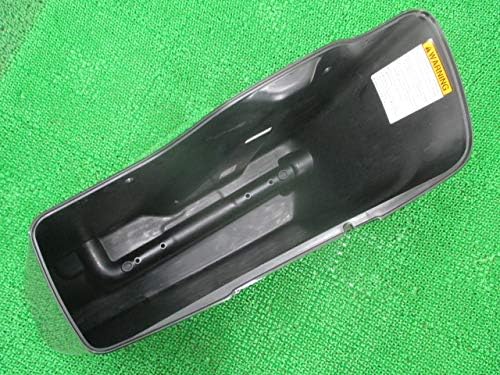

Рисунок 3: Інтер'єр view of the pannier case, illustrating the internal structure and mounting points for attachment to the motorcycle.
5. Догляд і технічне обслуговування
Proper care will extend the life and appearance of your used pannier case.
- Прибирання: Clean the exterior with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish. Use a soft cloth to dry.
- захист: Consider applying a protective wax or sealant to the painted surfaces to help maintain their appearance and offer some protection against environmental elements.
- Регулярна перевірка: Periodically check all mounting hardware for tightness. Vibrations from riding can loosen fasteners over time.
- Зберігання: If removing the pannier case for storage, store it in a clean, dry place away from direct sunlight and extreme temperatures.
6. Технічні характеристики
| Особливість | Деталь |
|---|---|
| Бренд | Harley-Davidson |
| Motorcycle Model | FLHTK1690 |
| Тип частини | Right Pannier Case |
| Part Number (Engraving) | 90200729 |
| Довідка виробника | Harley-Davidson-32000402 |
| Колір | Green Metallic / Black Metallic |
| Хвороба | Used (Scratches and touch-up marks present; no major cracks or breaks; mounting points good) |
7. Важливі примітки
This pannier case is a used item. While it has been inspected for major defects, minor imperfections such as scratches, scuffs, and touch-up marks are inherent to its pre-owned status. The information provided in this manual is for general guidance. Always prioritize safety and consult professional motorcycle technicians if you are unsure about any installation or maintenance procedures.
For optimal performance and safety, ensure all components are correctly installed and maintained according to Harley-Davidson's official service guidelines for your specific motorcycle model.
