Yaheetech Wall Mount Medicine Cabinet YT-00095725 User Manual

1. Продукт закінчивсяview

The Yaheetech Wall Mount Medicine Cabinet (Model YT-00095725) is designed to provide additional storage and functionality in your bathroom or other living spaces. This espresso-colored wooden cabinet features two mirrored doors and an adjustable interior shelf, allowing for customizable storage solutions. It is constructed from P2 compliant MDF with a water-resistant paint finish.

This image displays the Yaheetech Wall Mount Medicine Cabinet in an espresso finish, featuring two mirrored doors and an open lower shelf. The cabinet is shown from a frontal perspective, highlighting its design and storage compartments.

Ключові характеристики:

• Регульована полиця: The interior shelf can be positioned at 3 different heights (13cm/5'', 19.5cm/7.7'', 27cm/10.6'') to accommodate items of various sizes.
• Mirrored Doors: Two integrated mirrored doors provide convenience for daily grooming and eliminate the need for a separate mirror.
• Компактний дизайн: Wall-mounted design maximizes floor space and utilizes vertical wall area for storage.
• Міцна конструкція: Made from P2 compliant MDF with a water-resistant paint finish for longevity and safety.
• Простота складання: Designed for straightforward assembly with included instructions and hardware.

2. Інформація про безпеку

Please read and understand all safety instructions before assembly and installation. Failure to follow these instructions may result in injury or damage to the product.

• Тримайте всі дрібні деталі та пакувальні матеріали подалі від дітей та домашніх тварин, щоб запобігти небезпеці задухи.
• Перед використанням переконайтеся, що всі гвинти та кріплення надійно затягнуті. Періодично перевіряйте та за потреби підтягуйте.
• Do not overload the cabinet or shelves. Refer to the Specifications section for maximum weight capacity.
• For wall mounting, identify suitable wall studs or use appropriate wall anchors for your wall type. Improper installation can lead to the cabinet falling.
• Use caution when handling mirrored doors to avoid breakage and injury.
• Збирайте виріб на м’якій, чистій поверхні, щоб запобігти подряпинам.

3. Вміст упаковки

Перед початком складання перевірте наявність усіх компонентів. Якщо якісь деталі відсутні або пошкоджені, зверніться до служби підтримки клієнтів.

• Панелі шафи (верхня, нижня, бічні, задня)
• Mirrored doors (2)
• Adjustable shelf (1)
• Door hinges (4)
• Door knobs (2)
• Assembly hardware (screws, dowels, shelf pins, wall mounting hardware)
• Інструкція з експлуатації

4. Налаштування та складання

Assembly typically takes approximately 30 minutes for one adult. Follow the included illustrated instructions carefully. It is recommended to assemble the cabinet on a soft, flat surface to prevent damage.

4.1 Етапи складання:

1. Підготуйте компоненти: Unpack all parts and lay them out. Identify each component using the parts list in the separate instruction manual.
2. Збірка каркаса шафи: Connect the side panels to the top and bottom panels using the provided dowels and screws. Ensure all connections are secure.
3. Встановлення задньої панелі: Прикріпіть задню панель до зібраного каркаса.
4. Прикріпити петлі: Secure the hinges to the cabinet frame and then to the mirrored doors.
5. Встановити двері: Mount the mirrored doors onto the cabinet frame using the attached hinges. Adjust as needed for proper alignment.
6. Прикріпити ручки: Fasten the decorative knobs to the mirrored doors.
7. Вставити регульовану полицю: Place the shelf pins into the desired height holes inside the cabinet. Carefully slide the adjustable shelf onto the pins.

This image illustrates the adjustable shelf feature inside the cabinet. Arrows indicate that the shelf can be moved up or down to one of three different height settings, providing flexible storage options.

Крупний план view of a black metal hinge used for the cabinet doors, showing the screws for attachment. This detail is important for proper door installation and alignment.

This image shows a close-up of the two antique brass-colored round knobs attached to the mirrored doors, which are used for opening and closing the cabinet.

4.2 Настінне кріплення:

The cabinet is designed for wall mounting. Proper installation is crucial for stability and safety.

1. Виберіть місце: Select a suitable wall location, considering height and proximity to other fixtures.
2. Знайдіть стінові стійки: Use a stud finder to locate wall studs. Mounting directly into studs provides the most secure installation. The pre-drilled mounting holes on the cabinet may not align with standard 16-inch stud spacing; you may need to drill new pilot holes in the cabinet's back panel or use appropriate heavy-duty wall anchors if studs are not accessible.
3. Позначте точки буріння: Hold the cabinet against the wall at the desired height and mark the drilling points for the mounting screws.
4. Просвердліть пілотні отвори: Drill pilot holes at the marked locations. If not mounting into studs, install appropriate wall anchors according to their instructions.
5. Монтажна шафа: Carefully lift the cabinet and align the mounting holes with the drilled holes/anchors. Insert and tighten the mounting screws until the cabinet is securely fastened to the wall. Do not overtighten.

Важливо: Ensure the cabinet is level and securely attached to the wall before placing any items inside.

5. Інструкція з експлуатації

5.1 Using the Mirrored Doors:

Gently pull the knobs to open the mirrored doors. Push the doors closed until they are flush with the cabinet frame. Avoid slamming the doors to prevent damage to the hinges and mirrors.

5.2 Adjusting the Shelf:

To adjust the height of the interior shelf:

1. Приберіть усі предмети з полиці.
2. Обережно підніміть полицю та вийміть чотири штифти полиці з їхніх отворів.
3. Insert the shelf pins into the desired new set of holes. Ensure all four pins are at the same height.
4. Place the shelf back onto the pins, ensuring it is stable and level.

The shelf can be adjusted to heights of 13cm (5 inches), 19.5cm (7.7 inches), or 27cm (10.6 inches).

6. Технічне обслуговування

Regular maintenance will help prolong the life and appearance of your cabinet.

• Прибирання шафи: Протріть поверхні шафи м’якою тканиноюamp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Dry immediately with a clean cloth. Avoid harsh chemicals or abrasive cleaning tools.
• Cleaning the Mirrors: Use a standard glass cleaner and a soft, lint-free cloth to clean the mirrored surfaces. Spray cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the edges.
• Перевірка обладнання: Periodically check all screws, hinges, and mounting hardware to ensure they remain tight. Re-tighten as needed to maintain stability.
• Уникайте надмірної вологи: While the cabinet has a water-resistant finish, avoid prolonged exposure to excessive moisture. Wipe up spills immediately.

This image demonstrates the water-resistant property of the cabinet's surface, showing water droplets being easily wiped away with a cloth. This highlights the ease of cleaning and protection against moisture.

7. Вирішення проблем

У цьому розділі розглядаються поширені проблеми, з якими ви можете зіткнутися.

8. Технічні характеристики

This diagram provides the key measurements of the cabinet: 22 inches wide, 22.8 inches total height, 5.1 inches deep. The upper cabinet section is 15.4 inches high, and the open shelf below is 5.9 inches high.

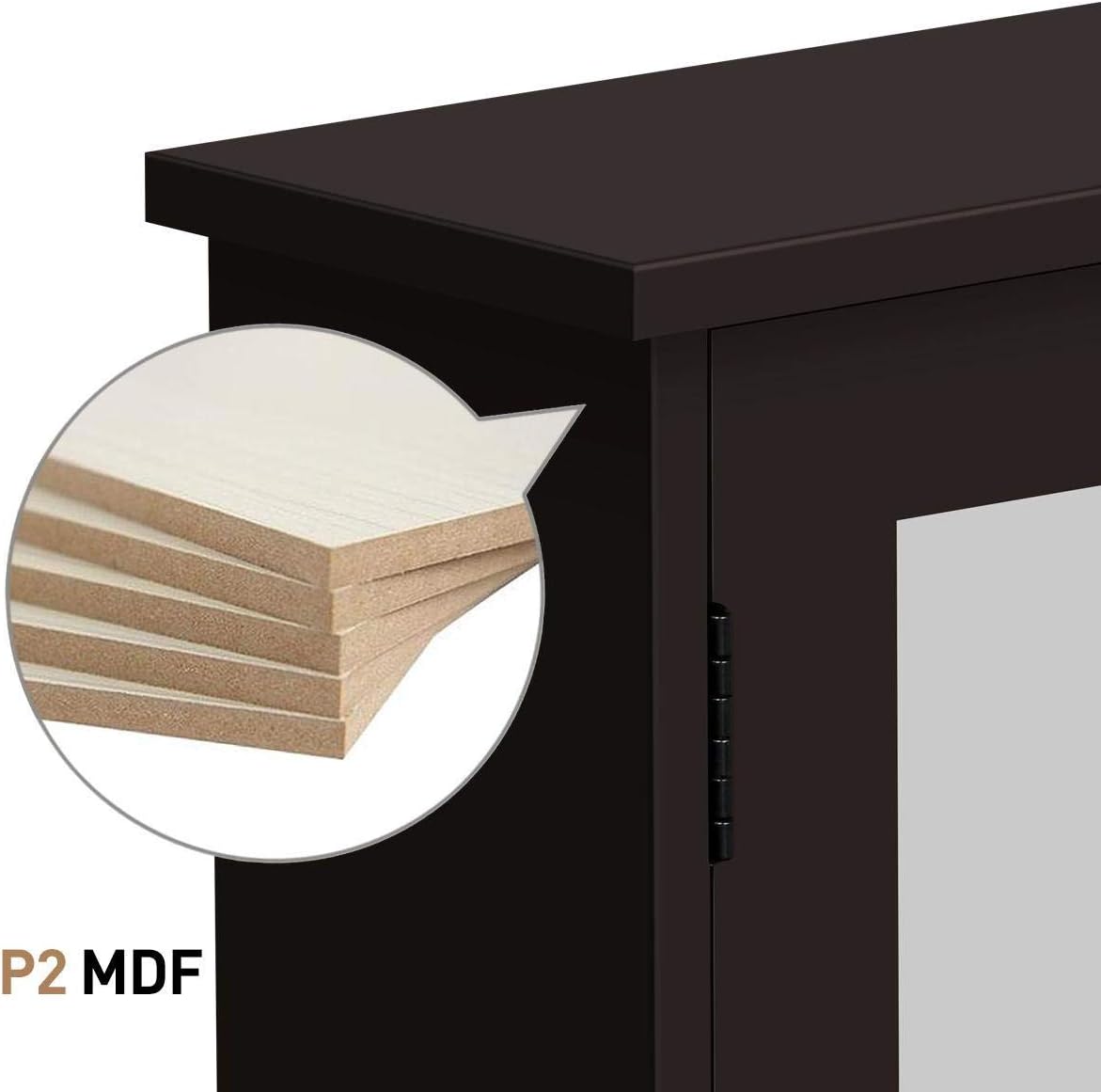

A close-up image showing stacked sheets of P2 compliant Medium-Density Fiberboard (MDF), indicating the primary construction material of the cabinet. This material is chosen for its durability and environmental compliance.

9. Гарантія та підтримка

For warranty information, product support, or to report missing/damaged parts, please contact Yaheetech customer service directly. Refer to the contact information provided with your purchase or visit the official Yaheetech webсайт.

Бренд: Yaheetech

модель: YT-00095725
