Goplus hw66185gr-1_2

Goplus Gaming Massage Office Chair Instruction Manual

Model: hw66185gr-1_2

1. Інформація про безпеку

Please read and understand all safety instructions before assembling or using your Goplus Gaming Massage Office Chair. Retain this manual for future reference.

2. Особливості продукту

The Goplus Gaming Massage Office Chair is designed for comfort and versatility, featuring:

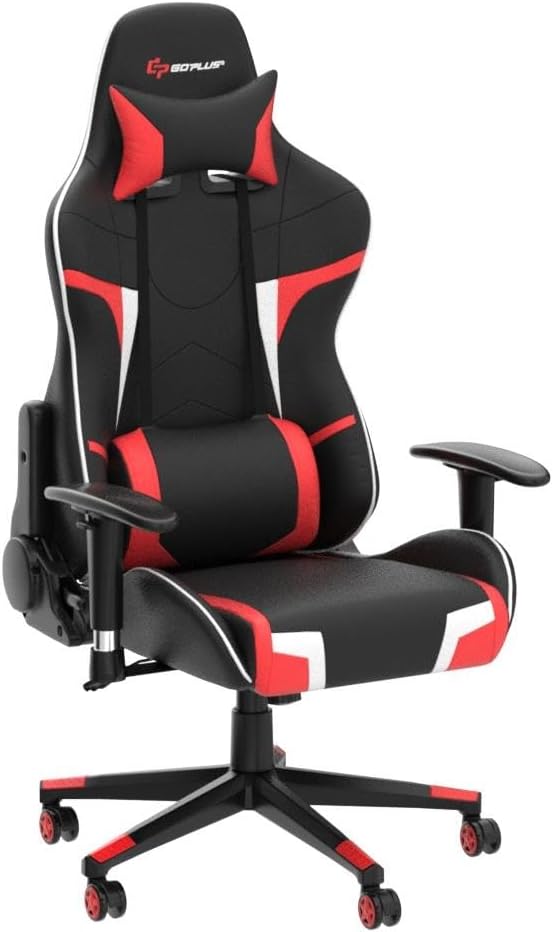

Goplus Gaming Massage Office Chair in Red

Figure 1: Goplus Gaming Massage Office Chair (Red)

Chair dimensions and 330 lbs weight capacity

Figure 2: Chair Dimensions and Weight Capacity (Max 330 lbs)

Massage waist support with USB connection and power bank pocket

Figure 3: Lumbar Massage Cushion with USB Power Bank Pocket

Adjustable backrest from 90 to 180 degrees

Figure 4: Angle Adjustable Backrest (90°-180°)

Adjustable seat height and armrests

Figure 5: Seat Height and Armrest Adjustments

3. Налаштування та складання

Follow these steps to assemble your Goplus Gaming Massage Office Chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.

  1. Прикріпіть коліщатка до основи: Вставте п’ять коліщаток у отвори на кінці кожної ніжки основи стільця. Міцно натисніть, доки вони не зафіксуються на місці.
  2. Встановлення газового ліфта: Place the gas lift cylinder into the center hole of the assembled chair base. Cover it with the telescopic cover.
  3. Прикріпіть підлокітники до сидіння: Secure the armrests to the underside of the seat cushion using the provided screws and Allen wrench. Ensure they are firmly tightened.
  4. Mount Mechanism to Seat: Attach the seat mechanism to the underside of the seat cushion, aligning the 'FRONT' arrow on the mechanism with the front of the seat. Secure with screws.
  5. З'єднання спинки з сидінням: Align the backrest with the metal brackets on the seat. Secure with screws on both sides. Attach the plastic covers over the brackets.
  6. Встановіть зібране сидіння на газовий підйомник: Обережно помістіть зібране сидіння та спинку на газовий ліфтовий циліндр, переконавшись, що вони відцентровані та стійкі.
  7. Прикріпити подушки: Secure the lumbar massage cushion and headrest pillow using their adjustable straps. The lumbar cushion's USB cable can be connected to a power bank stored in the side pocket.

Video 1: Goplus Gaming Chair Overview. This video demonstrates various features and adjustments of the Goplus Gaming Chair, including its mobility, adjustable components, and ergonomic design. It provides a visual guide to the chair's functionality.

4. Інструкція з експлуатації

4.1. Регулювання висоти сидіння

To adjust the seat height, locate the lever on the right side, beneath the seat. Pull the lever upwards while lifting your weight off the seat to raise it. To lower the seat, pull the lever upwards while remaining seated.

4.2. Нахил спинки

To recline the backrest, pull the lever on the left side of the seat upwards and lean back to your desired angle (between 90° and 180°). Release the lever to lock the backrest in position. To return to an upright position, pull the lever and lean forward slightly.

4.3. Регулювання підлокітника

The armrests can be adjusted for height. Press the button on the side of each armrest and move it up or down to your preferred height. Release the button to lock it.

4.4. Lumbar Massage Function

The lumbar cushion features a massage function. Connect the USB cable from the cushion to a power bank (not included) stored in the dedicated pocket under the seat. Use the integrated controller to turn the massage on/off and select desired settings.

Video 2: Goplus Massage Gaming Chair Demonstration. This video highlights the massage capabilities of the Goplus Gaming Chair, showing how to activate and use the lumbar massage feature for enhanced comfort during extended use.

5. Технічне обслуговування

Правильний догляд подовжить термін служби та покращить зовнішній вигляд вашого крісла.

6. Вирішення проблем

Якщо у вас виникли проблеми зі своїм кріслом, зверніться до наступних поширених рішень:

If problems persist, please contact Goplus customer support for further assistance.

7. Технічні характеристики продукту

ОсобливістьСпецифікація
БрендГоплюс
Назва моделіhw66185gr-1_2
КолірЧервоний
Розміри продукту29" Г x 29" Ш x 54" В
матеріалFaux Leather, Sponge (Fill Material)
Рекомендована максимальна вага330 фунтів (150 кг)
Стиль спиниСуцільна спинка
ОсобливістьAdjustable, Flexible, Massage Lumbar Cushion
Підрахунок положення лежачи2 (від 90° до 180°)
Рух основи меблівПоворотний
Рекомендоване використанняGaming, Relaxing, Office

8. Гарантія та підтримка

Goplus is committed to providing high-quality products. For any warranty claims, technical support, or inquiries regarding your Goplus Gaming Massage Office Chair, please refer to the contact information provided at the point of purchase or visit the official Goplus webсайт.

Будь ласка, збережіть підтвердження покупки для гарантійних цілей.
