V-TAC VT-120ST 120W LED Streetlight User Manual

1. Вступ

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your V-TAC VT-120ST 120W LED Streetlight, Model 542. Please read these instructions carefully before installation and retain them for future reference.

The V-TAC VT-120ST is a high-performance LED streetlight designed for road lighting, highways, general parking areas, and other spaces requiring wide-angle illumination. It features a robust aluminum body, IP65 weather protection, and efficient LED technology.

2. Техніка безпеки

WARNING: Electrical installation should only be performed by a qualified electrician in accordance with all local and national electrical codes.

• Завжди відключайте живлення перед встановленням, технічним обслуговуванням або очищенням.
• Забезпечити подачу обtage matches the product's specifications.
• Не використовуйте виріб, якщо він пошкоджений.
• Avoid direct eye exposure to the light source when the product is operating.
• Забезпечте належне заземлення, щоб запобігти ураженню електричним струмом.
• Зберігайте пакувальні матеріали в недоступному для дітей місці.

3. Продукт закінчивсяview

The V-TAC VT-120ST LED Streetlight is designed for durability and efficient illumination. It comes with an adapter for power connection.

Figure 3.1: The V-TAC VT-120ST LED Streetlight as packaged in its box, indicating model number VT-120ST/SKU542 and 130LM+/Watt efficiency.

Малюнок 3.2: Спереду view of the V-TAC VT-120ST LED Streetlight, showcasing the LED array and housing design.

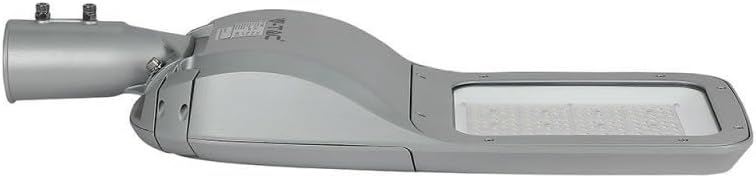

Рисунок 3.3: Бічний профіfile of the V-TAC VT-120ST LED Streetlight, highlighting its sleek, aerodynamic design.

Малюнок 3.4: Верх view of the V-TAC VT-120ST LED Streetlight, showing the overall shape and mounting point.

4. Налаштування та встановлення

The VT-120ST streetlight supports both horizontal and vertical installation methods. Always ensure the mounting surface is strong enough to support the fixture's weight and that all connections are secure.

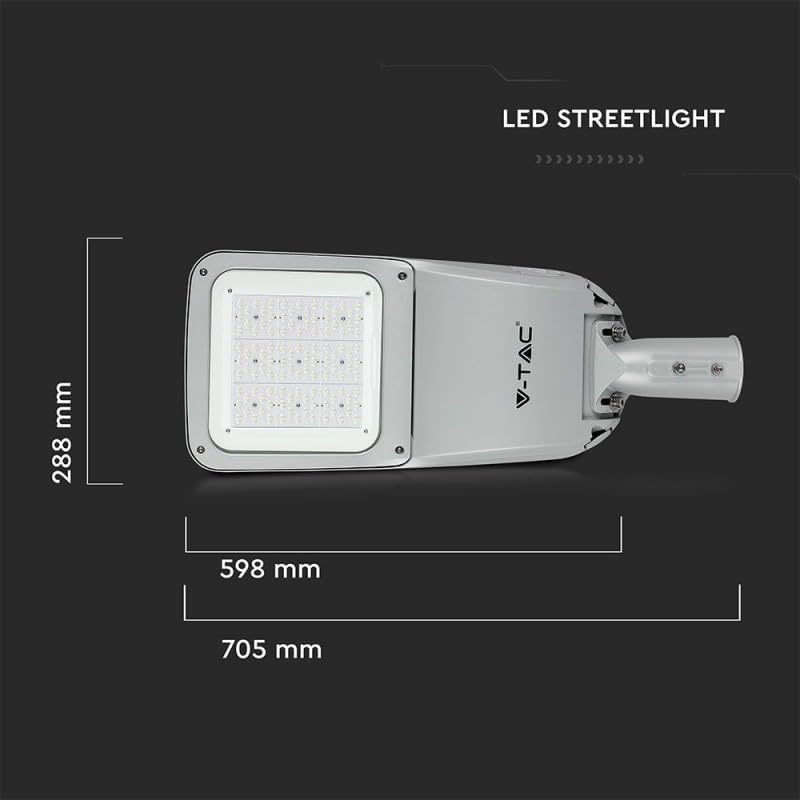

Figure 4.1: Product dimensions of the V-TAC VT-120ST LED Streetlight, showing lengths of 705 mm, 598 mm, and a width of 288 mm.

Figure 4.2: Illustration demonstrating both horizontal and vertical installation options for the streetlight, suitable for various road and area lighting needs.

4.1 Монтаж

1. Підготуйте жердинку: Ensure the pole is stable and capable of supporting the streetlight's weight.
2. Прикріпіть монтажний кронштейн: Securely attach the streetlight's mounting arm to the pole using appropriate hardware. The design allows for adjustment to achieve the desired light direction.
3. Орієнтація: Choose between vertical or horizontal orientation based on your lighting requirements. The fixture is designed to provide optimal light distribution in either setup.

4.2 Електропроводка

1. Відключення живлення: Ensure the main power supply is OFF before proceeding with any wiring.
2. Відсік для підключення проводів: Open the wiring compartment on the streetlight fixture.
3. Підключіть дроти: Connect the live, neutral, and ground wires from the power supply to the corresponding terminals inside the fixture. Ensure all connections are tight and secure.
4. Закрити відсік: Close the wiring compartment securely to maintain the IP65 rating.

5. Інструкція з експлуатації

The V-TAC VT-120ST LED Streetlight is designed for straightforward operation.

1. Увімкнення: Once installation and wiring are complete and verified, restore power to the circuit. The streetlight will illuminate.
2. Автоматична робота: For automated operation, connect the streetlight to a suitable external control system (e.g., photocell, timer, or DALI system if applicable) as per the control system's instructions.

Figure 5.1: V-TAC LED Streetlights providing bright, uniform illumination on a road at night.

Figure 5.2: Multiple V-TAC LED Streetlights effectively lighting a highway, demonstrating their application in large-scale outdoor environments.

6. Технічне обслуговування

Regular maintenance ensures optimal performance and longevity of your LED streetlight.

• Прибирання: Periodically clean the outer surface of the fixture, especially the lens, with a soft, damp тканина. Не використовуйте абразивні засоби чи розчинники.
• Огляд: Регулярно перевіряйте прилад на наявність будь-яких ознак пошкоджень, нещільних з'єднань або зносу. Негайно усувайте будь-які проблеми.
• Рейтинг IP65: The IP65 rating ensures protection against dust and water jets. Do not open the sealed compartments unless absolutely necessary for repair by a qualified technician, as this may compromise the IP rating.

Figure 6.1: Visual representation of the streetlight's IP65 rating, indicating its resistance to water and dust ingress.

7. Вирішення проблем

If you encounter issues with your V-TAC VT-120ST LED Streetlight, refer to the following common problems and solutions:

• Світло не вмикається:
      - Check the power supply and circuit breaker.
      - Переконайтеся, що всі з'єднання проводів надійні.
      - Verify the input voltage matches the product specification.
• Мерехтіння світла:
      - Check for loose wiring connections.
      - Ensure stable power supply.
      - Consult a qualified electrician if the issue persists.
• Знижена світлова потужність:
      - Clean the lens surface to remove dirt or debris.
      - Переконайтеся, що робоча температура знаходиться в межах зазначеного діапазону.

For problems not listed here, please contact V-TAC customer support or a qualified electrician.

8. Технічні характеристики

Technical specifications for the V-TAC VT-120ST 120W LED Streetlight, Model 542:

Figure 8.1: Illustration showing the 150x80° beam angle and 130 Lumen/Watt efficiency of the streetlight.

Figure 8.2: Detail highlighting the 10 KV surge protection and compatibility with DALI drivers for advanced control.

Figure 8.3: The EU Energy Label for V-TAC Model 542, indicating an energy efficiency class of F and energy consumption of 120 kWh/1000h. For more details, visit the База даних EPREL.

9. Гарантія та підтримка

V-TAC products are manufactured to high standards and come with a warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact your V-TAC retailer or visit the official V-TAC webсайт для контактної інформації служби підтримки клієнтів.
