Godox X2T-N 2.4G Wireless Flash Trigger for Nikon

вступ

The Godox X2T-N is a 2.4G wireless flash trigger designed for Nikon cameras, offering comprehensive control over Godox flashes and other compatible lighting equipment. This device supports i-TTL autoflash, high-speed sync, multi-flash, and manual flash modes, providing versatile lighting solutions for photographers. Its user-friendly interface and robust wireless capabilities ensure reliable performance for various photographic needs.

Ключові характеристики

• Built-in 2.4G Wireless Transmission: Offers an operating distance of up to 100 meters.
• Group and Channel Control: Supports up to 5 groups and 32 channels for flexible flash management.
• Multiple Trigger Functions: Can act as a wireless Godox Flash Trigger, wireless Speedlite Trigger for Nikon, wireless Shutter Release Trigger, or a Flash Trigger with a 2.5mm sync cord jack.
• Clear LCD Panel: Large and clear LCD panel for convenient operation and settings display.
• Оновлення мікропрограми: Supports firmware updates via a Type-C USB cable.
• Універсальні функції: Includes sync delay setting, wireless shutter release, zoom setting, and customizable C.Fn functions.
• Повна підтримка TTL: Features TTL autoflash, 1/8000s High-Speed Sync (HSS), Multi Flash, Manual Flash, Flash Exposure Compensation (FEC), TCM transform function, Magnification function, One-Shoot and Multi-Shoot settings, Modeling Lamp Group Control, Group Zoom, and simultaneous adjustment of all groups' output values.
• Підтримка Bluetooth: Connects to smartphones (iPhone, Android) via the "GodoxPhoto" APP for remote control of flash mode, power output, modeling light mode, and beep sound.

Налаштування

1. Встановлення батареї

The Godox X2T-N requires two AA batteries (not included) for operation. To install, slide open the battery compartment cover located on the side of the unit. Insert the batteries according to the polarity indicators (+/-) inside the compartment. Close the cover securely.

Зображення: Збоку view of the Godox X2T-N, highlighting the Type-C USB port, 3.5mm sync cord jack, and the open battery compartment for two AA batteries.

2. Монтаж на камеру

Slide the X2T-N's hot shoe onto your Nikon camera's hot shoe. Ensure it is fully seated. Lock the trigger in place by rotating the locking ring or lever on the trigger's base. This secures the connection and prevents accidental dislodging.

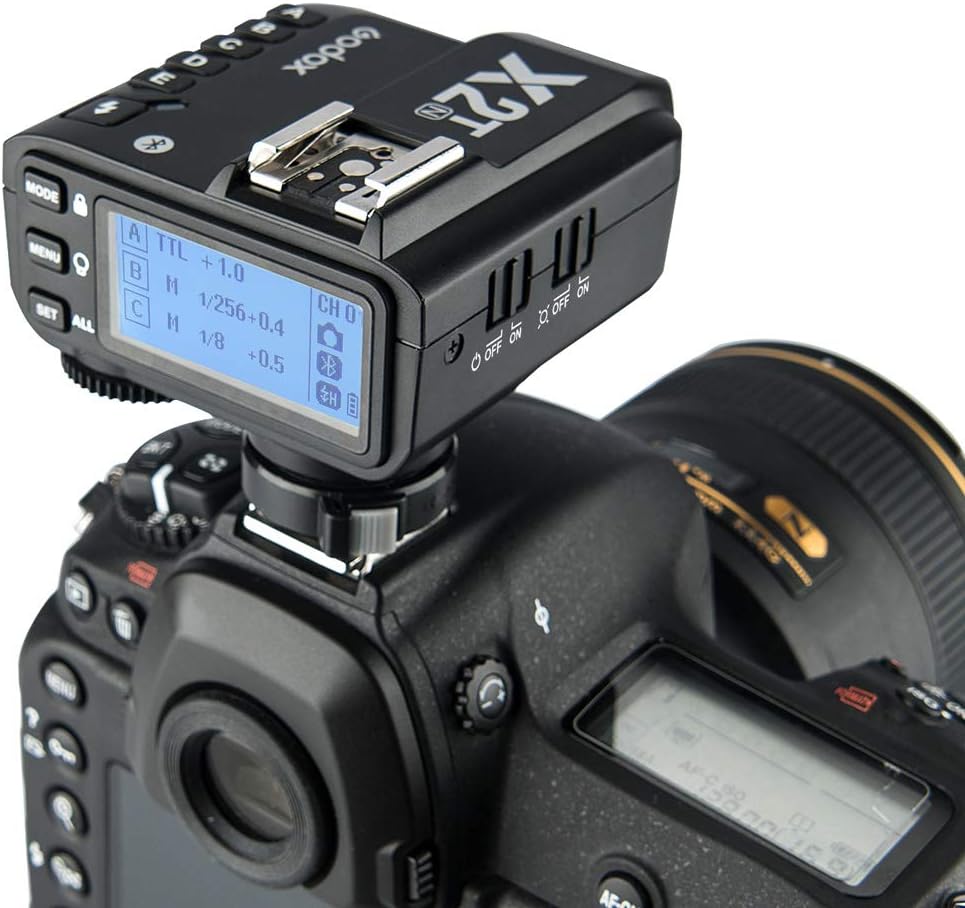

Image: The Godox X2T-N flash trigger securely mounted on the hot shoe of a Nikon DSLR camera.

3. Увімкнення/вимкнення живлення

To power on the X2T-N, slide the power switch located on the side of the unit to the 'ON' position. The LCD screen will illuminate. To power off, slide the switch to the 'OFF' position.

4. Initial Settings (Channel, Group, ID)

Before use, ensure the trigger and your flashes are set to the same channel and wireless ID. Use the 'CH' button to select a channel (1-32) and the 'ID' button to set a wireless ID (01-99). The X2T-N features a scan setting function to automatically detect the channel with the least interference, improving wireless stability. Access this function through the menu.

Зображення: Крупний план view of the Godox X2T-N's LCD screen, displaying current settings for groups (A, B, C), flash modes (TTL, M), power levels, and channel (CH 01).

Інструкція з експлуатації

1. Вибір режиму (TTL, ручний, багатоканальний)

Натисніть РЕЖИМ button to cycle through TTL (Through-The-Lens), Manual (M), and Multi (Stroboscopic) flash modes. The selected mode will be displayed on the LCD screen.

2. Груповий контроль

The X2T-N supports up to 5 groups (A, B, C, D, E). Press the corresponding group button (A, B, C, D, E) on the left side of the trigger to select a group. Use the dial and НАБІР button to adjust the flash mode and power output for the selected group. Press the ВСЕ button to adjust all groups simultaneously.

Image: A hand holding the Godox X2T-N, illustrating the placement of the group selection buttons (A, B, C, D, E) on the left side of the unit.

3. Високошвидкісна синхронізація (HSS)

The X2T-N supports High-Speed Sync up to 1/8000s. When HSS is enabled on your camera and compatible flash, the trigger will automatically activate HSS mode, allowing you to use wider apertures in bright conditions.

4. Компенсація експозиції спалаху (FEC)

In TTL mode, use the dial to adjust Flash Exposure Compensation (FEC) from -3 to +3 stops in 1/3 stop increments. This allows fine-tuning of flash output for optimal exposure.

5. Функція перетворення TCM

The TCM (TTL Converted to Manual) function allows you to quickly convert a TTL exposure value into a manual power output. This is useful for maintaining consistent lighting when switching from TTL to manual mode.

6. Управління масштабуванням

The X2T-N can control the zoom position of compatible flashes. Access the zoom setting through the menu and use the dial to adjust the zoom head position to match your lens focal length.

7. Бездротовий спуск затвора

Connect the X2T-N to your camera's remote control port using an appropriate cable (sold separately) to use it as a wireless shutter release. This allows you to trigger your camera remotely.

Image: Illustrations demonstrating the Godox X2T-N's versatility as a trigger for various lighting setups, including Godox flashes, Nikon Speedlites, a camera shutter, and flashes connected via a 3.5mm sync cord.

8. Bluetooth Control via GodoxPhoto APP

Download the "GodoxPhoto" APP on your iPhone or Android device. Enable Bluetooth on your smartphone and pair it with the X2T-N. Through the app, you can remotely control flash modes, power output, modeling light settings, and the beep sound of compatible Godox flashes.

Image: A visual representation of the Bluetooth connectivity, showing a smartphone running the GodoxPhoto app wirelessly controlling the X2T-N, which in turn controls multiple Godox flashes.

9. Оновлення мікропрограми

To update the firmware, connect the X2T-N to a computer using a Type-C USB cable. Download the latest firmware from the official Godox website and follow the provided instructions for the update process. Regular firmware updates can improve performance and add new features.

Технічне обслуговування

1. Догляд за акумулятором

• Remove batteries when the unit is not in use for extended periods to prevent leakage.
• Use high-quality AA alkaline or rechargeable Ni-MH batteries.
• Replace both batteries simultaneously; do not mix old and new batteries or different types.

2. прибирання

Протріть пристрій м’якою сухою тканиною. Для стійкого бруду використовуйте злегкаamp cloth and then dry thoroughly. Avoid using solvents or abrasive cleaners. Keep the hot shoe contacts clean and free of debris.

3. Зберігання

Store the X2T-N in a cool, dry place away from direct sunlight, high temperatures, and humidity. Protect it from dust and physical shocks.

Усунення несправностей

• Trigger not firing flashes:
  • Ensure the X2T-N and all flashes are powered on.
  • Verify that the channel and wireless ID settings match on both the trigger and the flashes.
  • Check battery levels in both the trigger and flashes.
  • Переконайтеся, що курок надійно закріплений на гарячому башмаку камери.
  • Confirm that the camera's flash settings are correctly configured for external flash.
• Inconsistent firing or interference:
  • Use the scan function to find a less congested channel.
  • Ensure there are no large metallic objects or other 2.4G devices causing interference between the trigger and flashes.
  • Reduce the distance between the trigger and flashes if operating near the maximum range.
• Camera battery drains quickly when trigger is mounted:
  • Some camera models may experience increased battery drain if the trigger's display remains active. Ensure the trigger is powered off when not in active use, or remove it from the hot shoe if the issue persists.
  • Check for any camera firmware updates that might address power management with accessories.
• Проблеми з підключенням Bluetooth:
  • Ensure Bluetooth is enabled on both the X2T-N and your smartphone.
  • Restart both the trigger and the smartphone.
  • Reinstall the GodoxPhoto APP if necessary.

Технічні характеристики

Гарантія та підтримка

Щоб отримати інформацію про гарантію та технічну підтримку, зверніться до документації, що додається до вашого продукту, або відвідайте офіційний веб-сайт Godox. website. Keep your proof of purchase for any warranty claims. Godox is committed to providing professional and high-quality lighting solutions.
